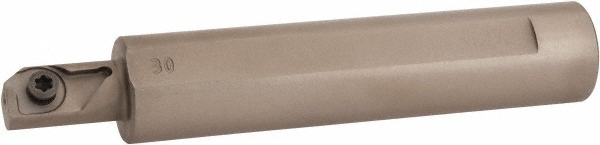

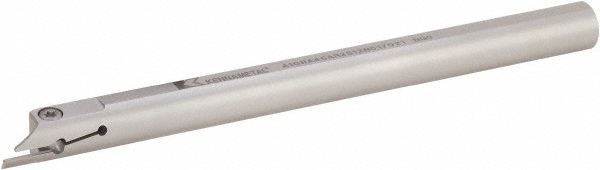

14 mm Max Depth of Cut, 1 Dia, Through Coolant
| Insert Seat Size | 3S |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 14.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | A4SS |
| Insert Holding Method | Clamp |

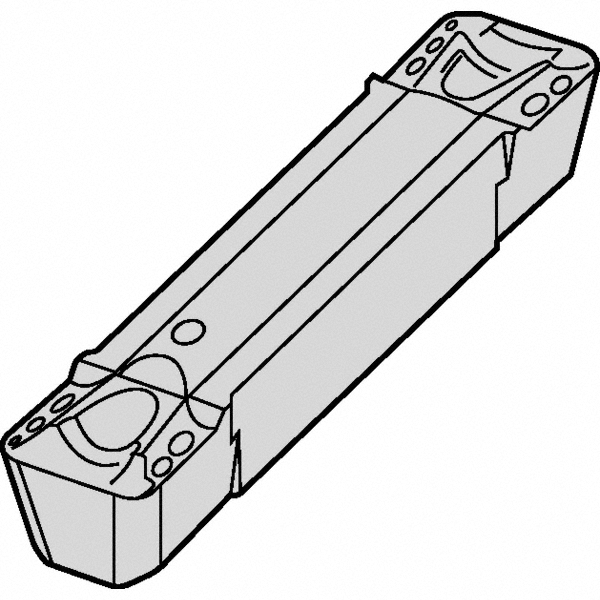

| Insert Compatibility | A4G0300M3SP04B |
| Series | A4 |
| Shank Length (mm) | 165.10 |
| Shank Length (Decimal Inch) | 6.5000 |
| Overall Length (mm) | 203.5 |
| Overall Length (Decimal Inch) | 8.0118 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4173 |
| Maximum Workpiece Diameter (mm) | 36.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4539 |
| Center to Cutting Edge (mm) | 11.53 |
| Minimum Hole Diameter (mm) | 26.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.0236 |
| Head Length (Decimal Inch) | 1.5118 |
| Head Length (mm) | 38.40 |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 1.4170 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.0240 |
| Complete Insert Compatibility | A4G0300M3SP04B |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 58466855 |
