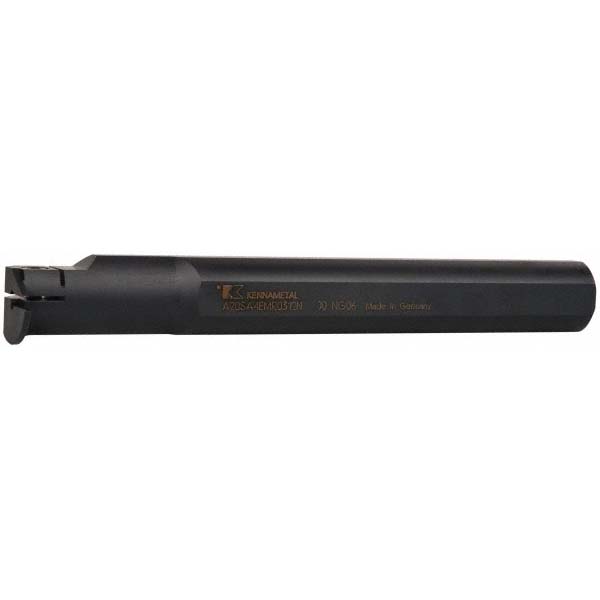

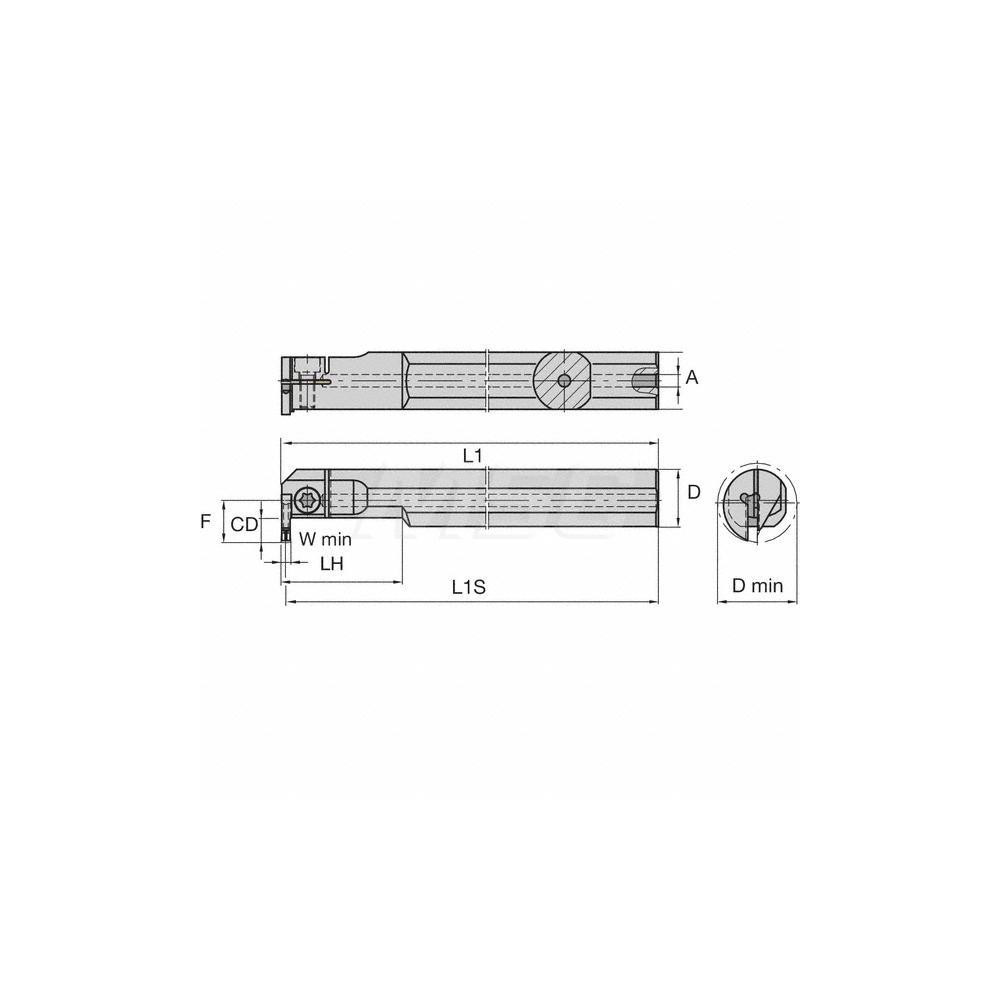

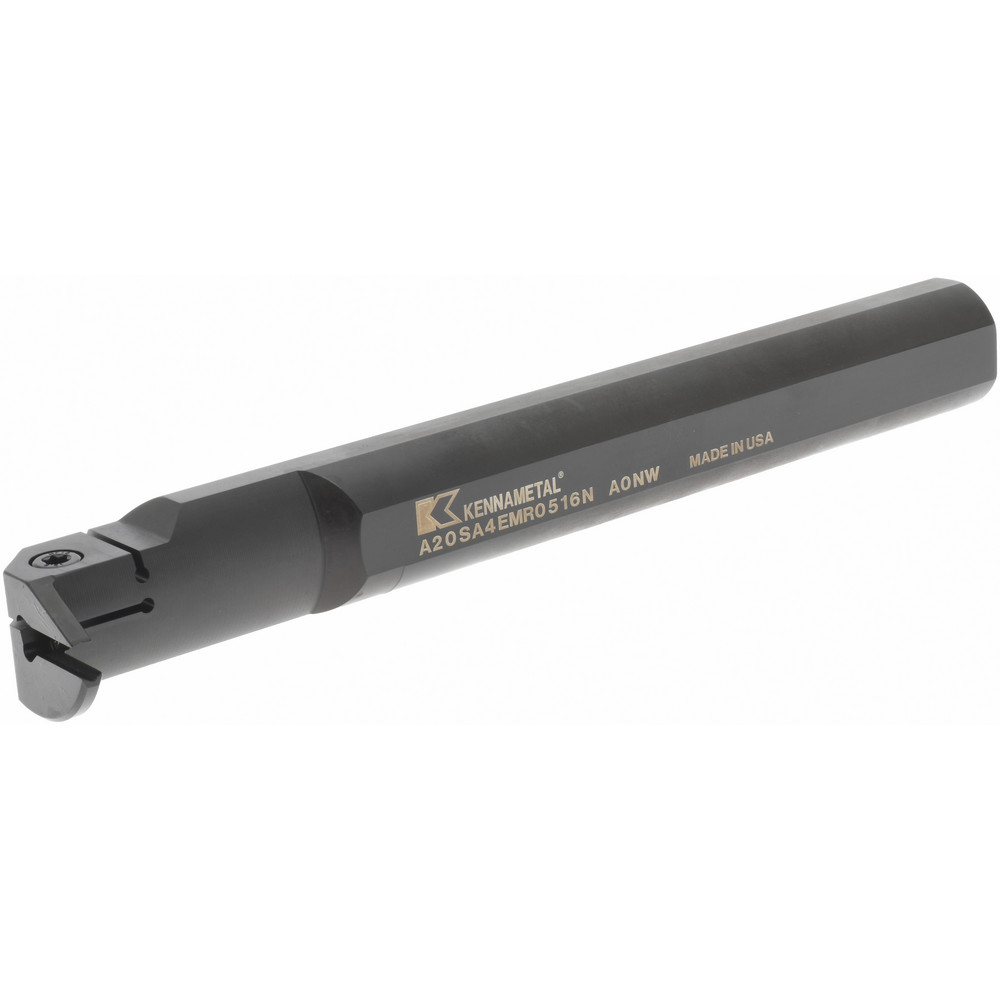

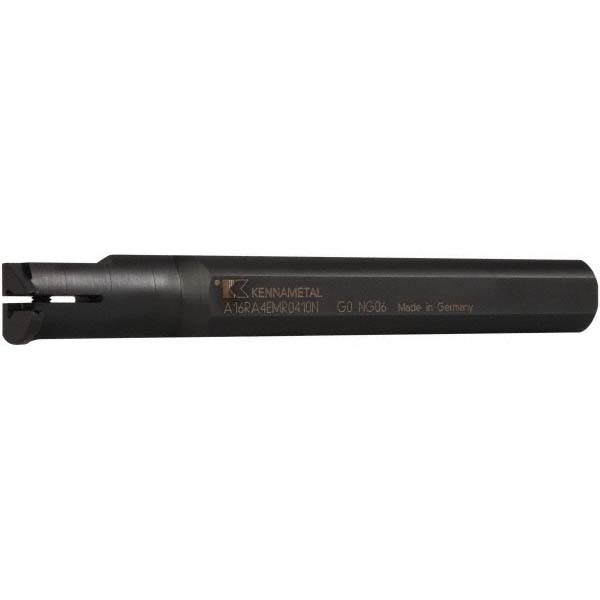

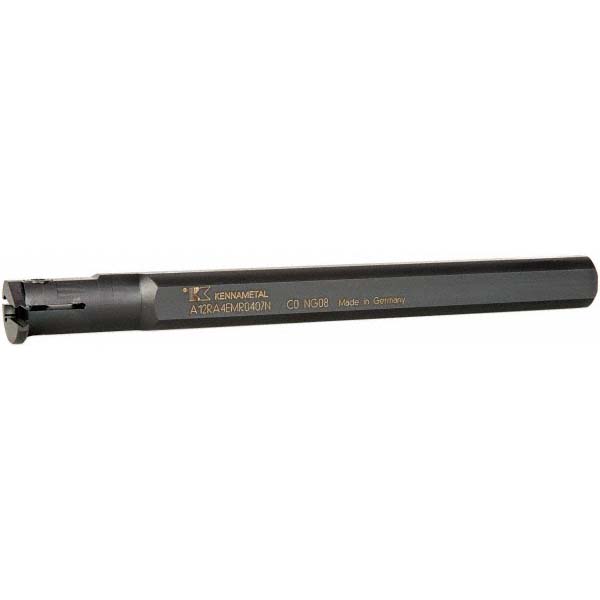

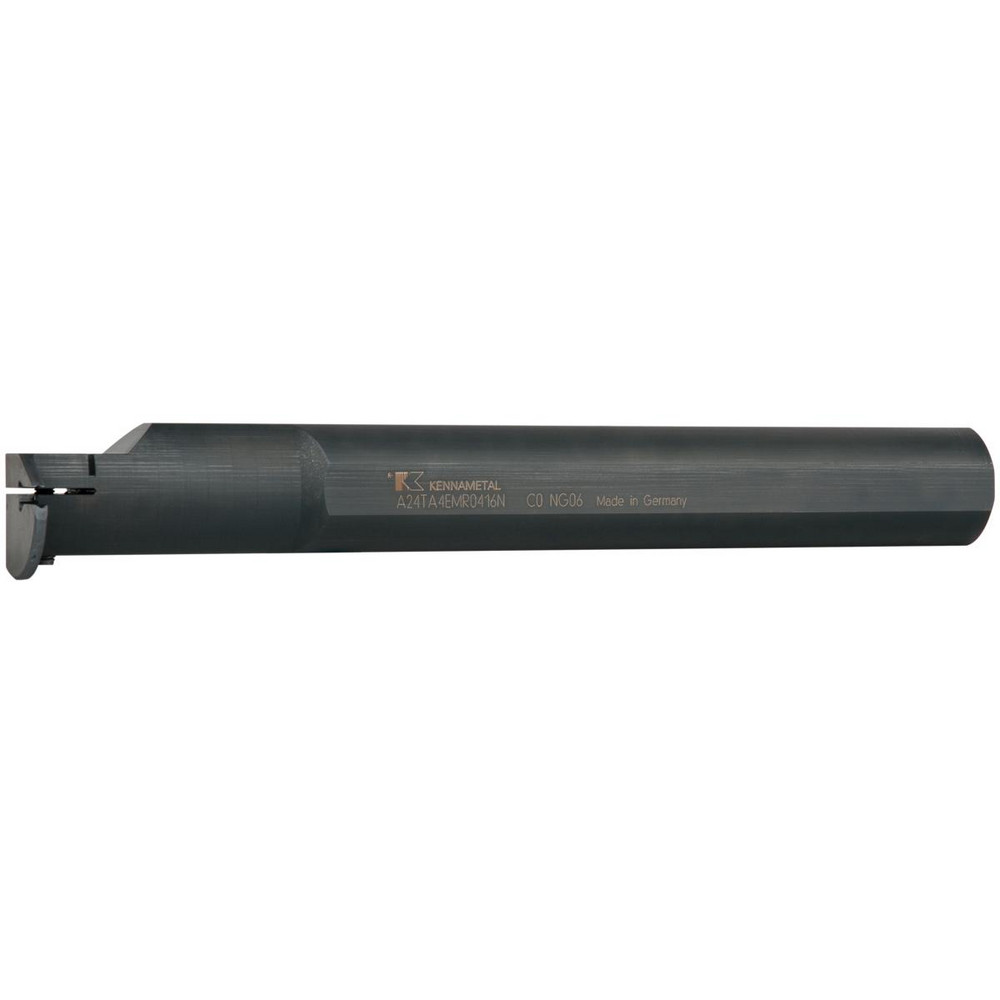

0.472" Max Depth of Cut, 31.75 mm Shank Dia, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | A-A4E |
| Insert Holding Method | Clamp |

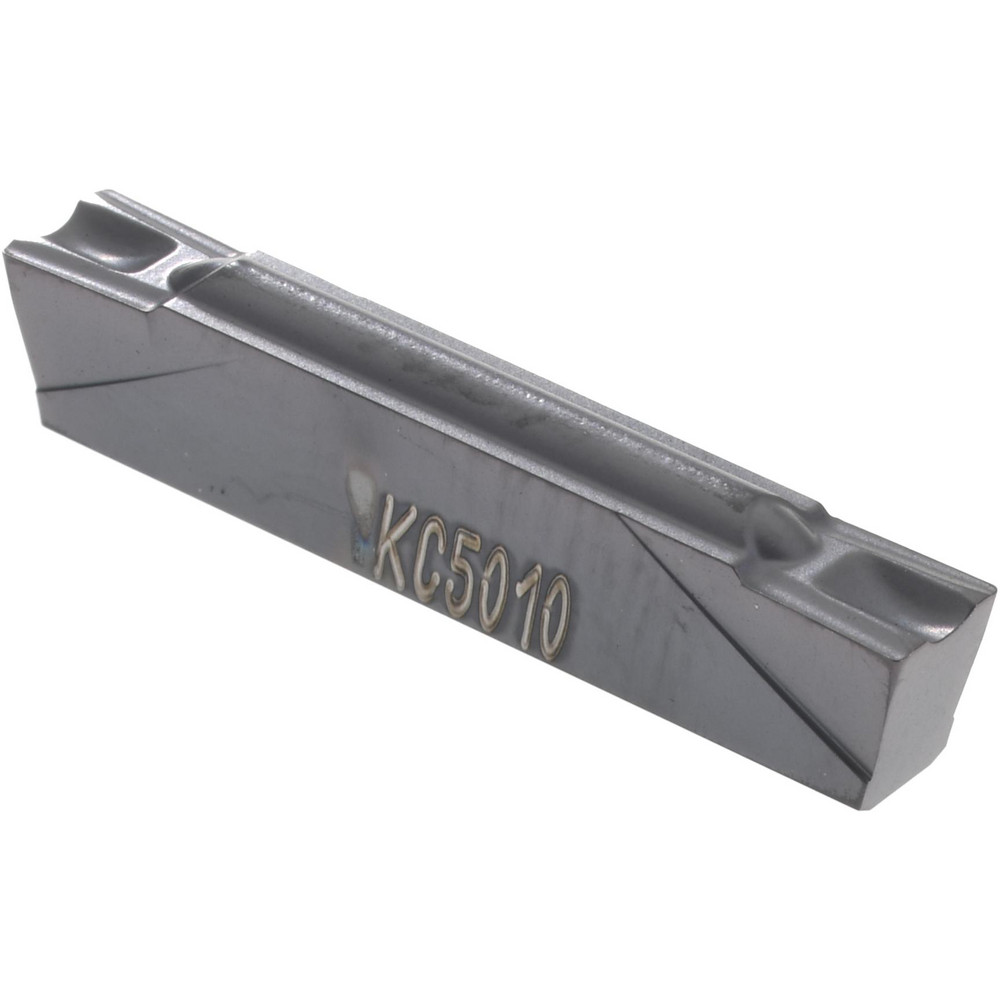

| Insert Compatibility | A4..03.. |
| Series | A4 |
| Overall Length (mm) | 254 |
| Overall Length (Decimal Inch) | 10 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8661 |
| Center to Cutting Edge (Decimal Inch) | 0.8660 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5750 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 2.5200 |
| Toolholder Material | Steel |
| MSC/Manufacturer Number | A20SA4EMR/L0312N |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
