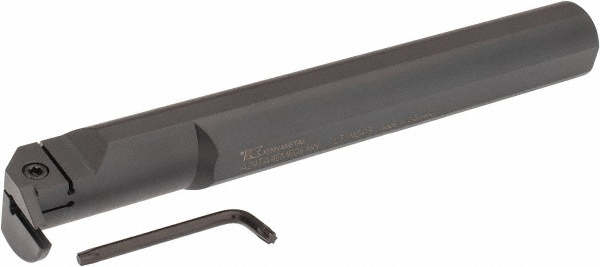

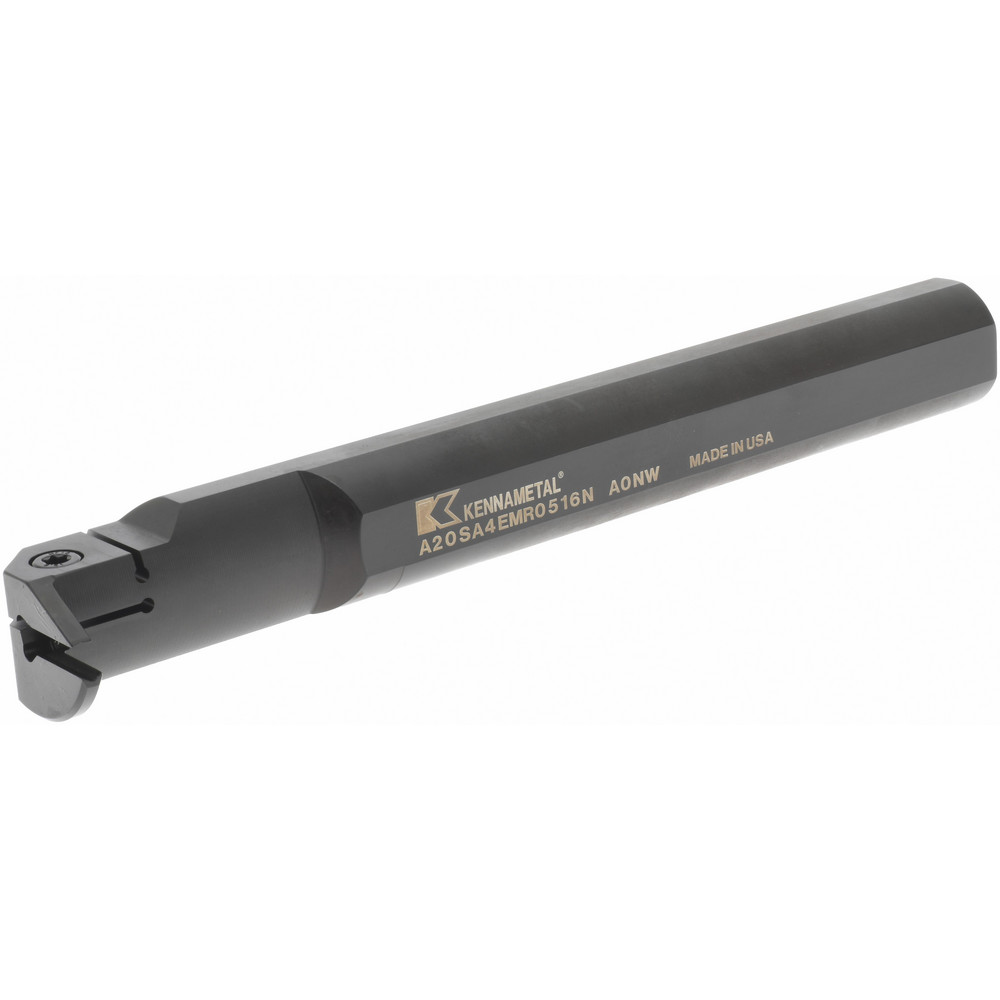

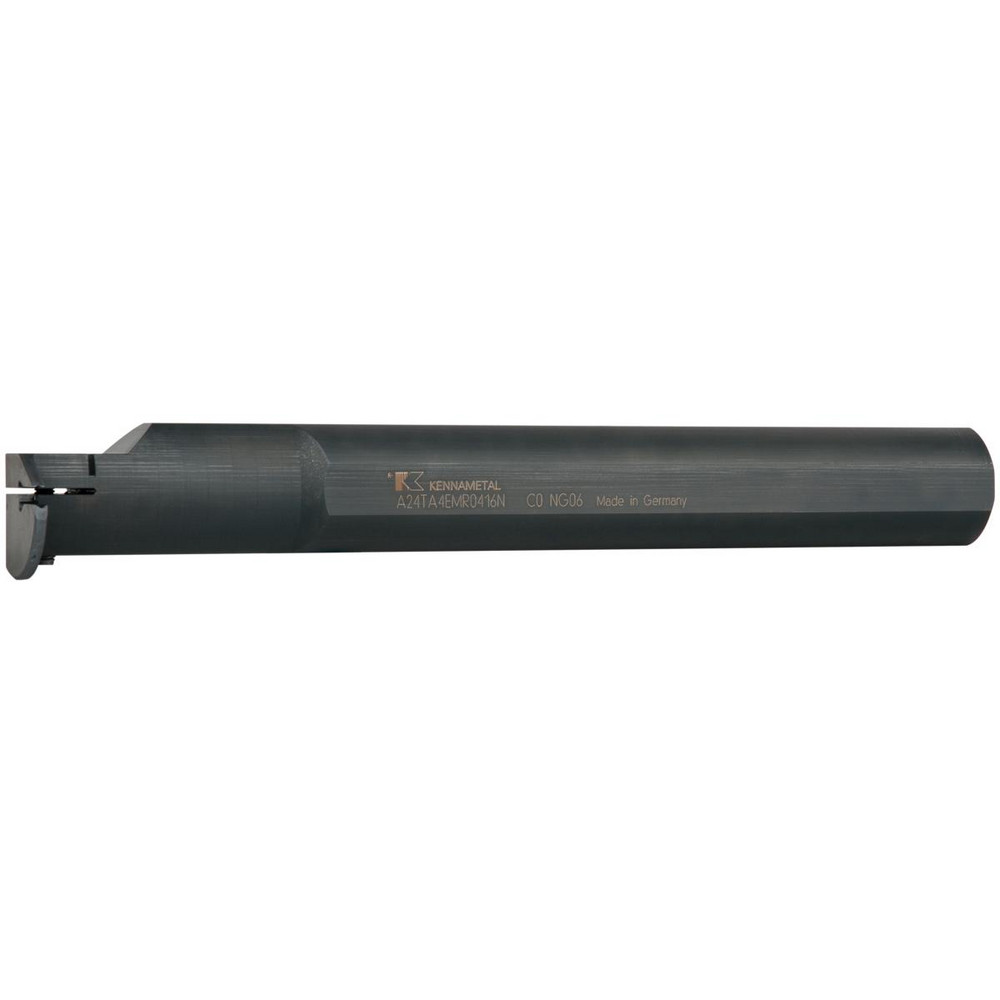

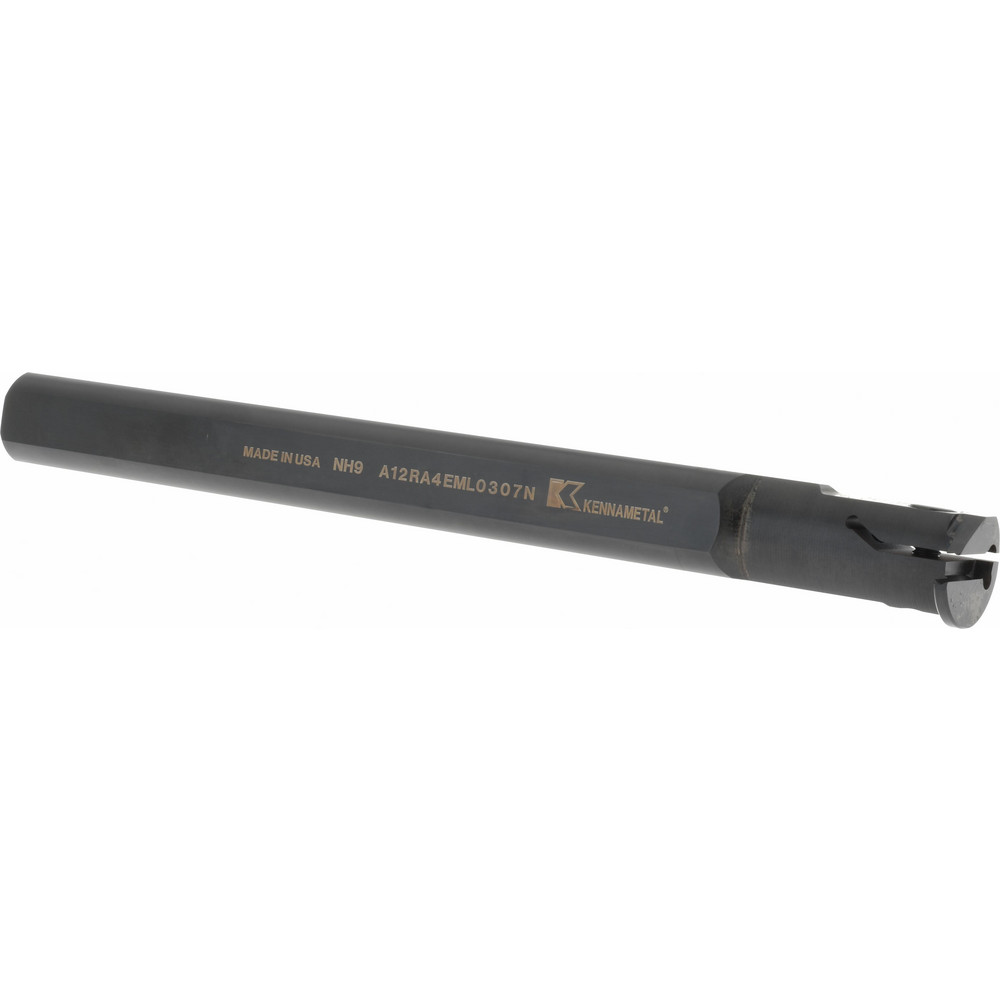

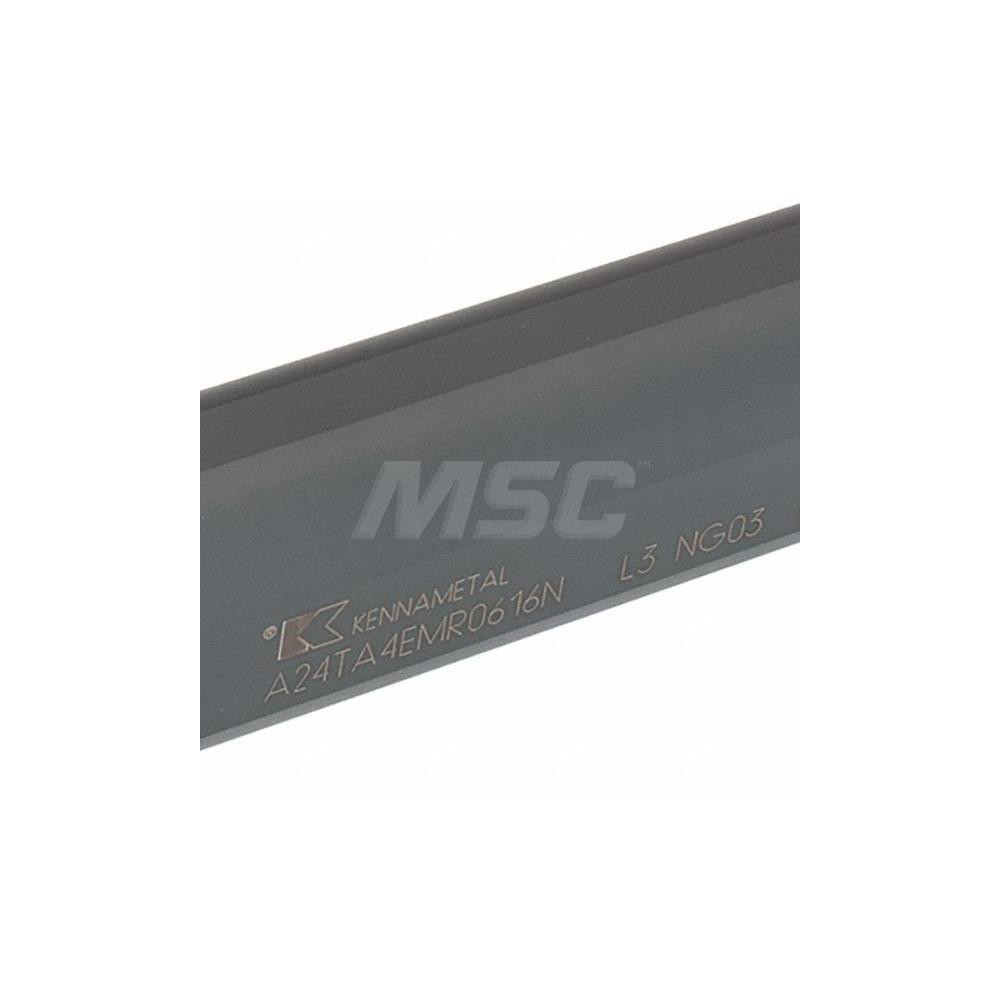

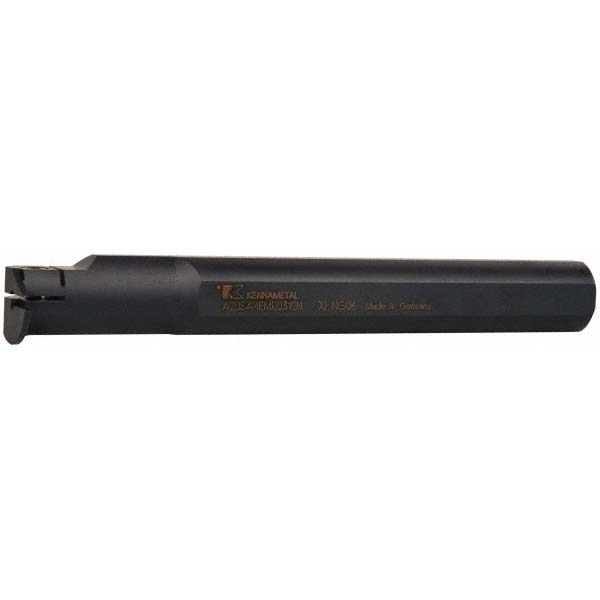

0.63" Max Depth of Cut, 1-1/2 Dia, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 6 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | A-A4E |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..06.. |
| Series | A4 |
| Overall Length (mm) | 304.8 |
| Overall Length (Decimal Inch) | 12 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 1.1810 |
| Minimum Hole Diameter (mm) | 52.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.0470 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 3.1500 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 48418800 |
