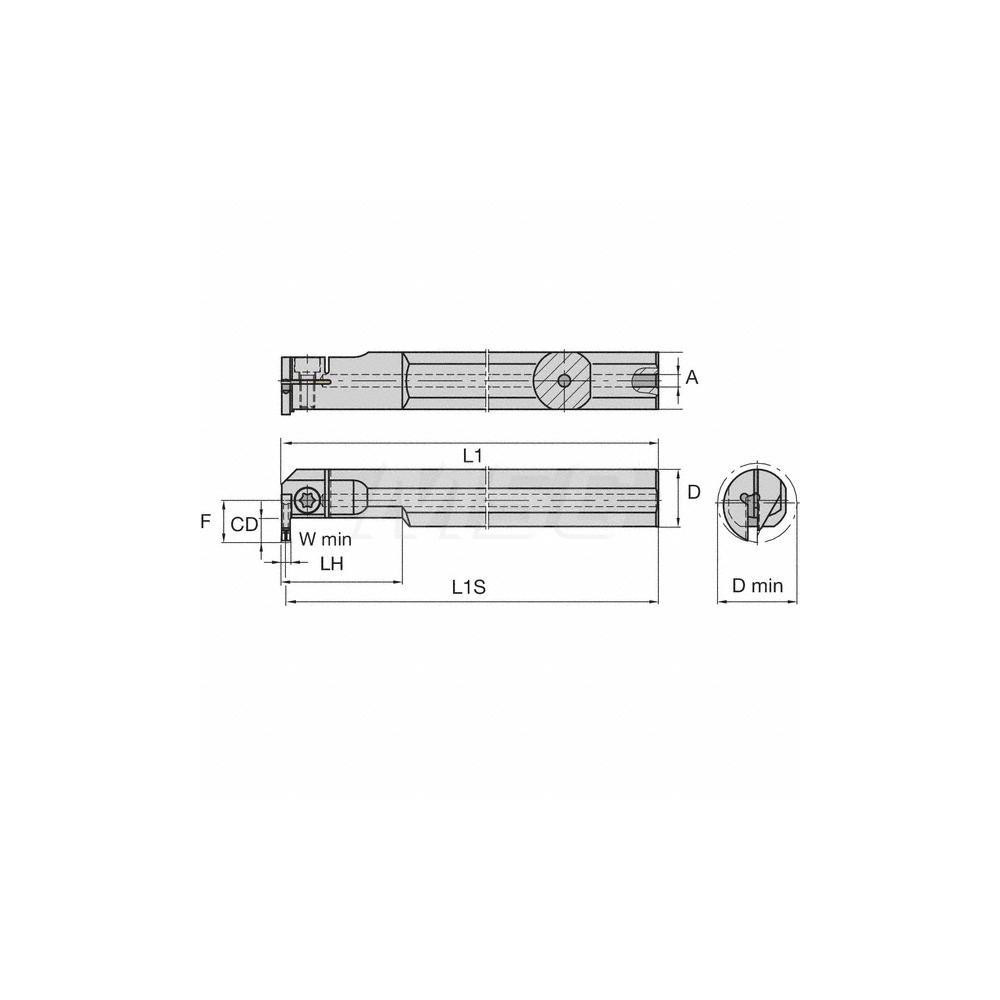

16 mm Max Depth of Cut, 40 mm Shank Dia, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 4 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | A-A4E |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..04.. |
| Series | A4 |
| Overall Length (mm) | 300 |
| Overall Length (Decimal Inch) | 11.811 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (mm) | 6.00 |
| Center to Cutting Edge (mm) | 30.00 |
| Minimum Hole Diameter (mm) | 52.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.0472 |
| Head Length (mm) | 80.00 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 48418644 |
