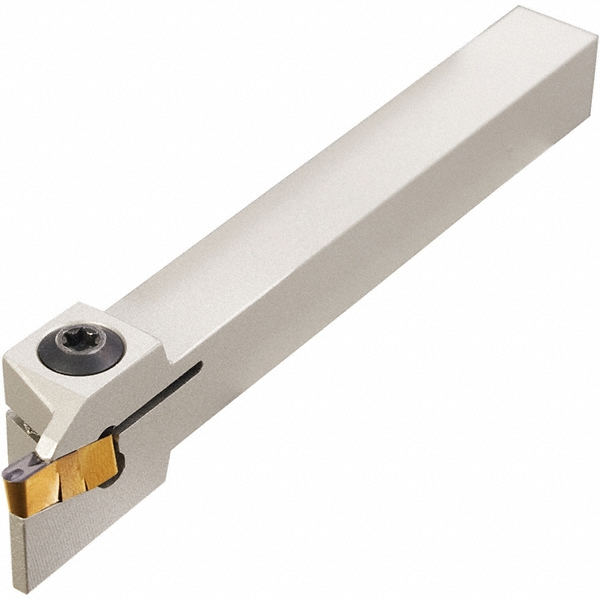

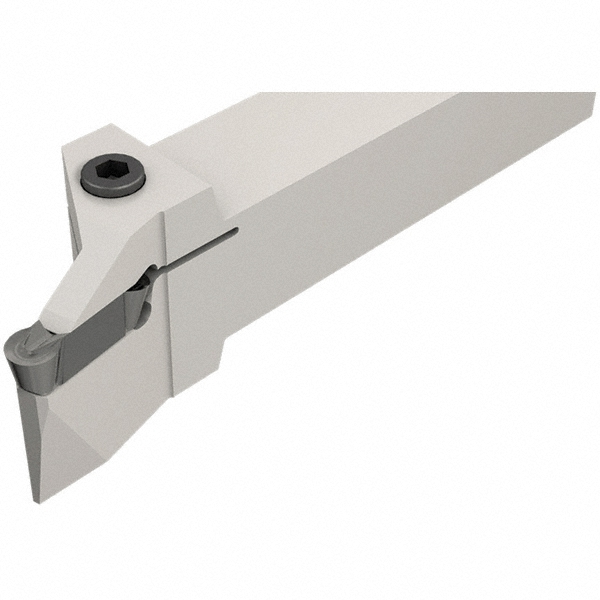

19 mm Max Depth of Cut, 25.4 x 25.4 mm Shank
| Insert Seat Size | 4S |
|---|---|
| Hand of Holder | Right Hand |

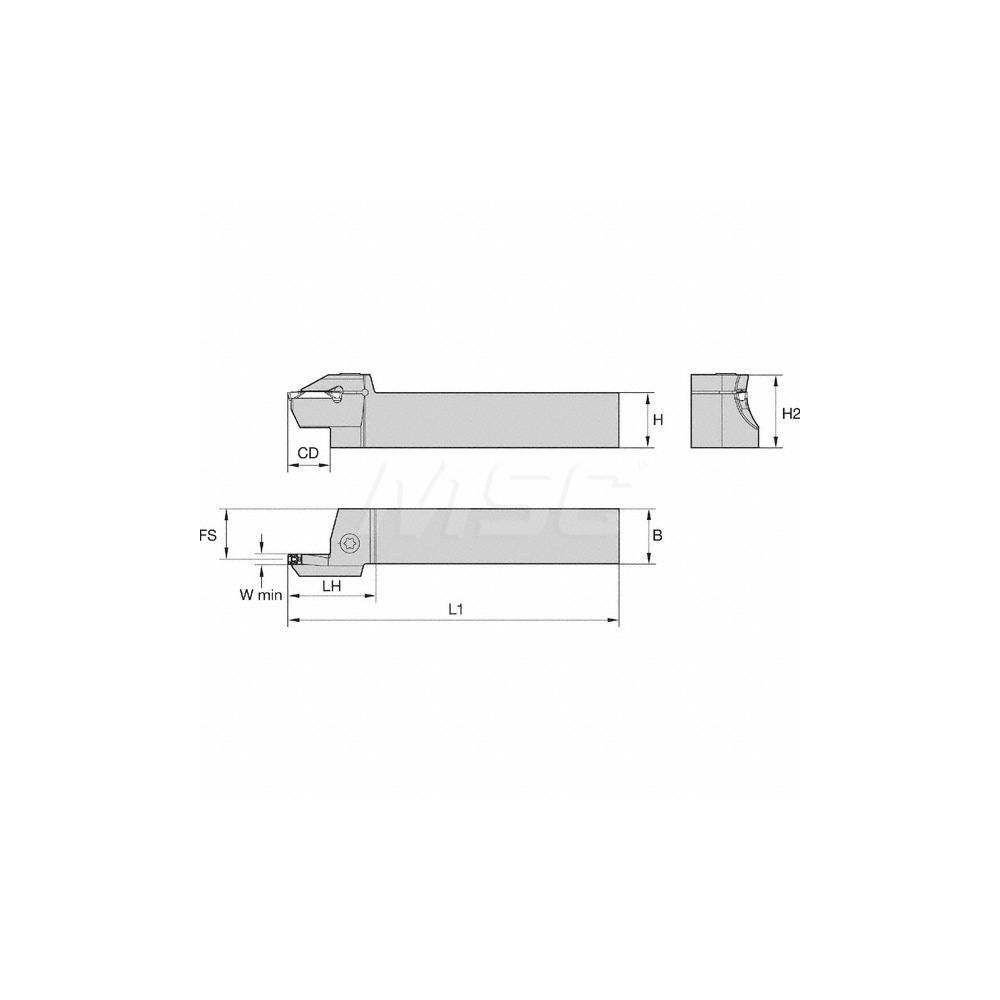

| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 19.00 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | A4SB |
| Insert Holding Method | Clamp |

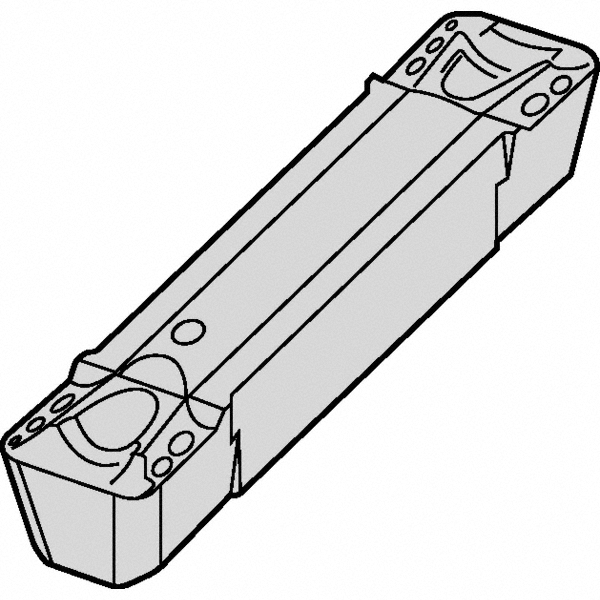

| Insert Compatibility | A4G0500M4SP04B |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | A4 |
| Shank Length (mm) | 112.52 |
| Shank Length (Decimal Inch) | 4.4300 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 2.2835 |
| Maximum Workpiece Diameter (mm) | 58.00 |
| Back of Bar to Cutting Edge (mm) | 23.09 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9090 |
| Head Height (Decimal Inch) | 1.3150 |
| Head Height (mm) | 33.40 |
| Head Length (Decimal Inch) | 1.57 |
| Head Length (mm) | 39.88 |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 2.2840 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.4960 |
| Complete Insert Compatibility | A4G0500M4SP04B |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 58467077 |
