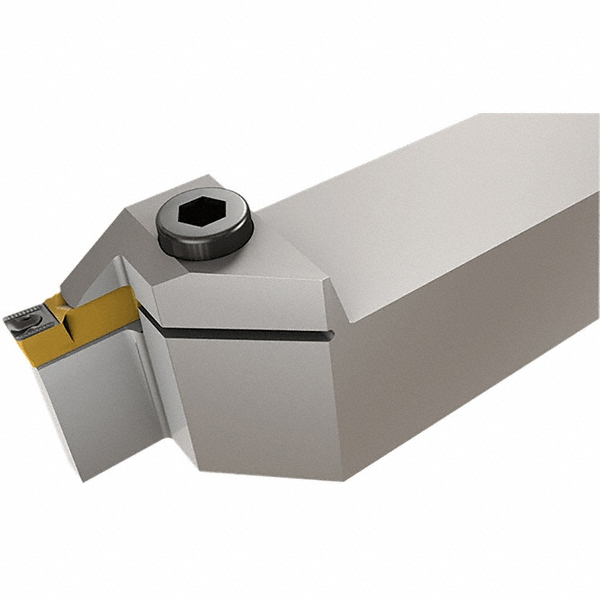

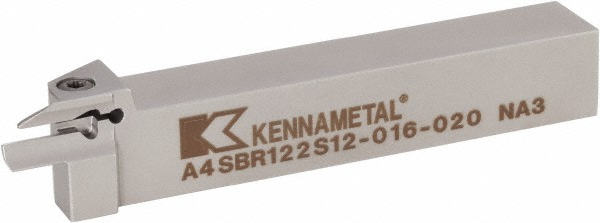

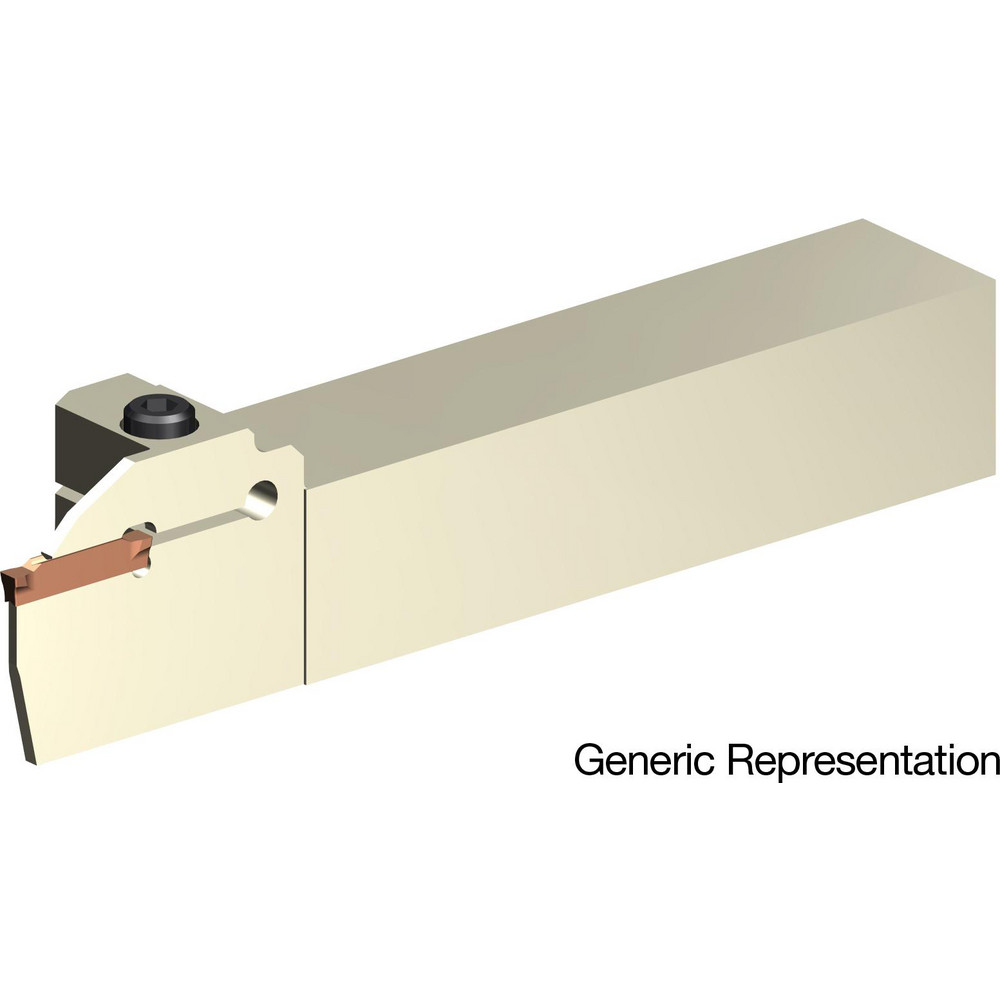

12 mm Max Depth of Cut, 20 x 20 mm Shank
| Insert Seat Size | 2S |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | A4SB |
| Insert Holding Method | Clamp |

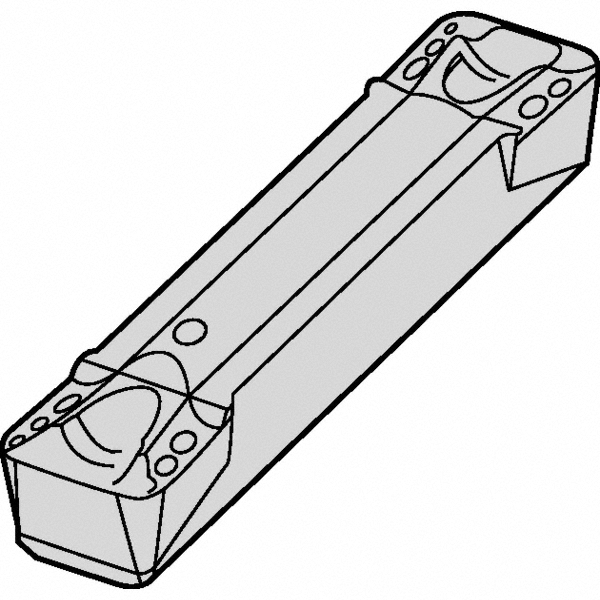

| Insert Compatibility | A4G0200M2SP02B |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | A4 |
| Shank Length (mm) | 97.30 |
| Shank Length (Decimal Inch) | 3.8307 |
| Overall Length (mm) | 125.3 |
| Overall Length (Decimal Inch) | 4.9331 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7874 |
| Maximum Workpiece Diameter (mm) | 20.00 |
| Back of Bar to Cutting Edge (mm) | 19.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7559 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Head Length (mm) | 28.00 |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 20.00 |
| Minimum Axial Groove Inside Diameter(mm) | 16.00 |
| Complete Insert Compatibility | A4G0200M2SP02B |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 58467036 |
