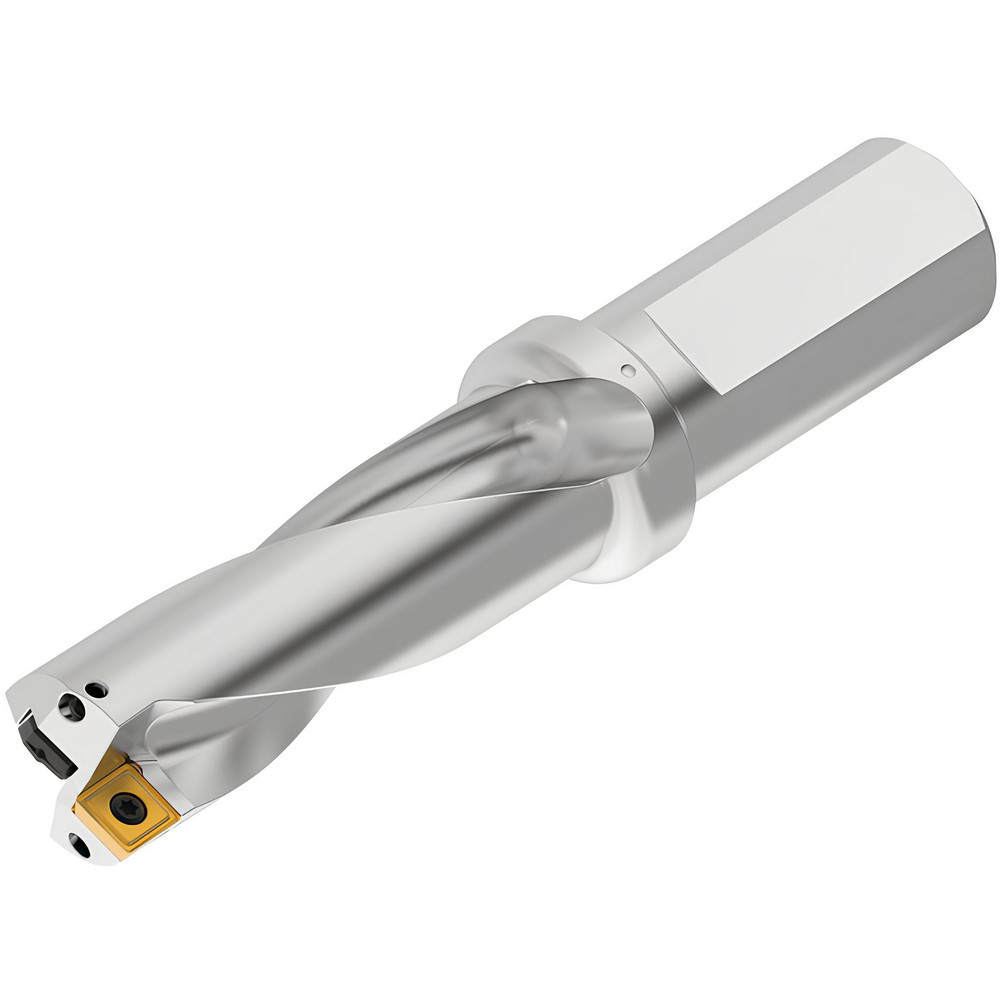

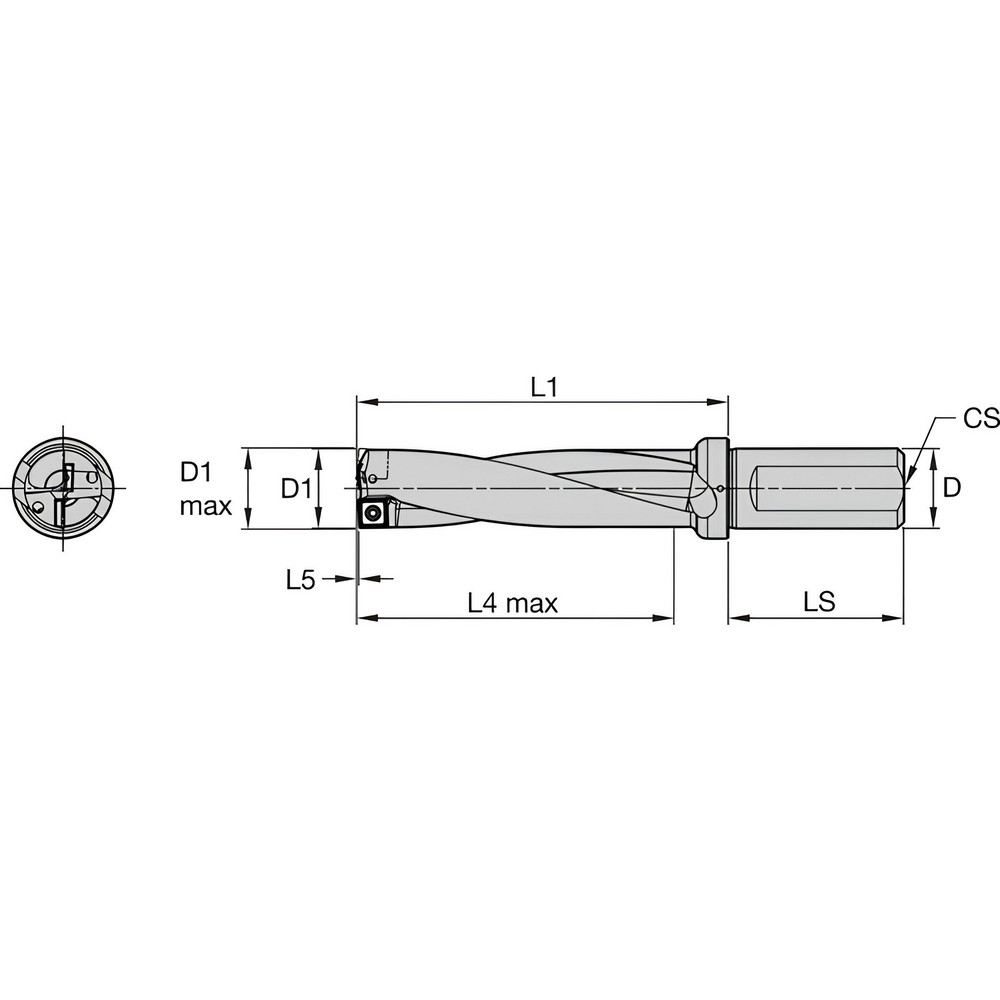

Weldon Flat & Flange Shank, Uses DFPR 110406 & 120405 Inserts, Series DFPR
| Compatible Drill Style | DFPR |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.4770 |
| Maximum Drill Depth (Decimal Inch) | 5.7520 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 110406; 120405 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.4120 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 5.7520 |
| Body Length (Decimal Inch) | 6.6570 |
| Shank Length (Decimal Inch) | 2.7550 |
| Shank Length (mm) | 70.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4690x0.1420; 0.4450x0.1420 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR120405__I; DFPR110406__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4-0.7x8.4T15 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 02112589 |
