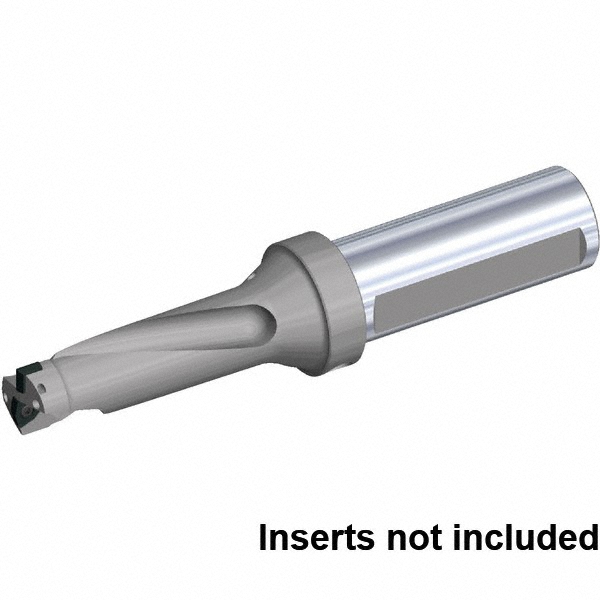

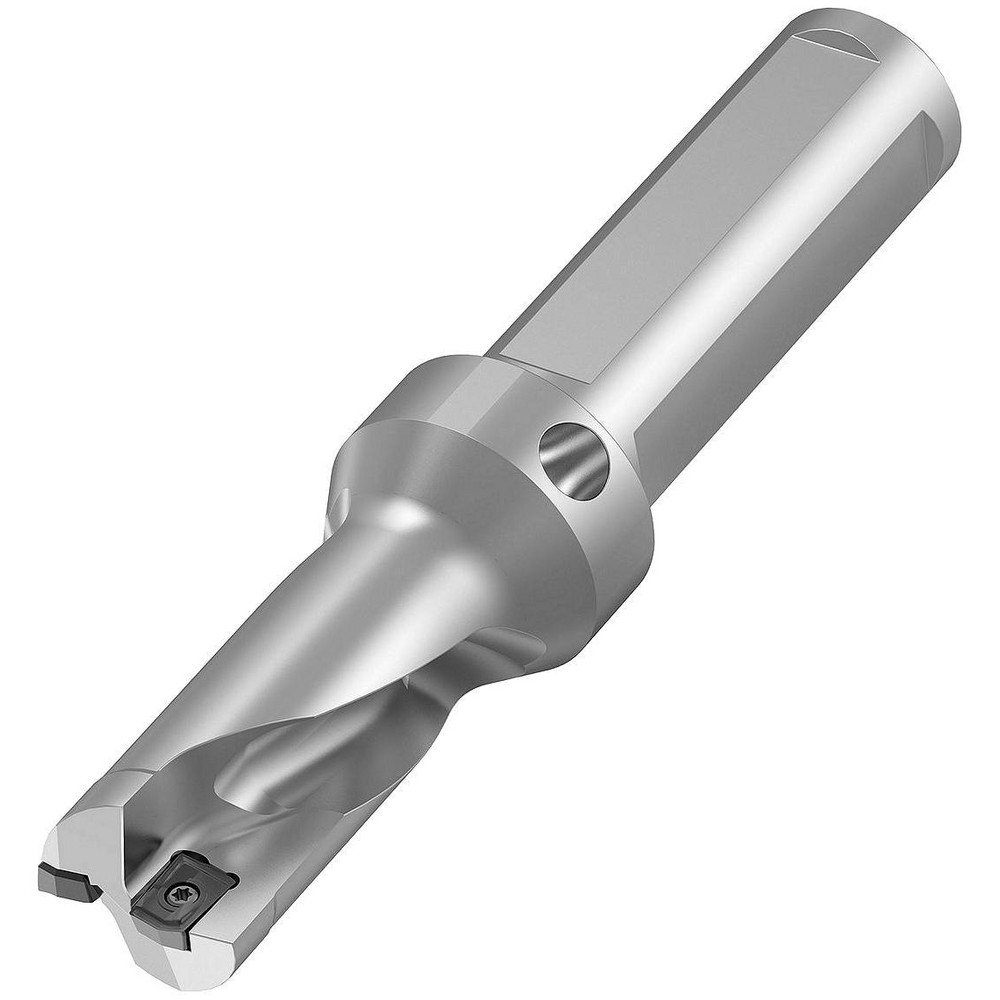

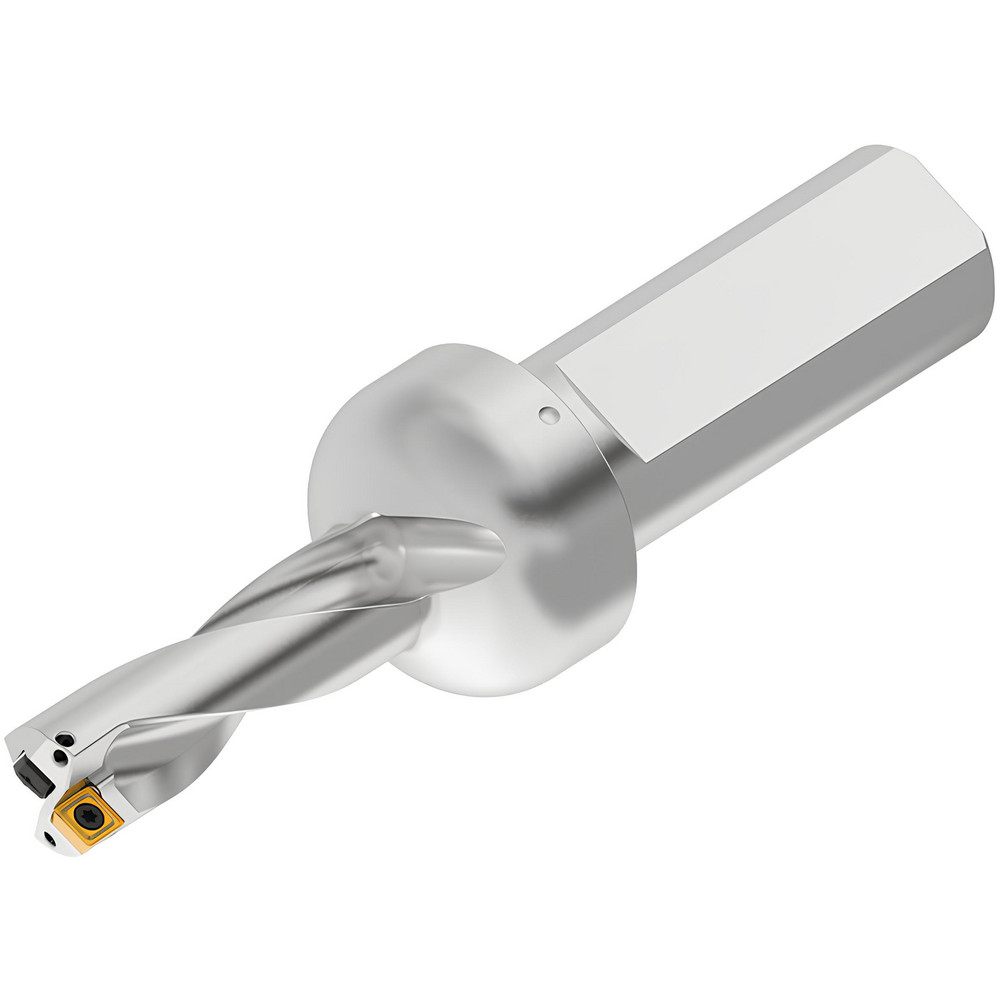

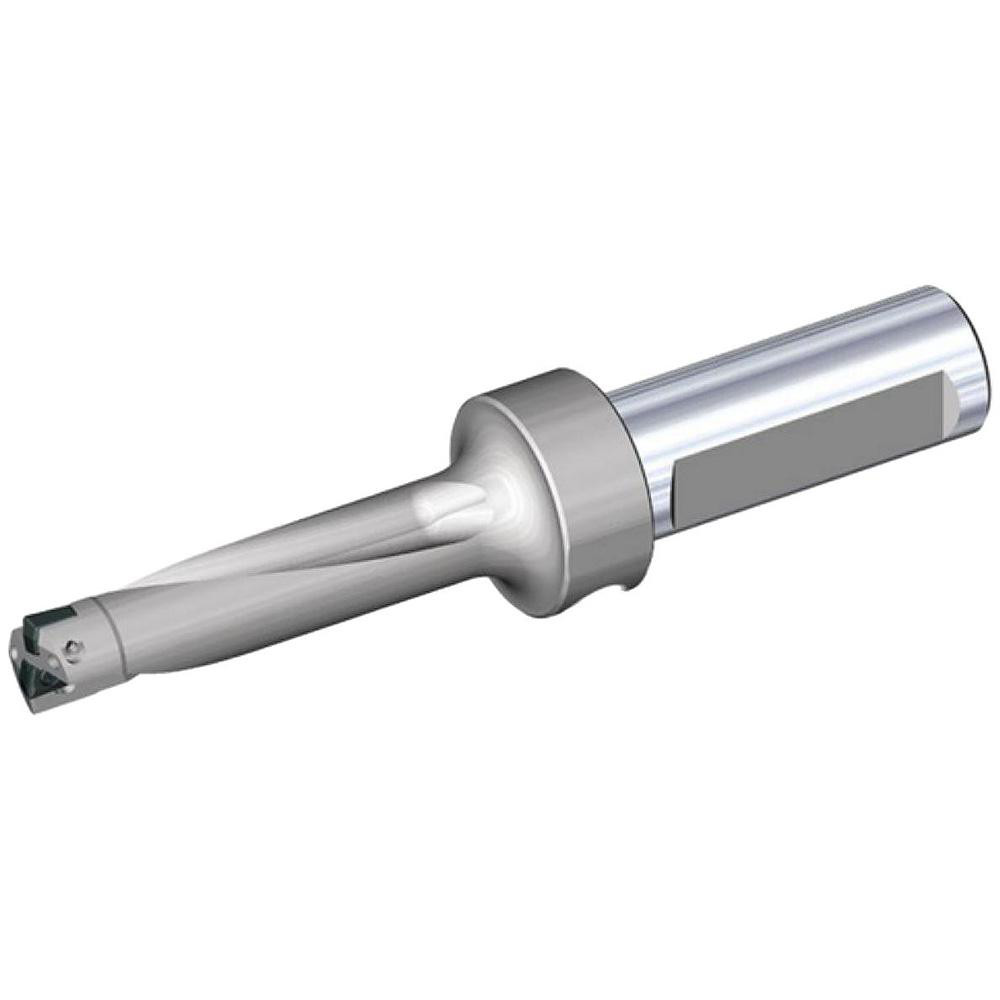

Weldon Flat & Flange Shank, Uses DFR 0202.. Inserts, Series DFR
| Compatible Drill Style | DFR |
|---|---|
| Maximum Drill Diameter (mm) | 16.87 |
| Maximum Drill Diameter (Decimal Inch) | 0.6644 |
| Maximum Drill Depth (Inch) | 1-7/8 |
| Maximum Drill Depth (Decimal Inch) | 1.8750 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFR |
| Compatible Insert Size Code | 0202.. |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.8270 |
| Series | DFR |
| Flute Length (Decimal Inch) | 1.8750 |
| Body Length (mm) | 71.37 |
| Body Length (Decimal Inch) | 2.8270 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2803x0.1929x0.1098 |
| Insert Size (mm) | 7.12x4.90x2.79 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFR0202. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Insert Lock Screw | M2-0.4x4.5T6 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01278209 |
