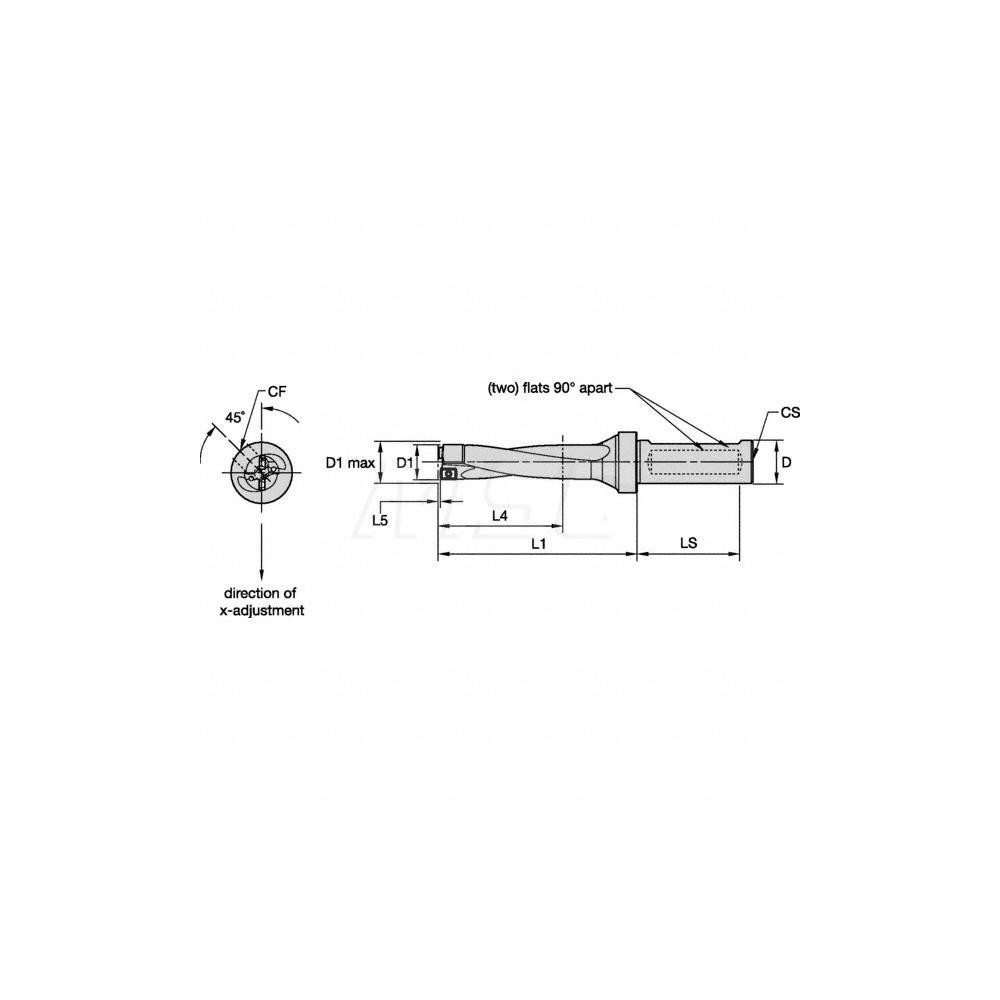

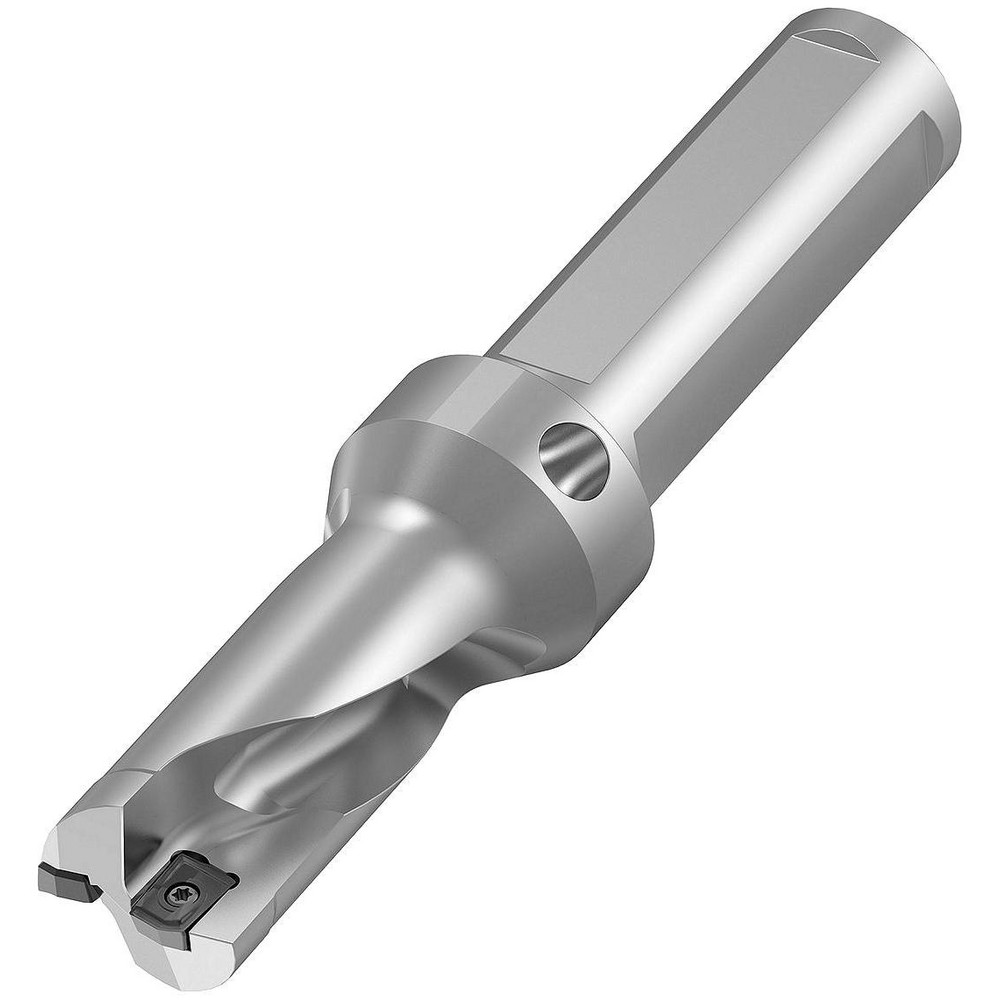

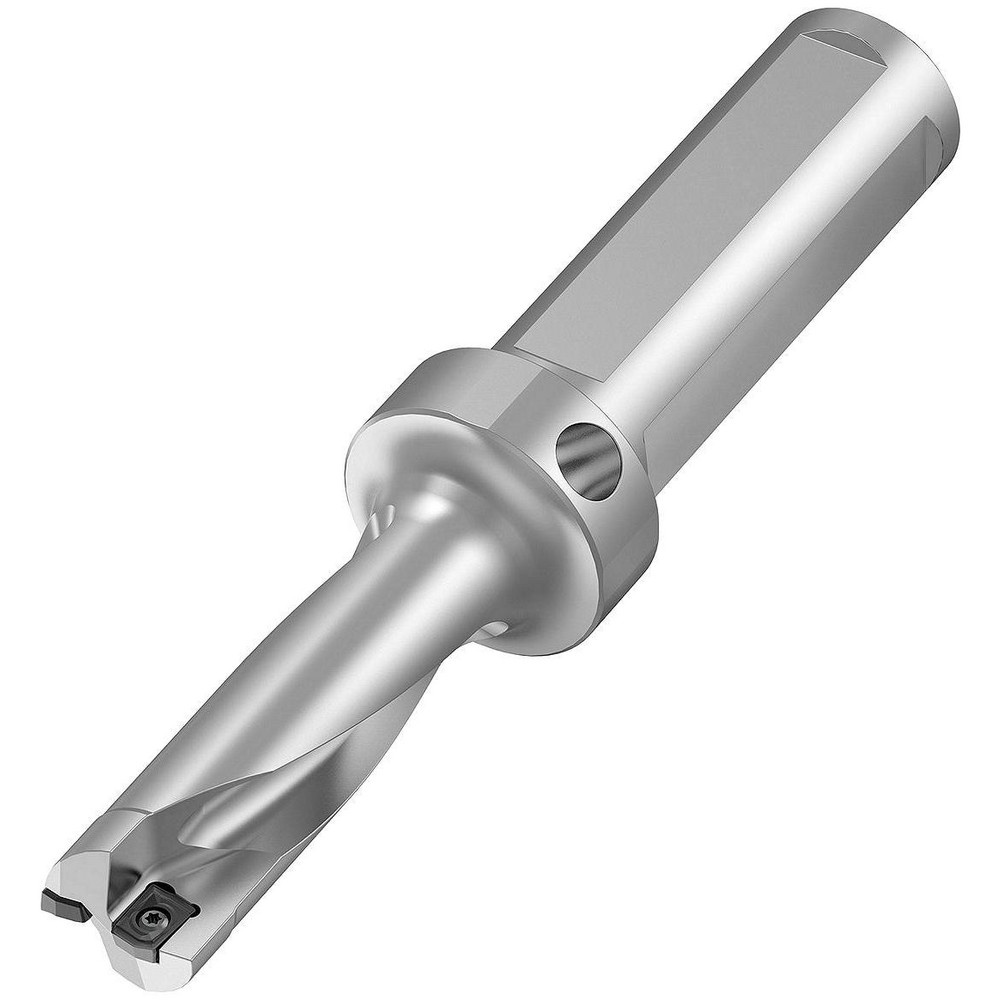

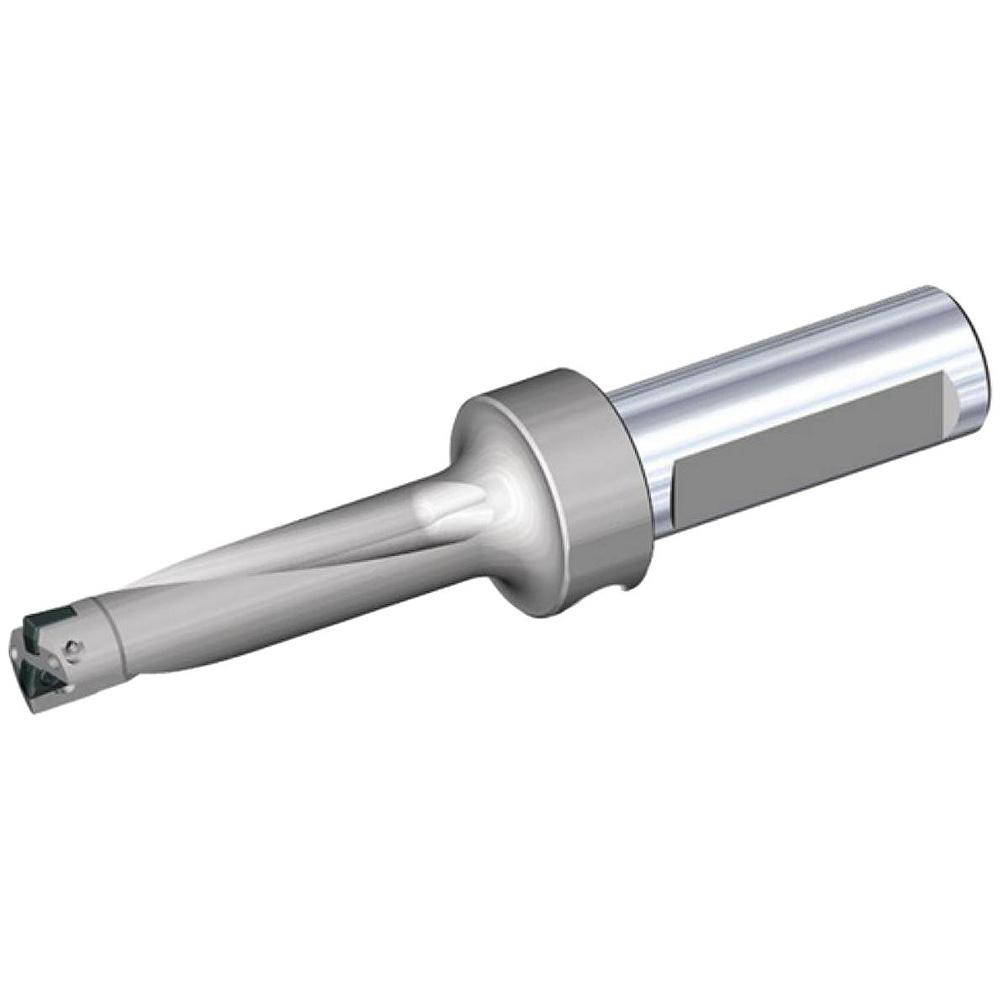

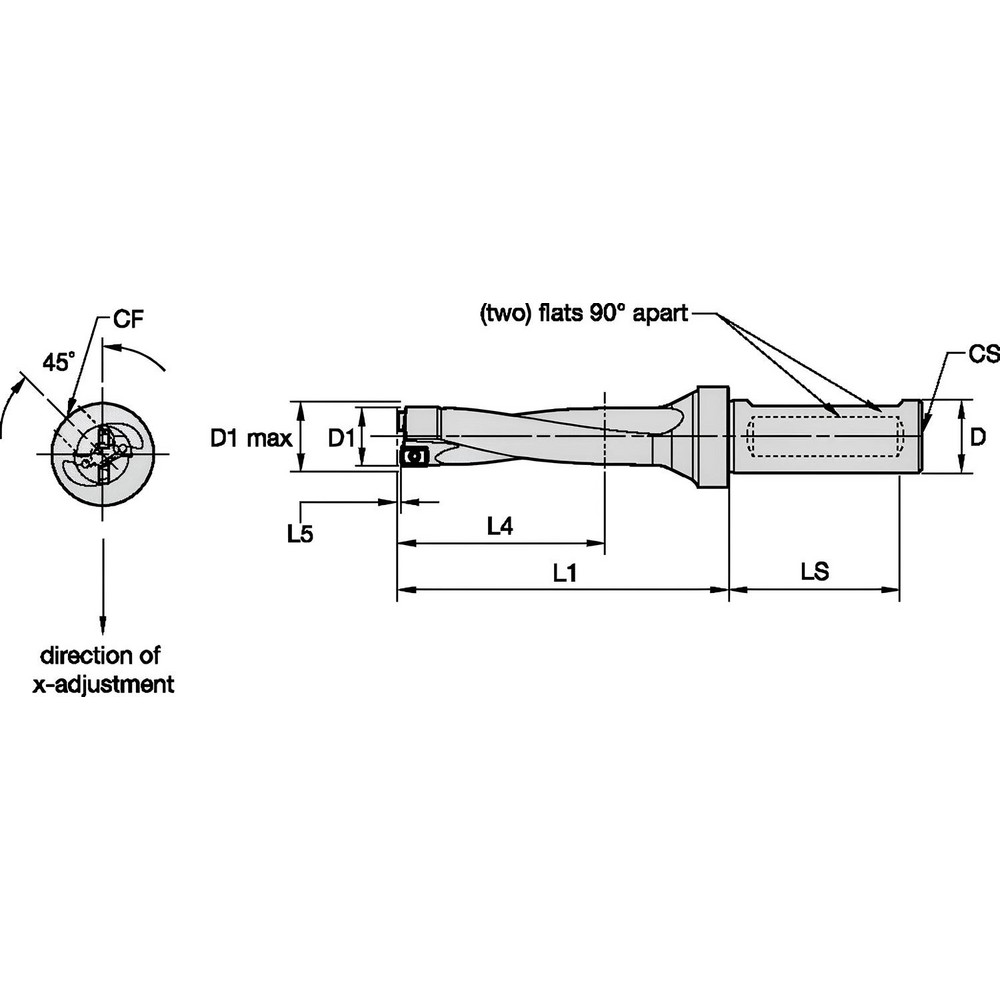

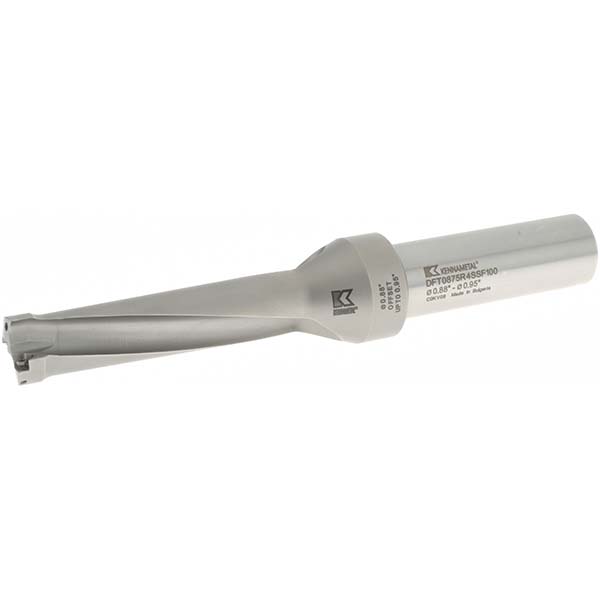

Weldon Flat & Flange Shank, Uses DFR 0302.. Inserts, Series DFR
| Compatible Drill Style | DFR |
|---|---|
| Maximum Drill Diameter (mm) | 18.87 |
| Maximum Drill Diameter (Decimal Inch) | 0.7424 |
| Maximum Drill Depth (Decimal Inch) | 2.8120 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFR |
| Compatible Insert Size Code | 0302.. |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.8290 |
| Series | DFR |
| Flute Length (Decimal Inch) | 2.8120 |
| Body Length (mm) | 96.77 |
| Body Length (Decimal Inch) | 3.8290 |
| Shank Length (Decimal Inch) | 3.0000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3429x0.2362x0.1134 |
| Insert Size (mm) | 8.71x6.00x2.88 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFR0302. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M2.2-0.45x5.2T7 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 64919020 |
