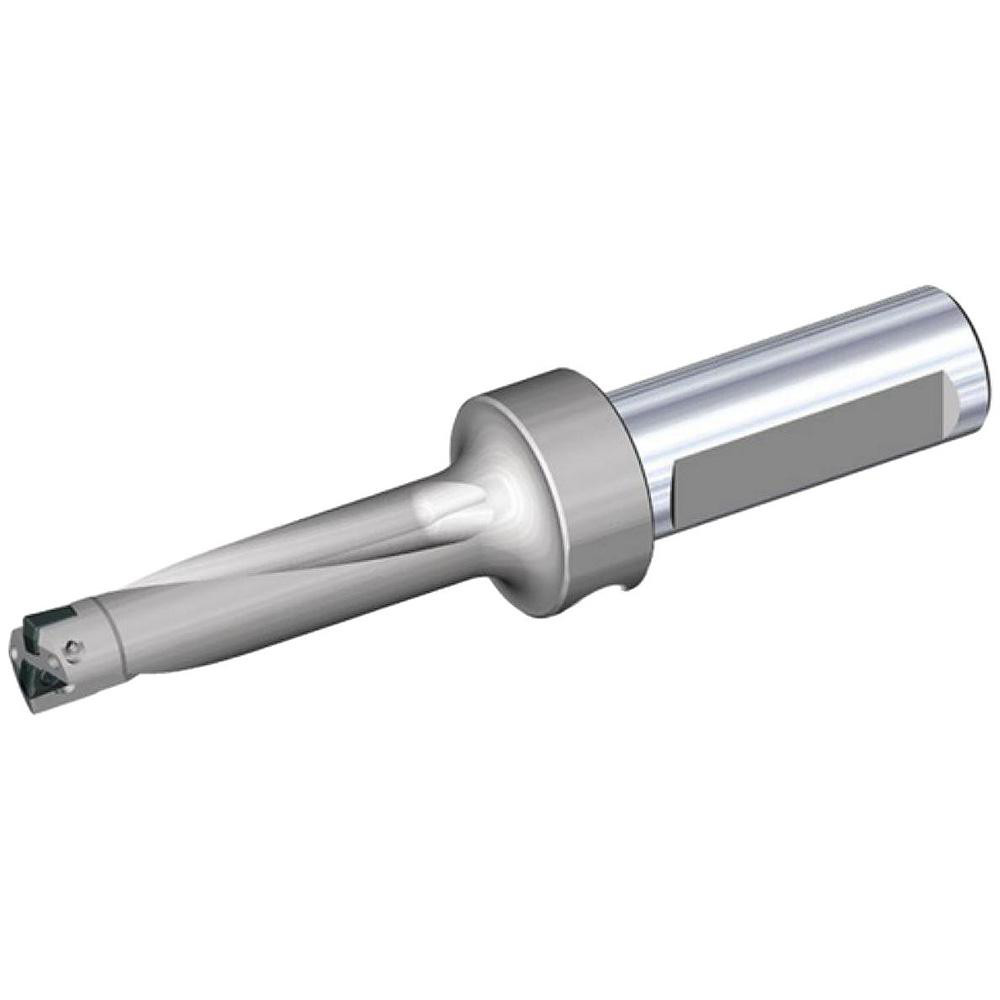

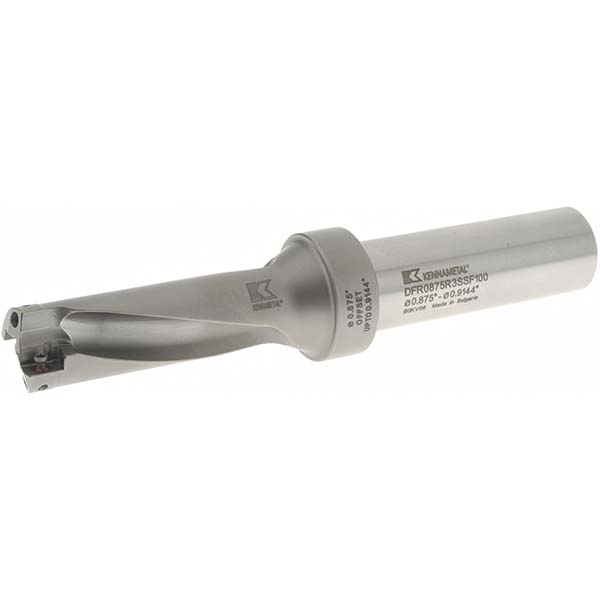

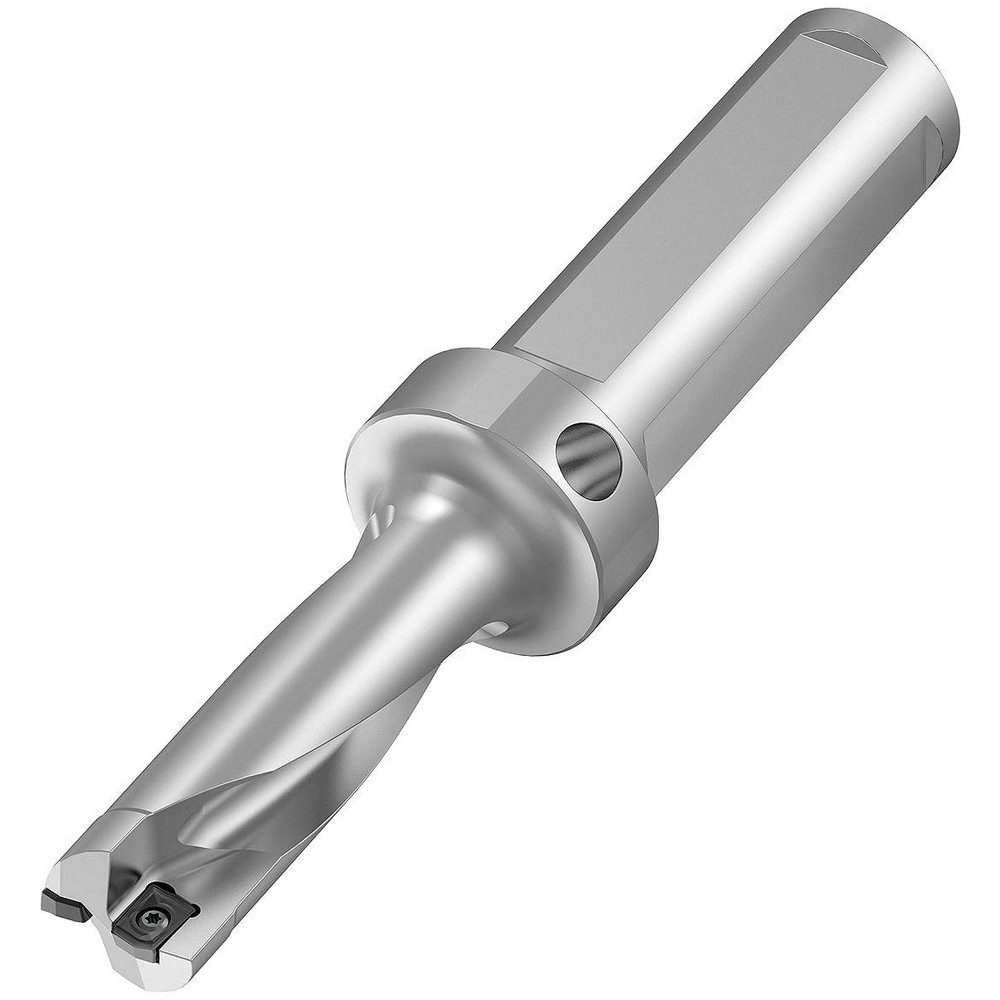

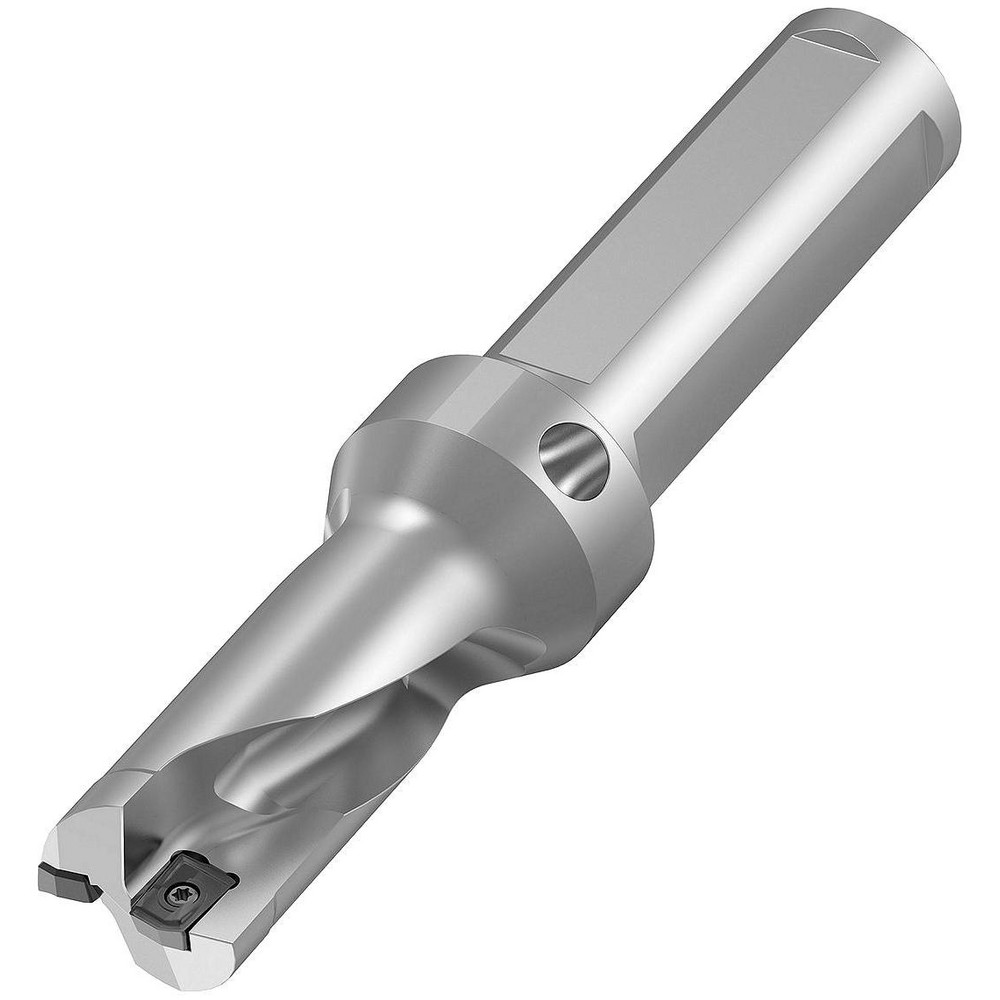

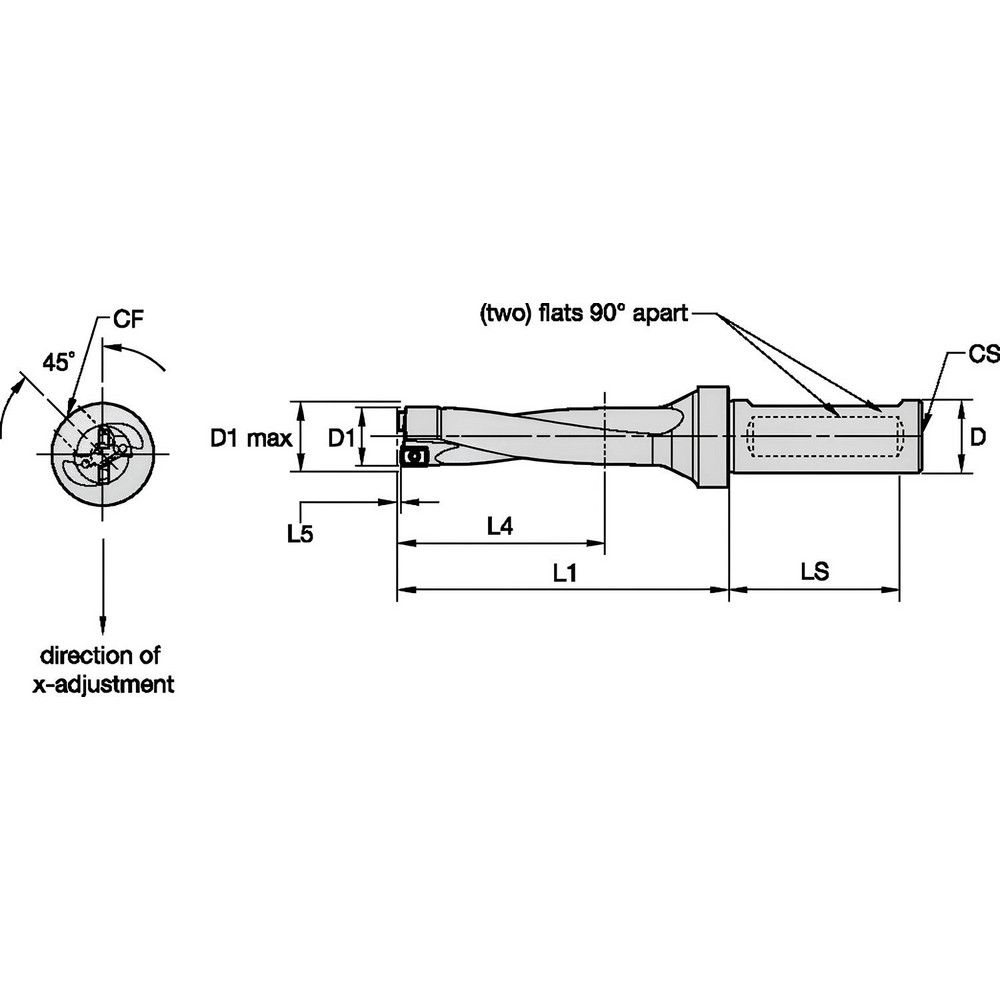

Weldon Flat & Flange Shank, Uses DFR 0403.. Inserts, Series DFR
| Compatible Drill Style | DFR |
|---|---|
| Maximum Drill Diameter (mm) | 24.03 |
| Maximum Drill Diameter (Decimal Inch) | 0.9454 |
| Maximum Drill Depth (Decimal Inch) | 3.6240 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFR |
| Compatible Insert Size Code | 0403.. |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.7390 |
| Series | DFR |
| Flute Length (Decimal Inch) | 3.6240 |
| Body Length (mm) | 119.89 |
| Body Length (Decimal Inch) | 4.7390 |
| Shank Length (Decimal Inch) | 3.0000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4236x0.2906x0.1492 |
| Insert Size (mm) | 10.76x7.38x3.79 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFR0403. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M2.5-0.45x5.9T8 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 64919103 |
