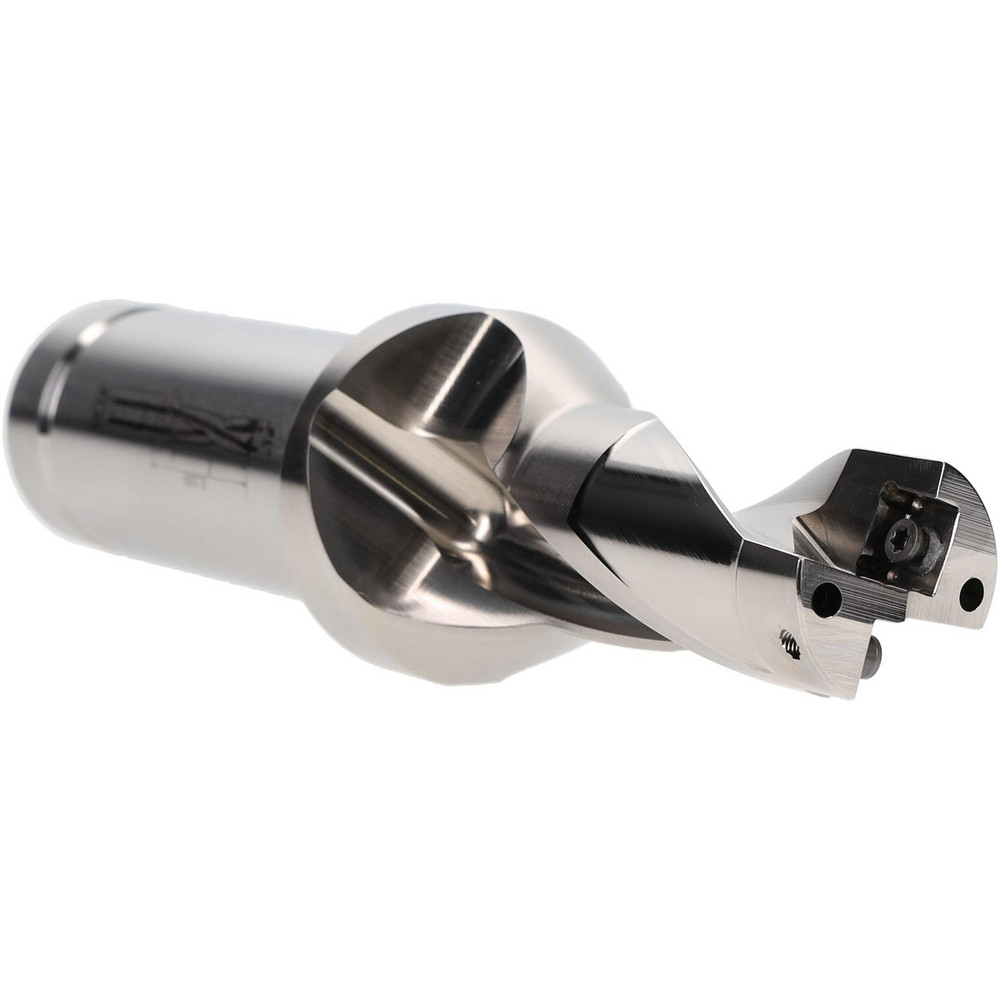

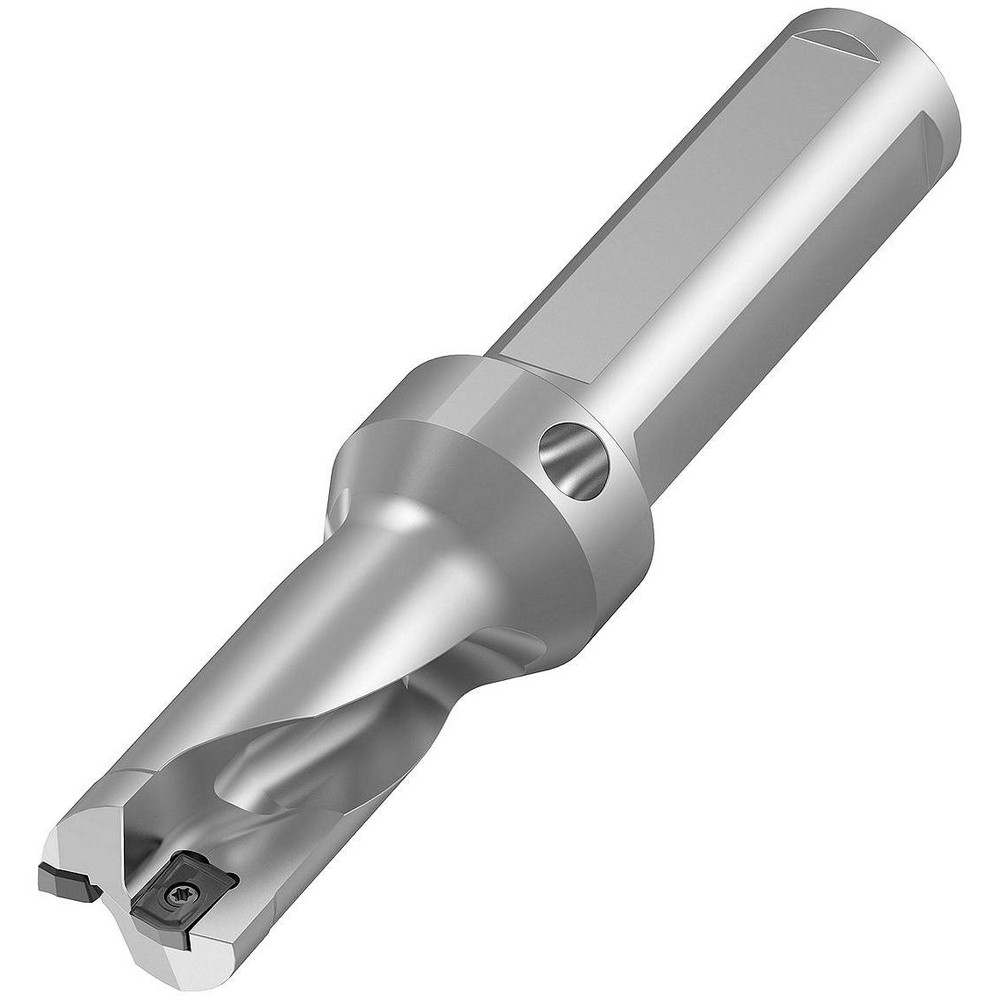

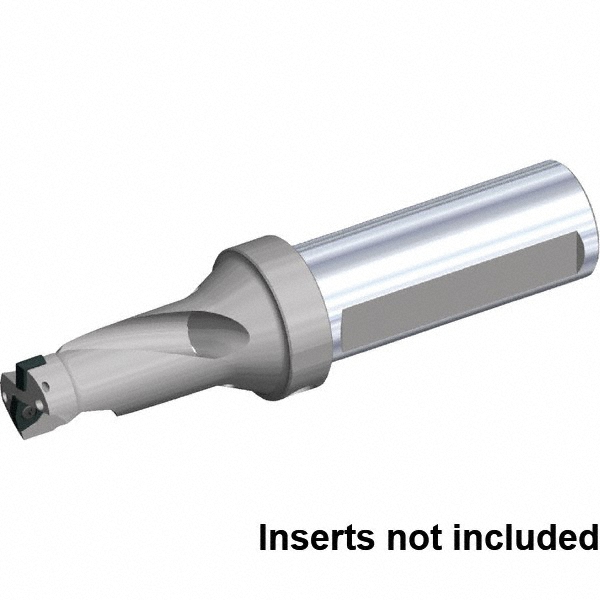

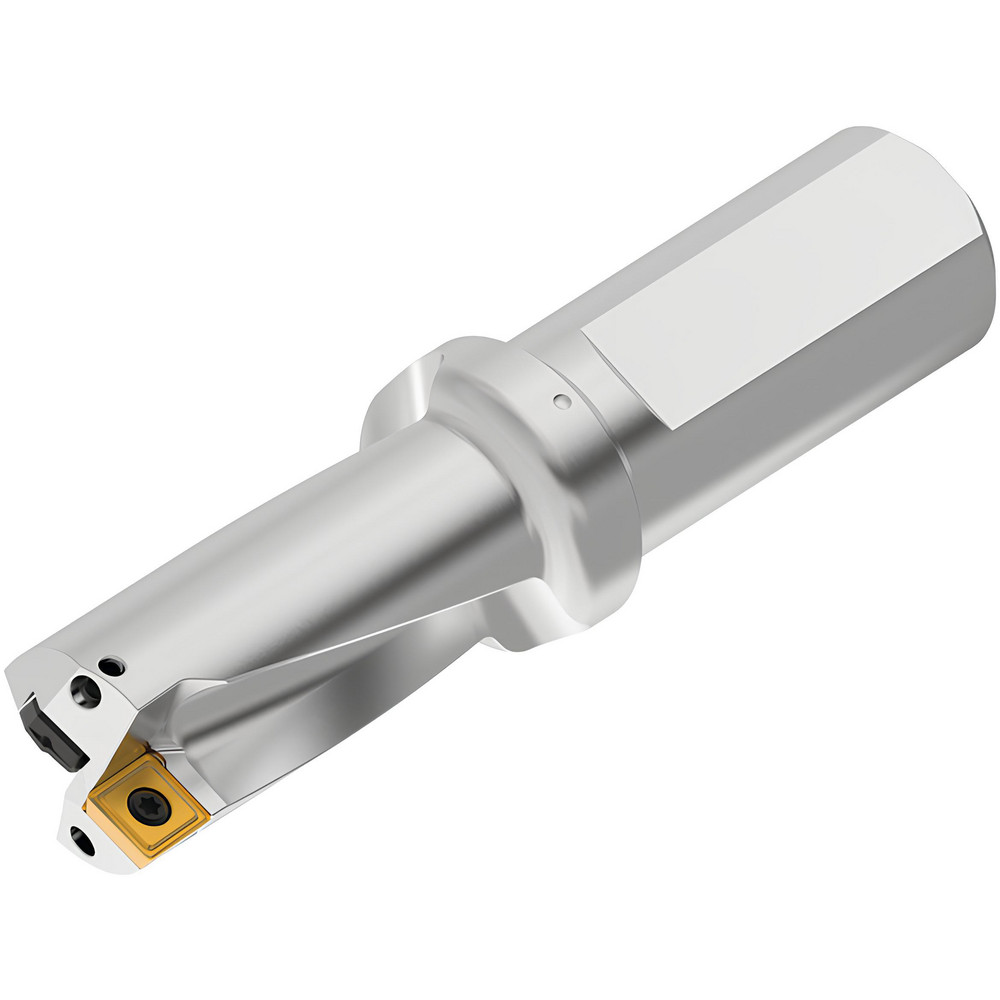

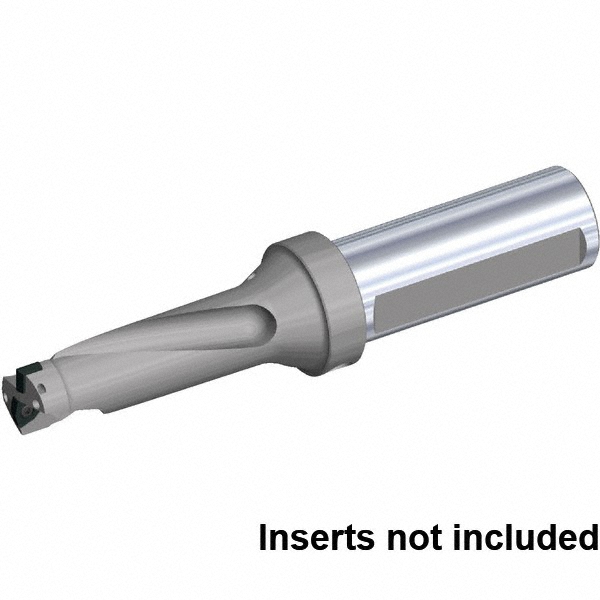

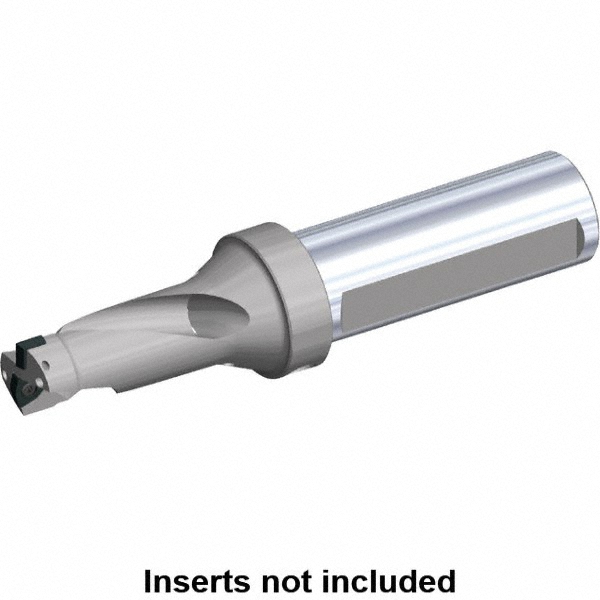

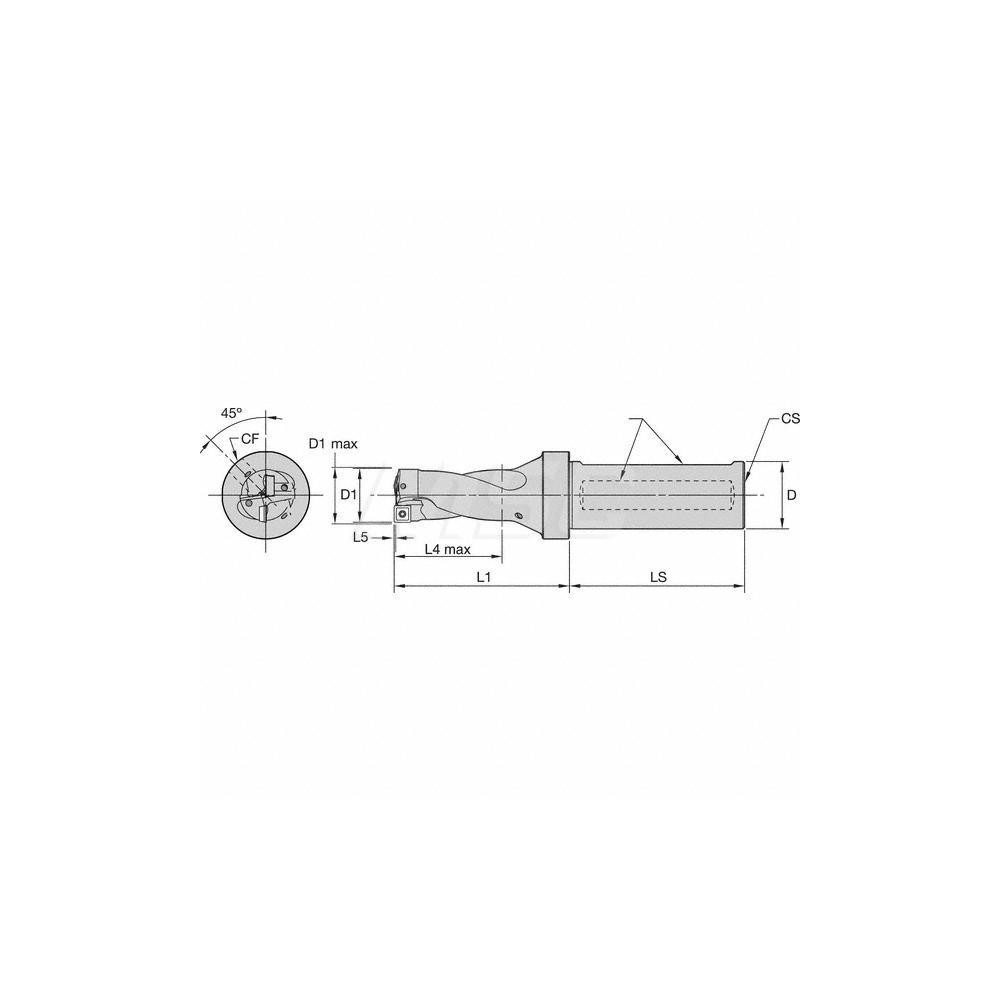

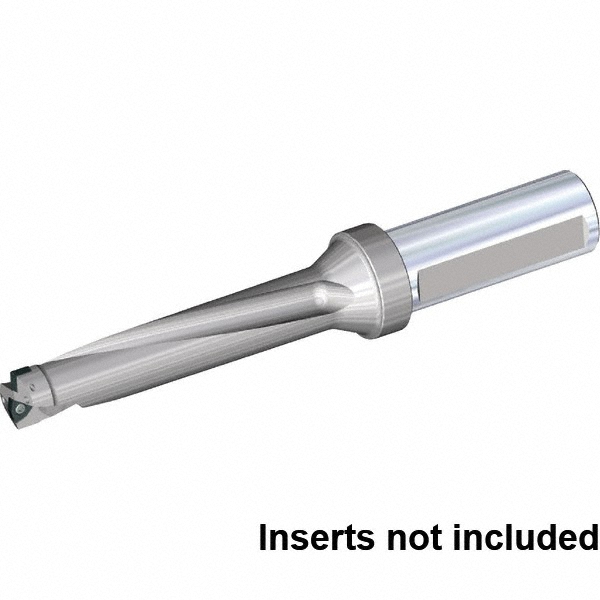

Weldon Flat & Flange Shank, Uses DFT & SPGX 05T3.. & 0703.. Inserts, Series DFSP
| Compatible Drill Style | DFSP |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.0390 |
| Maximum Drill Depth (Inch) | 2 |
| Maximum Drill Depth (Decimal Inch) | 2.0000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |

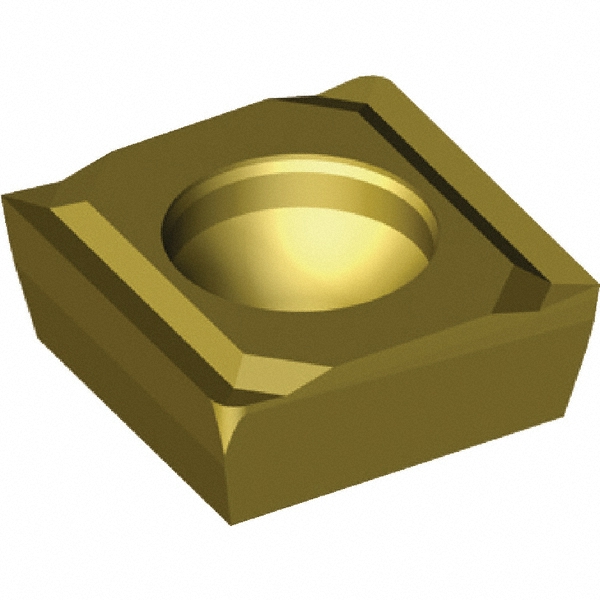

| Compatible Insert Style | DFT; SPGX |
| Compatible Insert Size Code | 0703..; 05T3.. |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Series | DFSP |
| Flute Length (Decimal Inch) | 2.0000 |
| Flute Length (mm) | 60.00 |
| Body Length (Decimal Inch) | 3.2500 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2080x0.1480; 0.3048x0.1250 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFT05T3.; SPGX0703. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M2.5-0.45x5.9T8; M3-0.5x7.2T8 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 79963385 |
