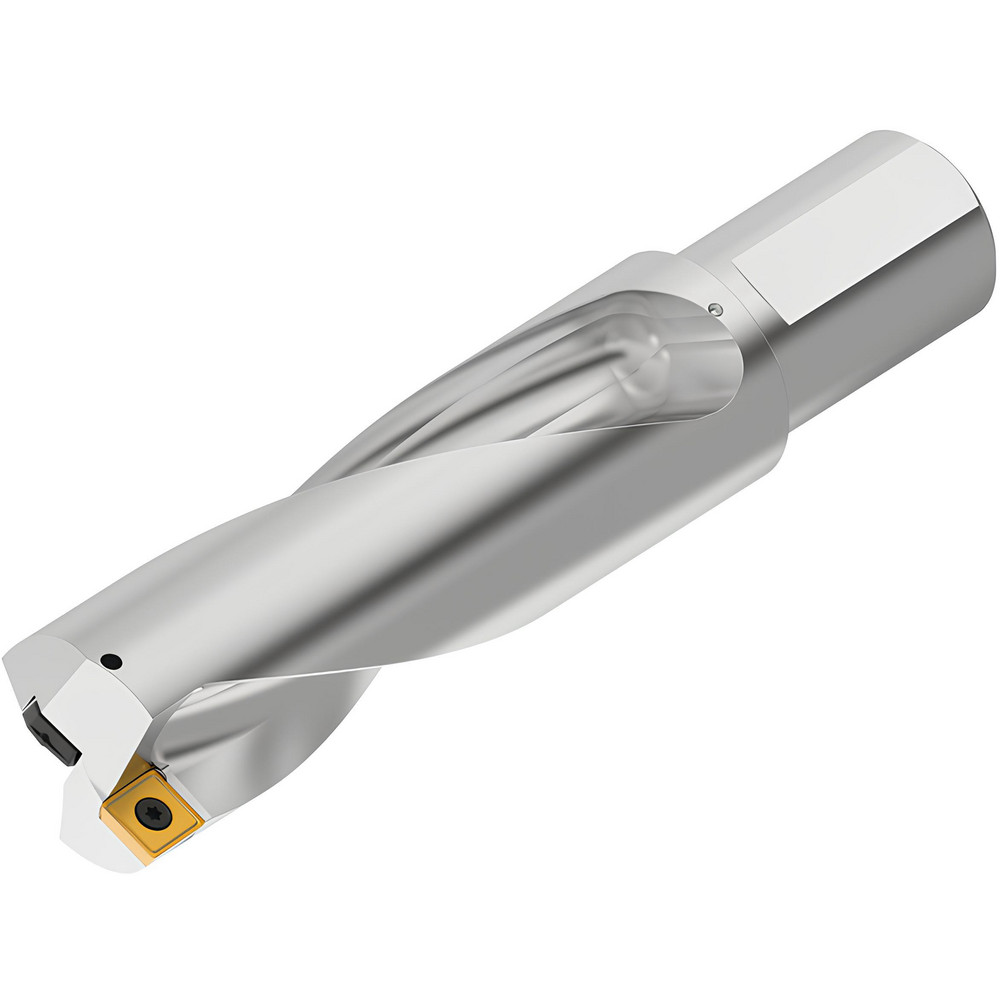

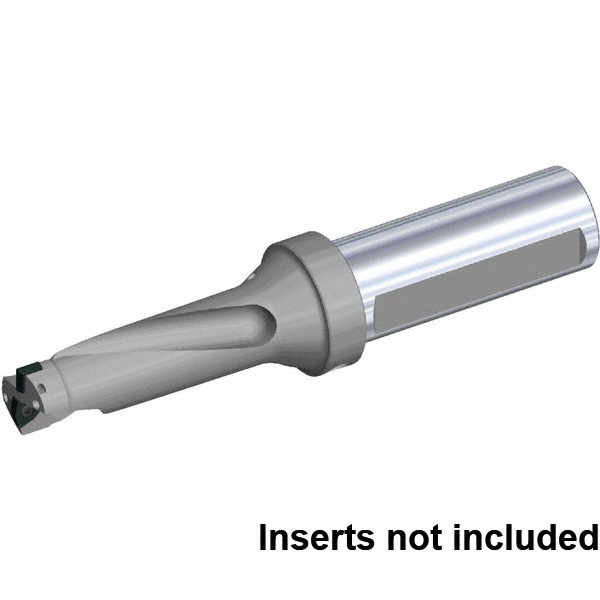

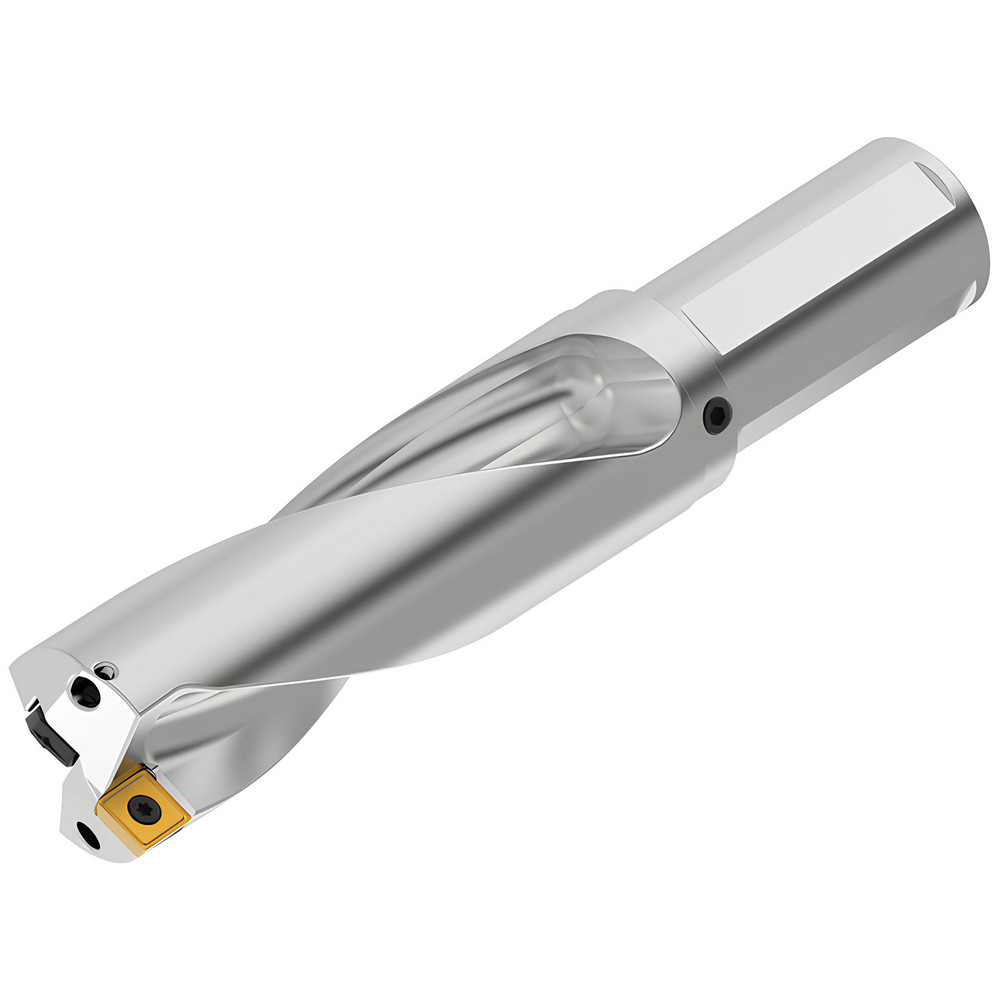

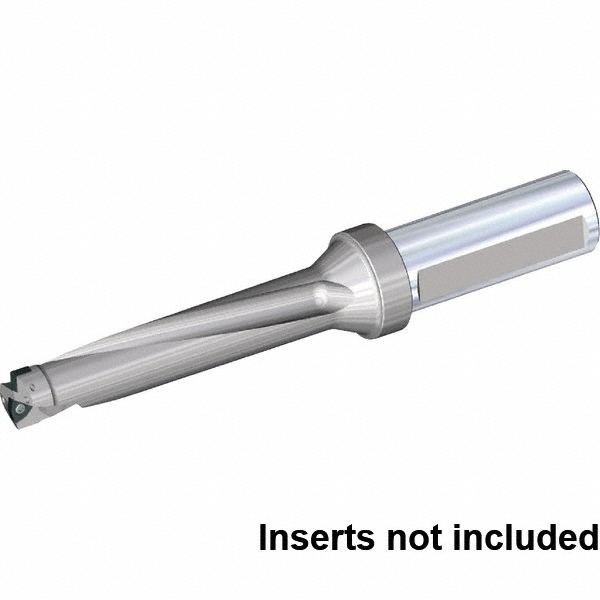

Weldon Flat & Flange Shank, Uses DFT & SPPX 0704.. & 15T5.. Inserts, Series DFSP
| Compatible Drill Style | DFSP |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.7890 |
| Maximum Drill Depth (Inch) | 5-1/4 |
| Maximum Drill Depth (Decimal Inch) | 5.2500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |

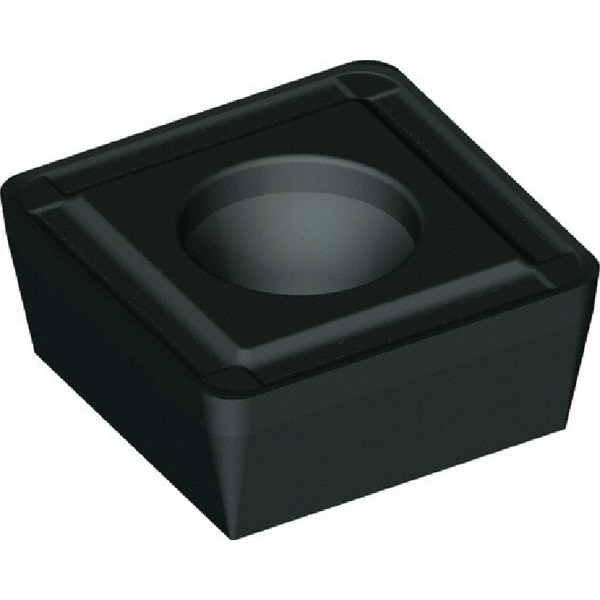

| Compatible Insert Style | DFT; SPPX |
| Compatible Insert Size Code | 15T5..; 0704.. |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 10.7500 |
| Overall Length (Inch) | 10-3/4 |
| Series | DFSP |
| Flute Length (Decimal Inch) | 5.2500 |
| Flute Length (mm) | 155.00 |
| Body Length (mm) | 177.80 |
| Body Length (Decimal Inch) | 7.0000 |
| Shank Length (Decimal Inch) | 3.7500 |
| Shank Length (mm) | 95.25 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3130x0.1870; 0.6250x0.2340 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPPX15T5.; DFT0704. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4.5-0.75x10.2T15; M3.5-0.6x12T15 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
