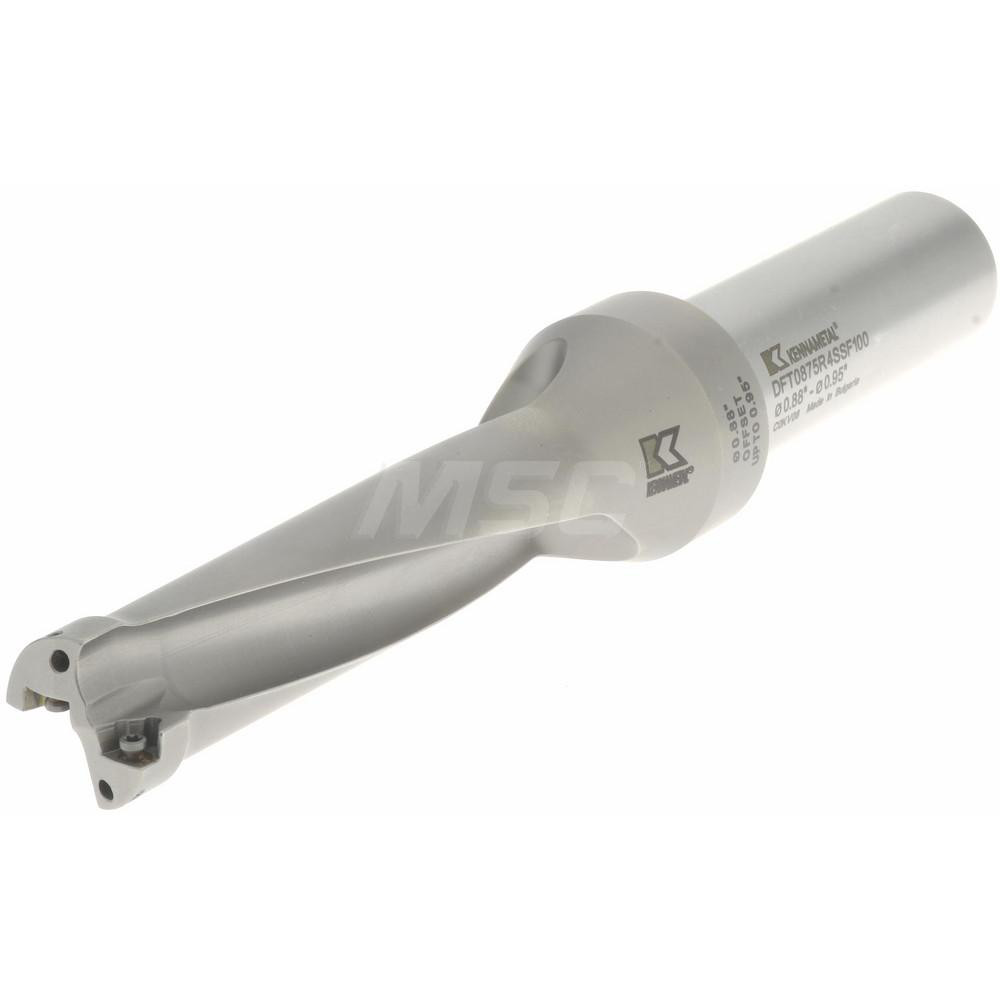

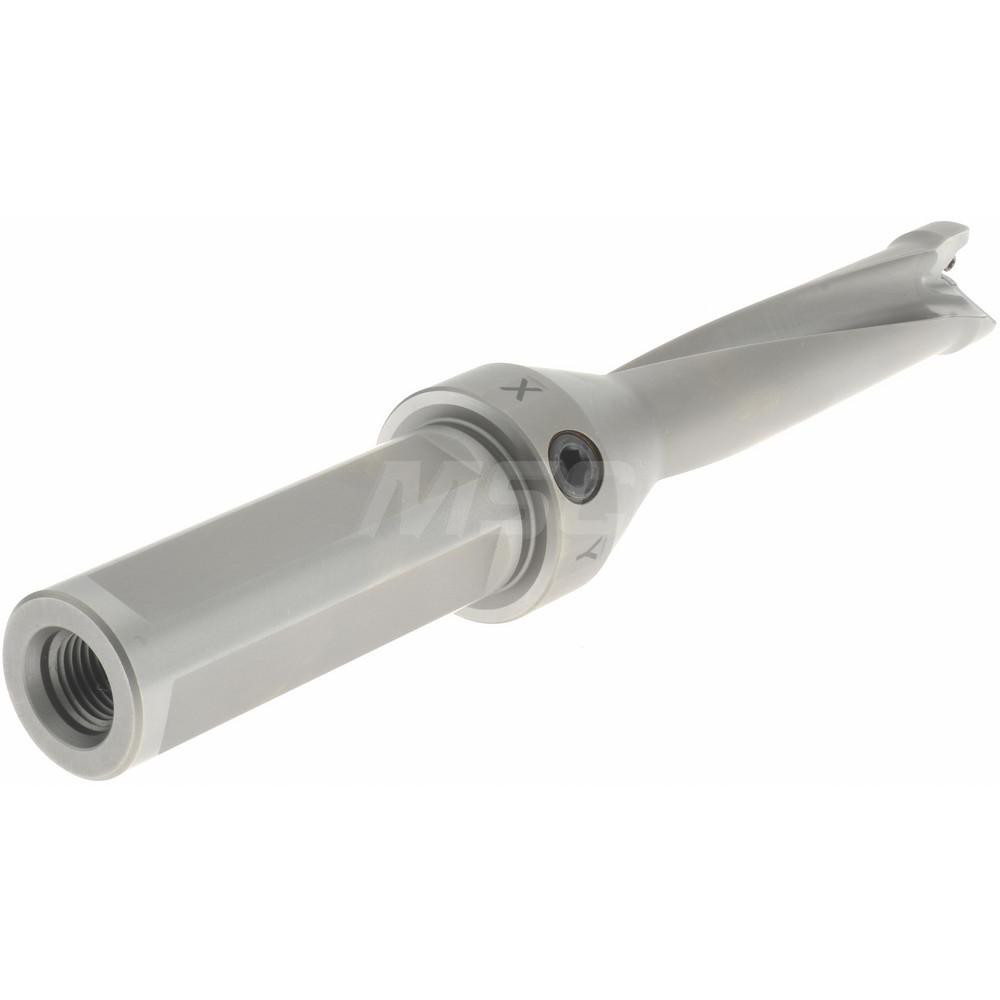

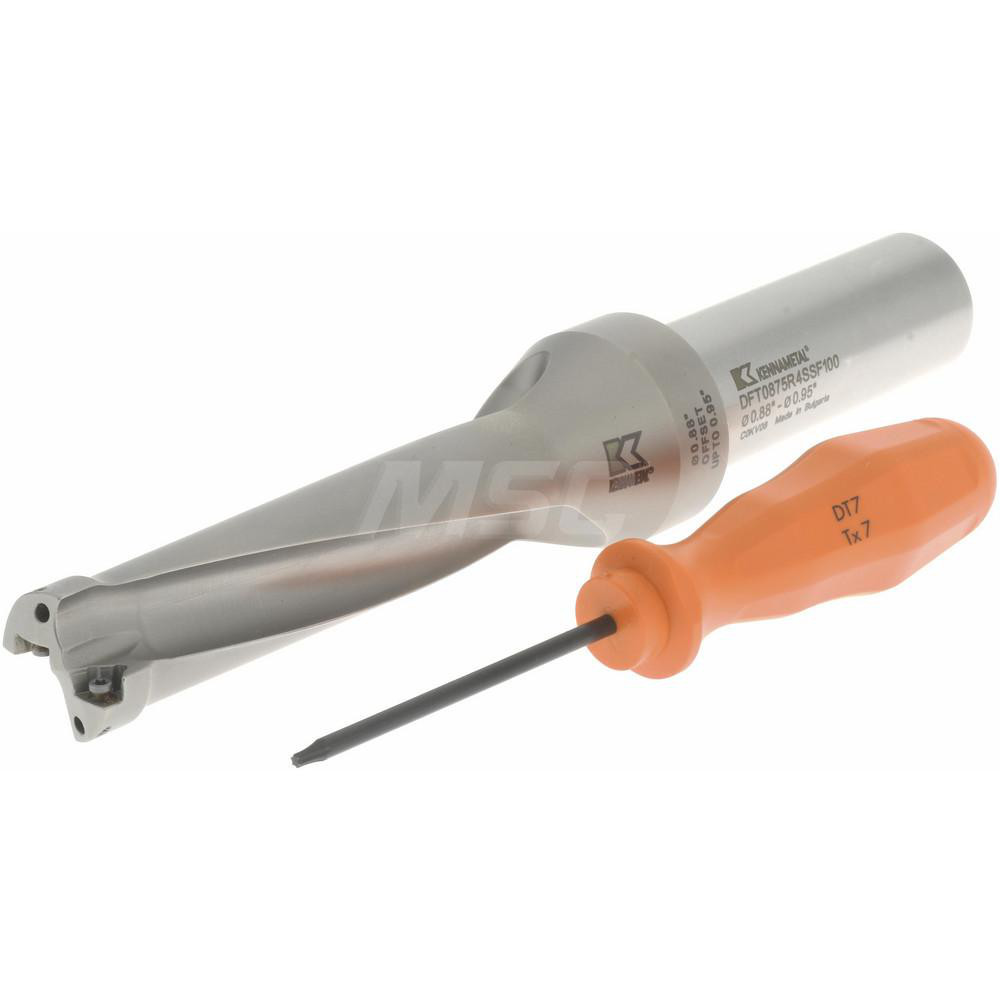

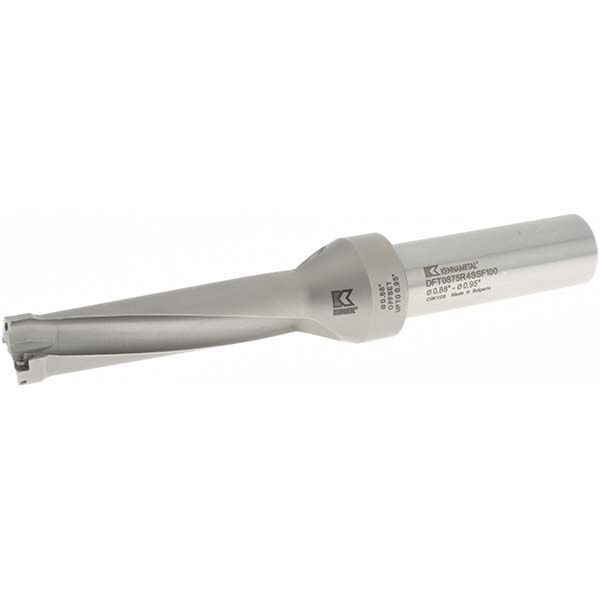

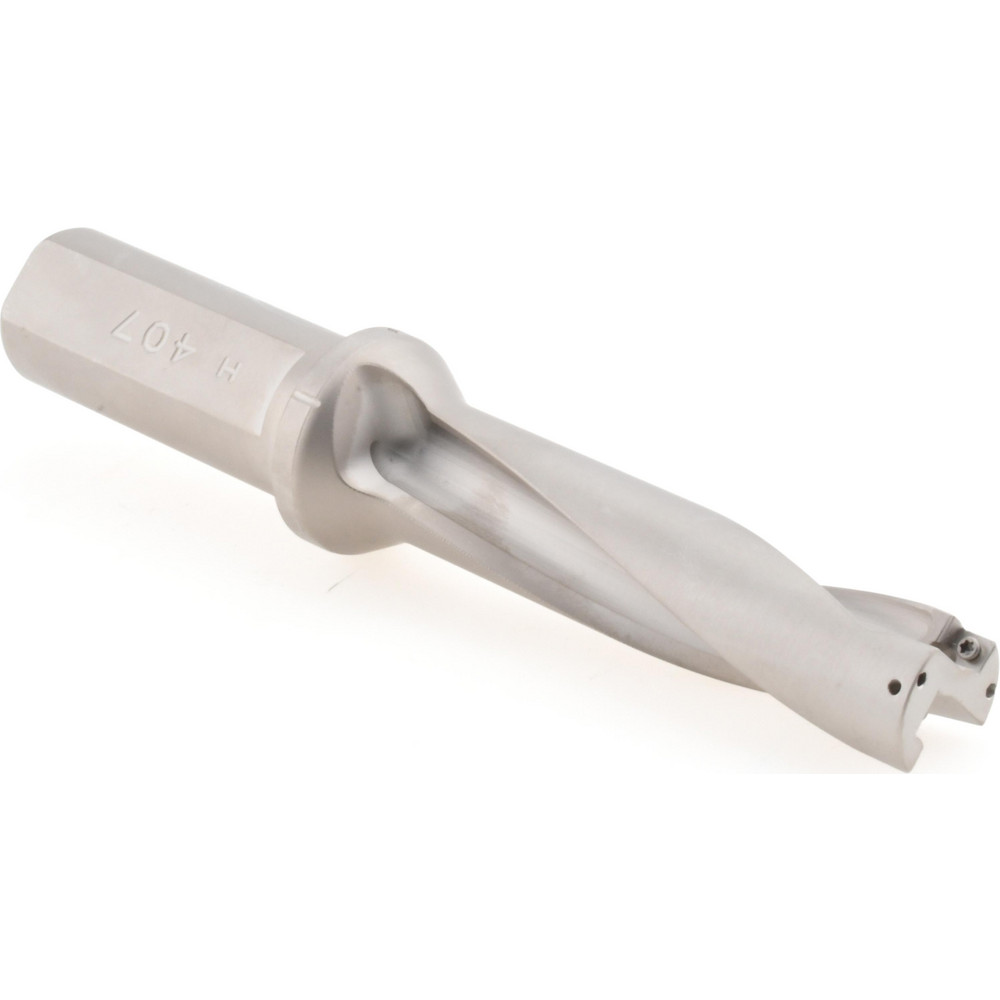

Weldon Flat & Flange Shank, Uses DFT 0303.. Inserts, Series DFT
| Compatible Drill Style | DFT |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9500 |
| Maximum Drill Depth (Inch) | 3-1/2 |
| Maximum Drill Depth (Decimal Inch) | 3.5000 |
| Maximum Drill Depth (mm) | 88.90 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFT |
| Compatible Insert Size Code | 0303.. |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Series | DFT |
| Flute Length (Decimal Inch) | 3.5000 |
| Body Length (mm) | 127.00 |
| Body Length (Decimal Inch) | 5.0000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1560x0.1160 |
| Insert Size (mm) | 3.97x2.95 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFT0303. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |

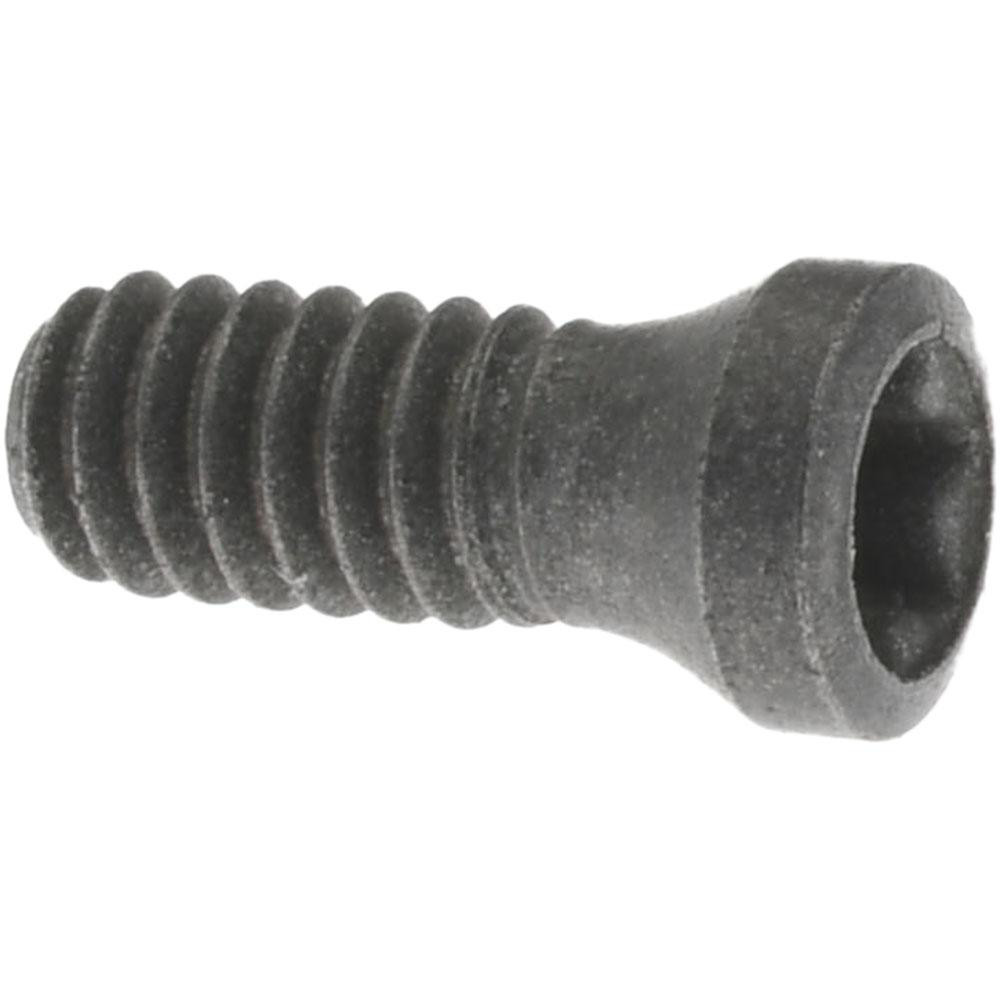

| Insert Lock Screw | M2.5-0.45x5.9T8 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 01244177 |
