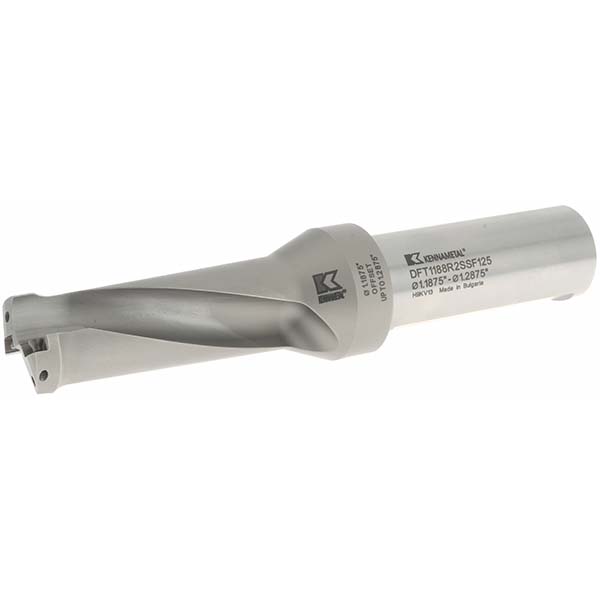

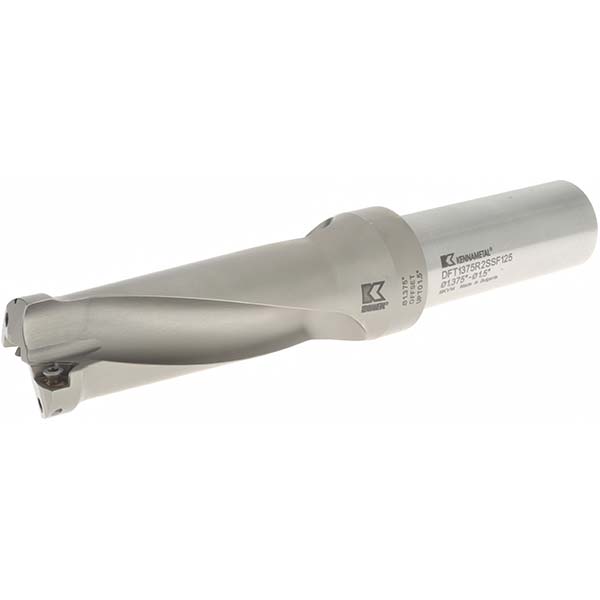

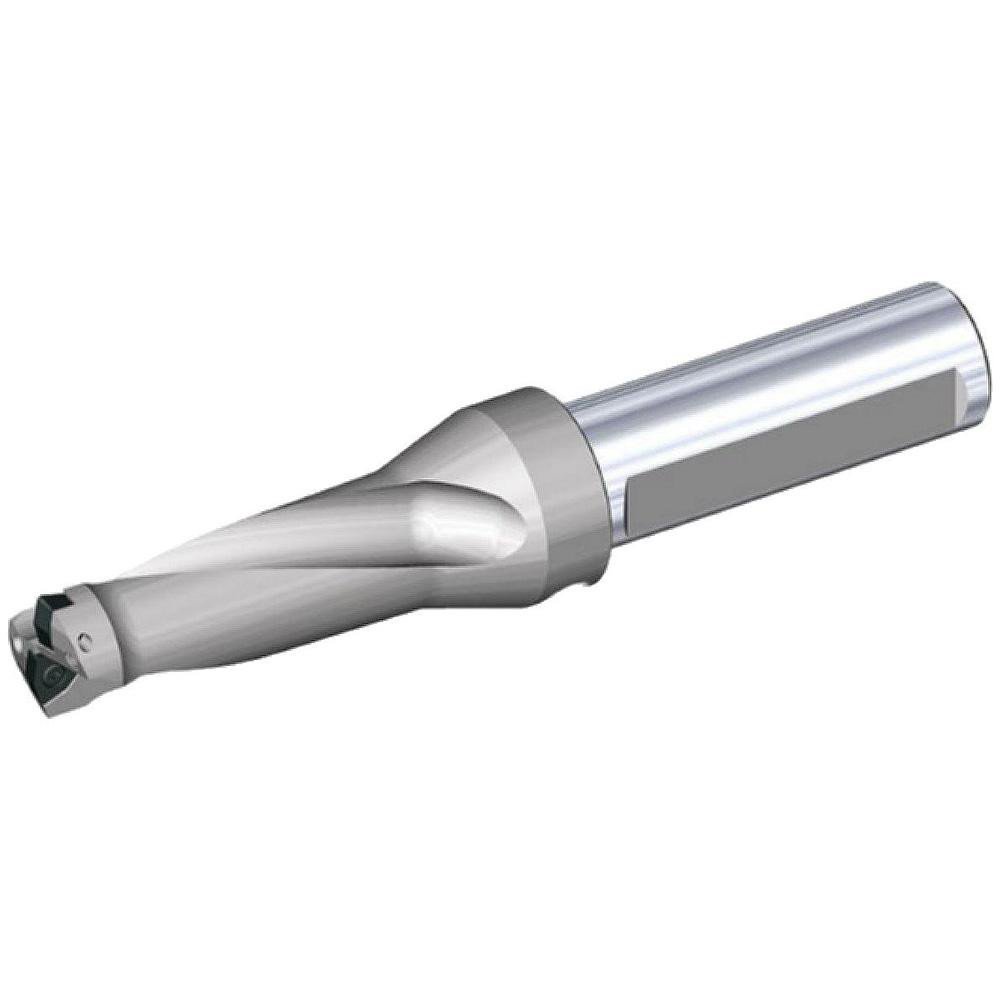

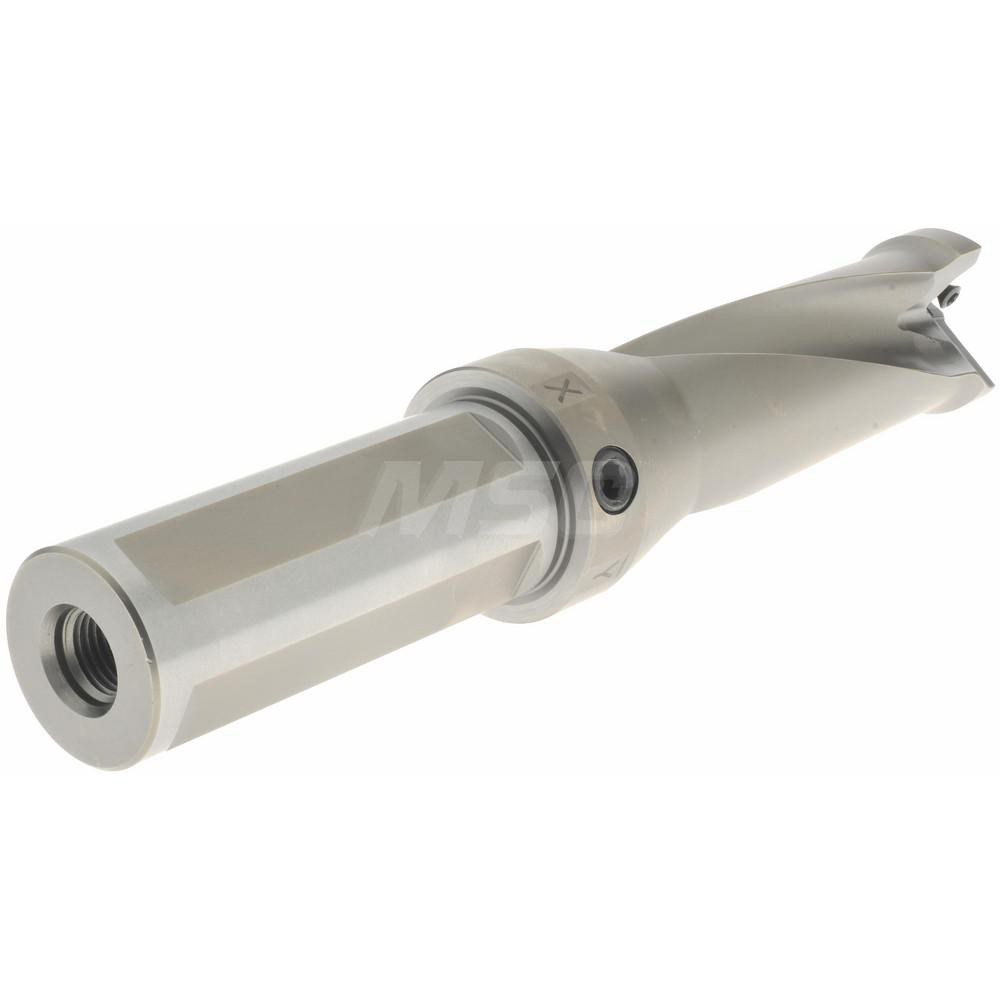

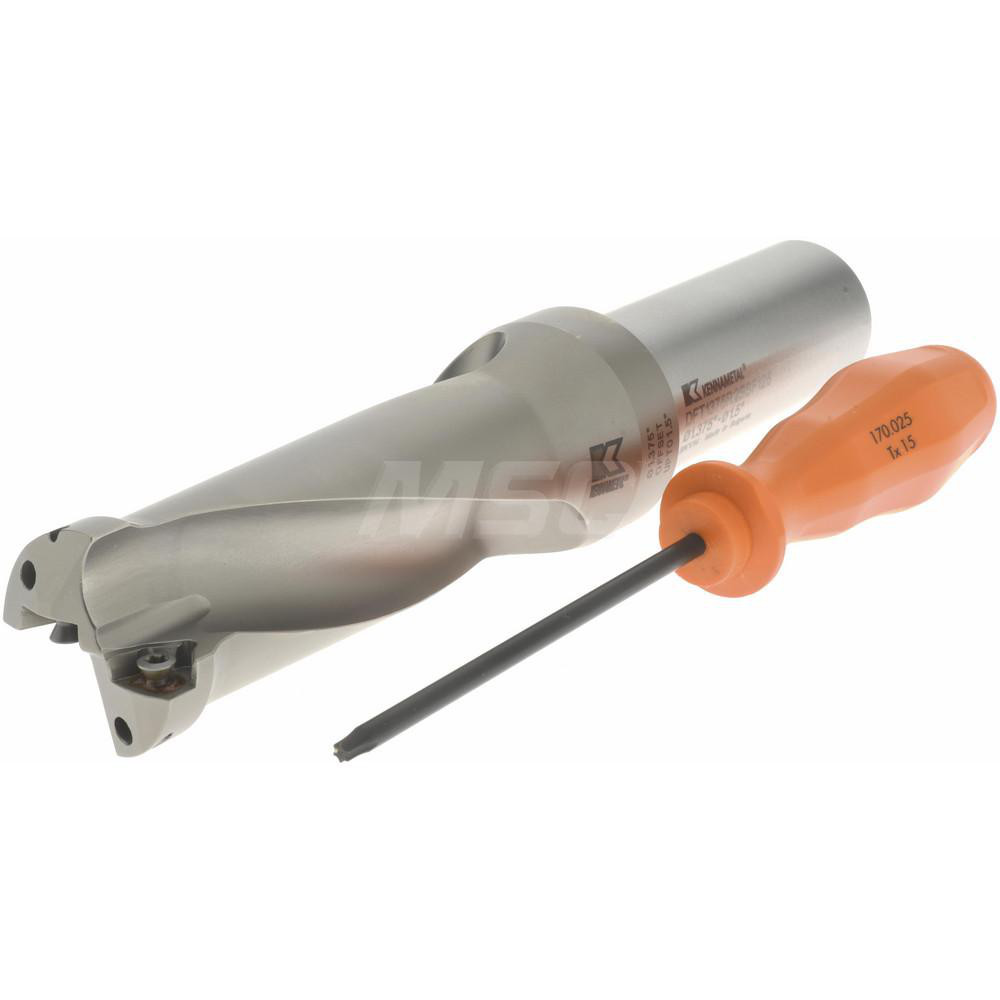

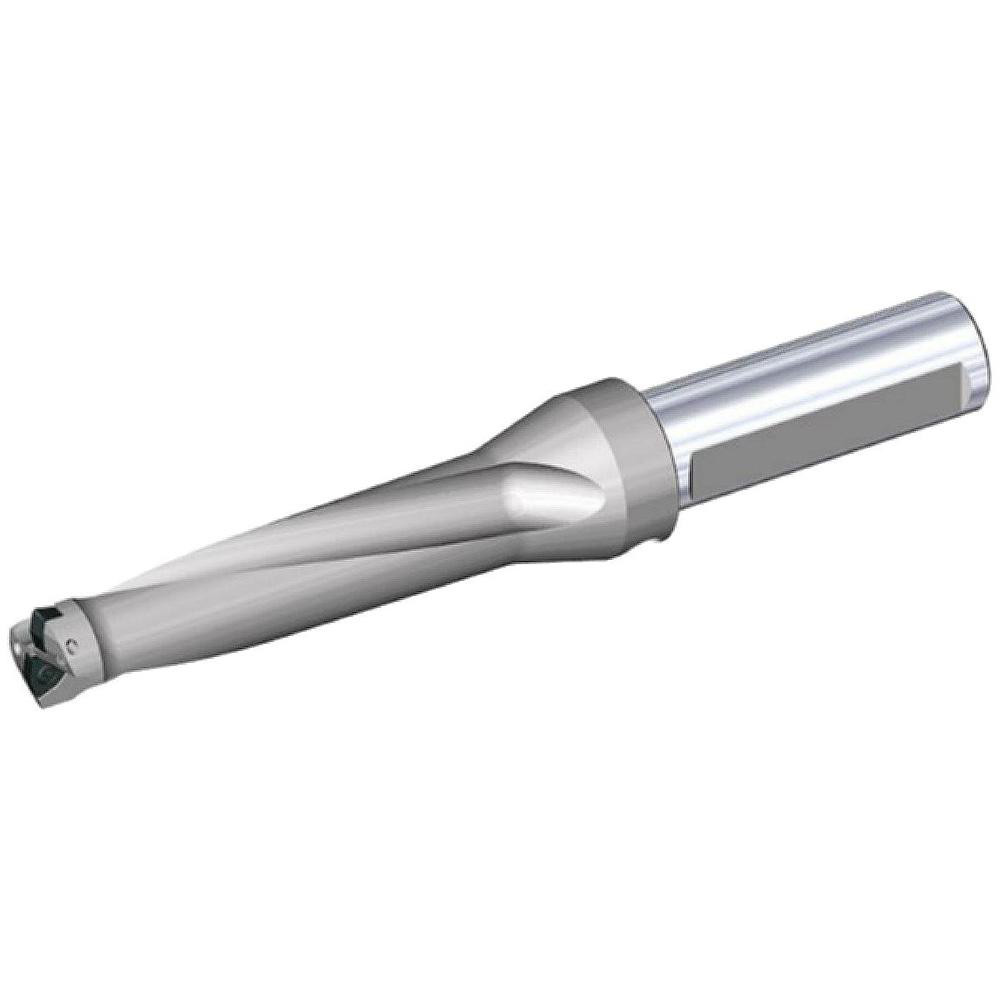

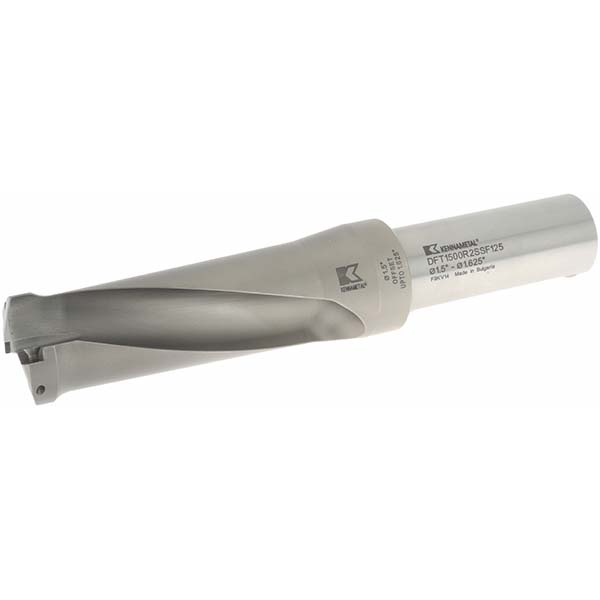

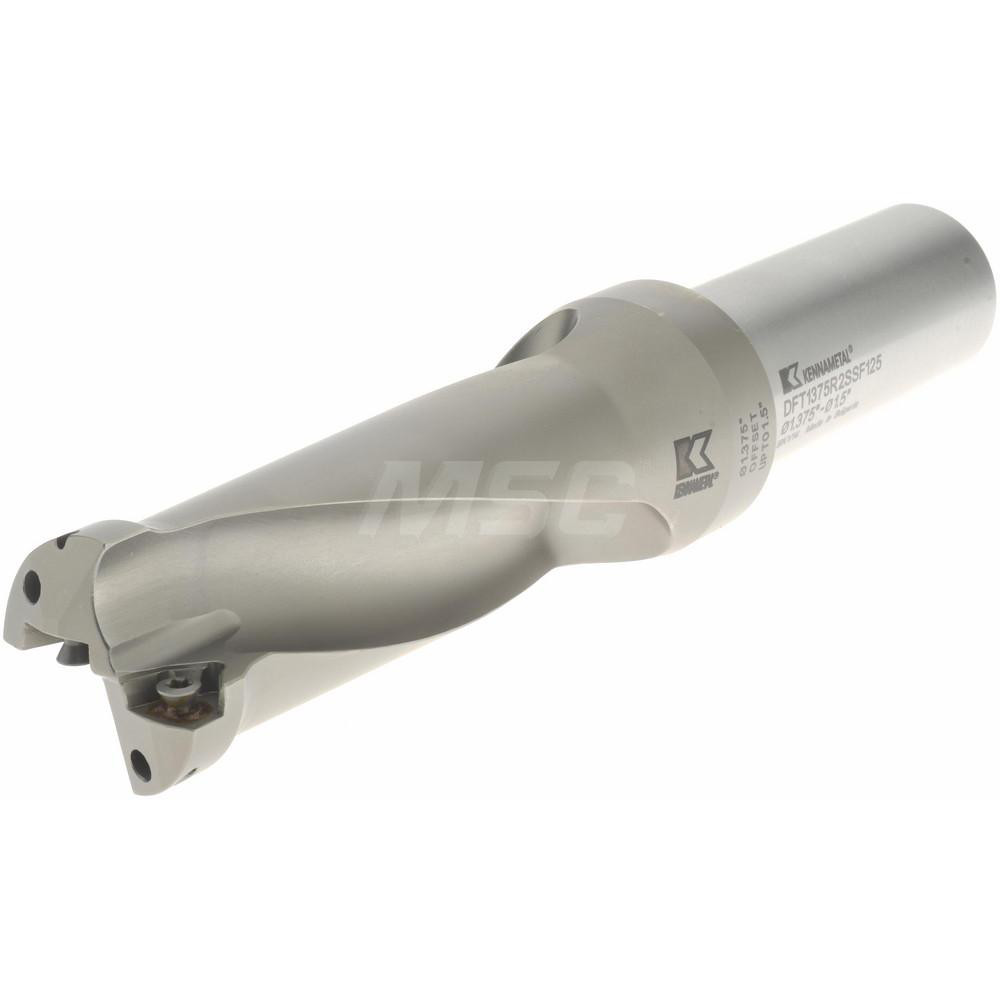

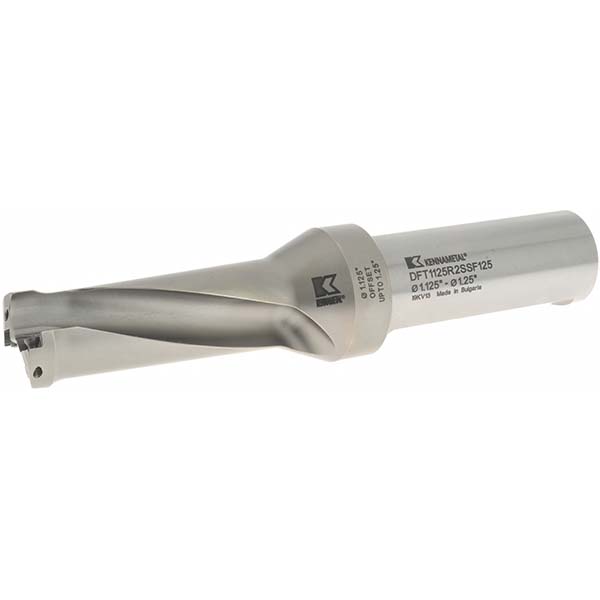

Weldon Flat & Flange Shank, Uses DFT 06T3.. Inserts, Series DFT
| Compatible Drill Style | DFT |
|---|---|
| Maximum Drill Diameter (mm) | 38.10 |
| Maximum Drill Diameter (Inch) | 1-1/2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (Decimal Inch) | 3.4500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |

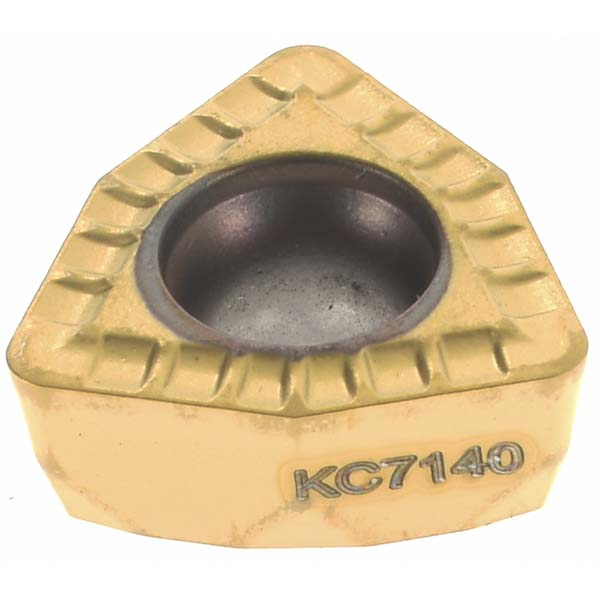

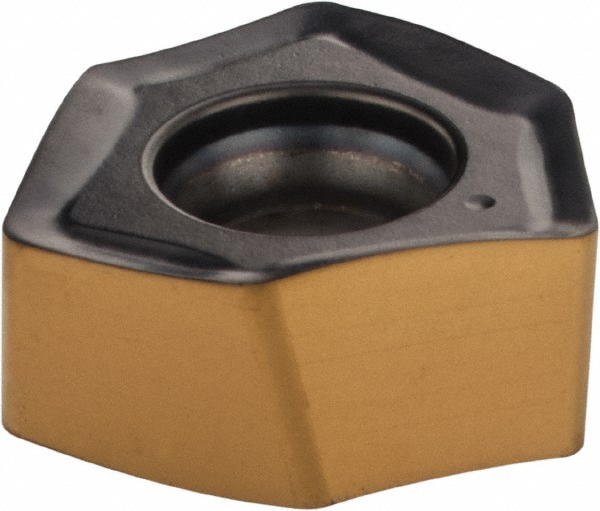

| Compatible Insert Style | DFT |
| Compatible Insert Size Code | 06T3.. |
| Drill Depth by Diameter Ratio | 2.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 8.3750 |
| Overall Length (Inch) | 8-3/8 |
| Series | DFT |
| Flute Length (Decimal Inch) | 3.4500 |
| Body Length (mm) | 130.18 |
| Body Length (Decimal Inch) | 5.1250 |
| Shank Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 82.55 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2600x0.1480 |
| Insert Size (mm) | 6.62x3.75 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFT06T3. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |

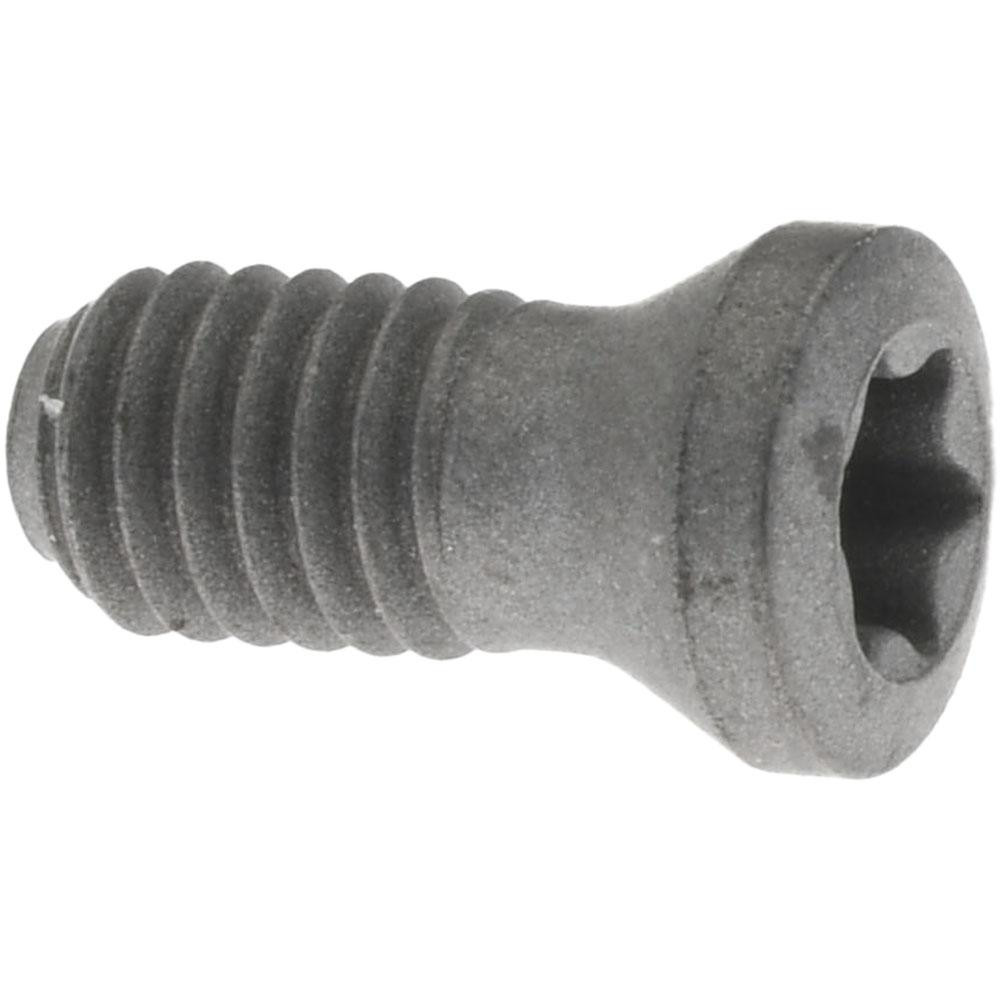

| Insert Lock Screw | M3.5-0.6x8.3T15 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 01246784 |
