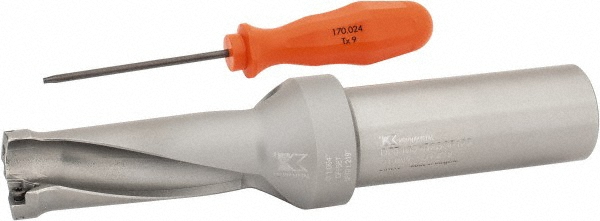

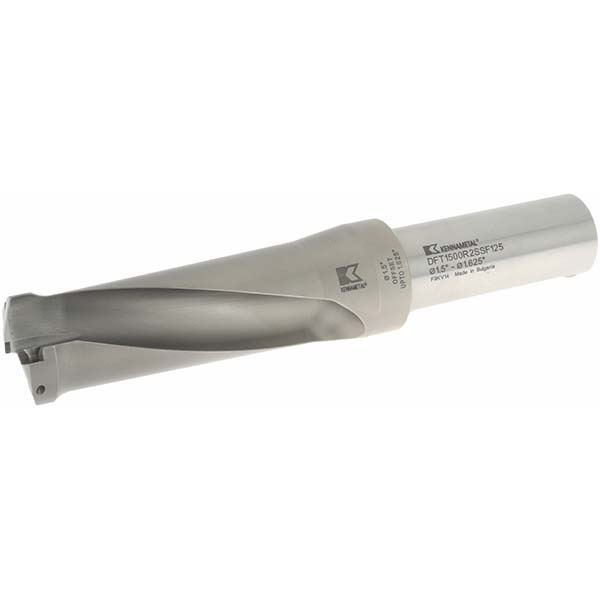

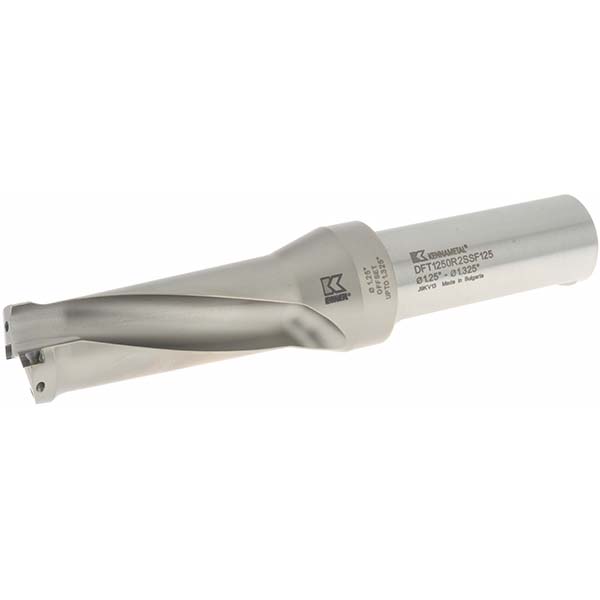

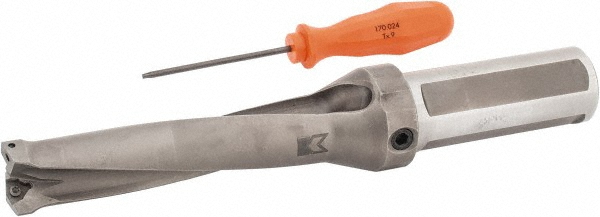

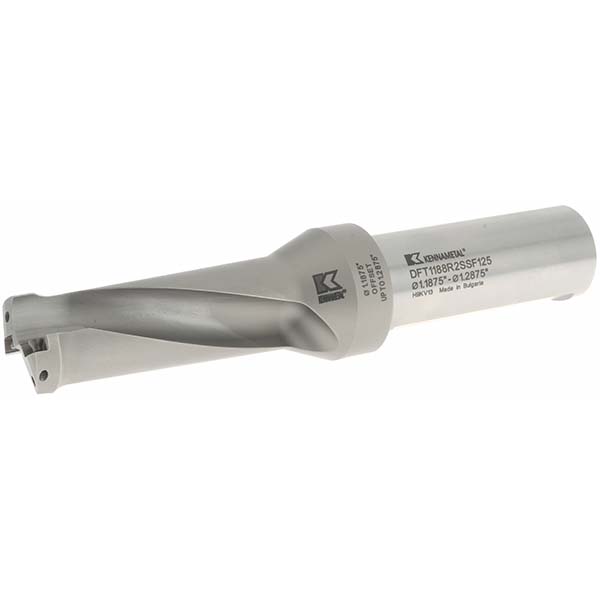

Weldon Flat & Flange Shank, Uses DFT 0704.. Inserts, Series DFT
| Compatible Drill Style | DFT |
|---|---|
| Maximum Drill Diameter (mm) | 44.45 |
| Maximum Drill Diameter (Inch) | 1-3/4 |
| Maximum Drill Diameter (Decimal Inch) | 1.7500 |
| Maximum Drill Depth (Decimal Inch) | 4.1000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |

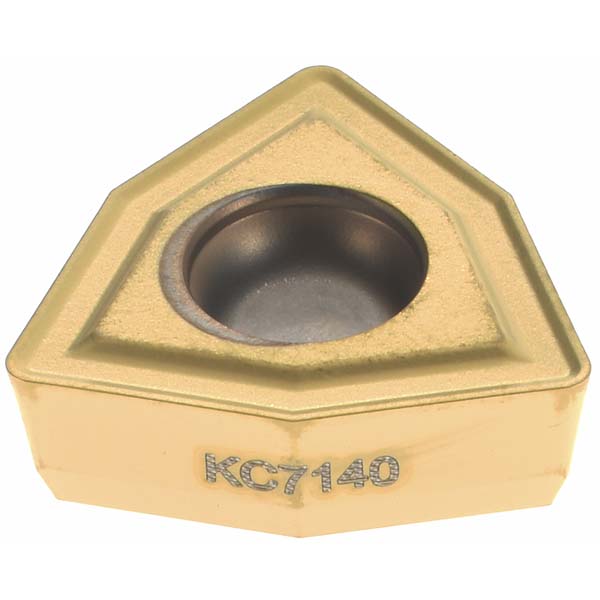

| Compatible Insert Style | DFT |
| Compatible Insert Size Code | 0704.. |
| Drill Depth by Diameter Ratio | 2.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

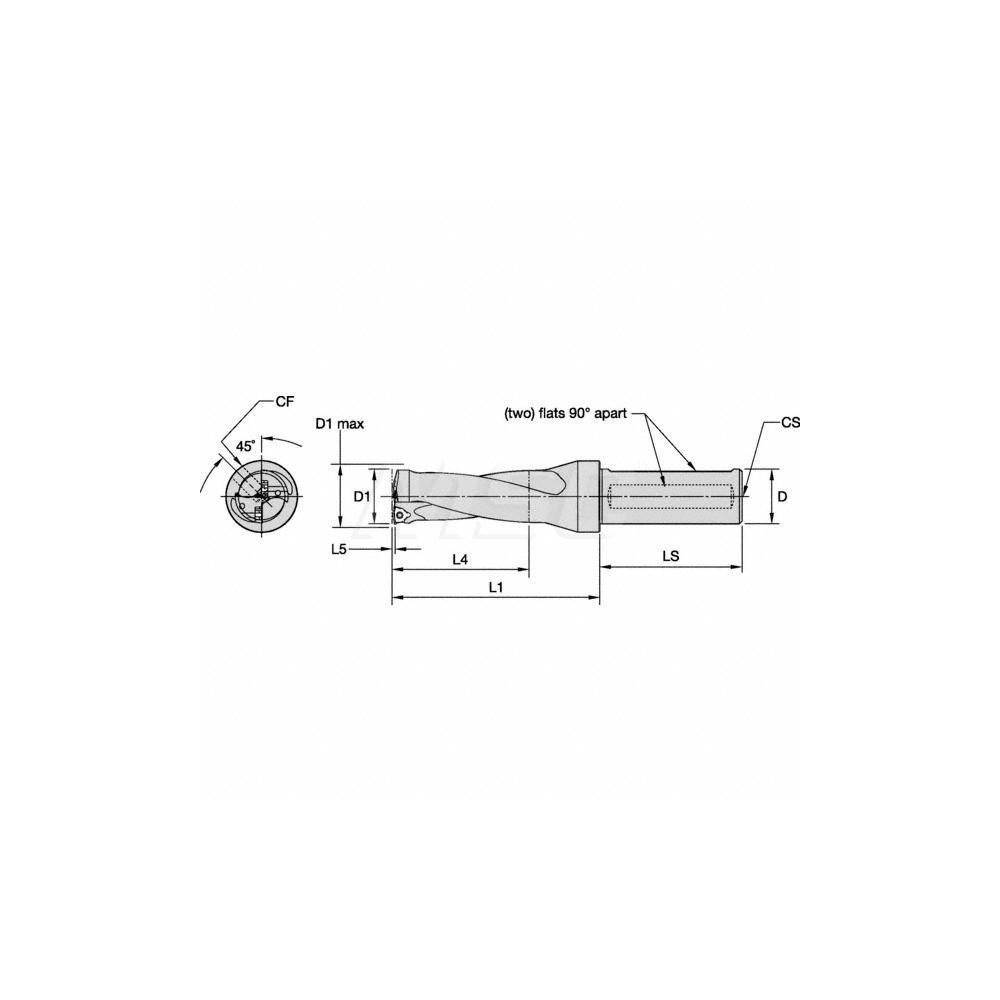

| Overall Length (Decimal Inch) | 9.1250 |
| Overall Length (Inch) | 9-1/8 |
| Series | DFT |
| Flute Length (Decimal Inch) | 4.1000 |
| Body Length (mm) | 149.23 |
| Body Length (Decimal Inch) | 5.8750 |
| Shank Length (Decimal Inch) | 3.2500 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3130x0.1870 |
| Insert Size (mm) | 7.94x4.75 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFT0704. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M3.5-0.6x12T15 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 04785572 |
