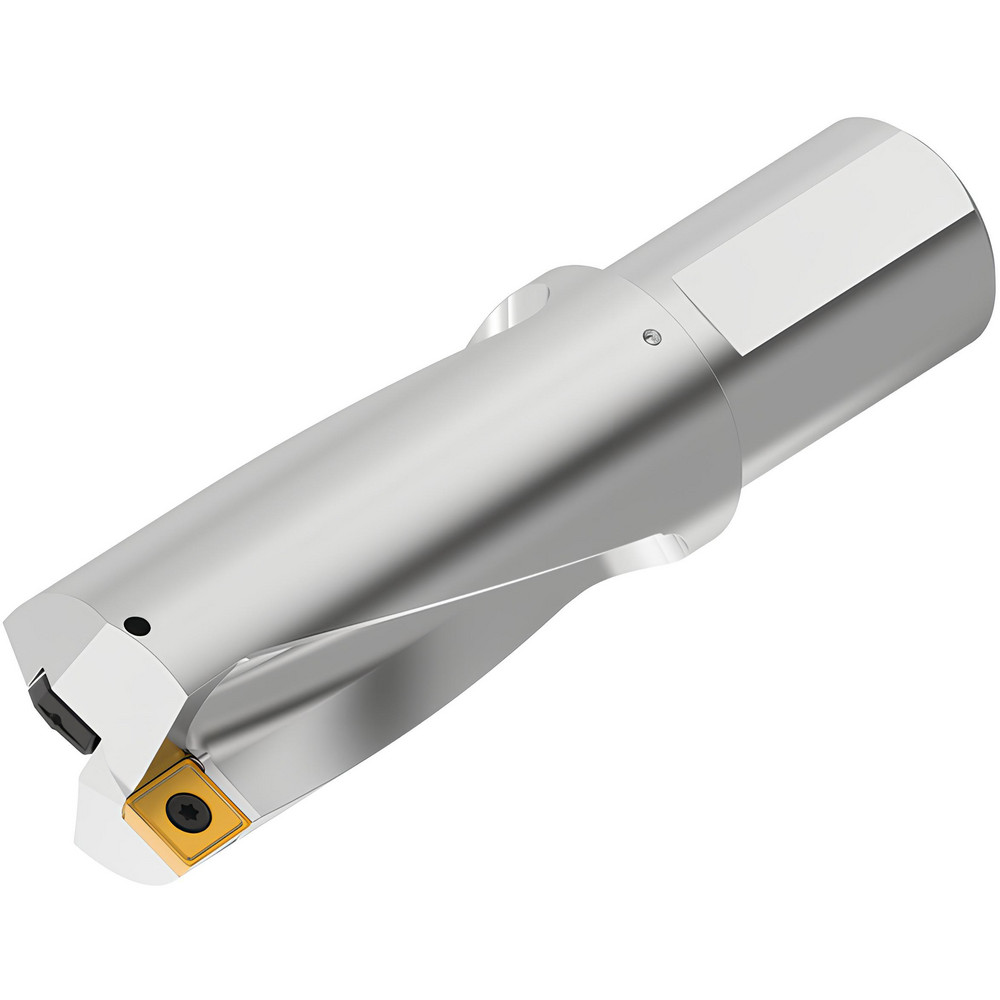

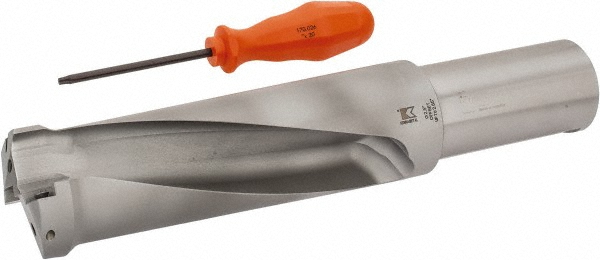

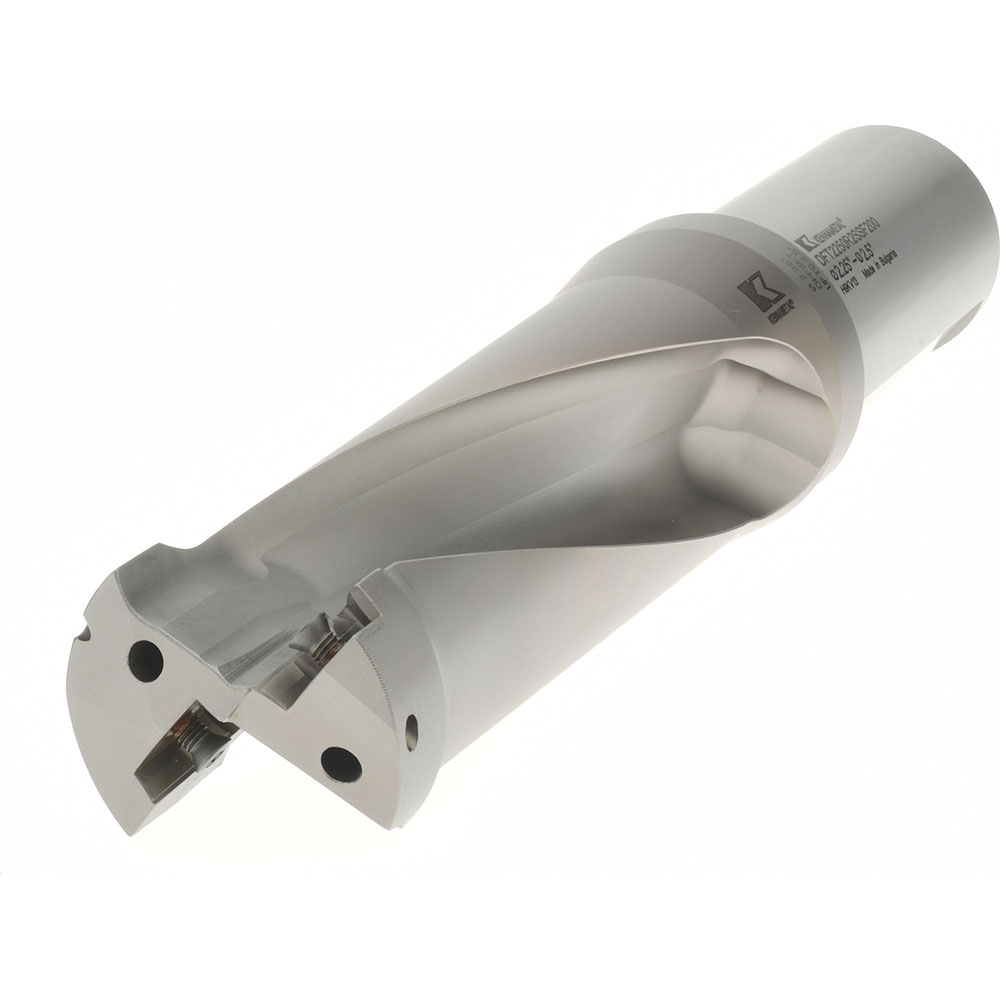

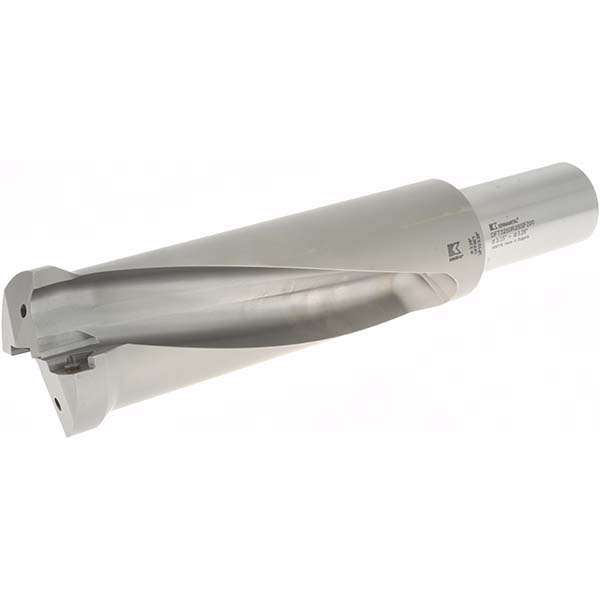

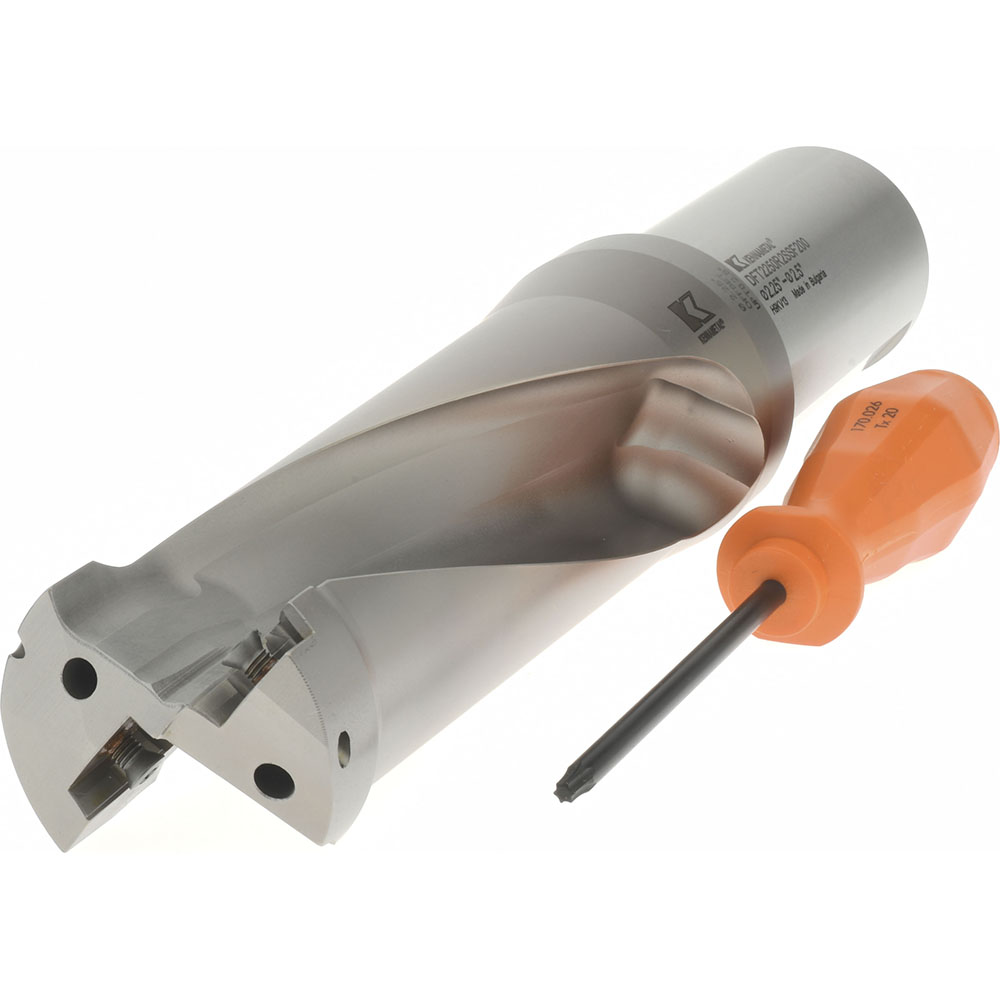

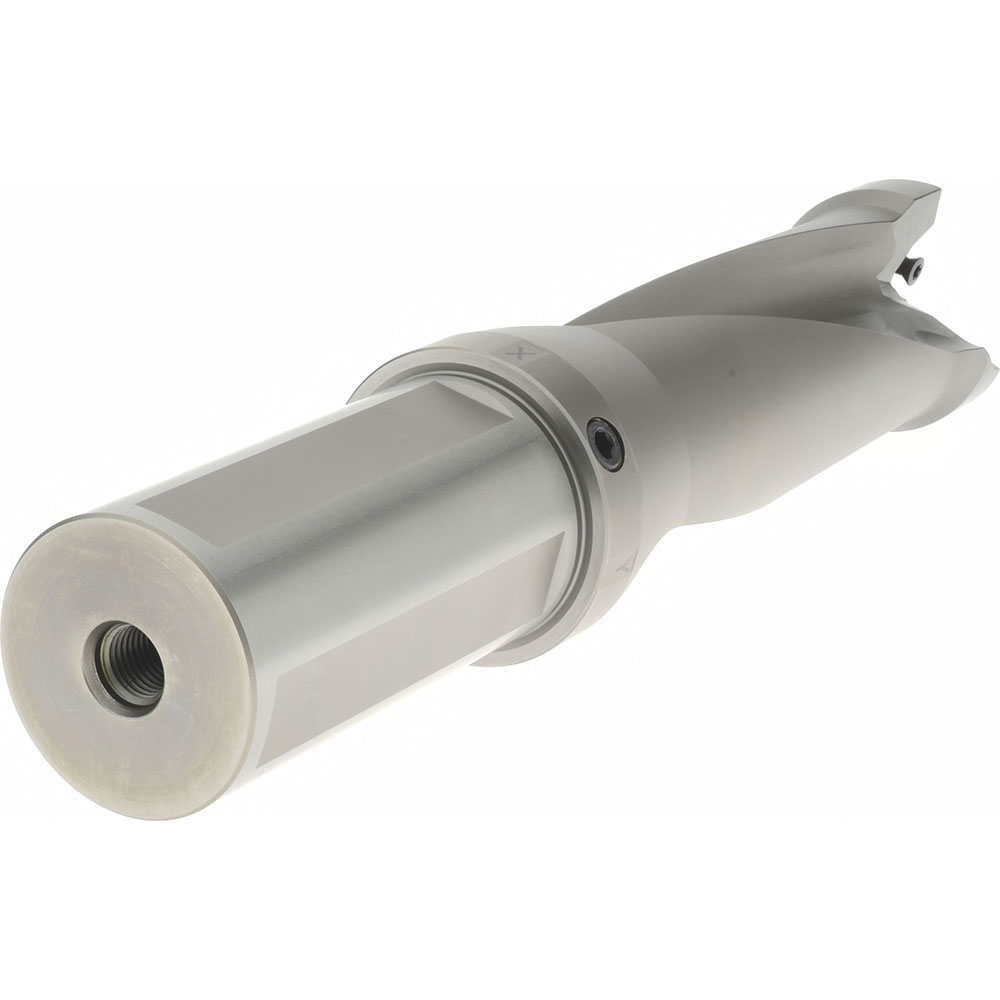

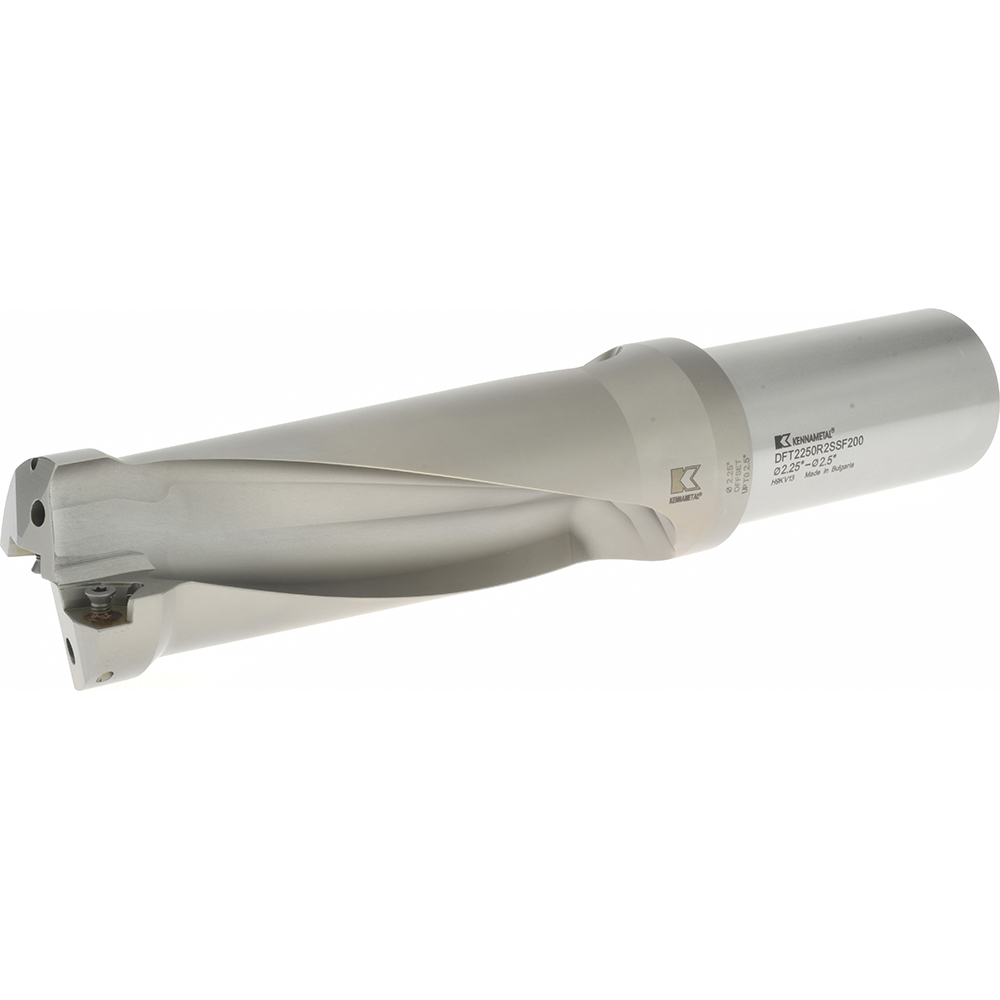

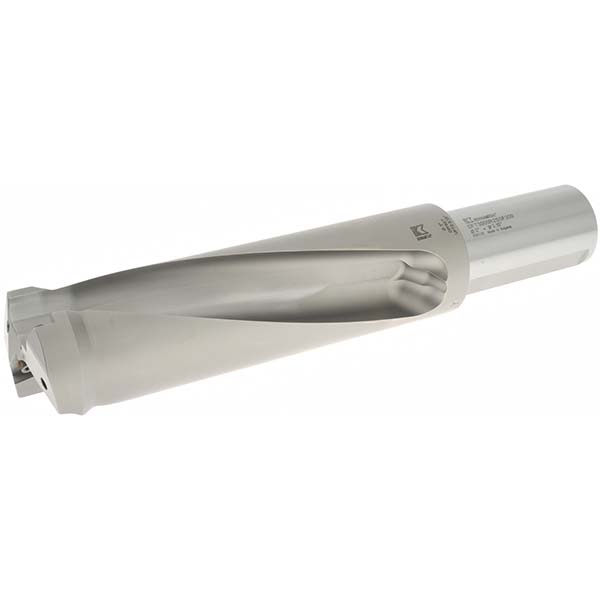

Weldon Flat & Flange Shank, Uses DFT 0905.. Inserts, Series DFT
| Compatible Drill Style | DFT |
|---|---|
| Maximum Drill Diameter (mm) | 63.50 |
| Maximum Drill Diameter (Inch) | 2-1/2 |
| Maximum Drill Diameter (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (Decimal Inch) | 5.6300 |
| Maximum Drill Depth (mm) | 143.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFT |
| Compatible Insert Size Code | 0905.. |
| Drill Depth by Diameter Ratio | 2.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.7500 |
| Overall Length (Inch) | 11-3/4 |
| Series | DFT |
| Flute Length (Decimal Inch) | 5.6300 |
| Body Length (mm) | 196.85 |
| Body Length (Decimal Inch) | 7.7500 |
| Shank Length (Decimal Inch) | 4.0000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3910x0.2070 |
| Insert Size (mm) | 9.92x5.25 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFT0905. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |

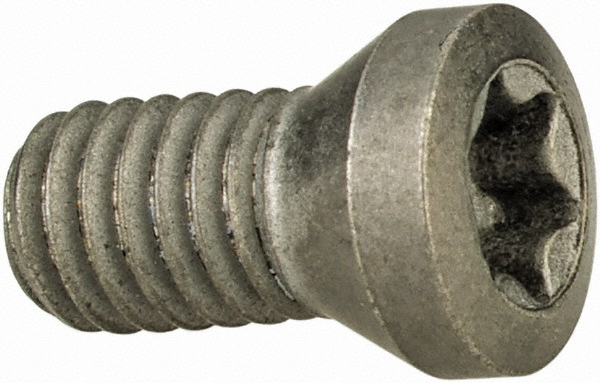

| Insert Lock Screw | M5-0.8x12.5T20 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 04785705 |
