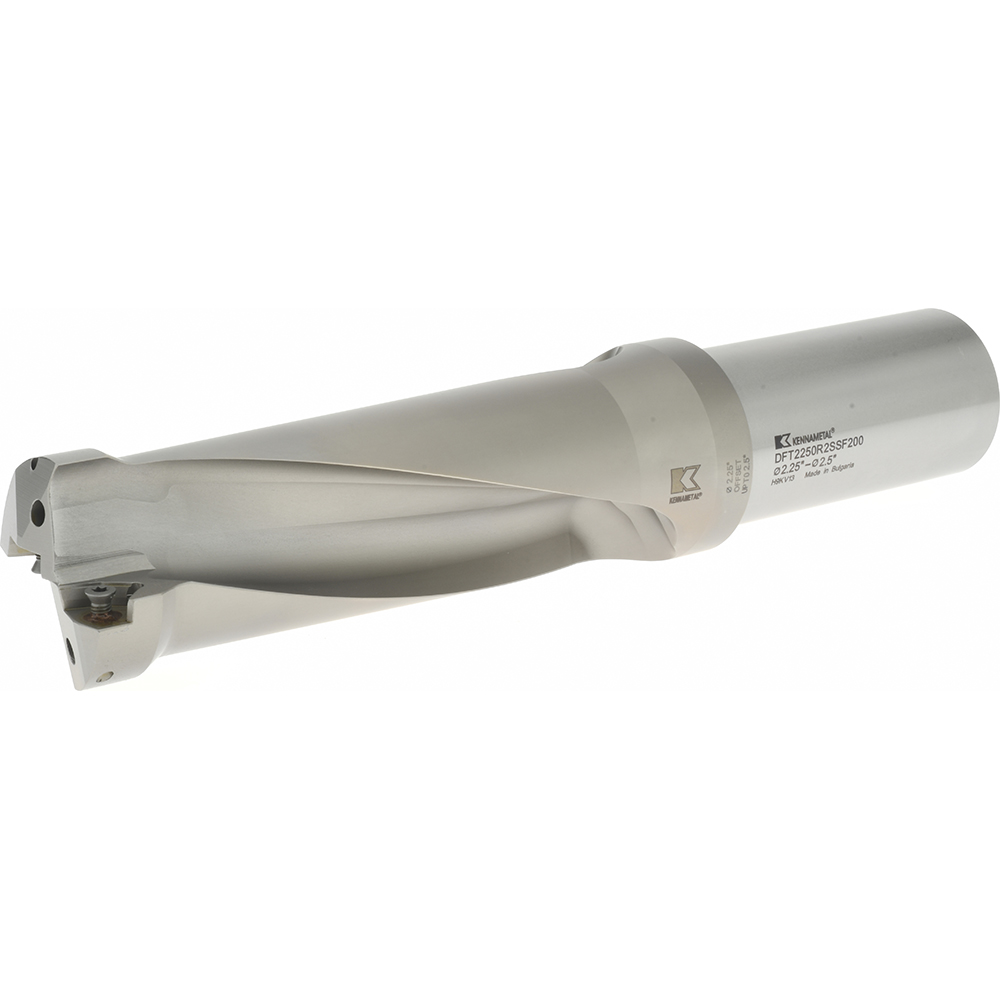

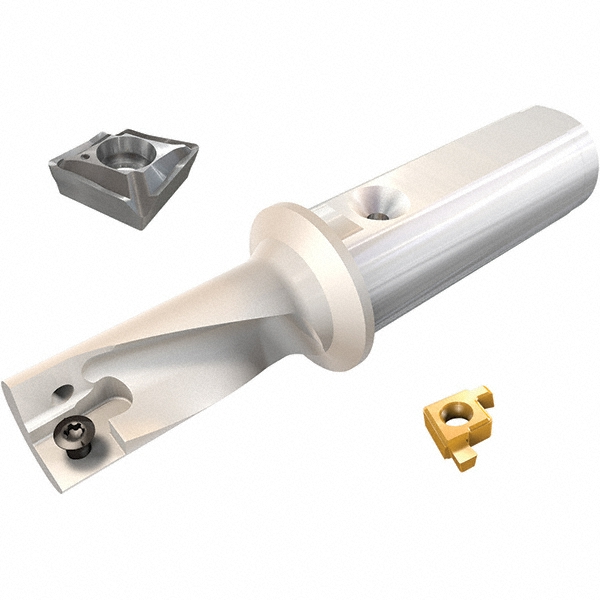

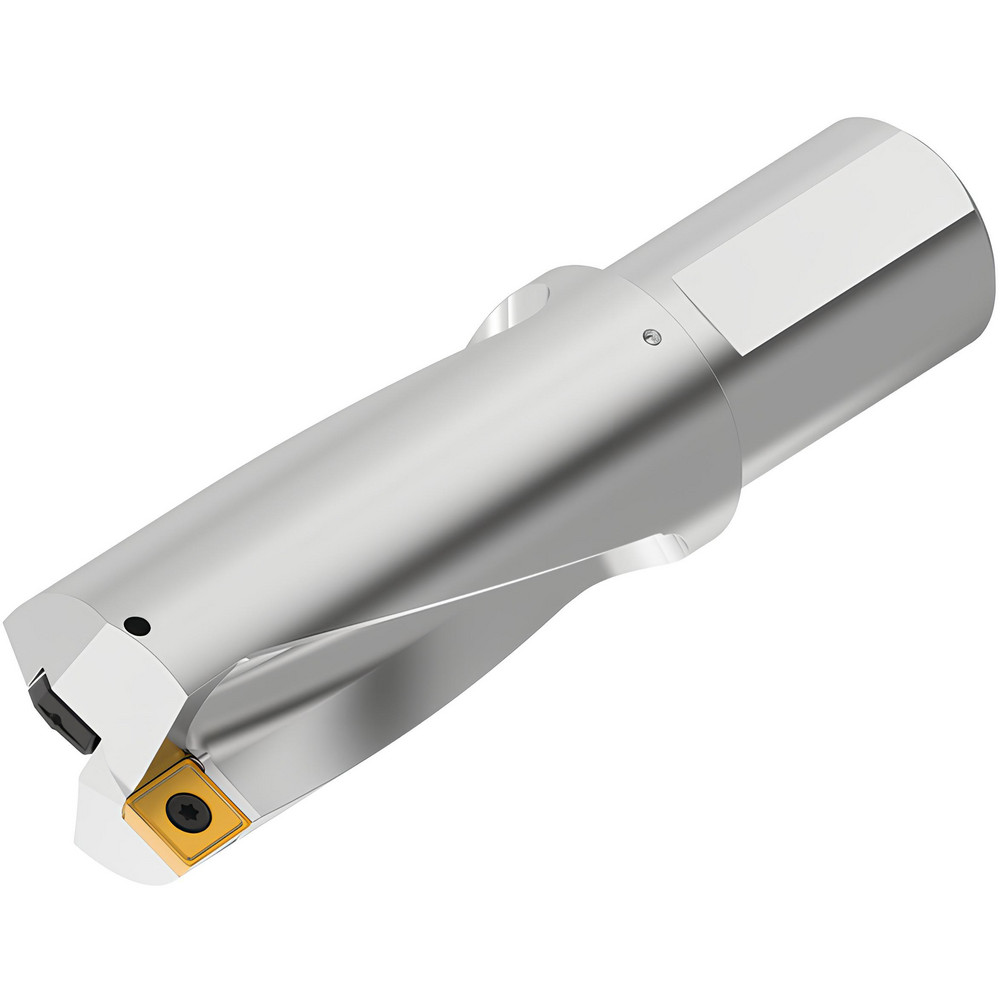

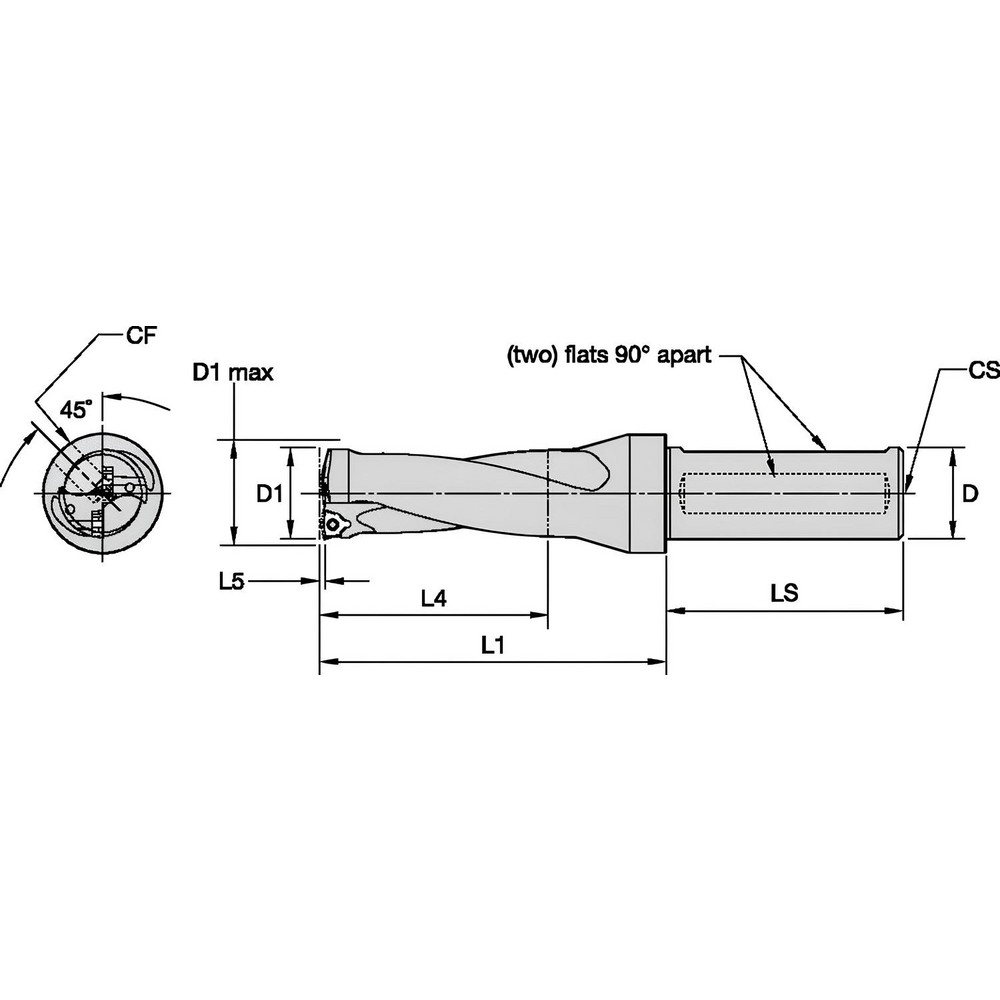

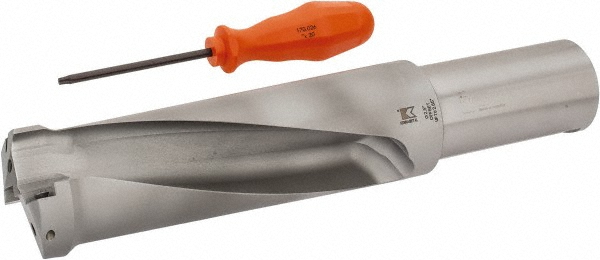

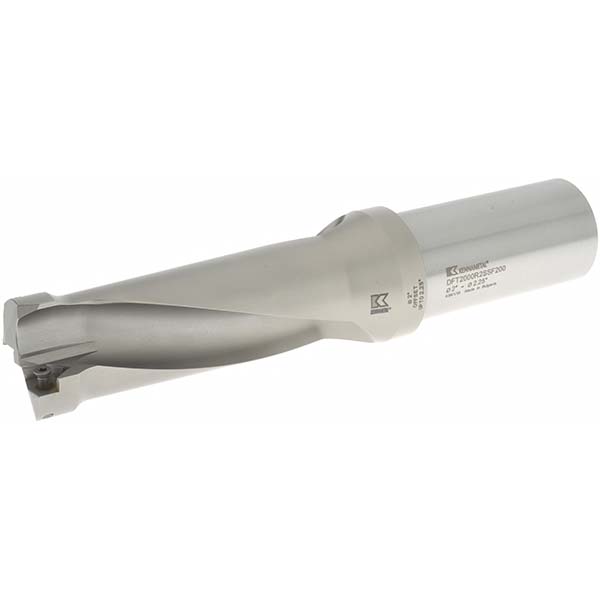

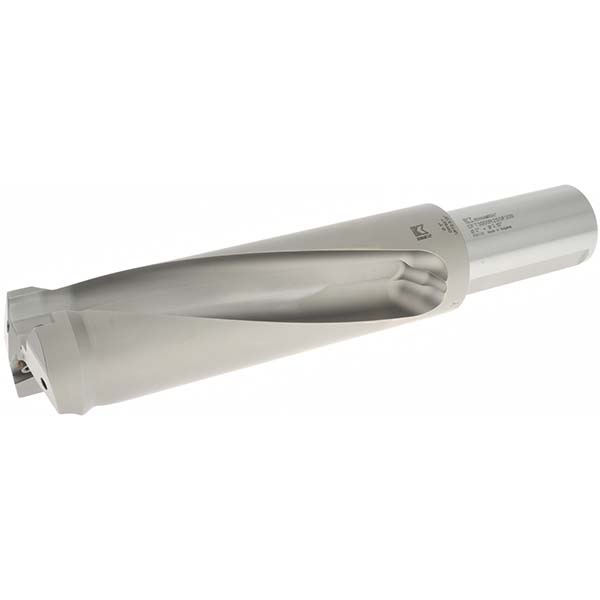

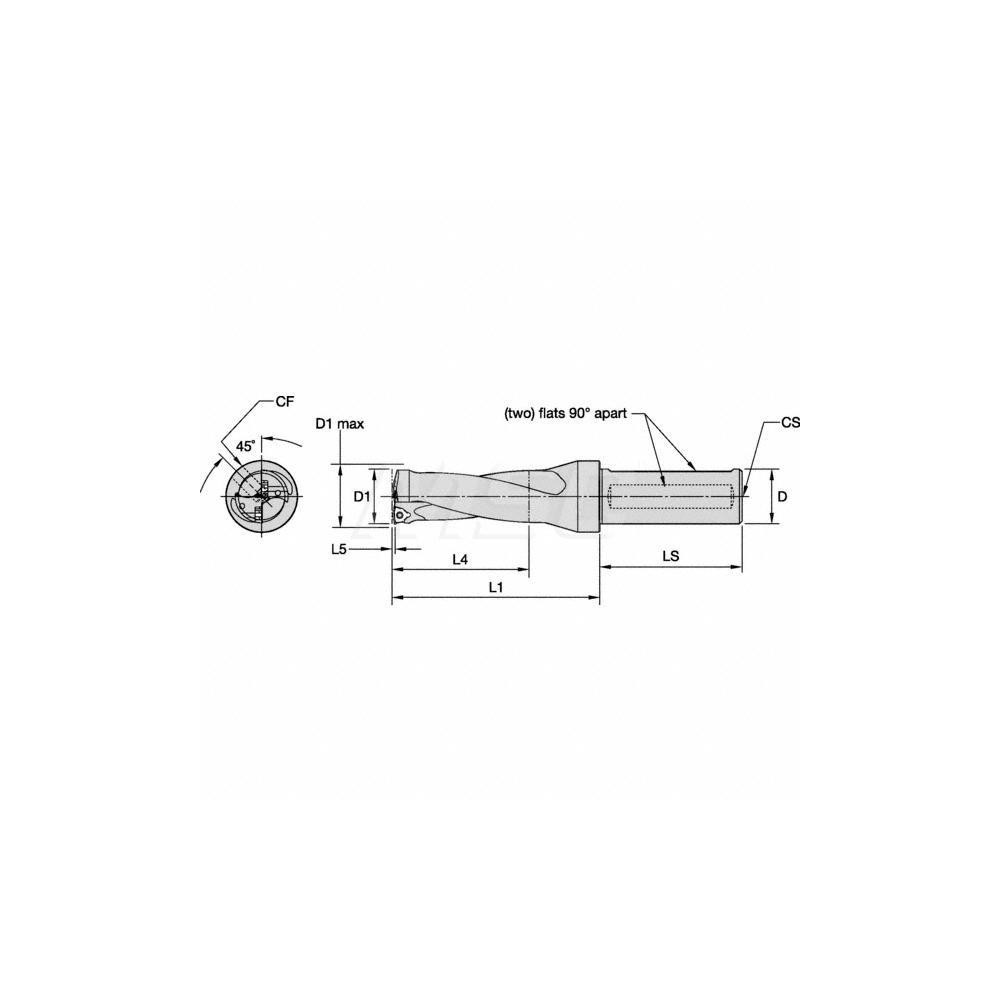

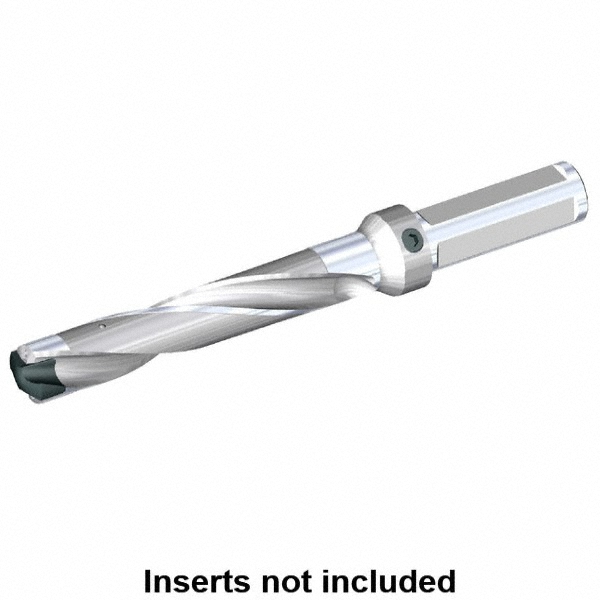

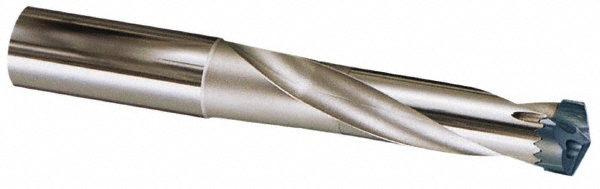

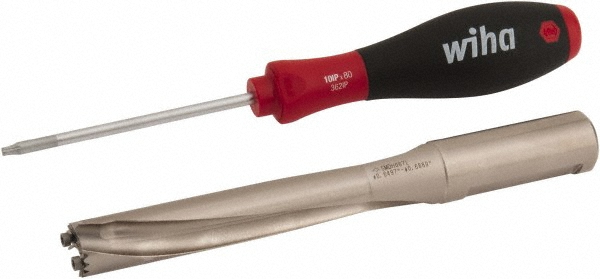

Weldon Flat & Flange Shank, Uses DFT 1105.. Inserts, Series DFT
| Compatible Drill Style | DFT |
|---|---|
| Maximum Drill Diameter (mm) | 77.47 |
| Maximum Drill Diameter (Decimal Inch) | 3.0500 |
| Maximum Drill Depth (Inch) | 6-7/8 |
| Maximum Drill Depth (Decimal Inch) | 6.8750 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |

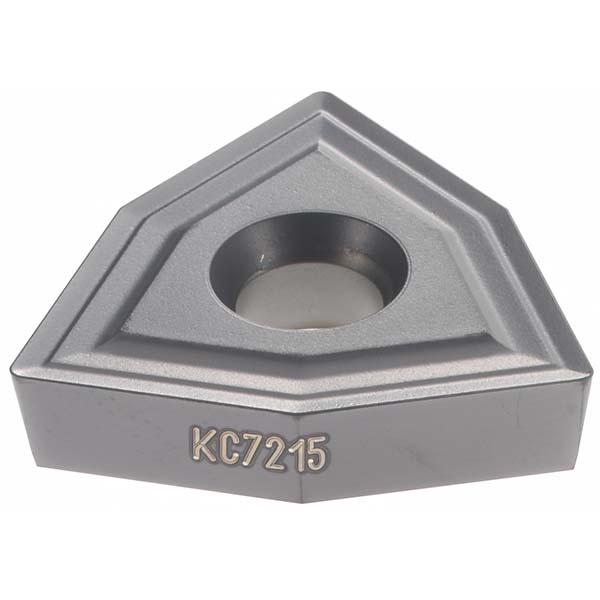

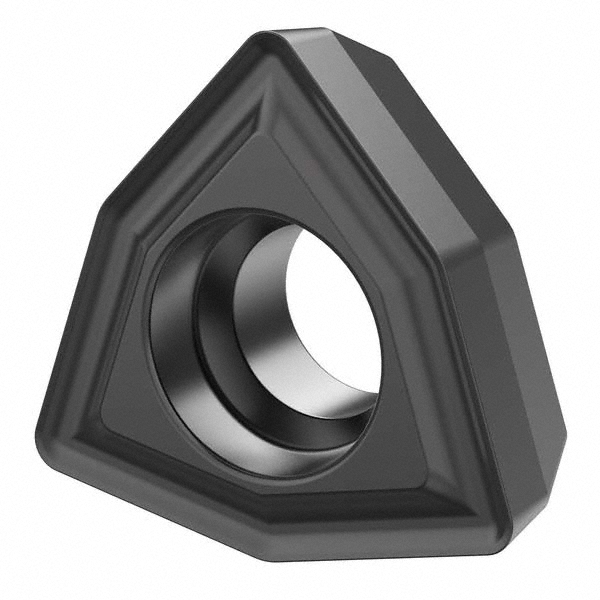

| Compatible Insert Style | DFT |
| Compatible Insert Size Code | 1105.. |
| Drill Depth by Diameter Ratio | 2.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 13.1250 |
| Overall Length (Inch) | 13-1/8 |
| Series | DFT |
| Flute Length (Decimal Inch) | 6.8750 |
| Body Length (mm) | 231.78 |
| Body Length (Decimal Inch) | 9.1250 |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (mm) | 101.60 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4580x0.1941 |
| Insert Size (mm) | 11.63x4.93 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFT1105. |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |

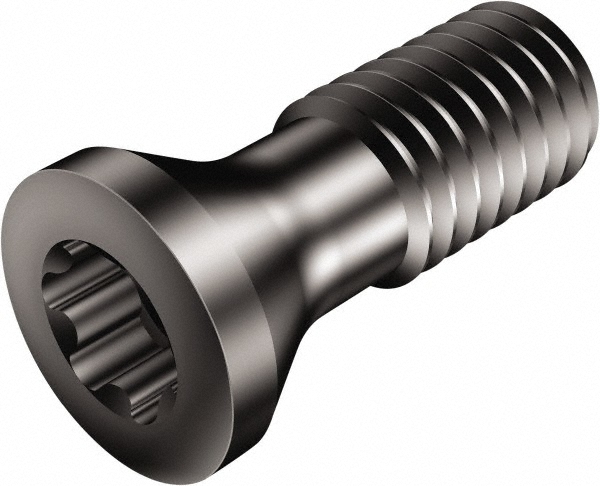

| Insert Lock Screw | M5.5-0.9x9.5T20 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 01264522 |
