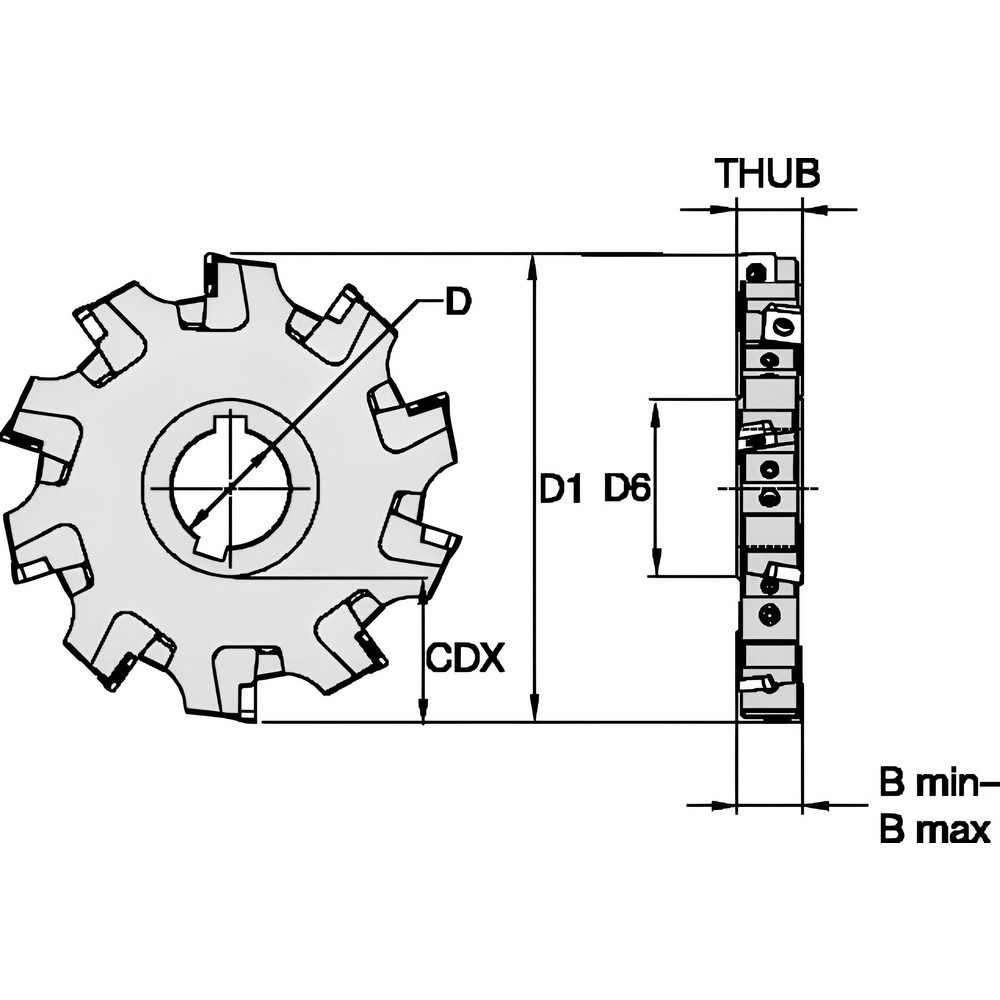

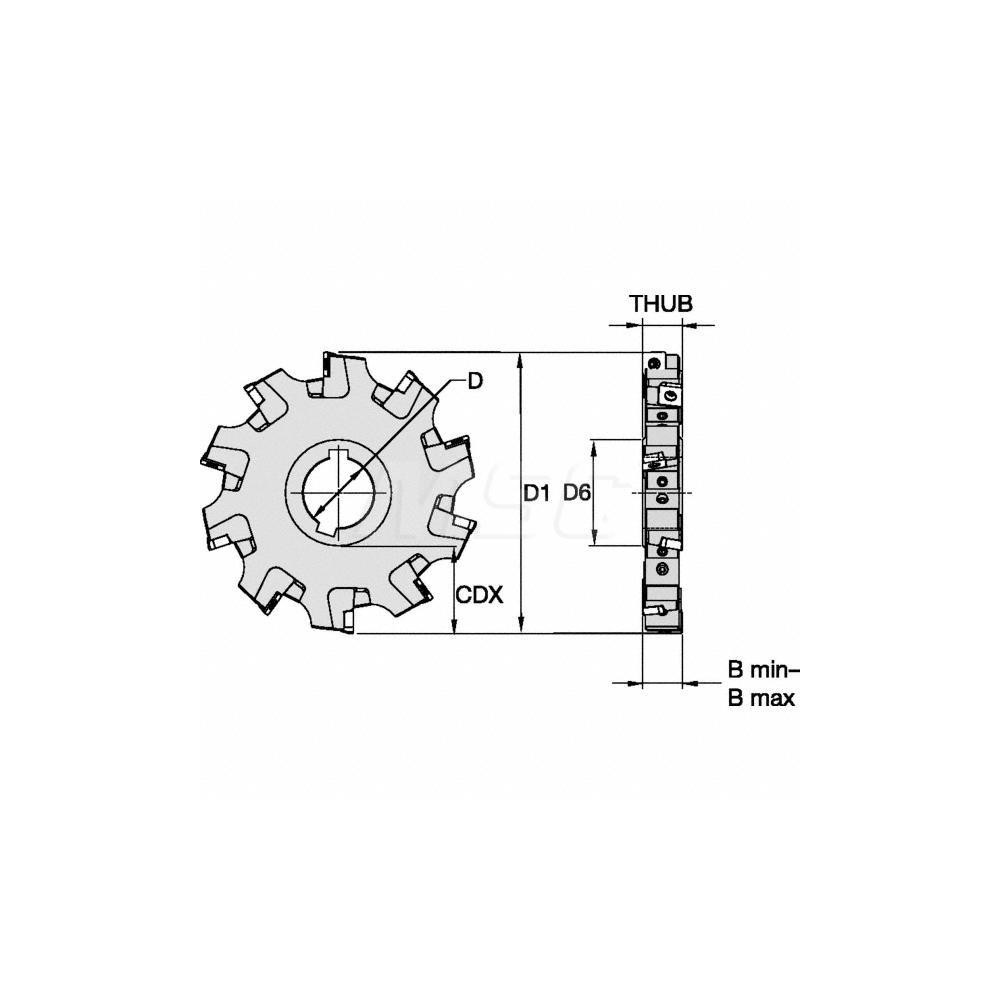

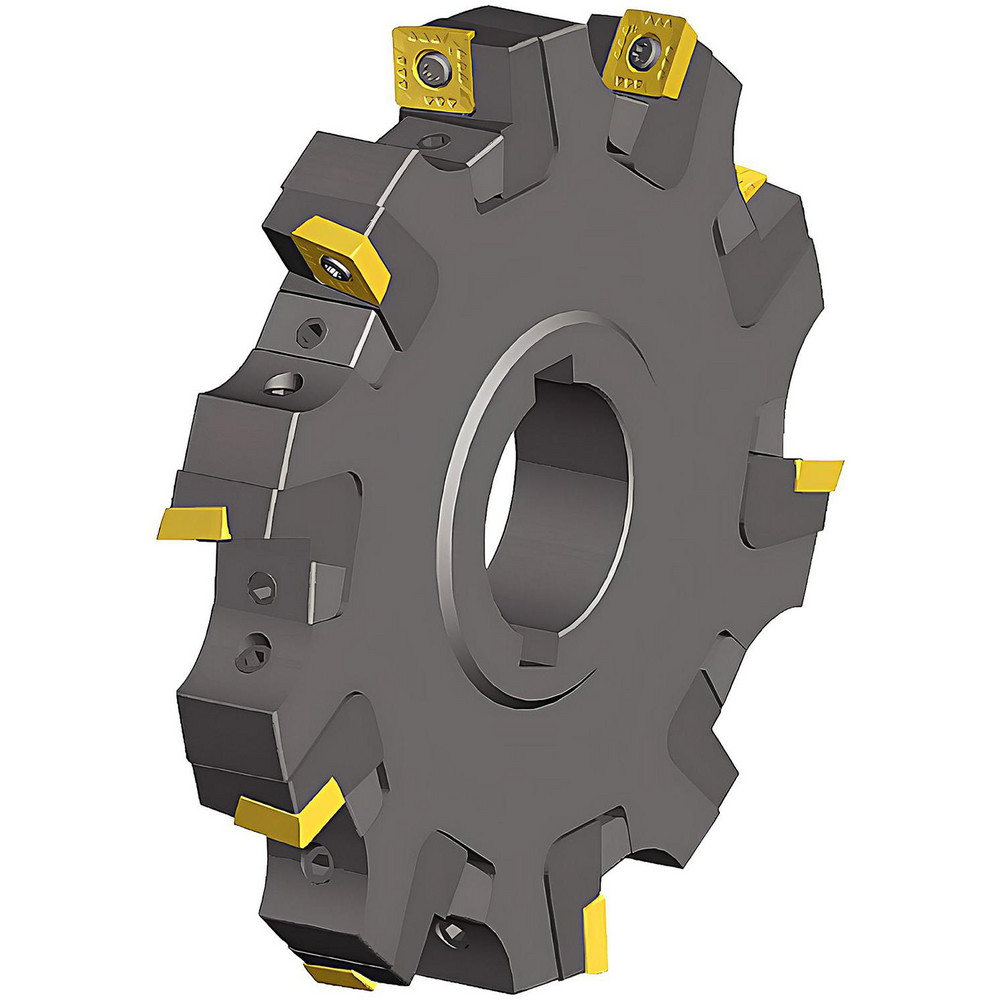

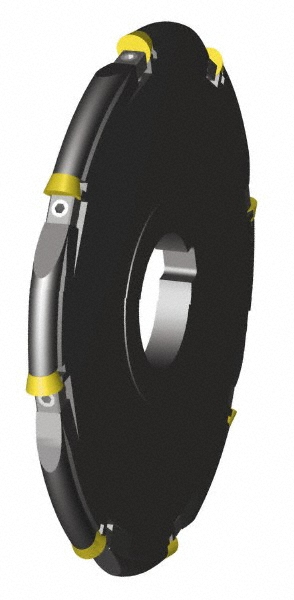

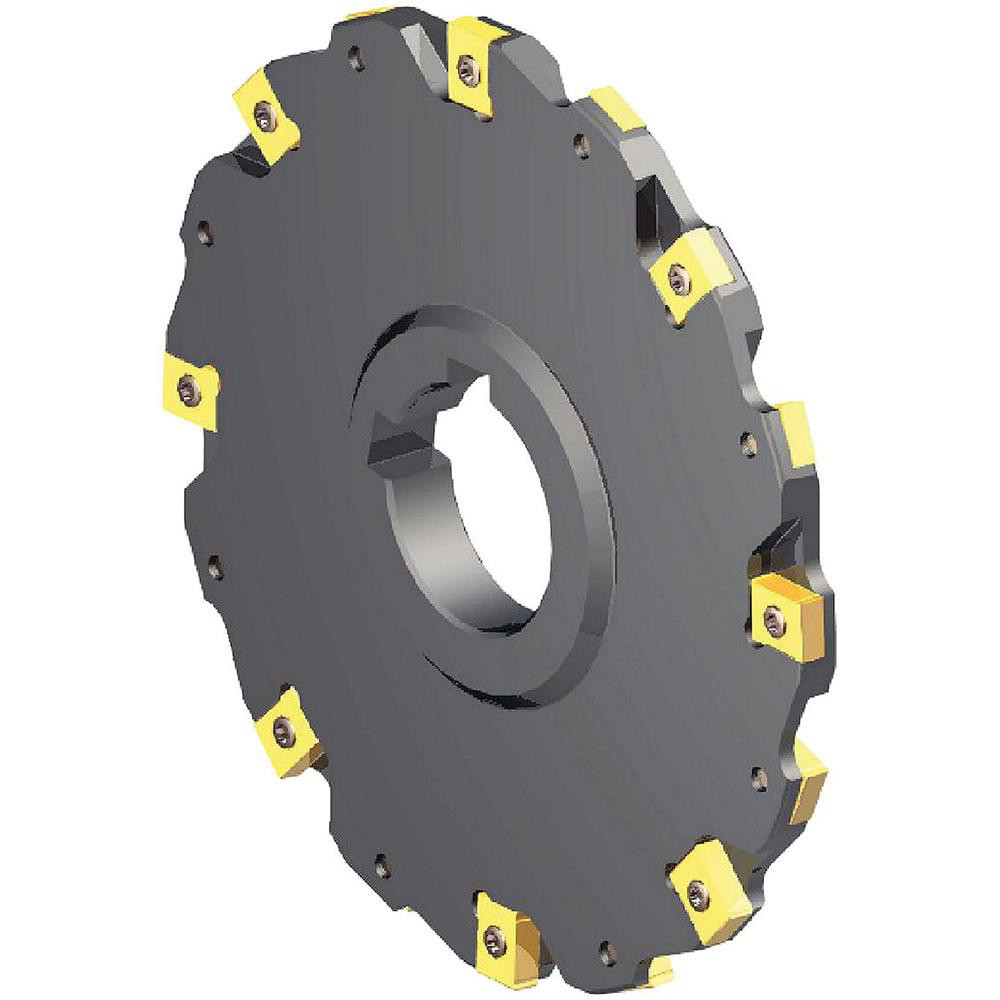

Screw, Uses 6 Inserts, SPCT, SPET & SPPT Inserts, 6 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.0300 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | SPPT; SPCT; SPET |
| Tooth Type | Staggered |
| Series | KSSS |
| Toolholder Style | KSSS |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Inch) | 5/16 |
| Maximum RPM | 17100 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Minimum Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Cutting Width (Decimal Inch) | 0.6300 |
| Radius | No |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.5450 |
| Manufacturers Catalog Number | KSSS400ASP10N551-630 |
| Insert Inscribed Circle (mm) | 10.00 |
| Number Of Teeth | 6 |
| Complete Insert Compatibility | SPCT 10T312PPFRLE; SPCT 10T316ENLD2; SPCT 10T3PPERLD2; SPCT 10T3PPFLLE; SPCT 10T320ENLD2; SPCT 10T312PPFLLE; SPCT 10T304PPERLD2; SPCT 10; SPCT 10T312PPERLD2; SPCT 10T316FNLE; SPCT 10T304PPELLD2; SPCT 10T312PPELLD2; SPCT 10T304PPFLLE; SPCT 10T3PPFRLE; SPCT 10T304PPFRLE; SPCT 10T3PPELLD2 |
| Country of Origin | Bulgaria |
