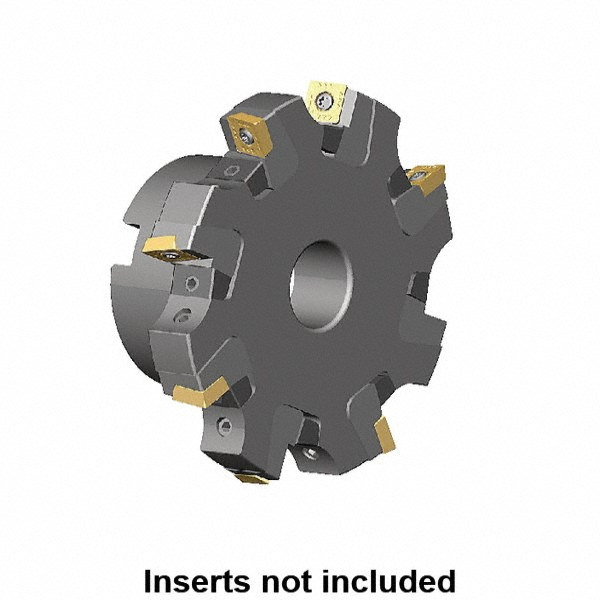

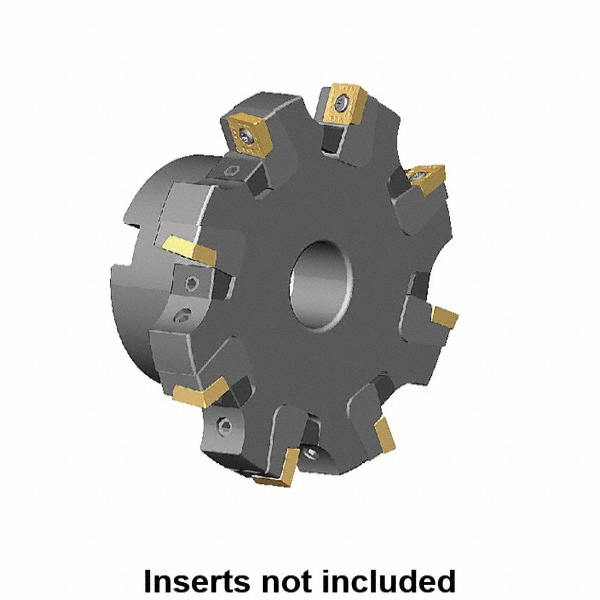

Screw, Uses 8 Inserts, SDT 1204 Inserts, 8 Tooth, Straight Teeth
| Cutting Width (mm) | 11.71 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4610 |
| Maximum Depth of Cut (mm) | 31.91 |
| Hole Diameter (Mm) ( - 0 Decimals) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Cutter Diameter (Decimal Inch) | 4.9210 |
| Cutter Diameter (Inch) | 4-59/64 |
| Cutter Diameter (mm) | 125.00 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | SDT 1204 |
| Tooth Type | Straight |
| Series | KSSM |
| Toolholder Style | KSSM |
| Hub Diameter (Decimal Inch) | 2.2835 |
| Hub Diameter (mm) | 58.00 |
| Maximum RPM | 10350 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | 125Y08RK90SD12N18K |
| Insert Inscribed Circle (mm) | 12.00 |
| Number Of Teeth | 8 |
| Complete Insert Compatibility | SD.T1204PD.R. |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 46890257 |
