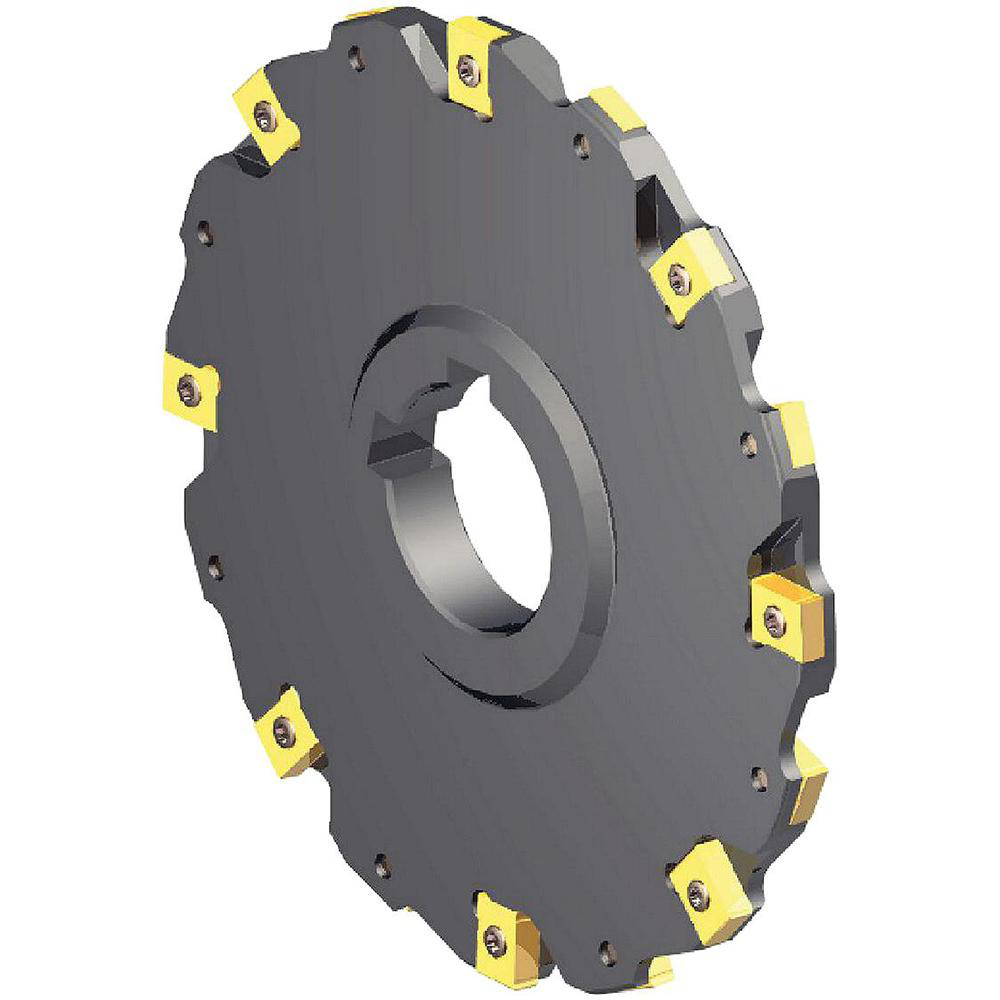

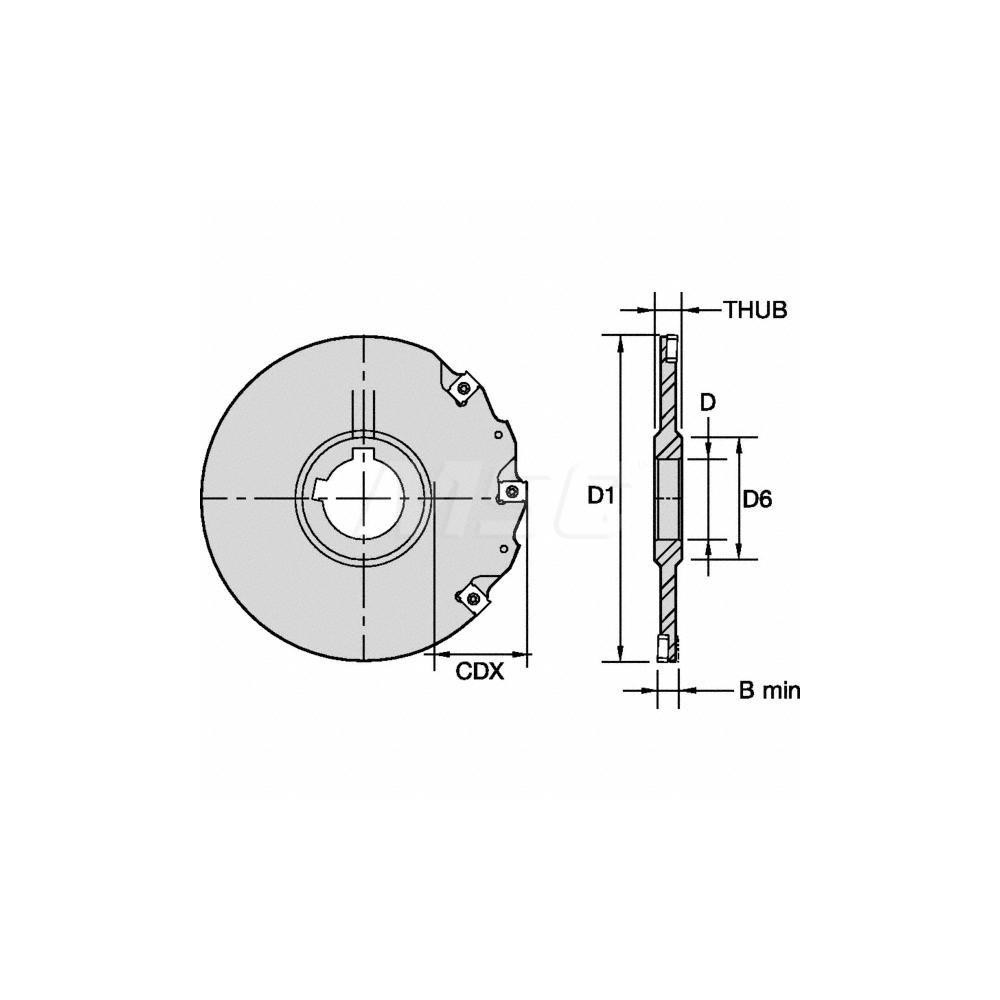

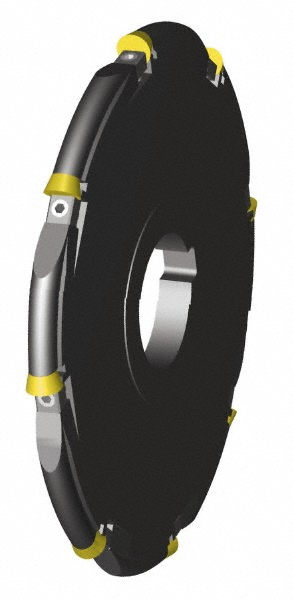

Screw, Uses 12 Inserts, LNE 1240 Inserts, 12 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 1.4040 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |

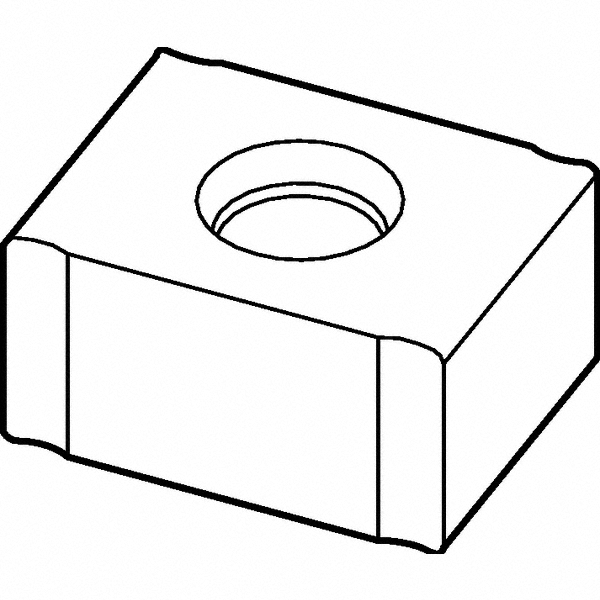

| Compatible Insert Style | LNE 1240 |
| Tooth Type | Staggered |
| Rake | Neutral; Positive |
| Series | LN |
| Toolholder Style | 90° LN |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.3100 |
| Maximum RPM | 7330 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Minimum Cutting Width (Decimal Inch) | 0.2500 |
| Minimum Cutting Width (Inch) | 1/4 |
| Radius | No |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | KS54LNE1240 |
| Number Of Teeth | 12 |
| Complete Insert Compatibility | LNEU 1240R16; LNEQ 1250R04; LNEQ 1240; LNEU 1240R08; LNEU 1235R03; LNEU 1245R08; LNEU 1240R03; LNEU 1260R; LNEQ 1255R04; LNEU 1245R16; LNEU 1250R08; LNEU 1245R32; LNEQ 1235R03; LNEU 1255R16; LNEU 1255R08; LNEU 1250R04; LNEU 1255R04; LNEQ 1240R03; LNEQ 1255; LNEQ 1260R04; LNEQ 1245R04; LNEU 1255R32 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 80744584 |
