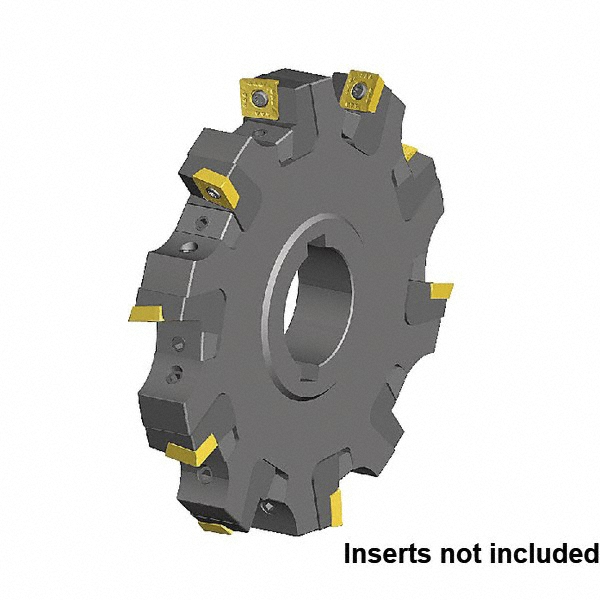

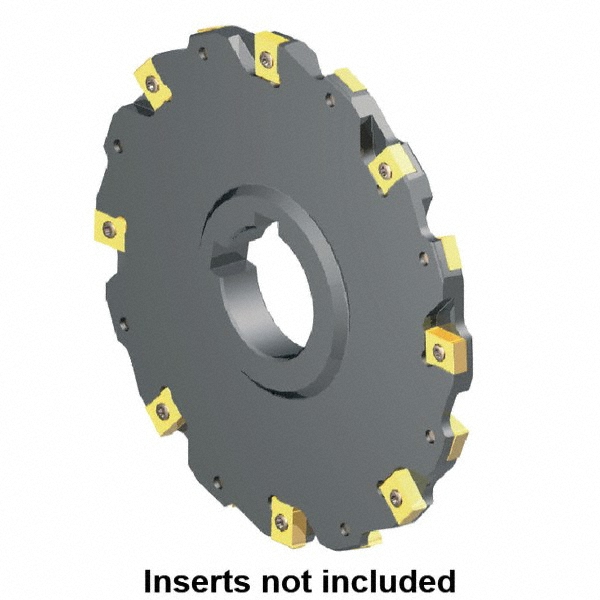

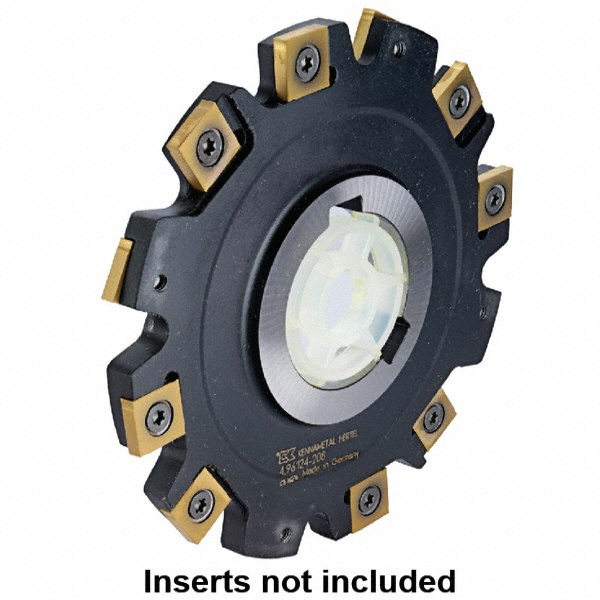

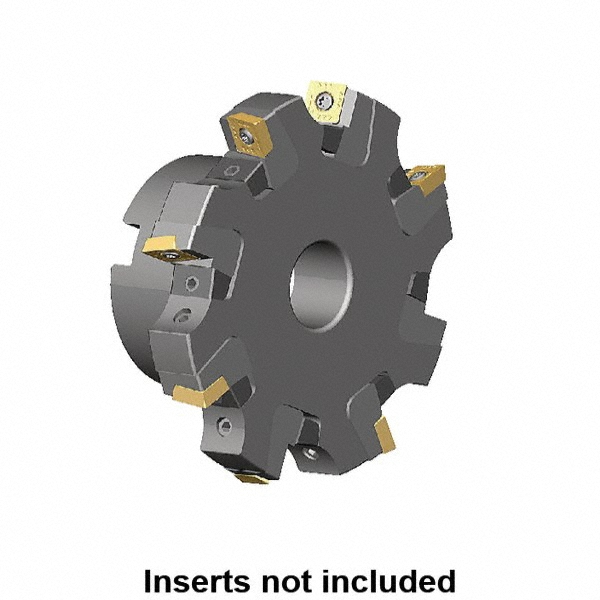

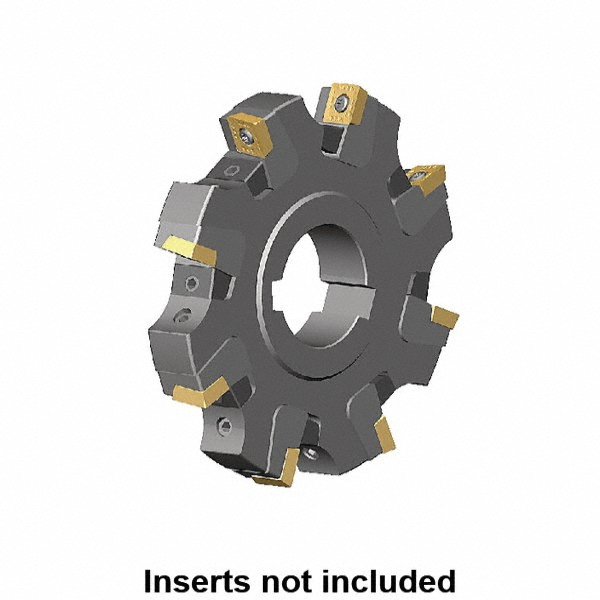

Screw, Uses 10 Inserts, SPT 10T3 Inserts, 10 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0420 |
| Maximum Depth of Cut (mm) | 51.87 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 6.2990 |
| Cutter Diameter (mm) | 160.00 |
| Shank Diameter (Decimal Inch) | 1.5740 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | SPT 10T3 |
| Tooth Type | Straight |
| Series | KSSM |
| Toolholder Style | KSSM |
| Hub Diameter (Decimal Inch) | 2.1555 |
| Hub Diameter (mm) | 54.75 |
| Maximum RPM | 13650 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Minimum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Cutting Width (mm) | 18.00 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.6244 |
| Cutter Body Width (mm) | 15.86 |
| Manufacturers Catalog Number | 160H10NK90SP10N16K |
| Insert Inscribed Circle (mm) | 10.00 |
| Number Of Teeth | 10 |
| Complete Insert Compatibility | SP.T 10T3PP.R/L. |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 46890240 |
