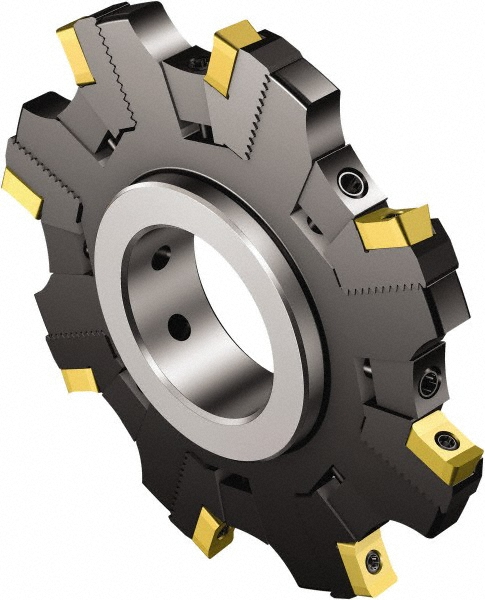

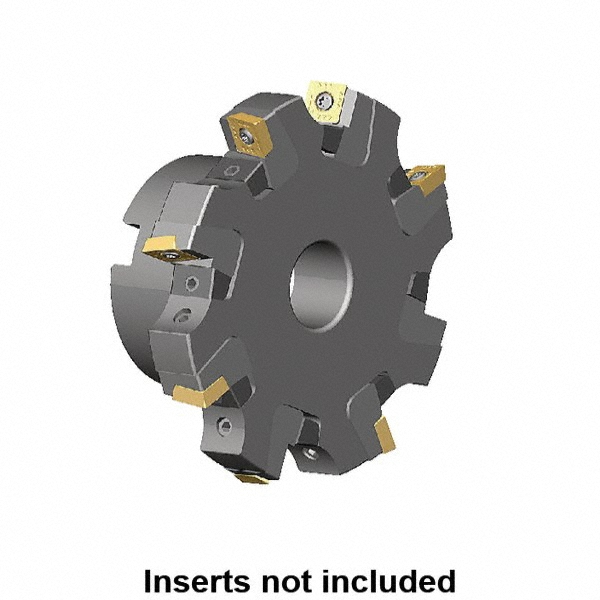

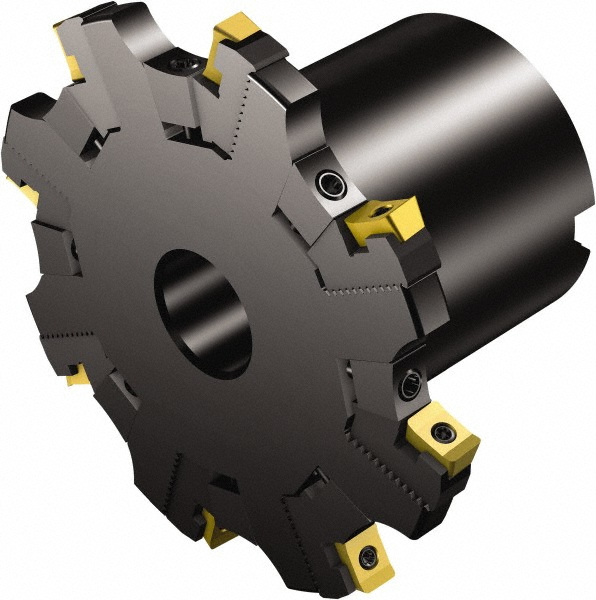

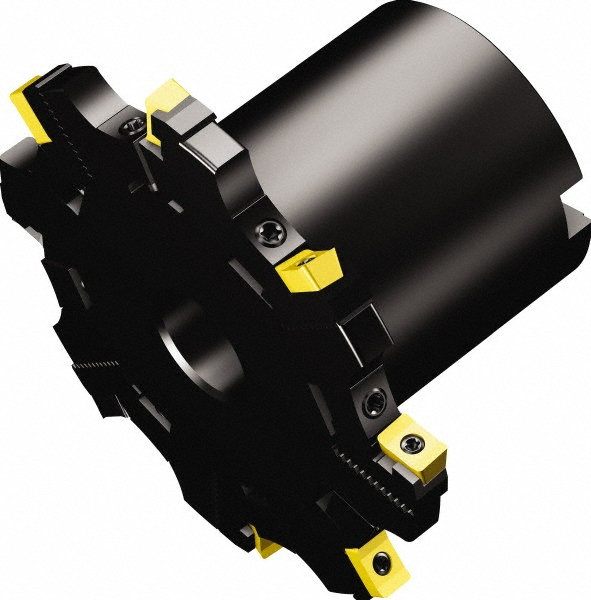

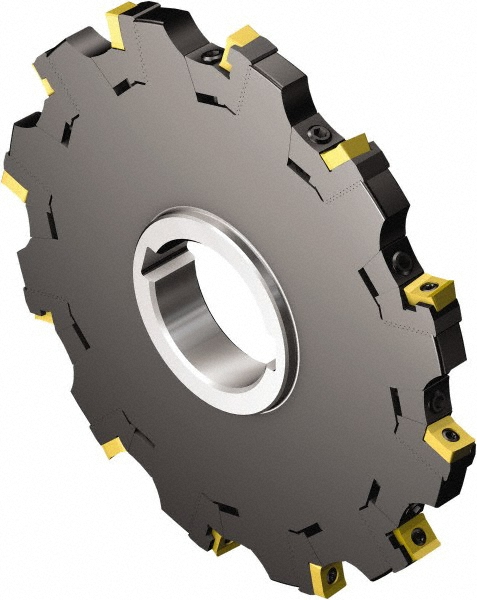

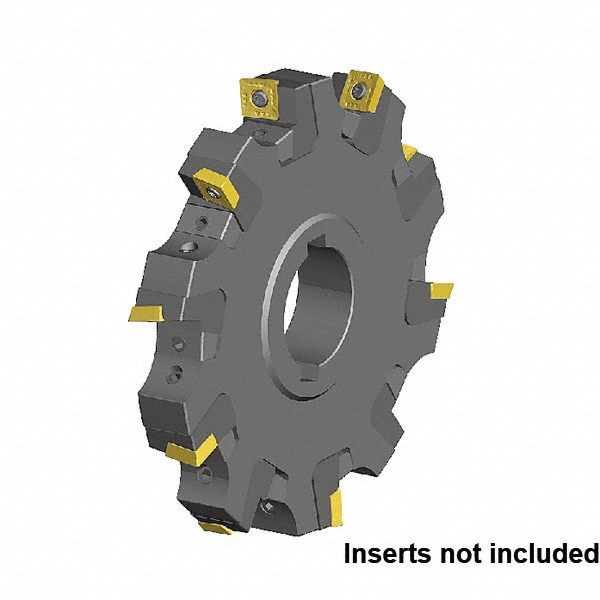

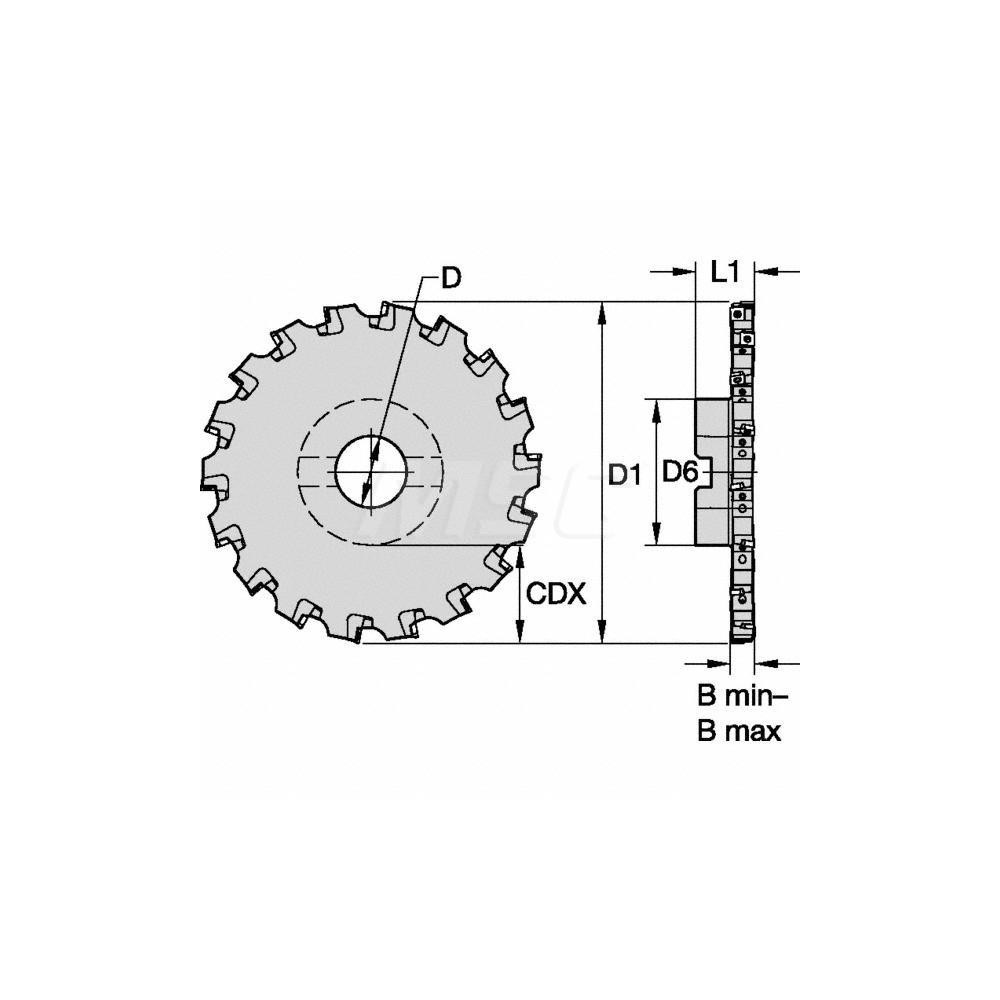

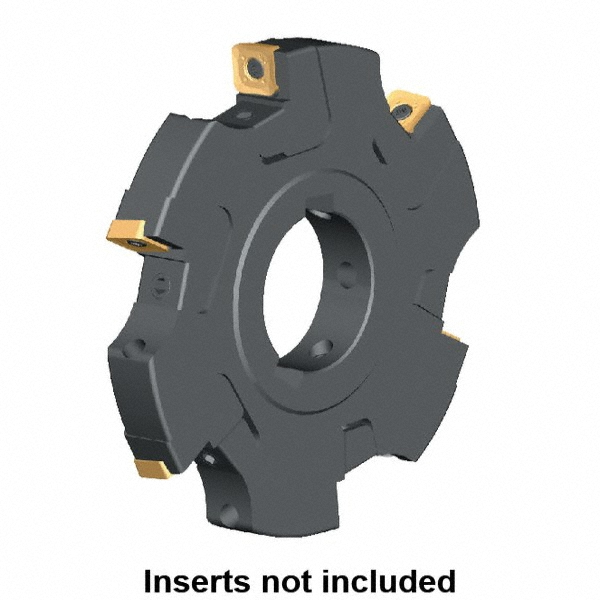

Screw, Uses 20 Inserts, SPT 10T3 Inserts, 20 Tooth, Straight Teeth
| Cutting Width (mm) | 16.00 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 3.5790 |
| Maximum Depth of Cut (mm) | 90.91 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Cutter Diameter (Decimal Inch) | 12.4010 |
| Cutter Diameter (mm) | 315.00 |
| Shank Diameter (Decimal Inch) | 2.3620 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 20 |
| Compatible Insert Style | SPT 10T3 |
| Tooth Type | Straight |
| Series | KSSM |
| Toolholder Style | KSSM |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Hub Diameter (mm) | 130.00 |
| Maximum RPM | 9700 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Minimum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Cutting Width (mm) | 18.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | 315Y20NK90SP10N16K |
| Insert Inscribed Circle (mm) | 10.00 |
| Number Of Teeth | 20 |
| Complete Insert Compatibility | SP.T 10T3PP.R/L. |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 46890042 |
