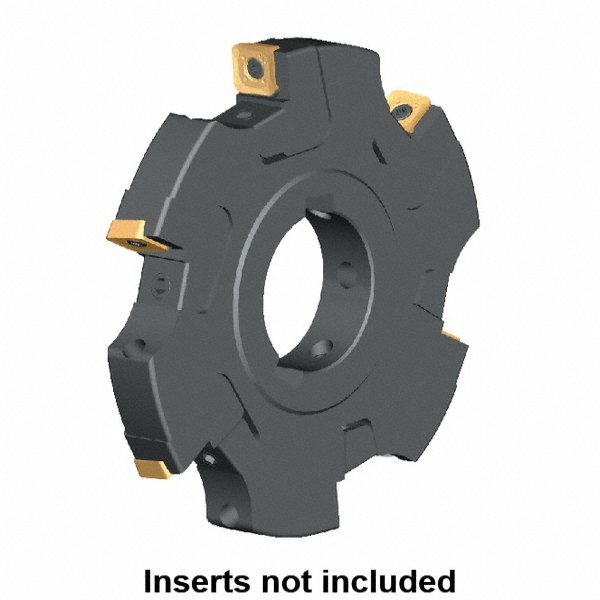

Screw, Uses 16 Inserts, SDT 1204 Inserts, 16 Tooth, Straight Teeth
| Cutting Width (mm) | 20.65 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 2.2992 |
| Maximum Depth of Cut (mm) | 58.40 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Cutter Diameter (Decimal Inch) | 9.8420 |
| Cutter Diameter (mm) | 250.00 |
| Shank Diameter (Decimal Inch) | 2.3620 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 16 |
| Compatible Insert Style | SDT 1204 |
| Tooth Type | Straight |
| Series | KSSM |
| Toolholder Style | KSSM |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Hub Diameter (mm) | 130.00 |
| Maximum RPM | 7350 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Minimum Cutting Width (Decimal Inch) | 0.8130 |
| Minimum Cutting Width (Inch) | 13/16 |
| Maximum Cutting Width (Decimal Inch) | 0.9173 |
| Maximum Cutting Width (mm) | 23.30 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | 250Y16NK90SD12N20K |
| Insert Inscribed Circle (mm) | 12.00 |
| Number Of Teeth | 16 |
| Complete Insert Compatibility | SD.T1204PD.R/L |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 46890091 |
