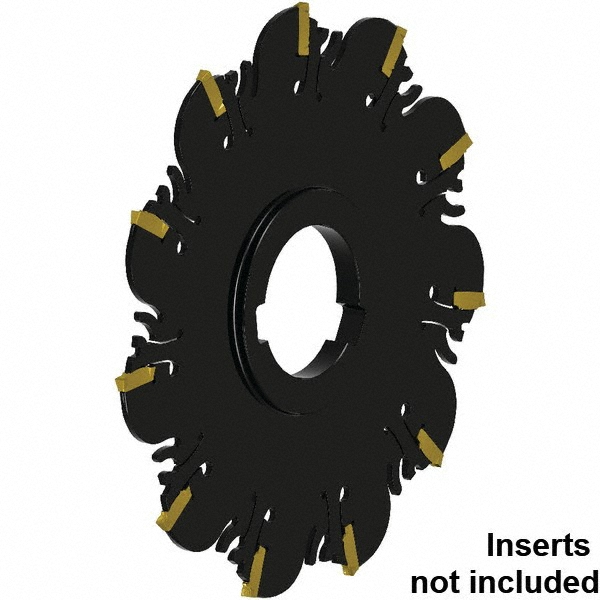

Clamp, Uses 17 Inserts, XCP21 Inserts, 17 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 2.10 |
| Maximum Depth of Cut (mm) | 71.70 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Cutter Diameter (mm) | 200.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5800 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 17 |
| Compatible Insert Style | XCP21 |
| Tooth Type | Straight |
| Series | KNS |
| Toolholder Style | FDA |
| Hub Diameter (mm) | 55.00 |
| Maximum RPM | 400 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Maximum Cutting Width (mm) | 3.20 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | KNSM200N17X21K040 |
| Number Of Teeth | 17 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 37896602 |
