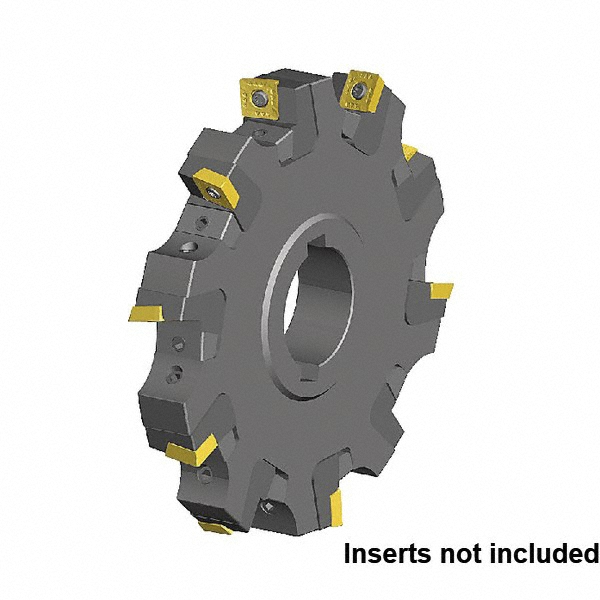

Screw, Uses 8 Inserts, SPT 10T3 Inserts, 8 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 9.12 |
| Maximum Depth of Cut (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (mm) | 34.37 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 4.9210 |
| Cutter Diameter (Inch) | 4-59/64 |
| Cutter Diameter (mm) | 125.00 |
| Shank Diameter (Decimal Inch) | 1.5740 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | SPT 10T3 |
| Tooth Type | Straight |
| Series | KSSM |
| Toolholder Style | KSSM |
| Hub Diameter (Decimal Inch) | 2.1555 |
| Hub Diameter (mm) | 54.75 |
| Maximum RPM | 15450 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.5453 |
| Cutter Body Width (mm) | 13.85 |
| Manufacturers Catalog Number | 125H08RK90SP10N14K |
| Insert Inscribed Circle (mm) | 10.00 |
| Number Of Teeth | 8 |
| Complete Insert Compatibility | SP.T 10T3PP.R. |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 46890505 |
