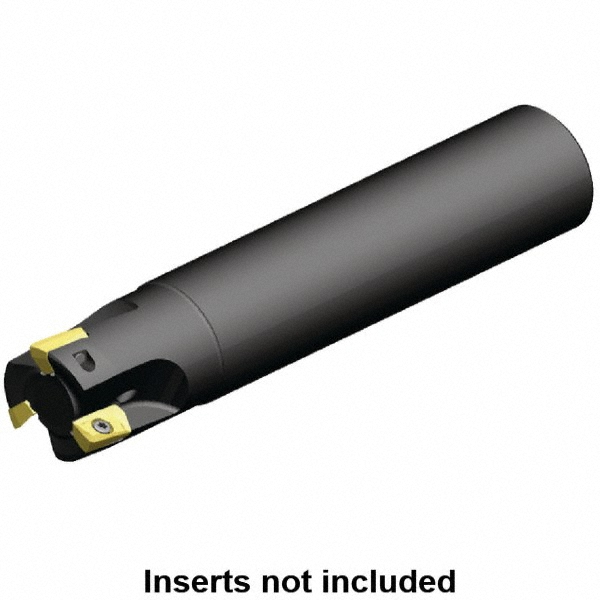

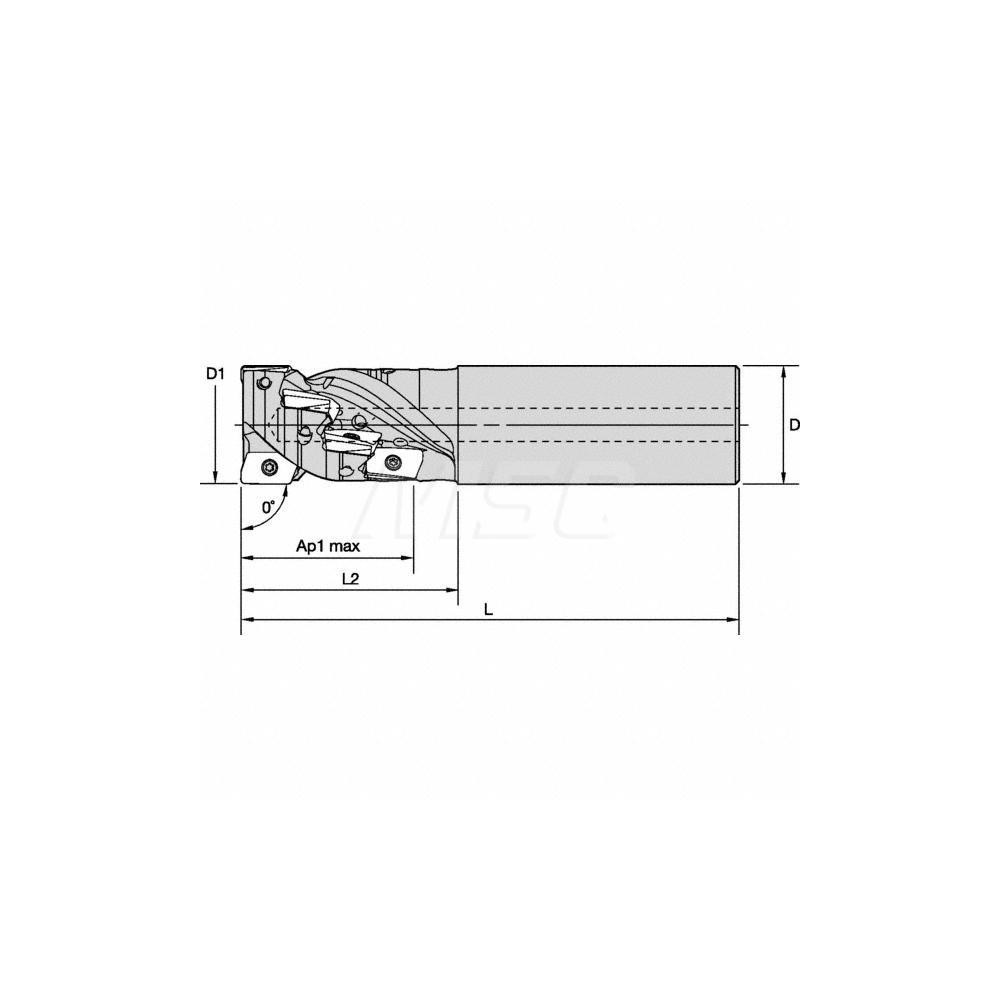

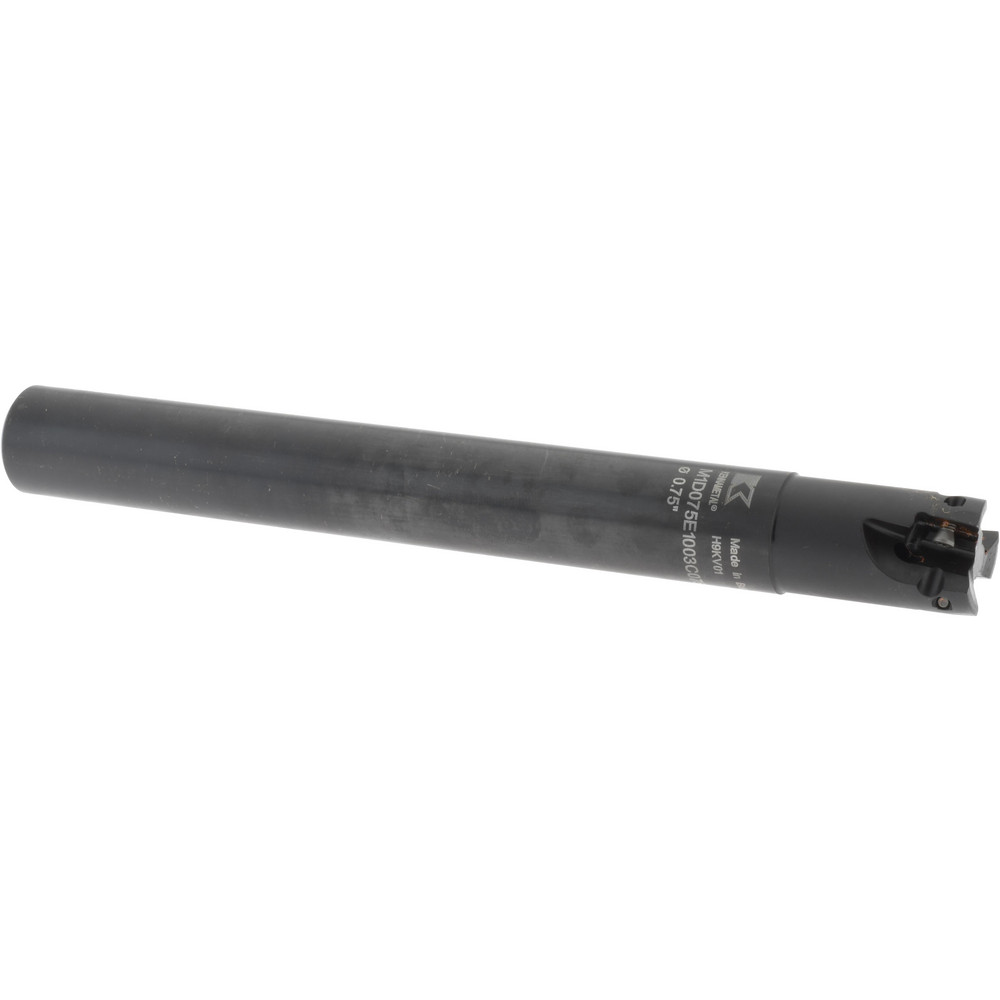

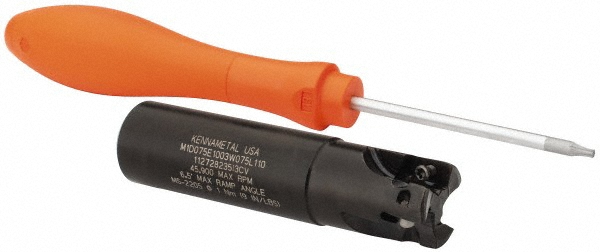

Uses (4) EC10..;EP10.. Inserts, 4.406" OAL
| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.4060 |
| Maximum Depth of Cut (Decimal Inch) | 0.7450 |
| Cutter Style | Mill 1-10 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1.053 |
| Maximum RPM | 38000 |
| Tool Application | Helical |
| Coolant Hole Diameter (Decimal Inch) | 0.1410 |
| Insert Compatibility | EP10..; EC10.. |
| UNSPSC Code | 27112803 |
| ISO Number | 075ED10C075Z2L110C4 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 63221360 |
