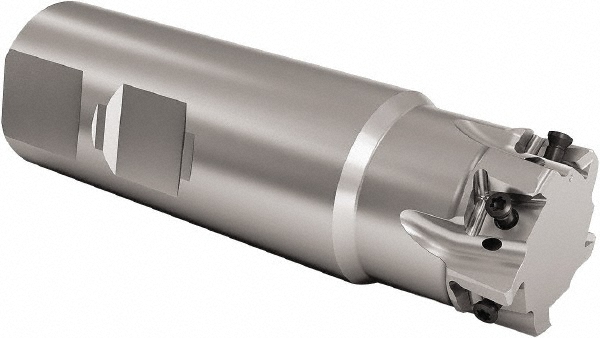

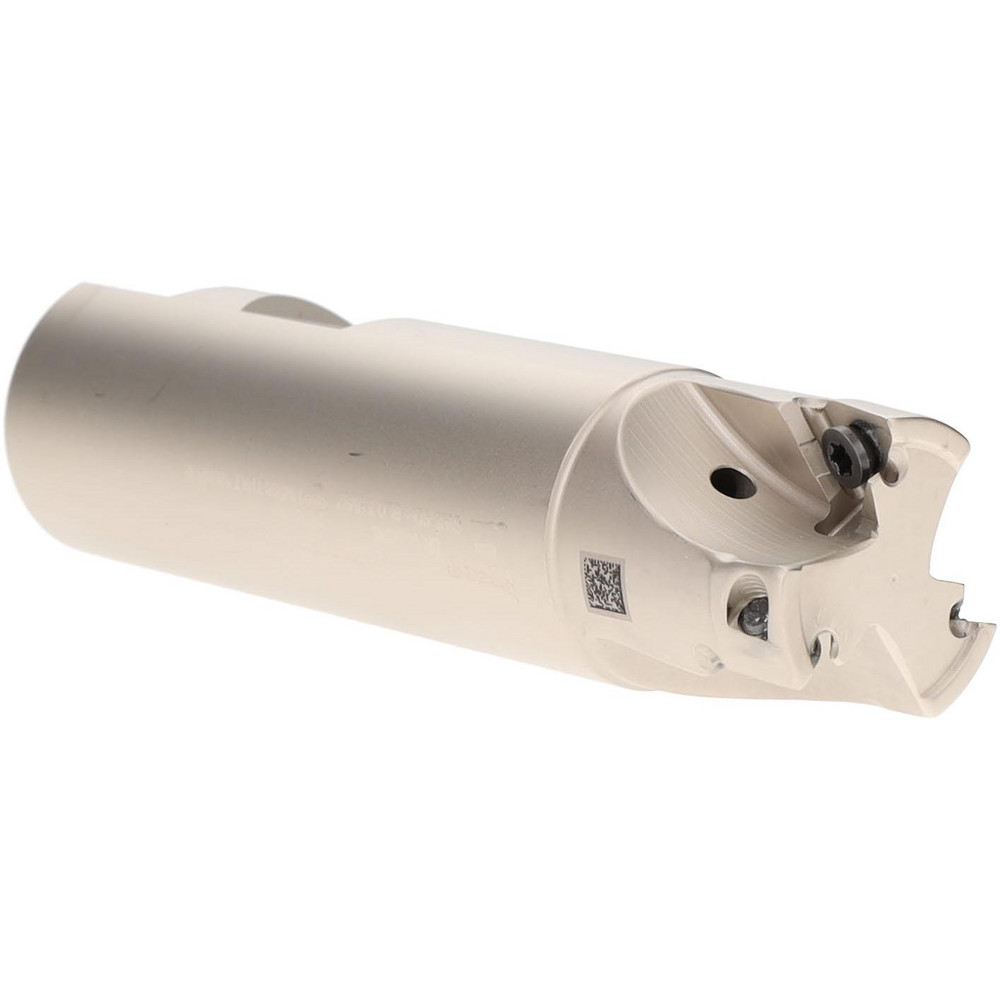

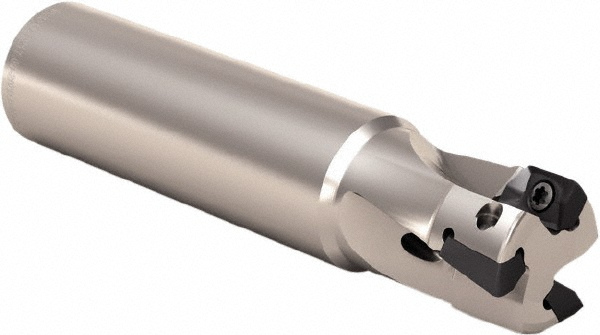

Uses (4) XD.. 10T3.. Inserts, 2.6575" OAL
| Cutting Diameter | 1.6535 in |
|---|---|
| Overall Length (Decimal Inch) | 2.6575 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Series | KMM |
| Shank Length (Decimal Inch) | 0.9646 |
| Shank Length (mm) | 24.50 |
| Head Length (Decimal Inch) | 1.6929 |
| Head Length (mm) | 43.00 |
| Modular Connection Size | M16 |
| Tool Application | Helical |
| Insert Compatibility | XD.. 10T3.. |
| UNSPSC Code | 27112803 |
| ISO Number | 42Y04R043M16SXD10 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Country of Origin | Spain |
| undefined | undefined |
| MSC Number | MSC# 07994361 |
