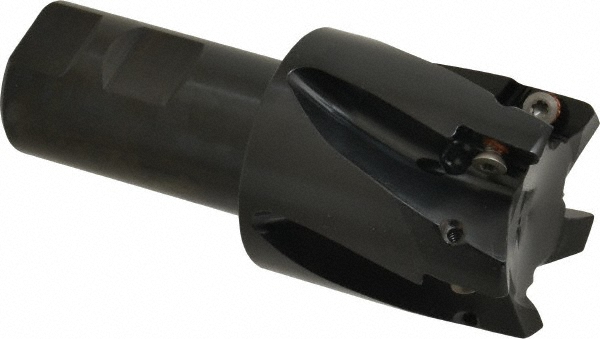

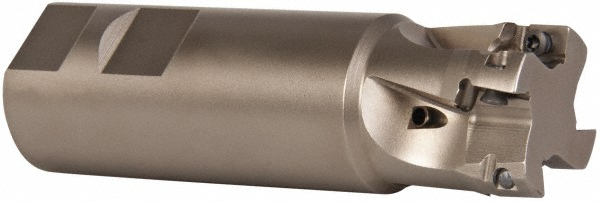

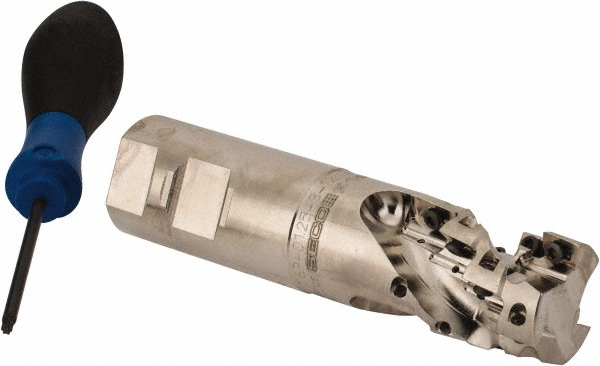

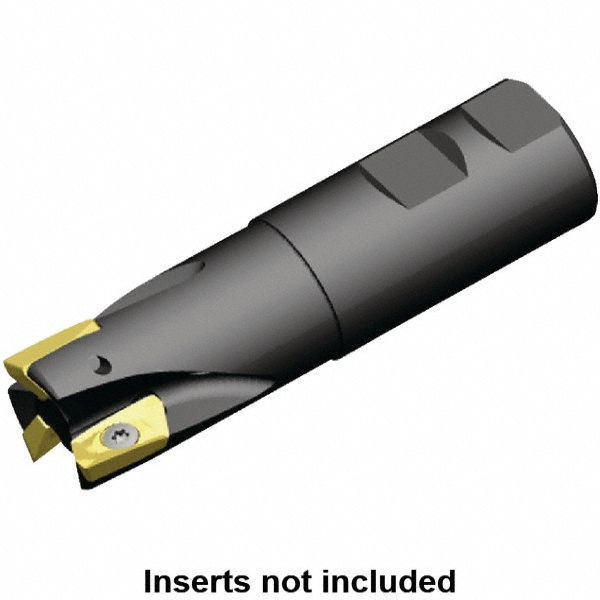

Uses (9) AD_12T3 Inserts, 4.28" OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.2800 |
| Maximum Depth of Cut (Decimal Inch) | 1.3700 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Series | 5315 |
| Lead Angle | 0 |
| Insert Compatibility | AD_12T3 |
| UNSPSC Code | 27112803 |
| ISO Number | C5315VA12WA1.25R1.37 |
| Number Of Cutter Inserts | 9 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 92550409 |
