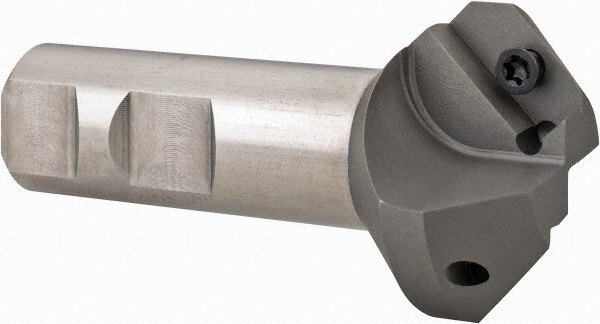

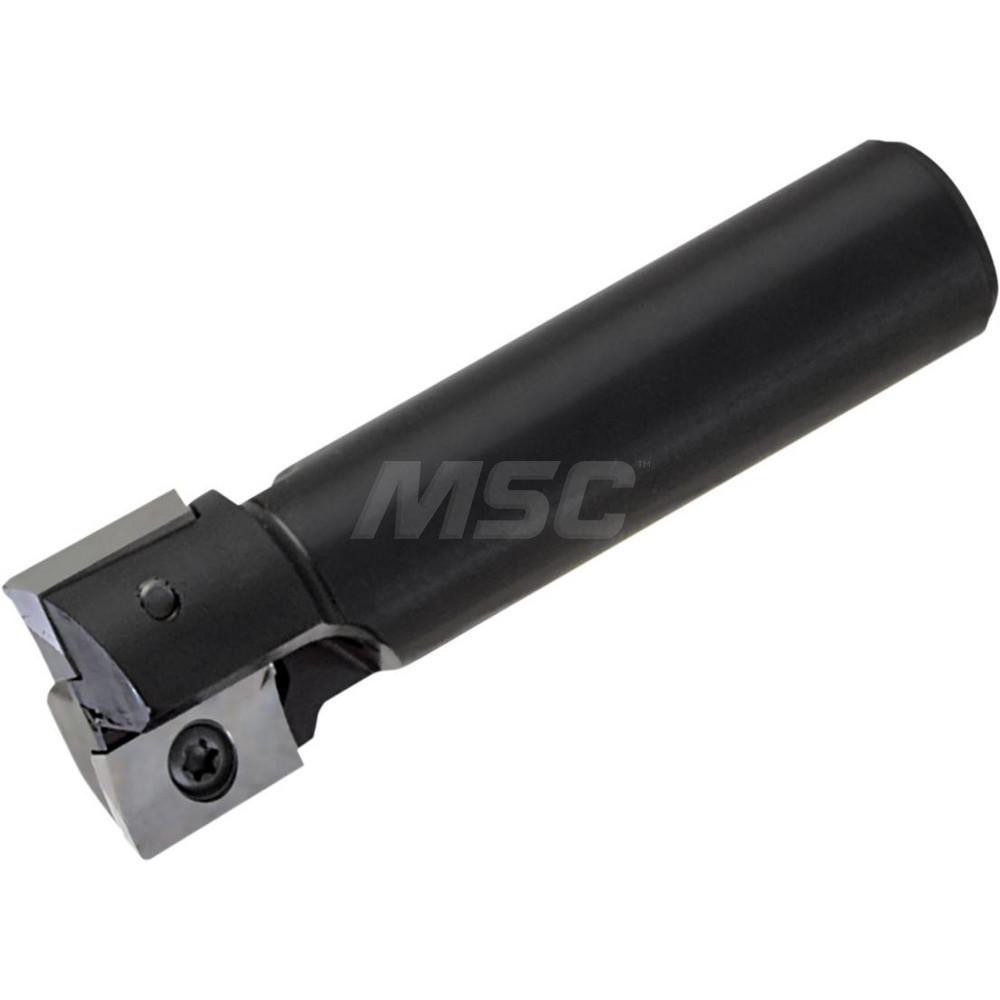

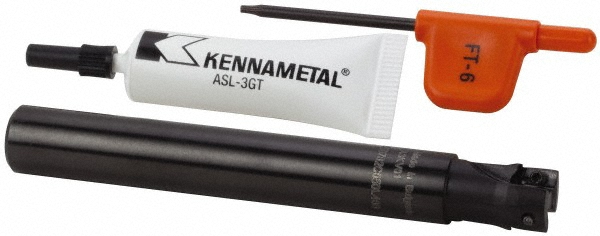

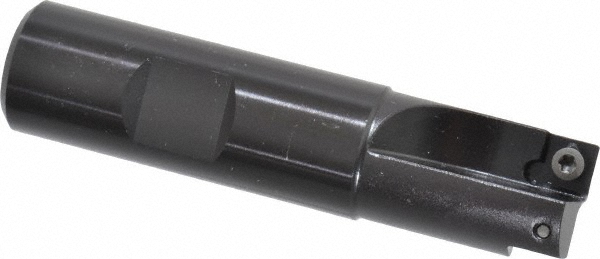

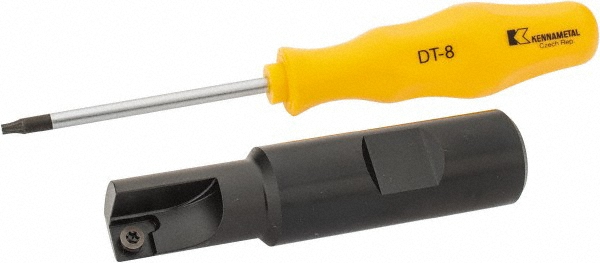

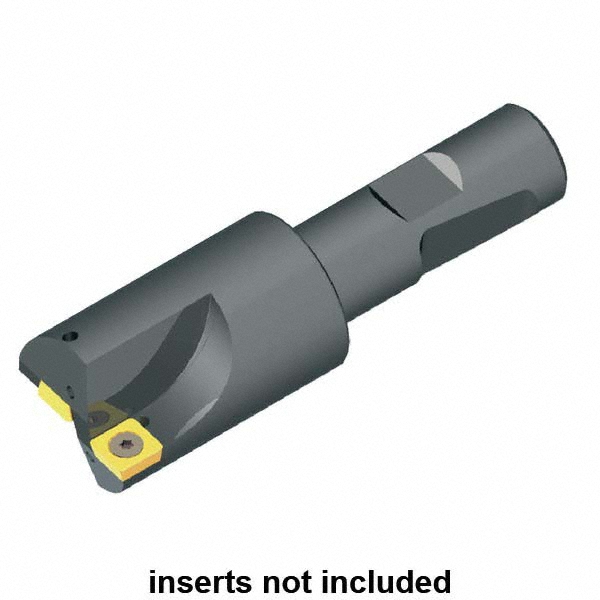

Uses (1) SDEB 2615. Insert, 3" OAL
| Cutting Diameter | 1/2 |
|---|---|
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Maximum Depth of Cut (mm) | 7.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Cutter Style | KICR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 1.7799 |
| Shank Length (mm) | 45.21 |
| Head Length (Decimal Inch) | 1.22 |
| Maximum RPM | 11000 |
| Insert Compatibility | SDEB 2615. |
| UNSPSC Code | 27112803 |
| ISO Number | KICR050SD260 |
| Number Of Flutes | 1 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | No |
| Country of Origin | Germany |
| MSC Number | MSC# 00691048 |
