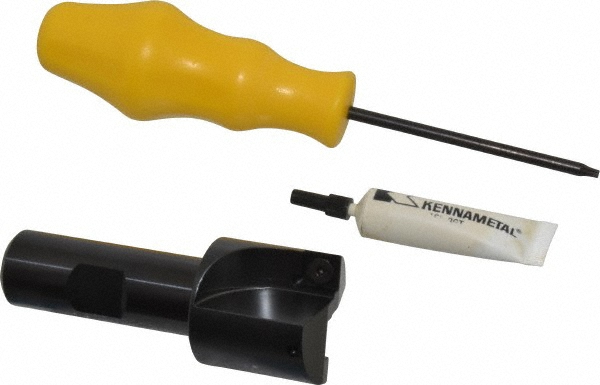

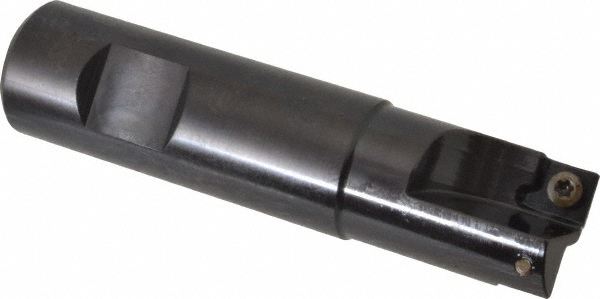

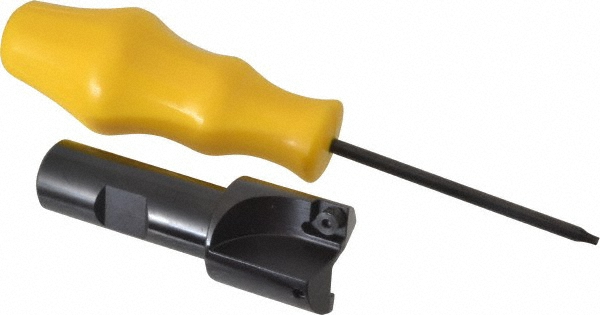

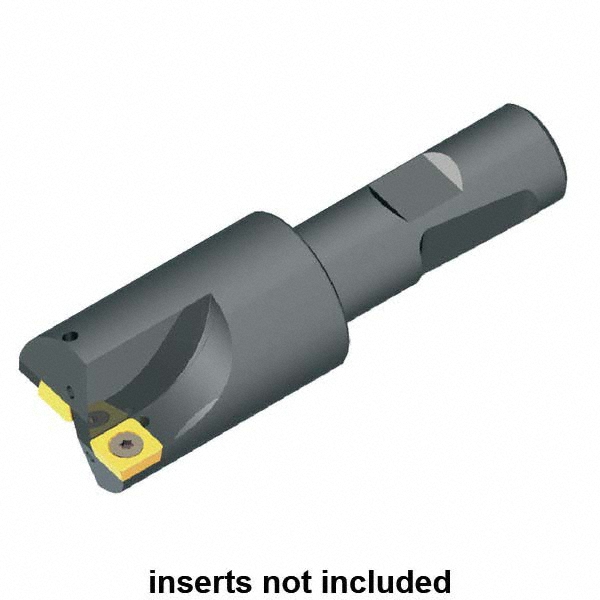

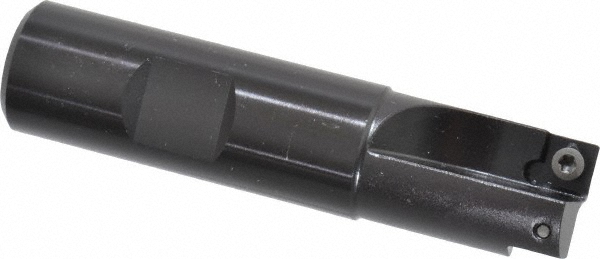

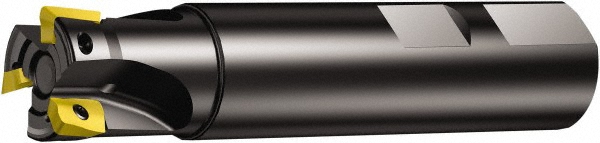

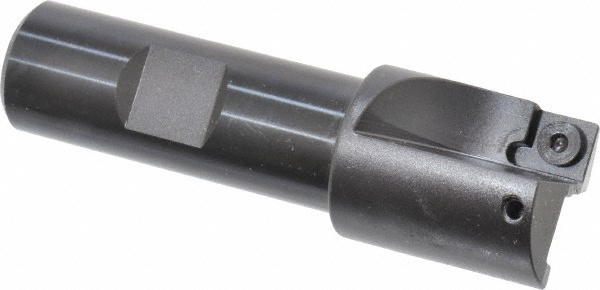

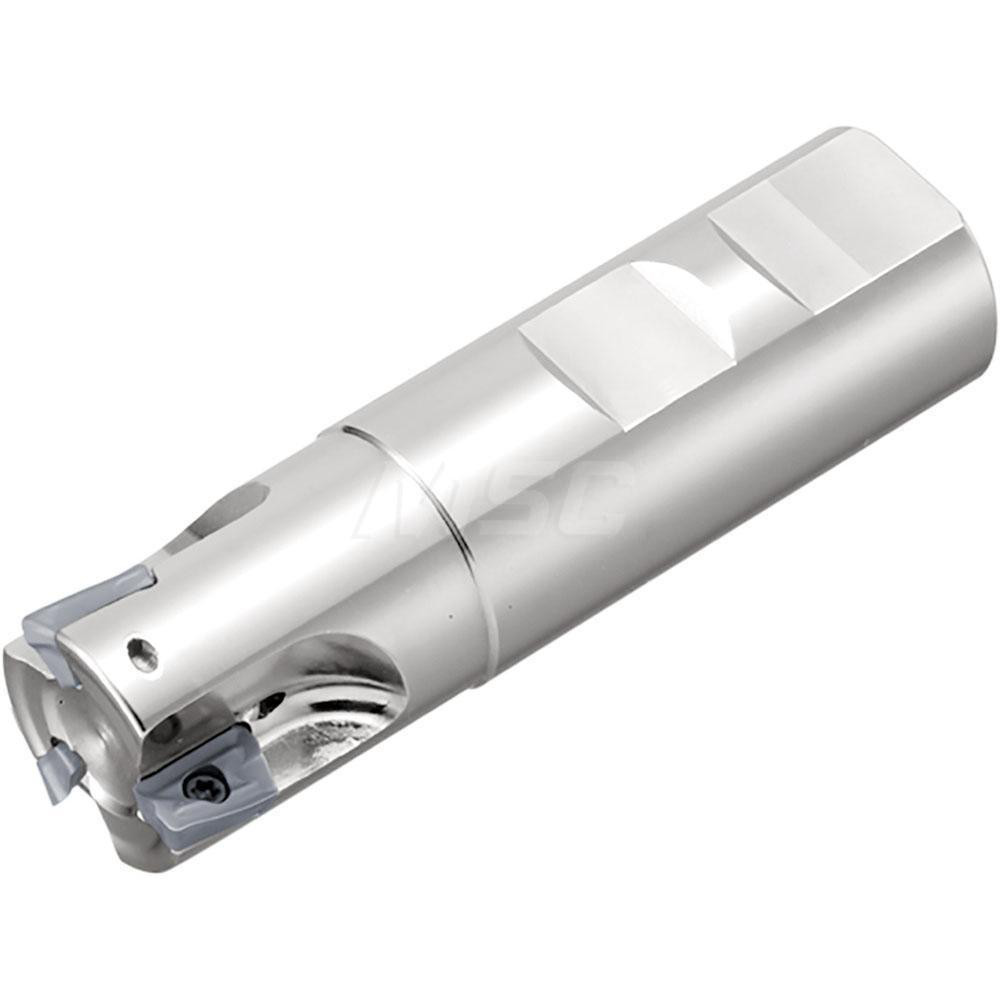

Uses (2) SPEB 322 Inserts, 3-1/4" OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Maximum Depth of Cut (mm) | 8.64 |
| Maximum Depth of Cut (Decimal Inch) | 0.3400 |
| Cutter Style | KICR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.0299 |
| Shank Length (mm) | 51.56 |
| Head Length (Decimal Inch) | 1.22 |
| Maximum RPM | 9500 |

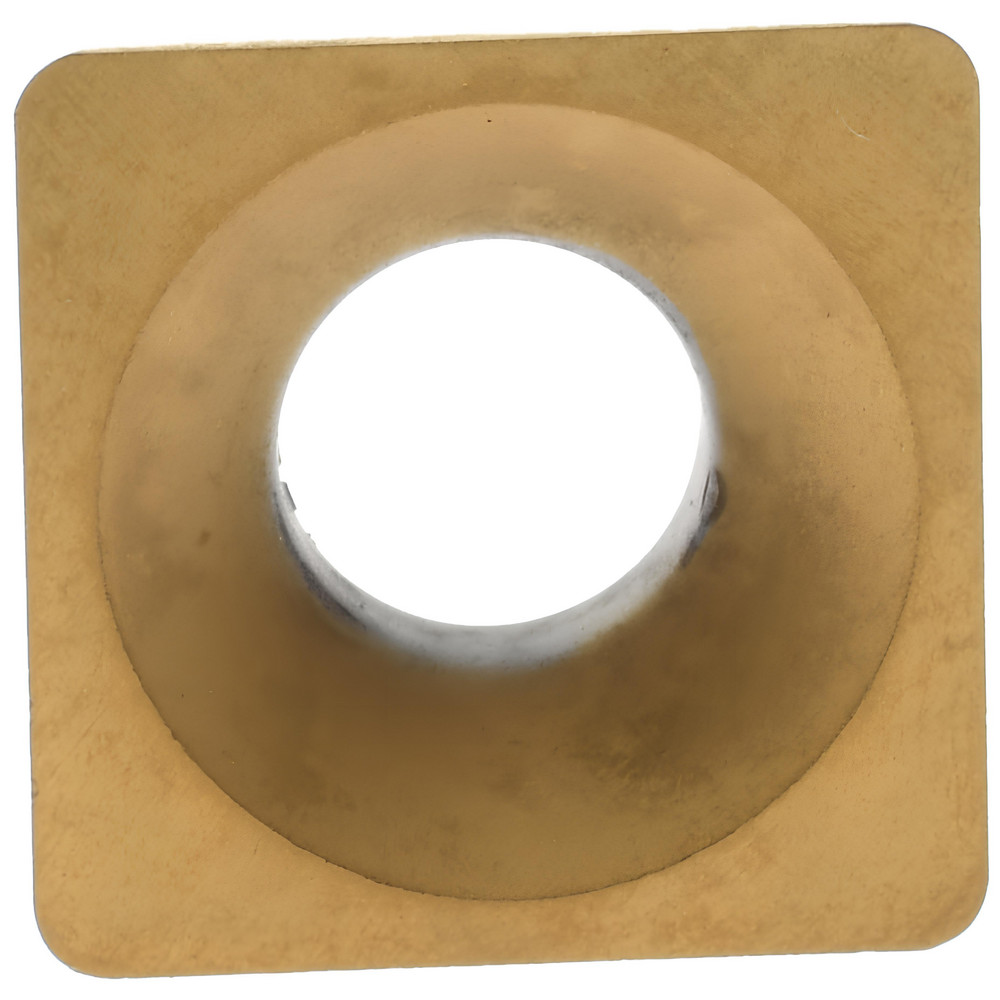

| Insert Compatibility | SPEB 322 |
| UNSPSC Code | 27112803 |
| ISO Number | KICR125SP30 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Country of Origin | Germany |
| MSC Number | MSC# 00690958 |
