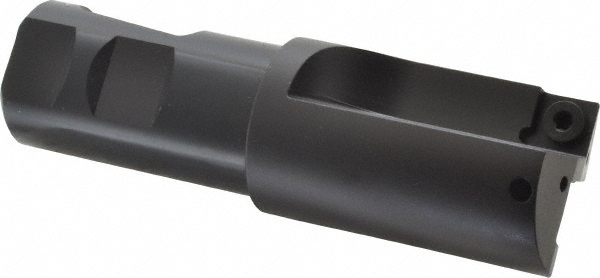

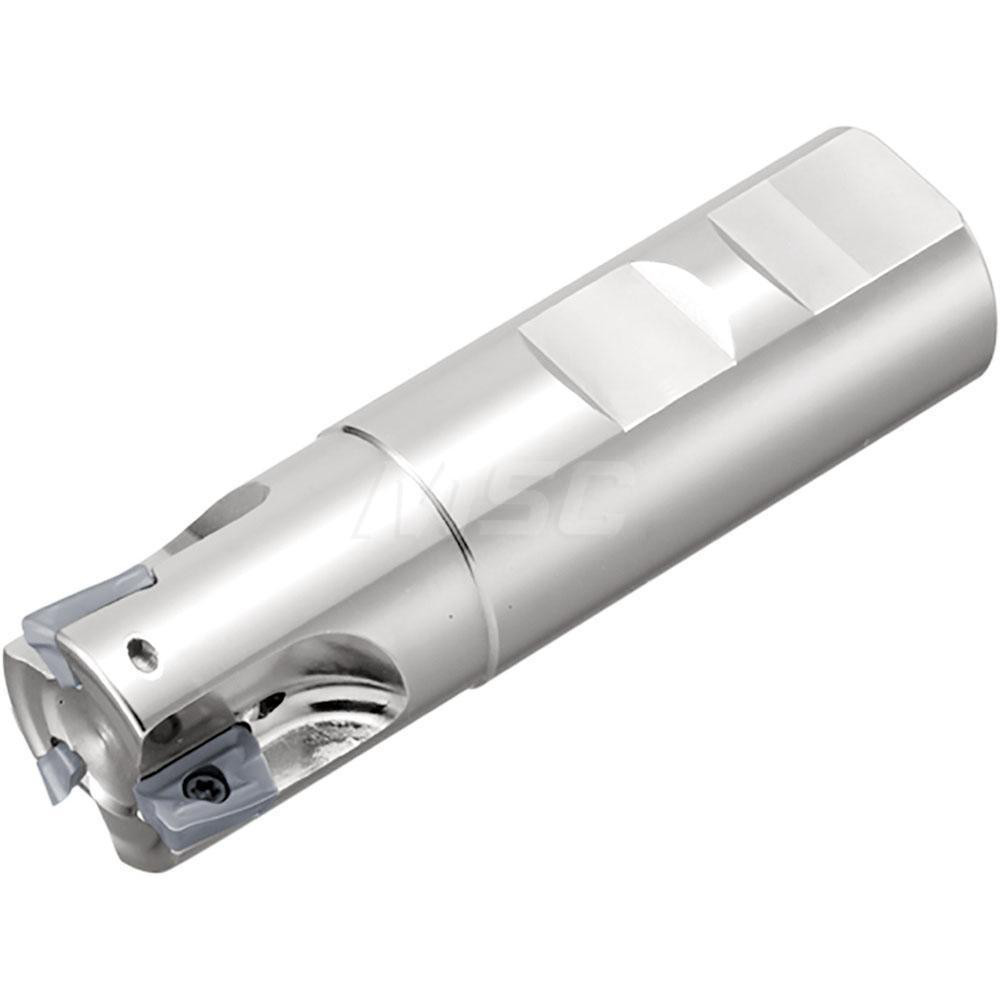

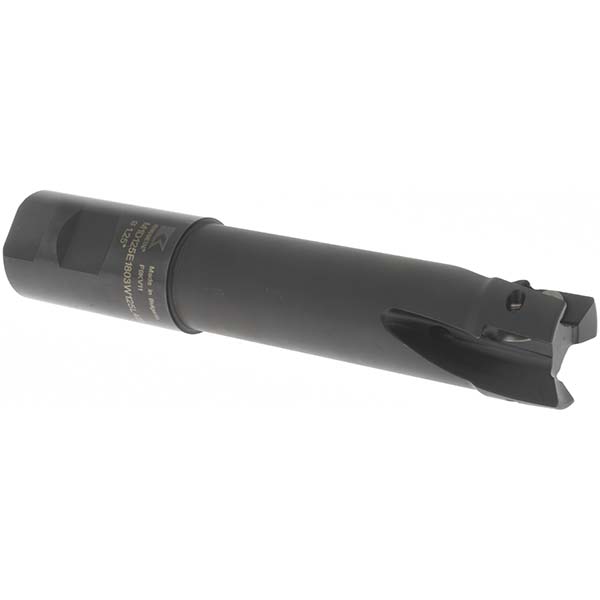

Uses (2) SPEB 422 Inserts, Through Coolant, 4.78" OAL
| Cutting Diameter | 1-3/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.7800 |
| Maximum Depth of Cut (mm) | 11.94 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Cutter Style | KICR |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Head Length (Decimal Inch) | 2.5 |
| Maximum RPM | 8750 |
| Tool Application | Center-Cutting |
| Insert Compatibility | SPEB 422 |
| UNSPSC Code | 27112803 |
| ISO Number | KICR175SP4055C |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 00691162 |
