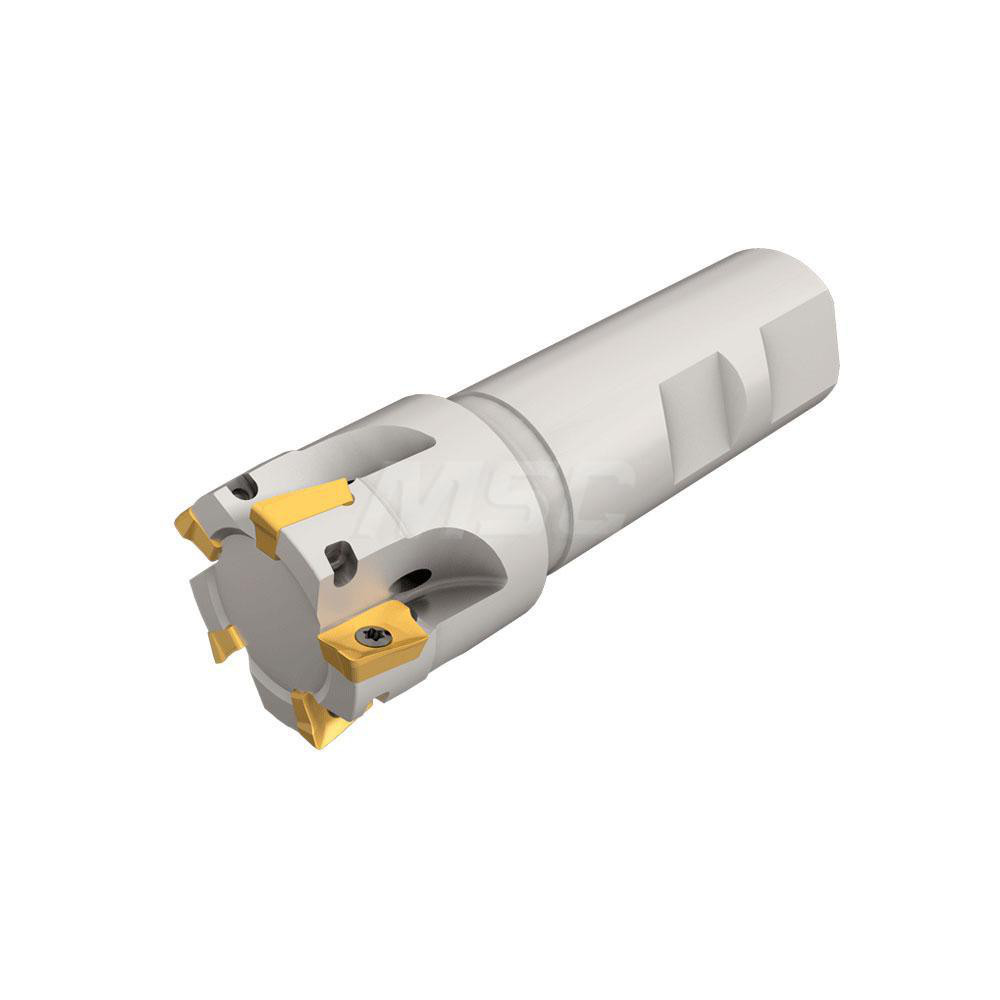

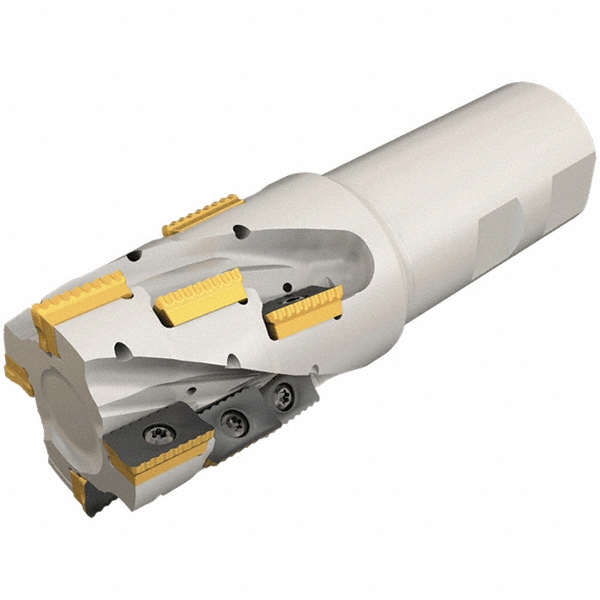

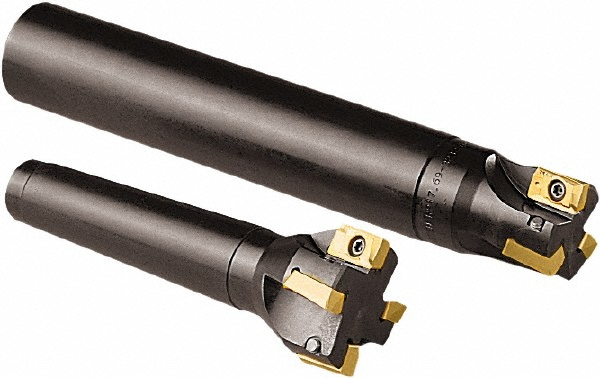

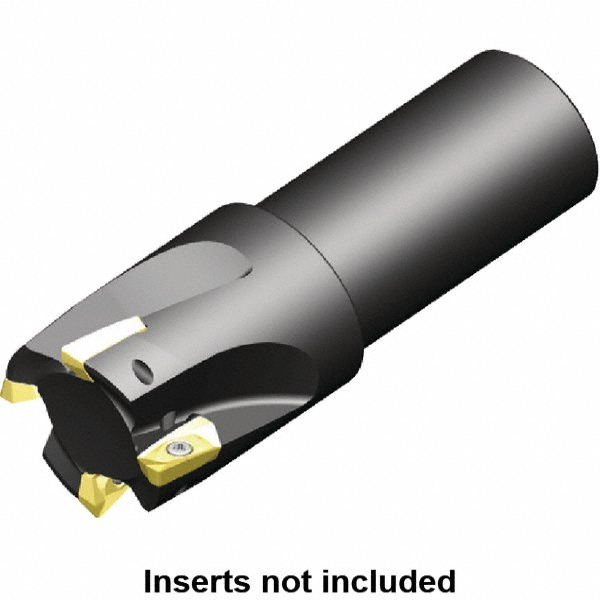

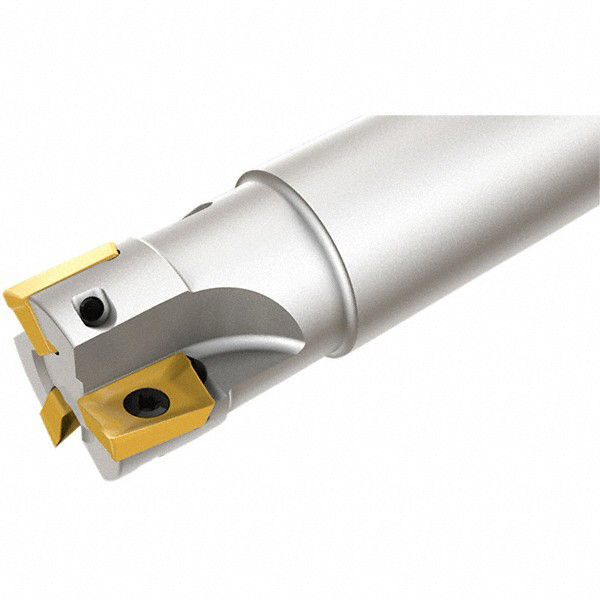

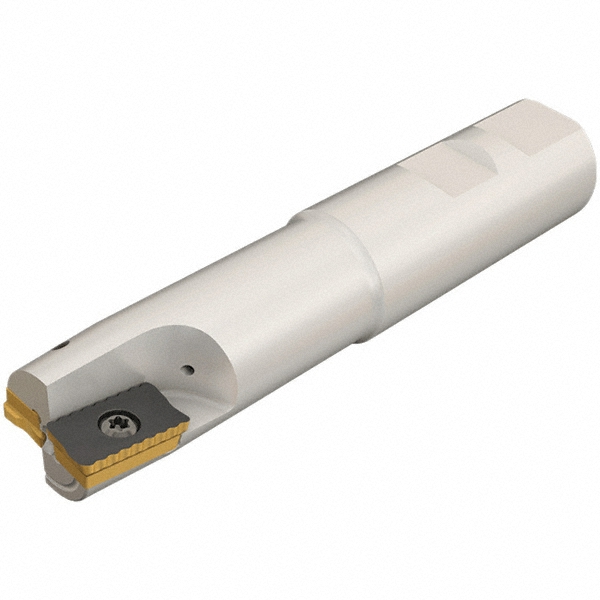

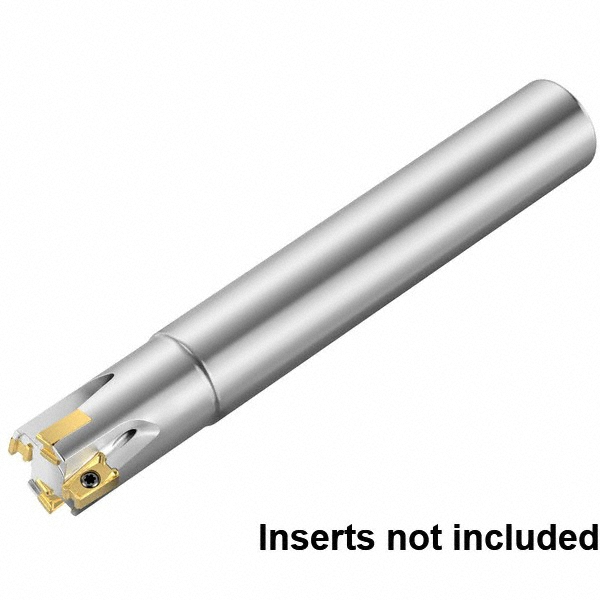

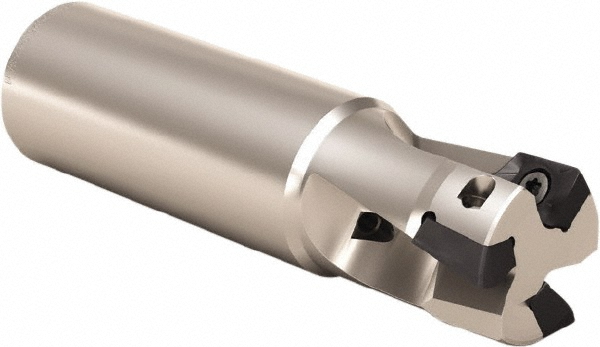

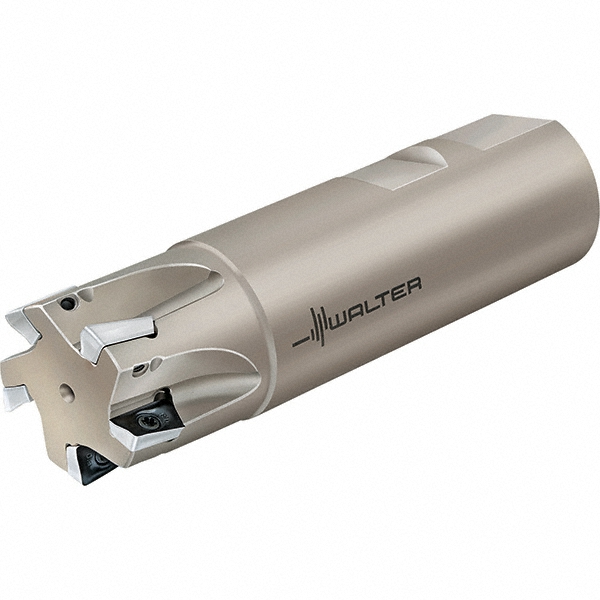

Uses (4) ED.T 1404.. Inserts, Through Coolant, 2 mm OAL
| Cutting Diameter | 1.5748 in |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 14.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.5669 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Series | Mill 1-14 |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 5.9055 |
| Shank Length (mm) | 150.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Head Length (mm) | 50.00 |
| Maximum RPM | 28700 |
| Tool Application | Helical |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | ED.T 1404.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D040ME1404C032L50200 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Czechia |
| undefined | undefined |
| MSC Number | MSC# 06802706 |
