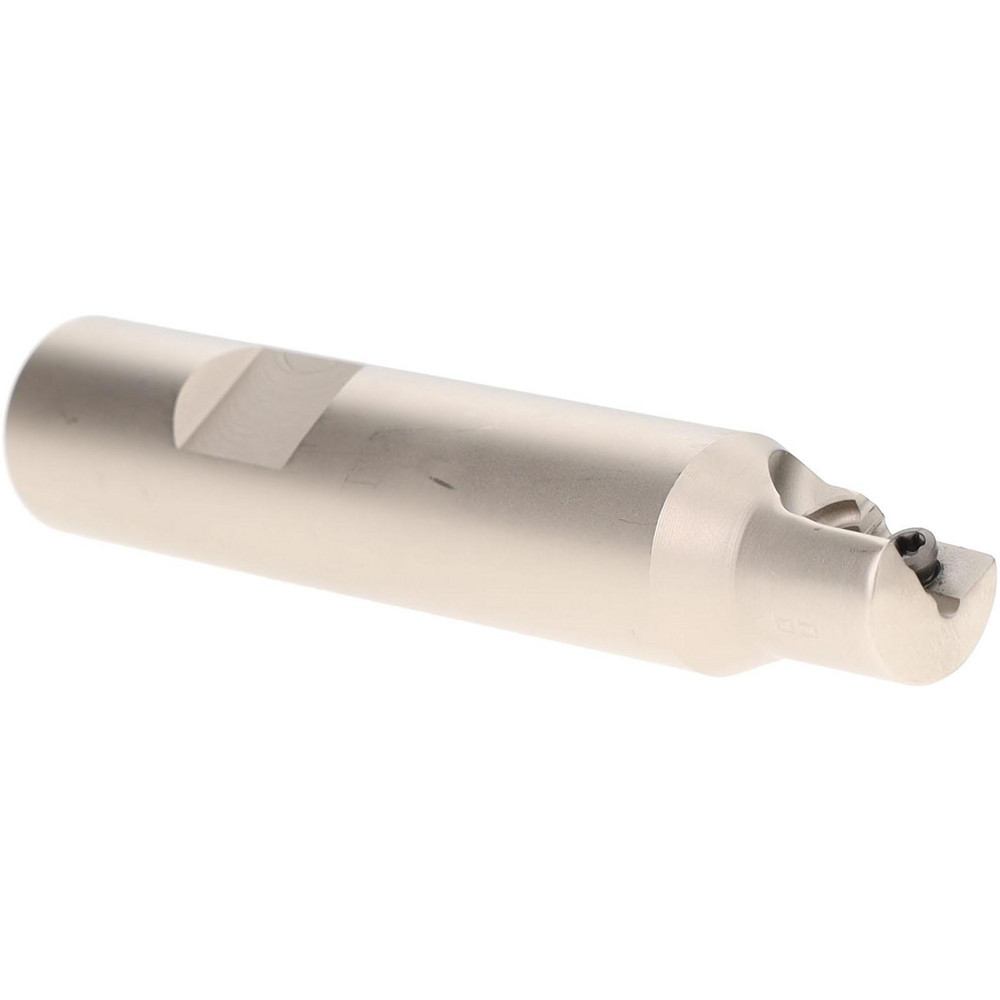

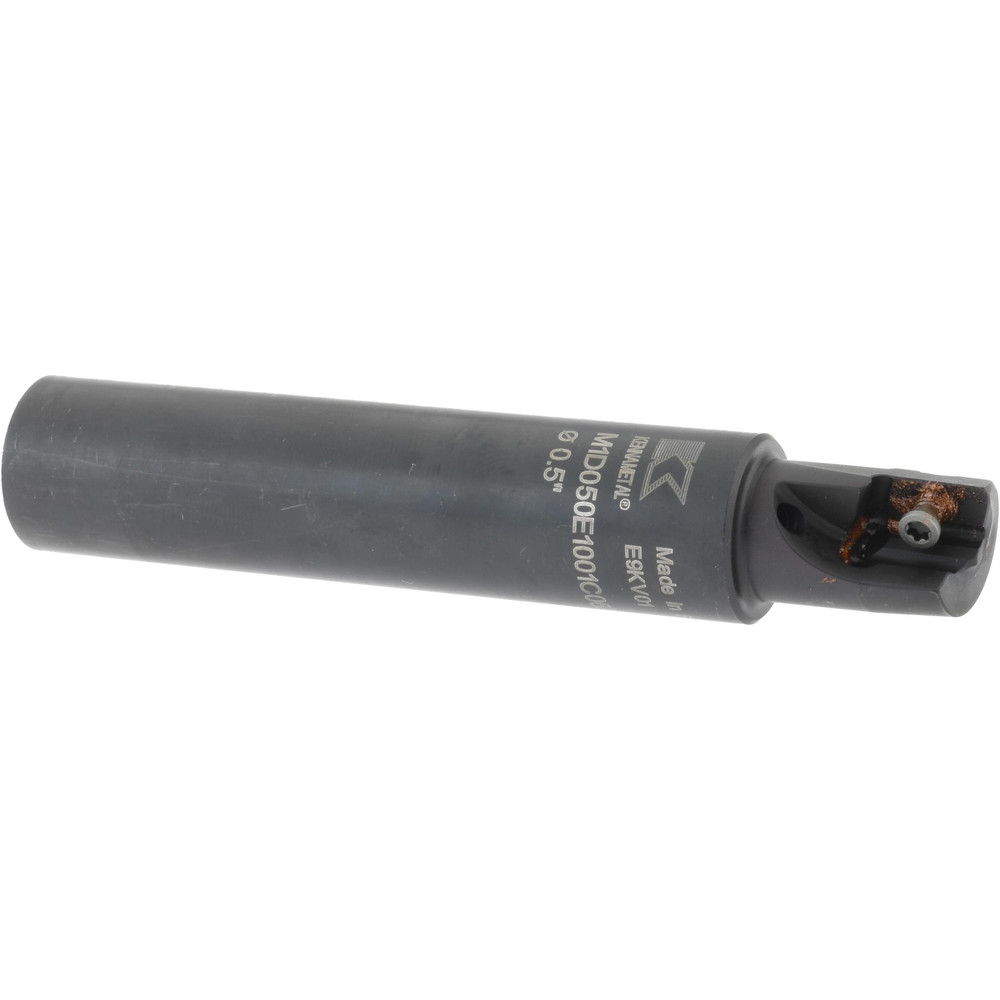

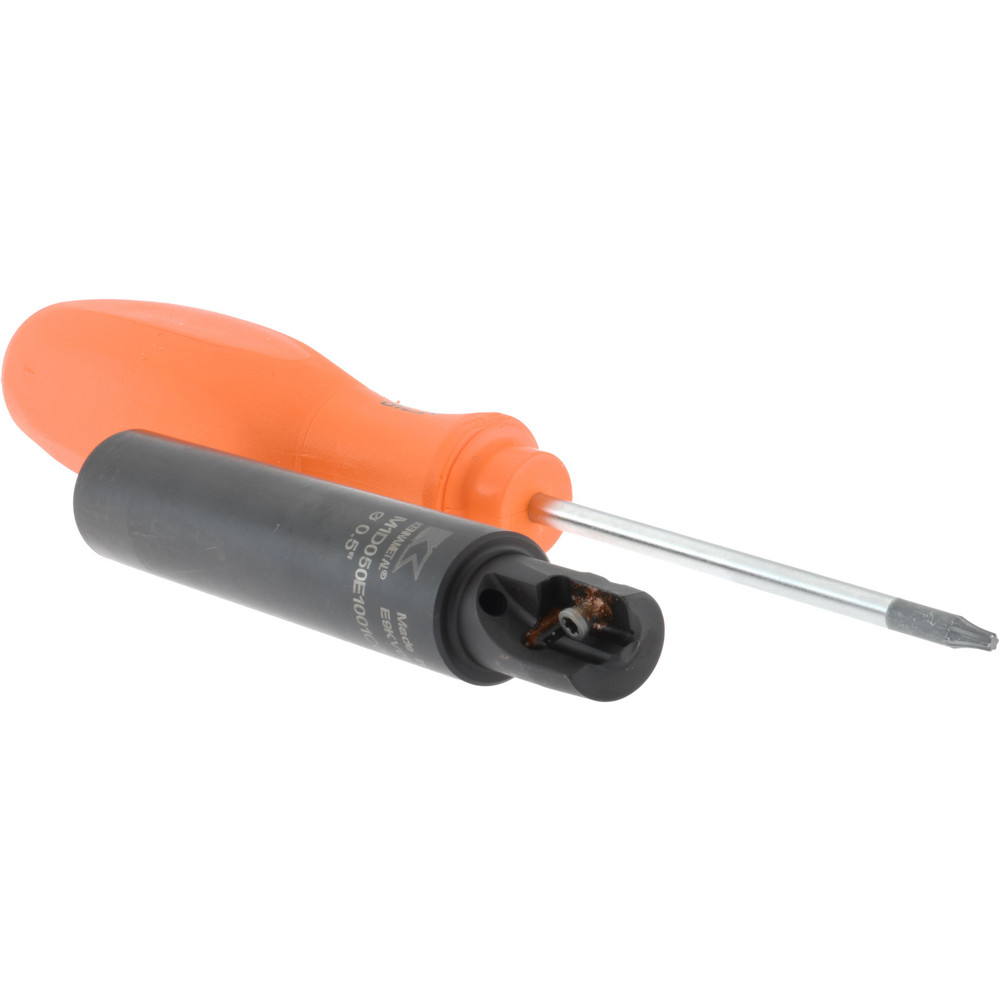

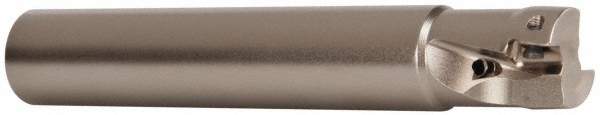

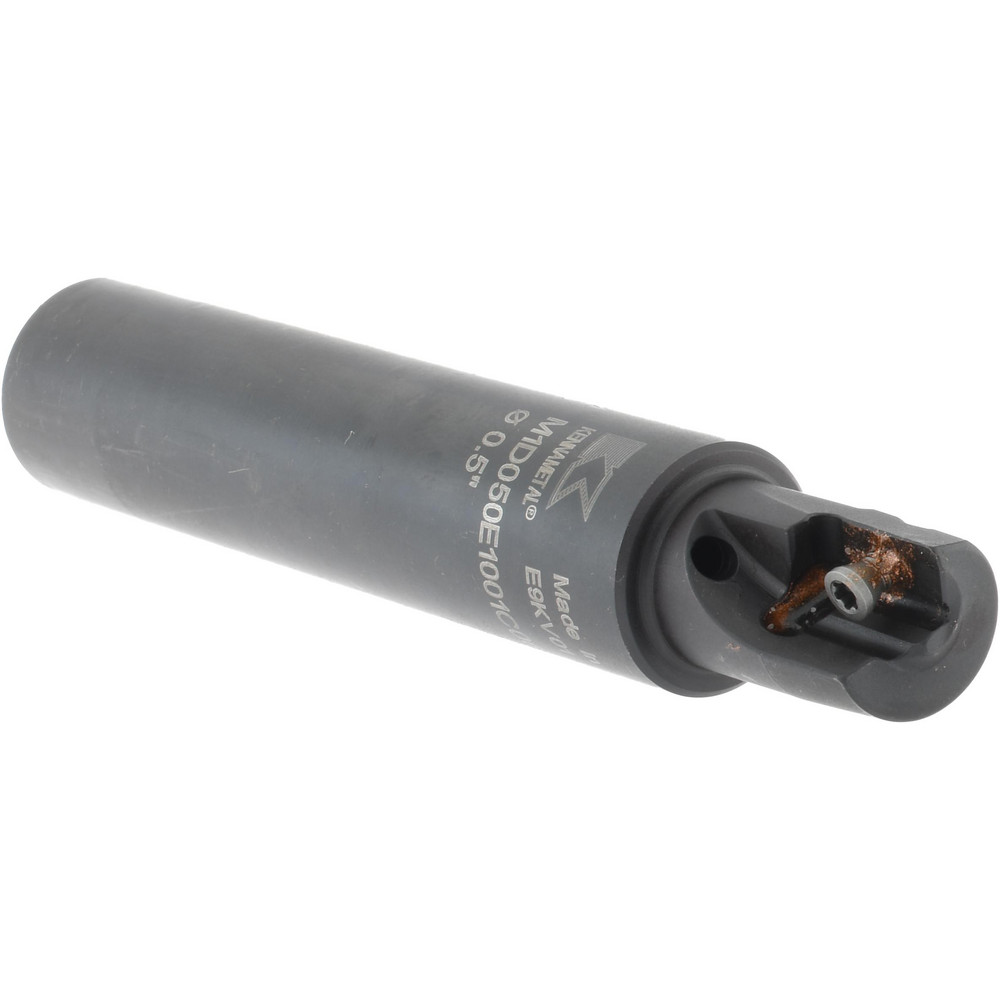

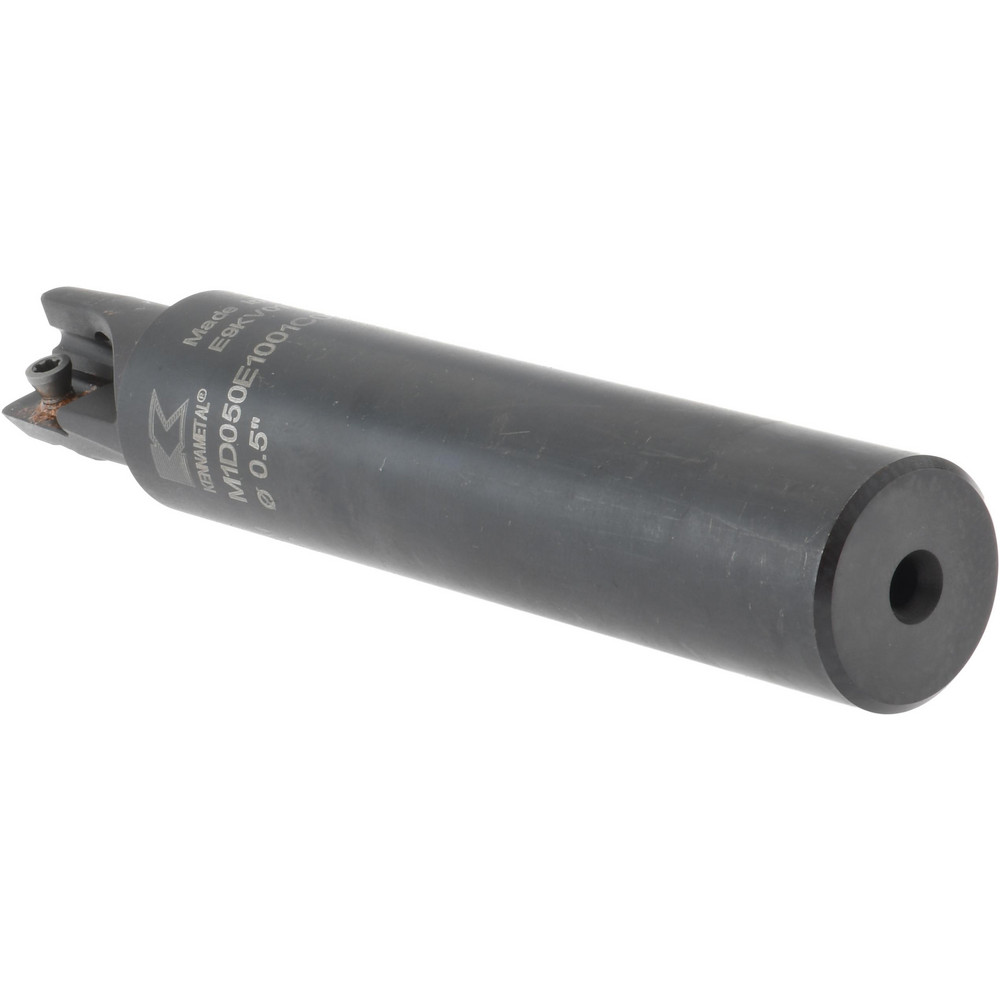

Uses (1) EC10..;EP10.. Insert, Through Coolant, 3-1/2" OAL
| Cutting Diameter | 1/2 |
|---|---|
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.4040 |
| Cutter Style | Mill 1-10 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 0.8 |
| Maximum RPM | 56500 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Insert Compatibility | EP10..; EC10.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D050E1001C062L350 |
| Number Of Flutes | 1 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 57561870 |
