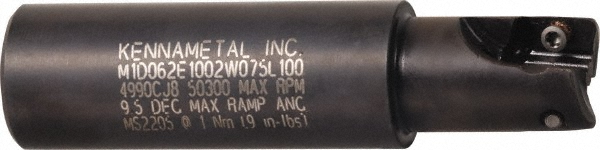

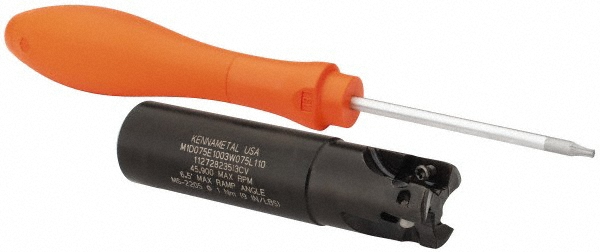

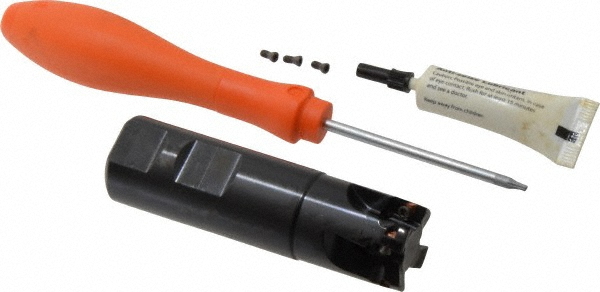

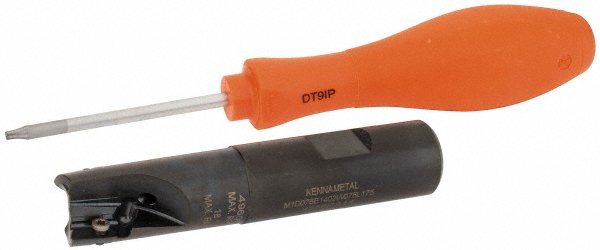

Uses (2) EC10..;EP10.. Inserts, Through Coolant, 3.03" OAL
| Cutting Diameter | 5/8 |
|---|---|
| Overall Length (Decimal Inch) | 3.0300 |
| Maximum Depth of Cut (Decimal Inch) | 0.3960 |
| Cutter Style | Mill 1-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1 |
| Maximum RPM | 50300 |
| Coolant Hole Diameter (Decimal Inch) | 0.1960 |
| Insert Compatibility | EP10..; EC10.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D062E1002W075L100 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 57561805 |
