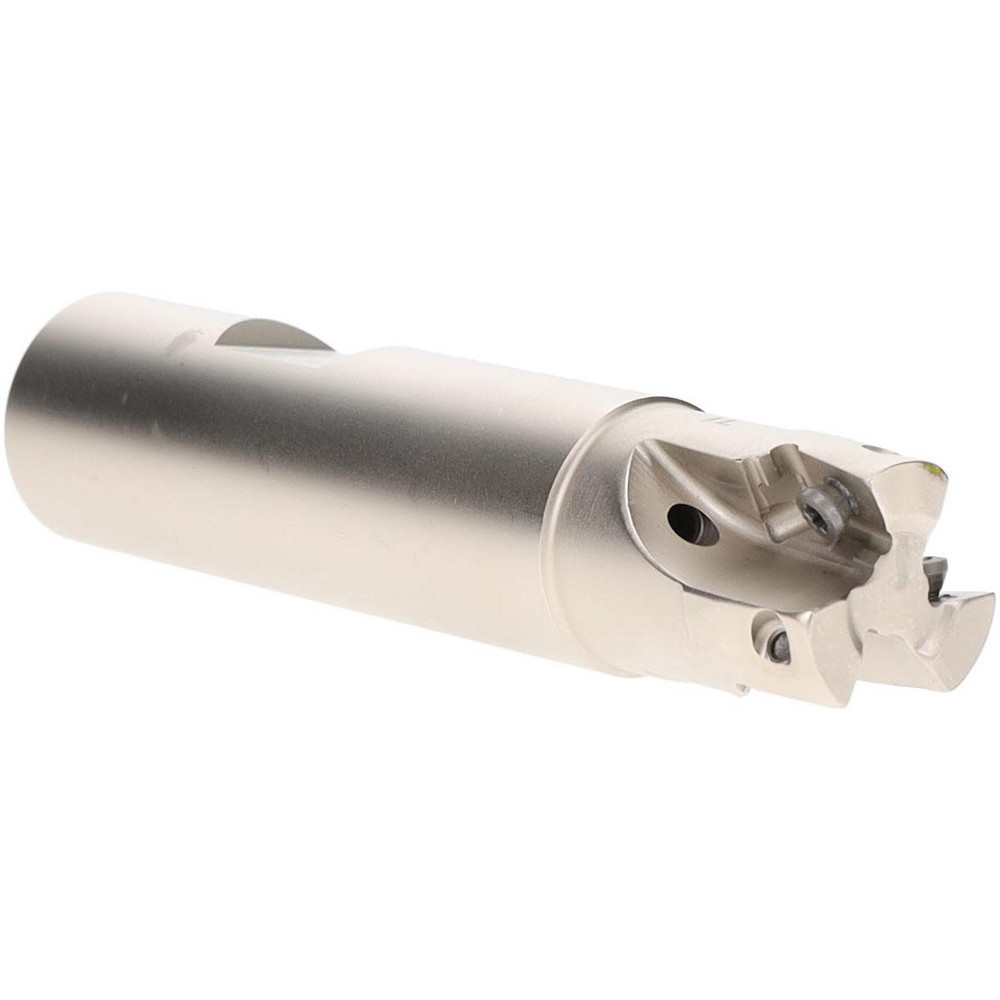

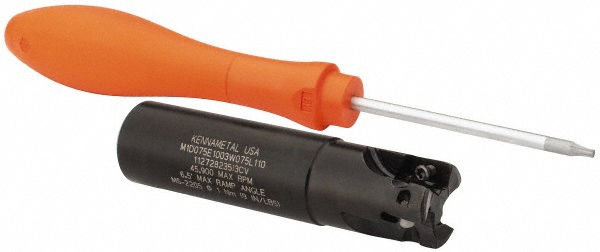

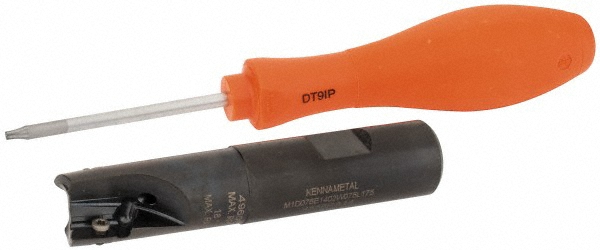

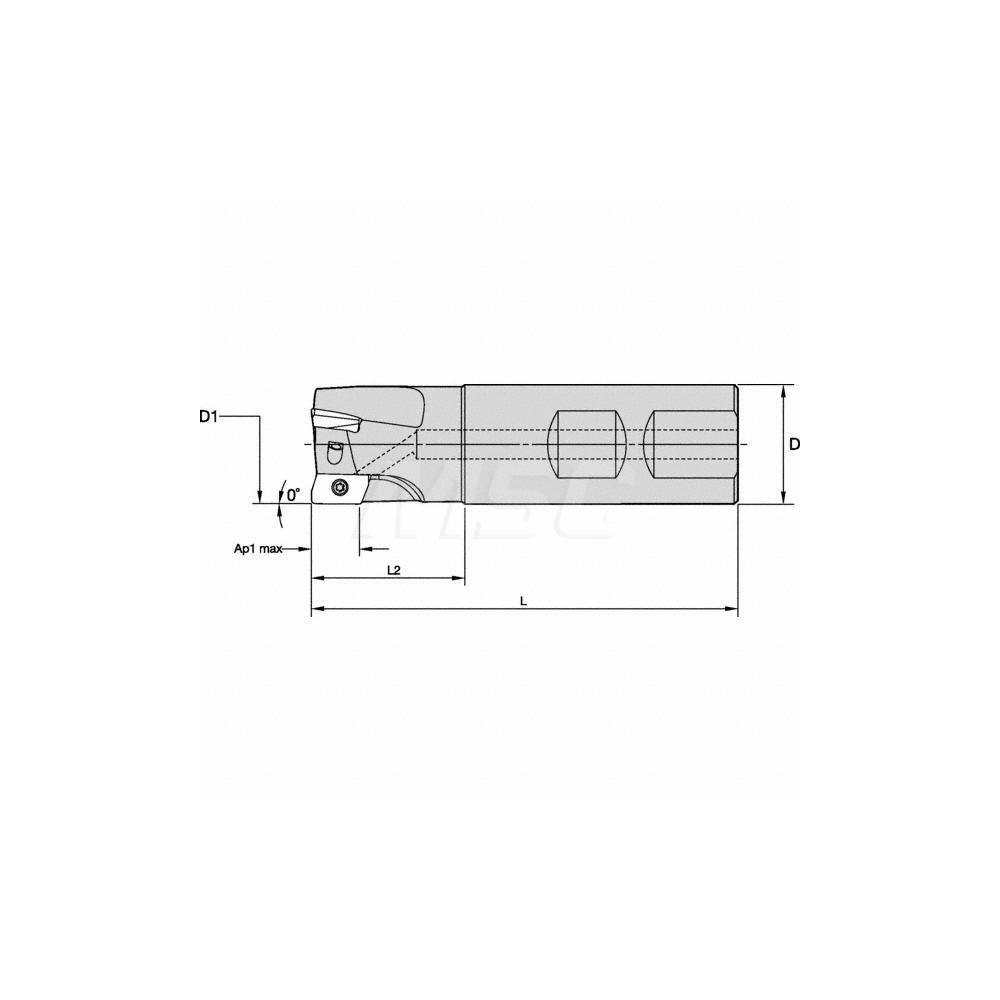

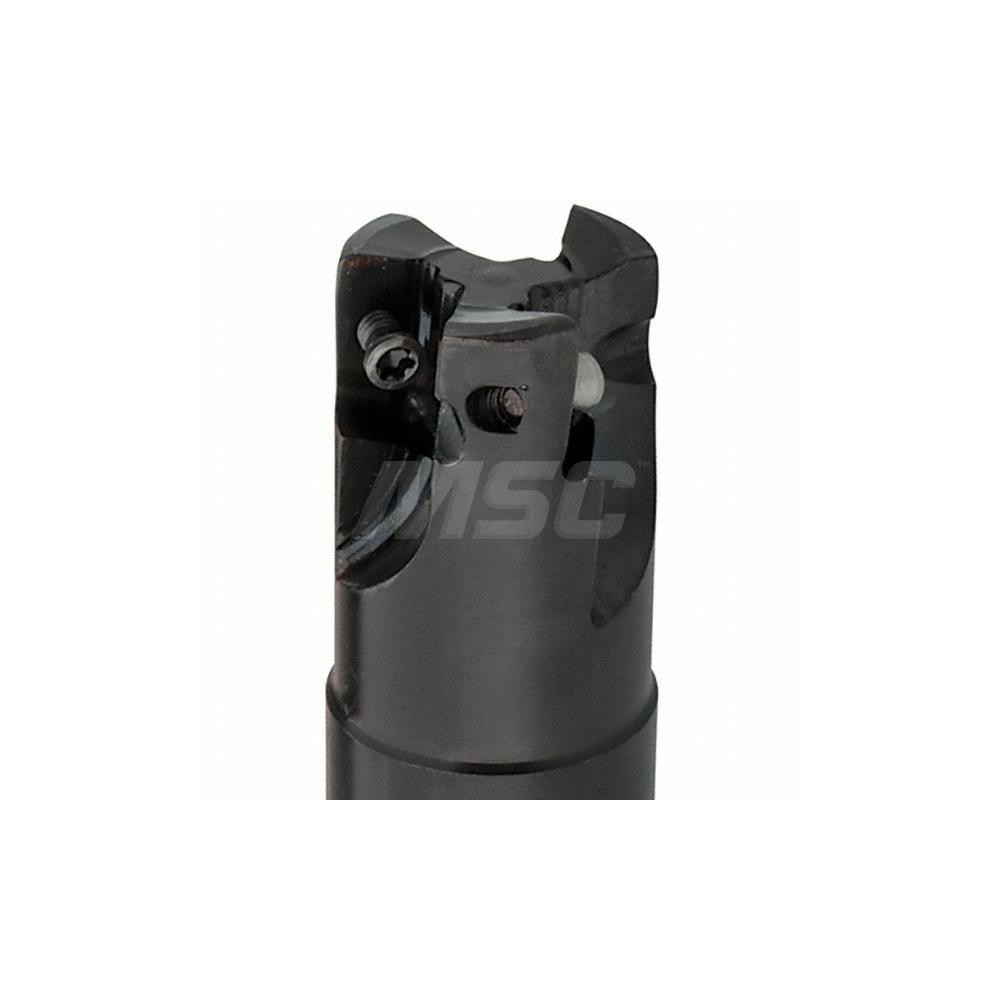

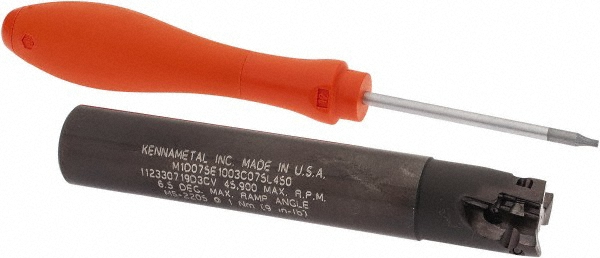

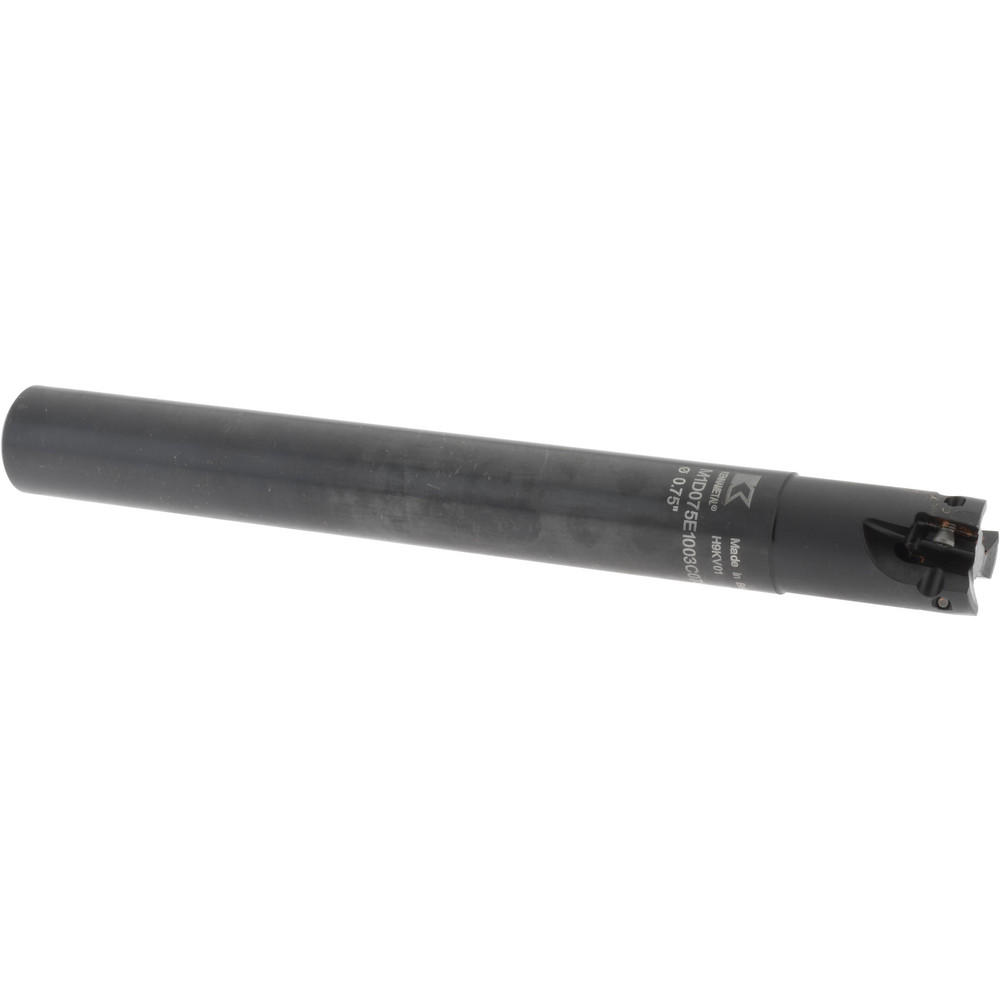

Uses (3) EC10..;EP10.. Inserts, Through Coolant, 3.13" OAL

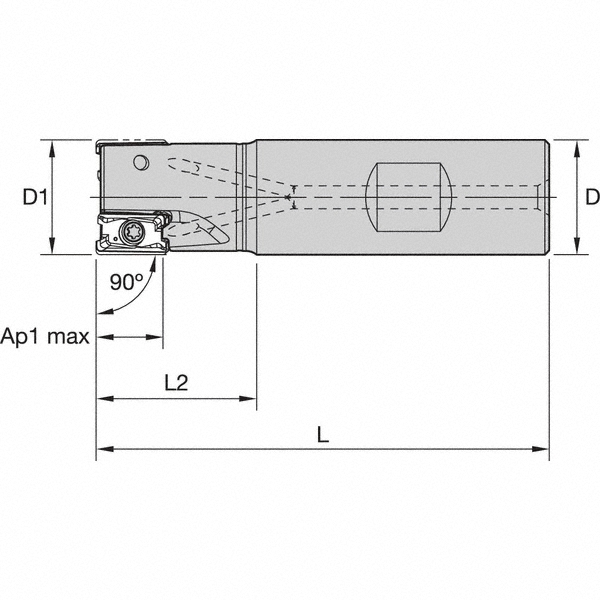

| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 3.1300 |
| Maximum Depth of Cut (Decimal Inch) | 0.3980 |
| Cutter Style | Mill 1-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |

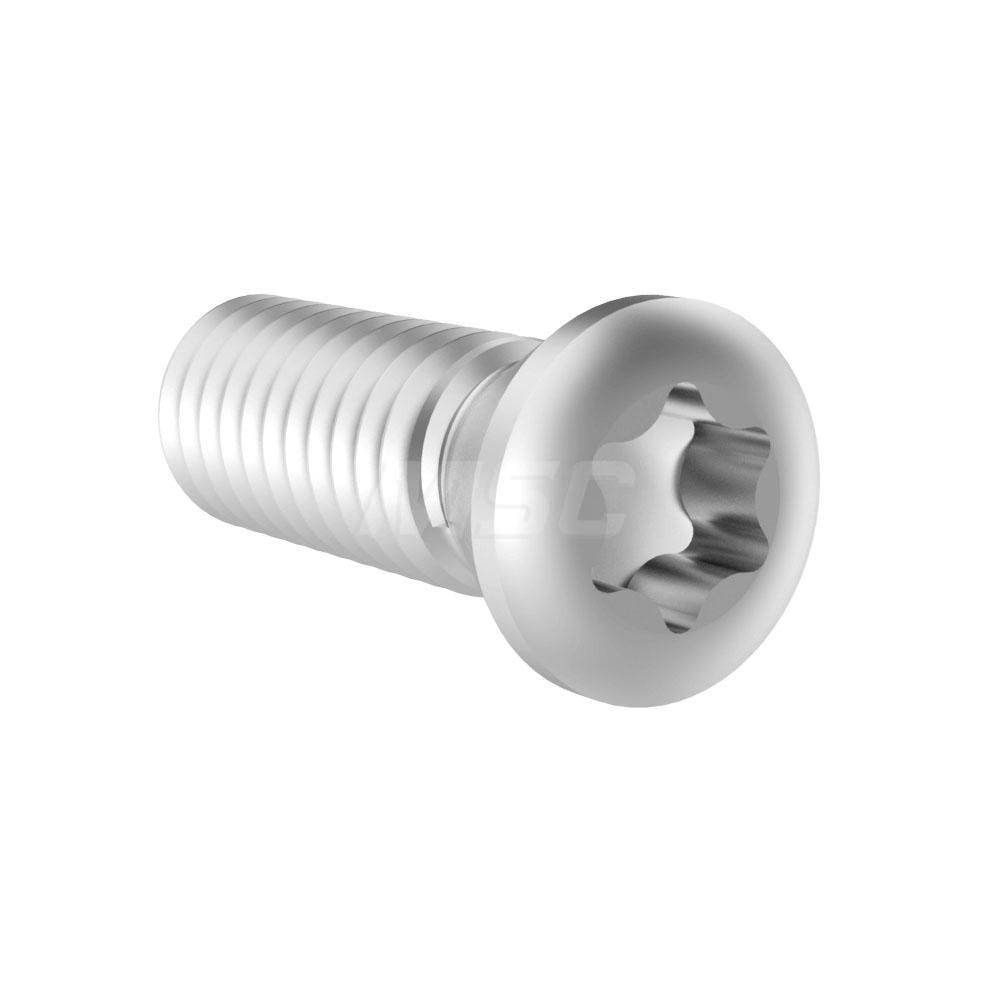

| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1.1 |
| Maximum RPM | 45900 |
| Coolant Hole Diameter (Decimal Inch) | 0.2360 |
| Insert Compatibility | EP10..; EC10.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D075E1003W075L110 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 74022948 |
