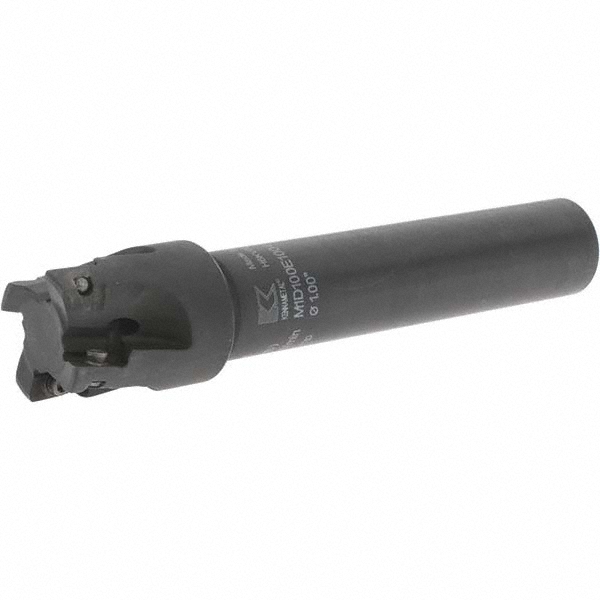

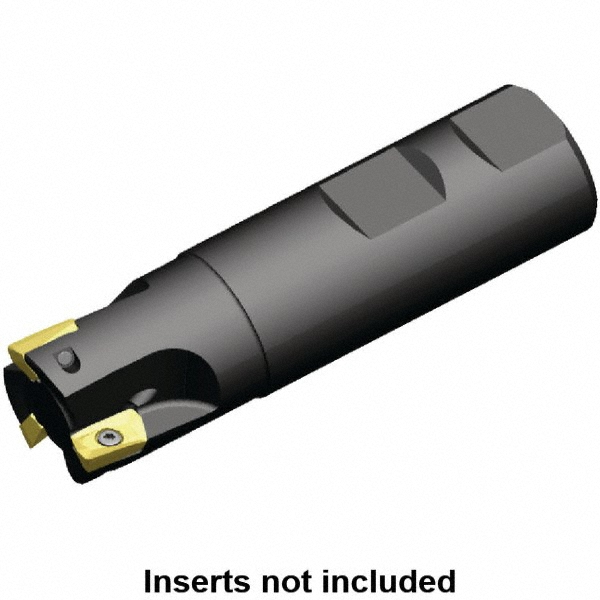

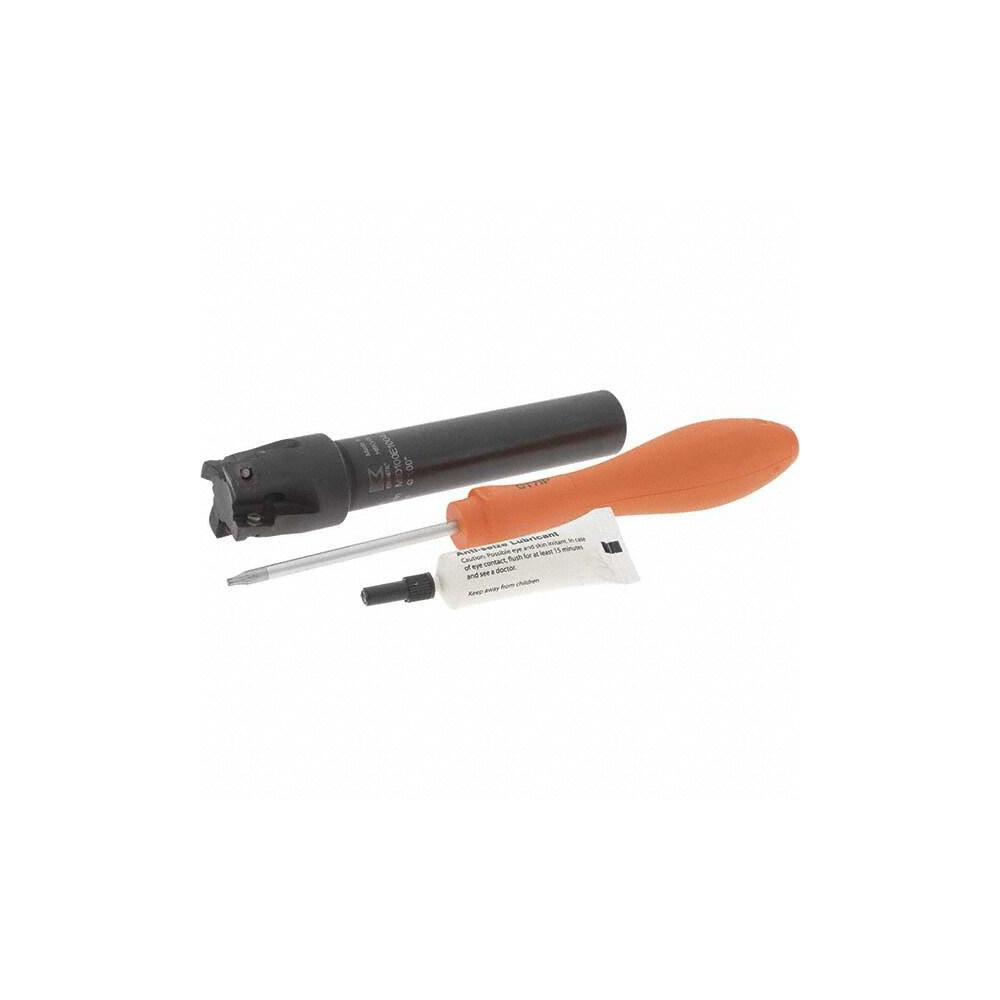

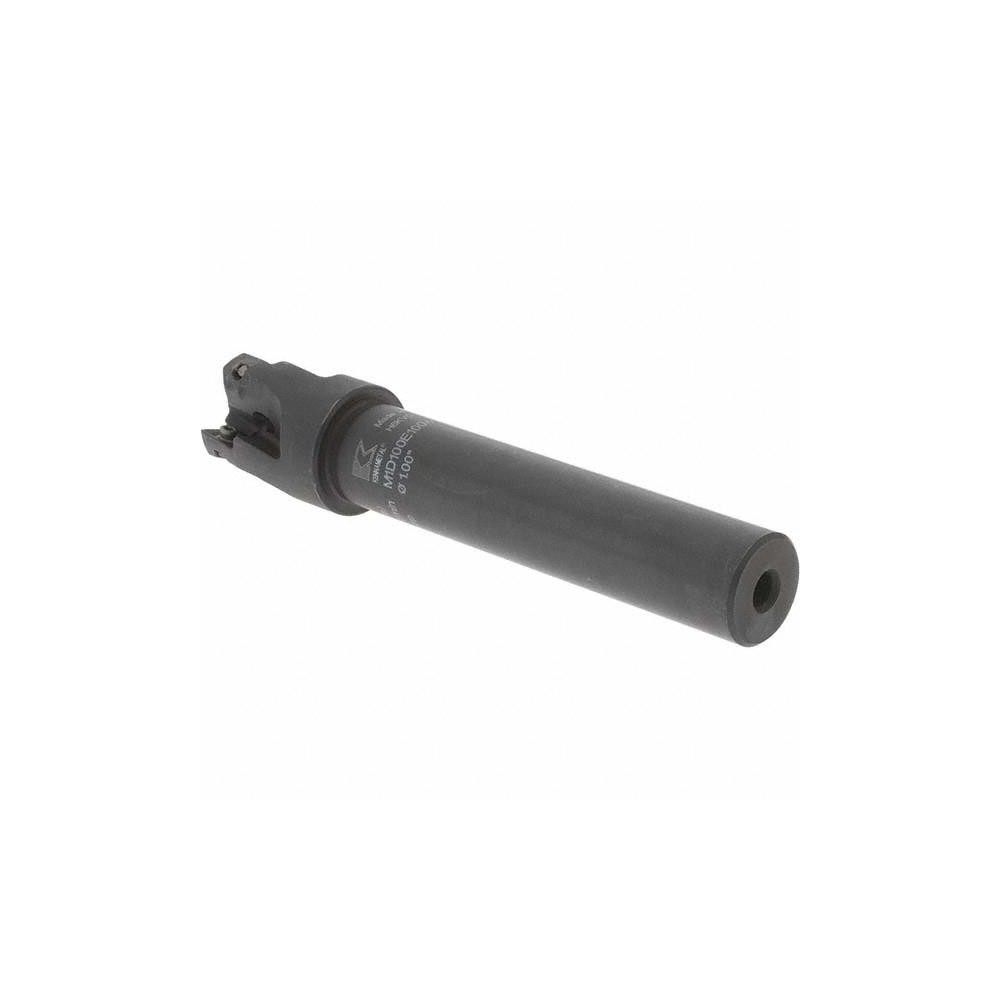

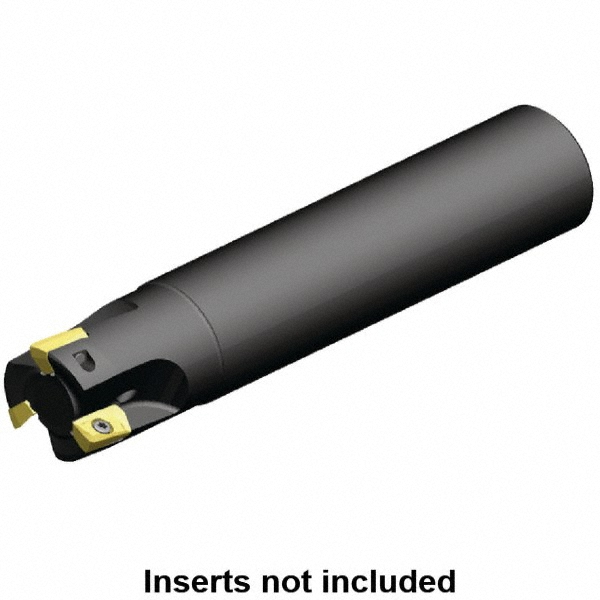

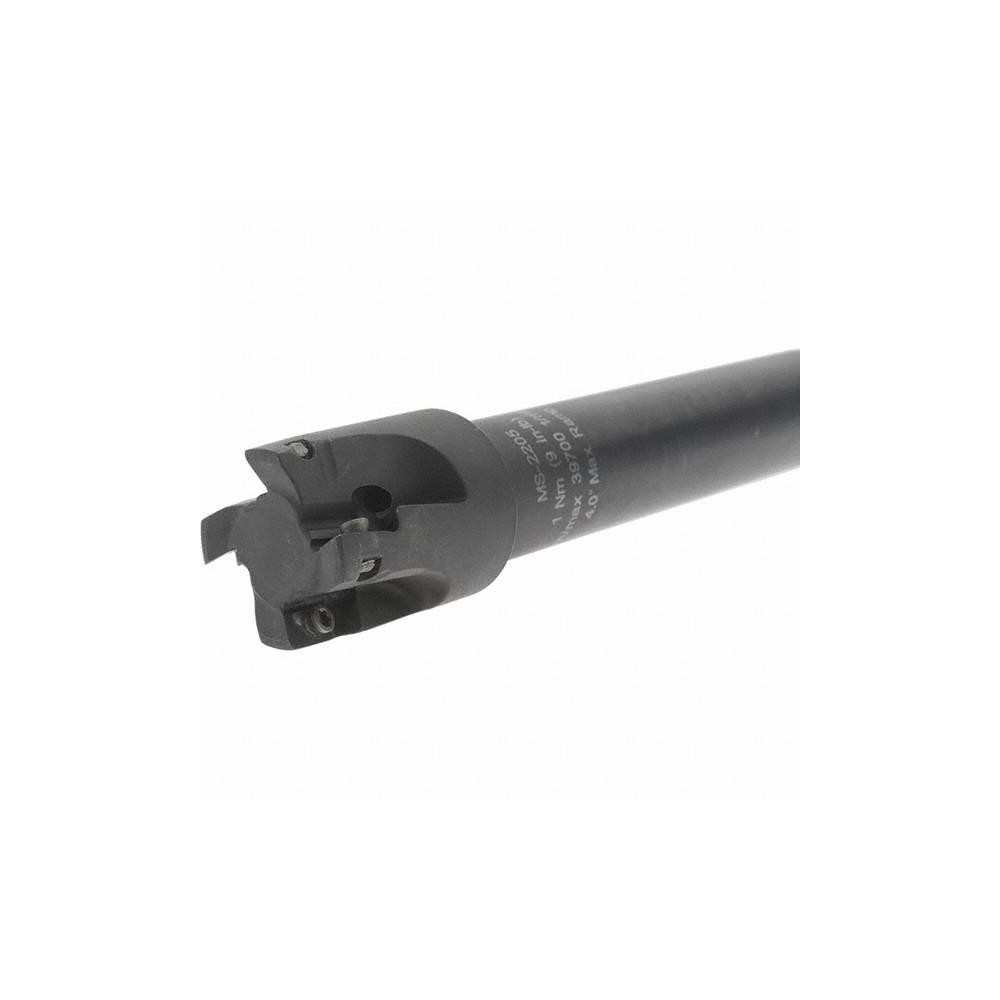

Uses (4) EDCT 10T3.. Inserts, Through Coolant, 121.92 mm OAL
| Cutting Diameter | 1 |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Overall Length (Decimal Inch) | 4.8000 |
| Overall Length (mm) | 121.92 |
| Maximum Depth of Cut (mm) | 10.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.3950 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Series | Mill 1-10 |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 3.5500 |
| Shank Length (mm) | 90.17 |
| Head Length (Decimal Inch) | 1.25 |
| Head Length (mm) | 31.75 |
| Maximum RPM | 39700 |
| Tool Application | Helical |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | EDCT 10T3.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D100E1004C075L480 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 87648713 |
