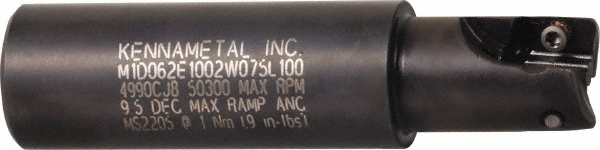

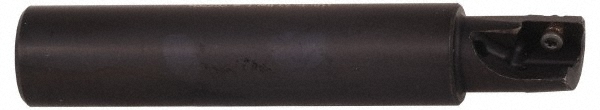

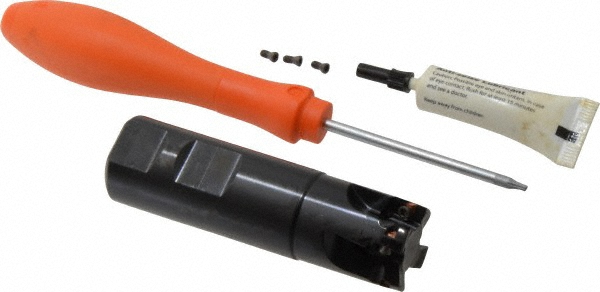

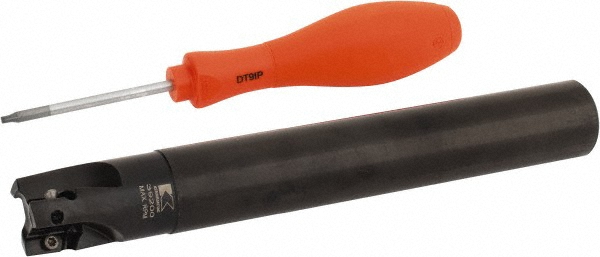

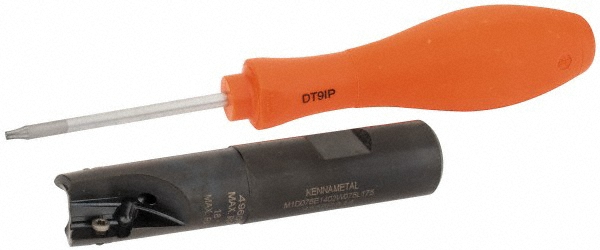

Uses (4) EC10..;EP10.. Inserts, Through Coolant, 3.53" OAL

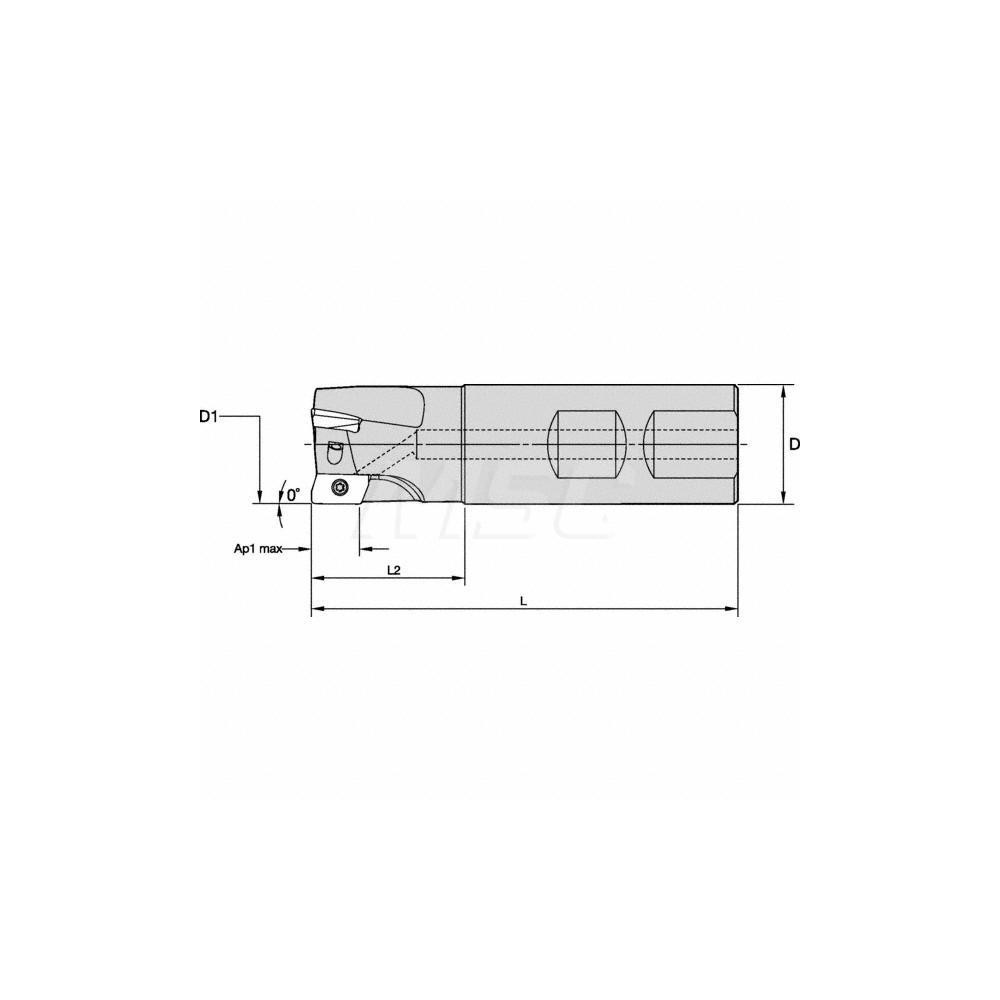

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.5300 |
| Maximum Depth of Cut (Decimal Inch) | 0.3950 |
| Cutter Style | Mill 1-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1.25 |
| Maximum RPM | 39700 |
| Coolant Hole Diameter (Decimal Inch) | 0.2360 |
| Insert Compatibility | EP10..; EC10.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D100E1004W100L125 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 74022963 |
