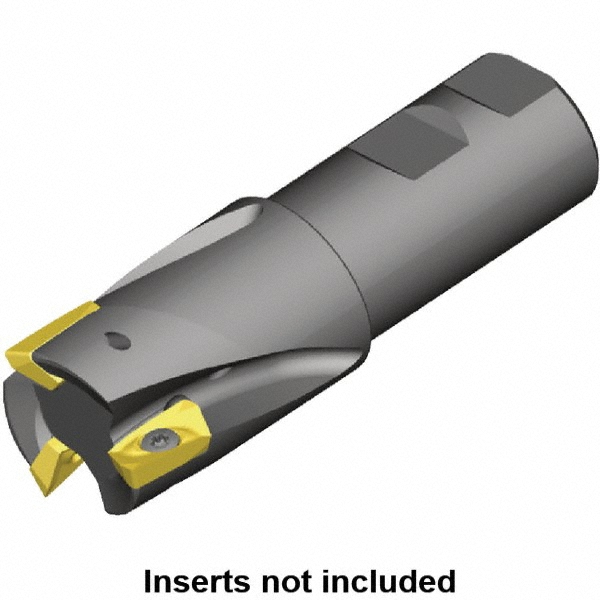

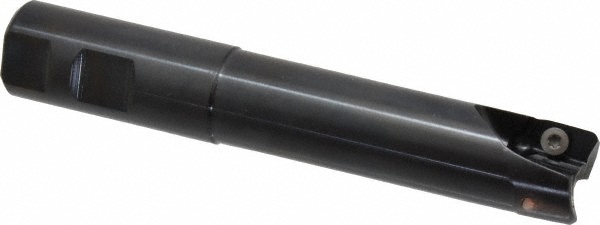

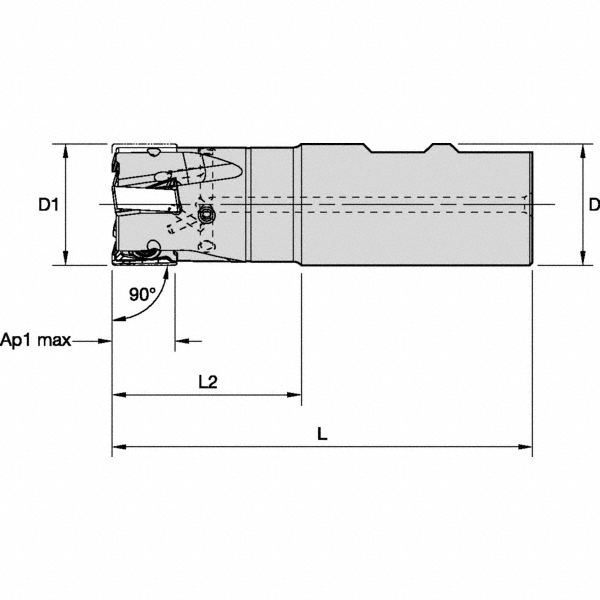

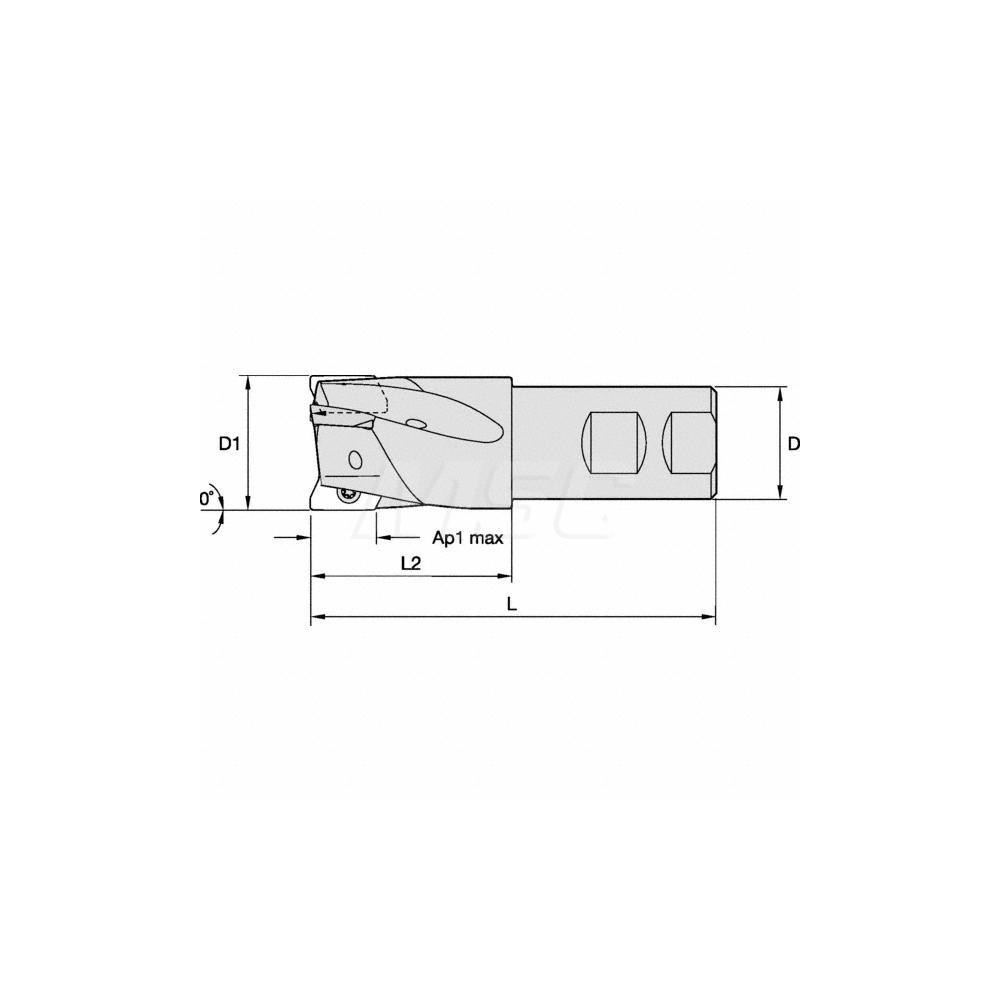

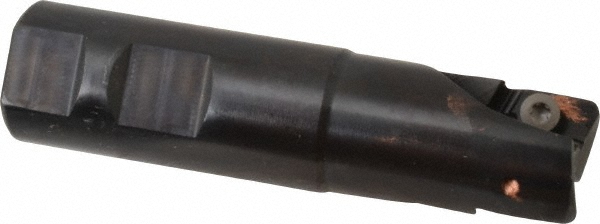

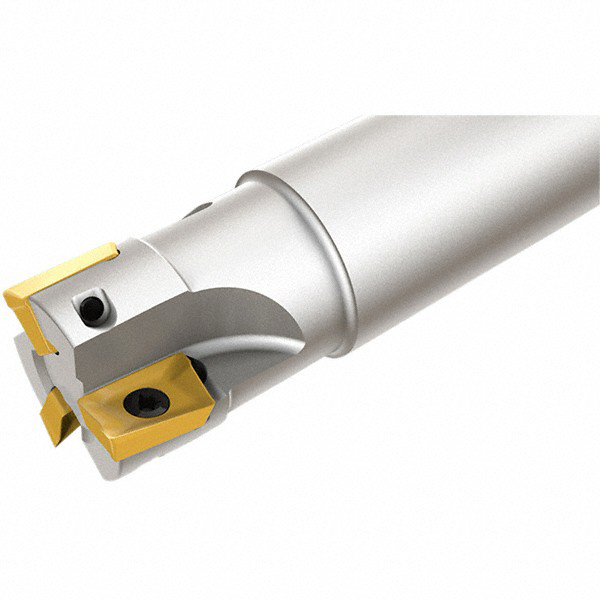

Uses (2) EC18..;EP18.. Inserts, 3.78" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.7800 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Cutter Style | Mill 1 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1.75 |
| Maximum RPM | 37000 |

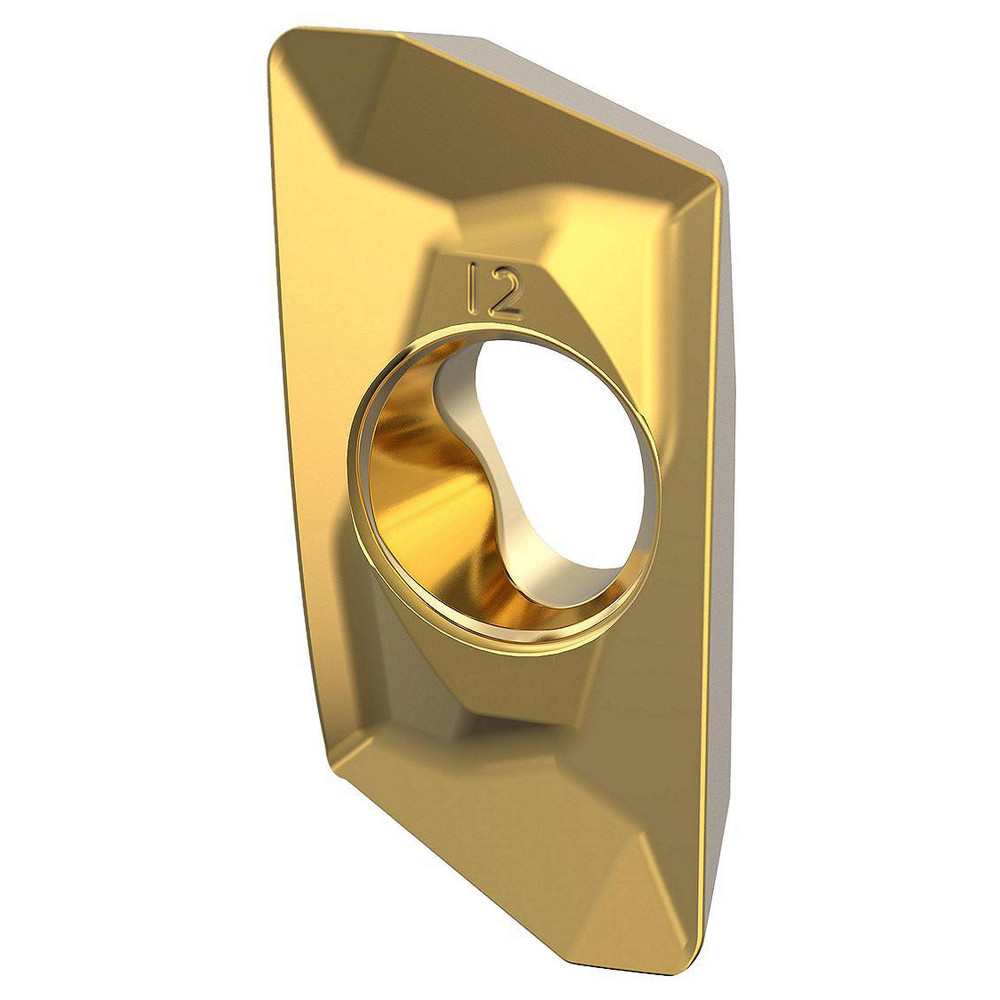

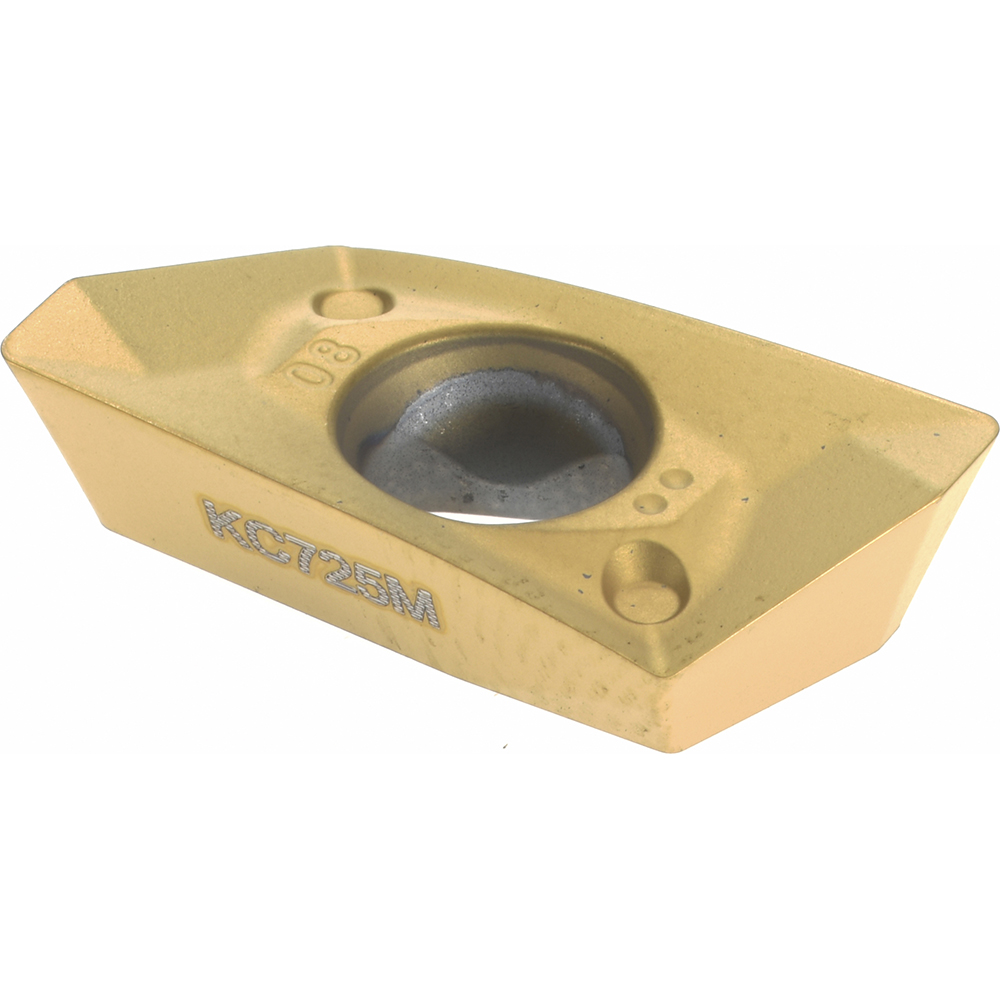

| Insert Compatibility | EC18..; EP18.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D100E1802W075L175 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 74826520 |
