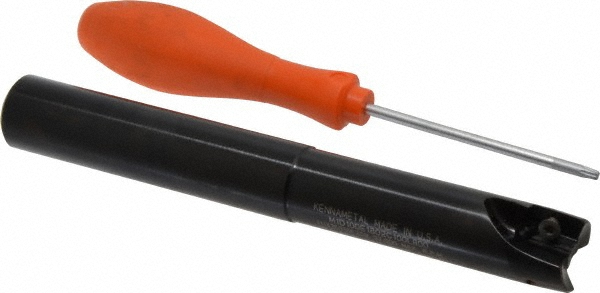

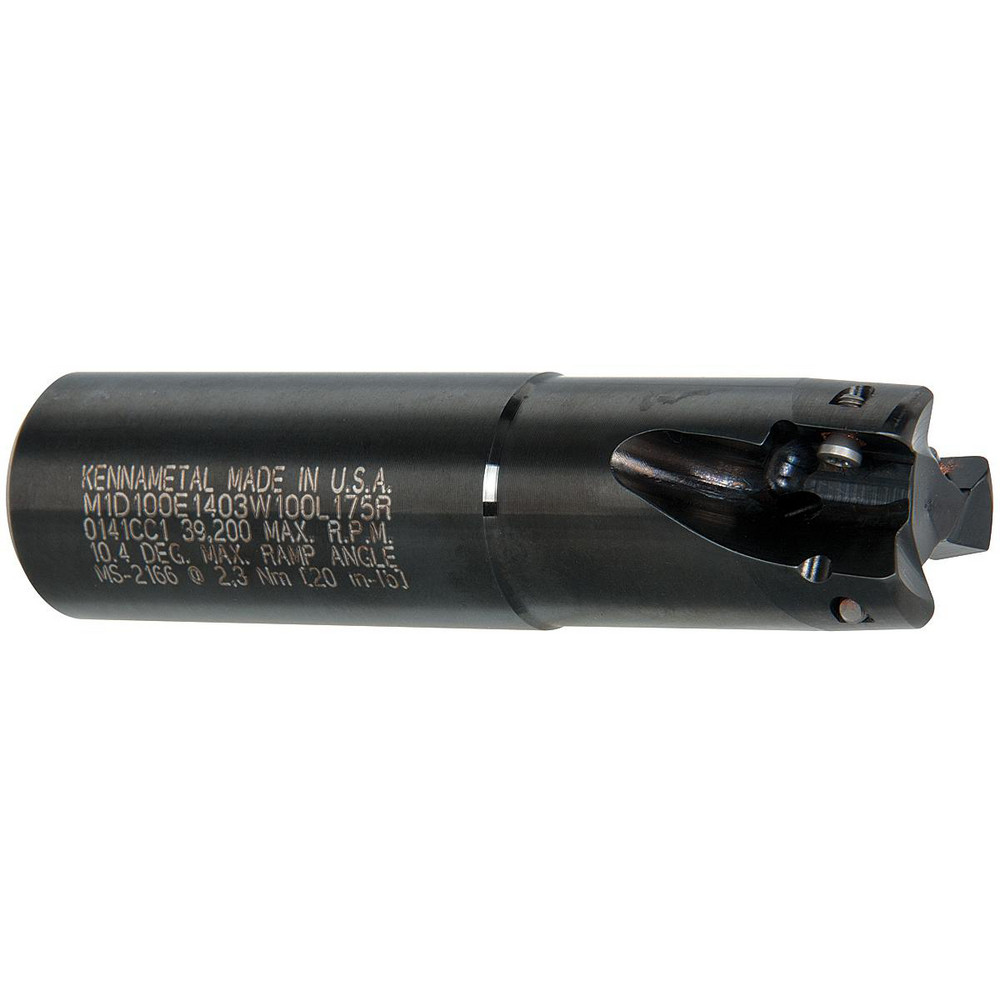

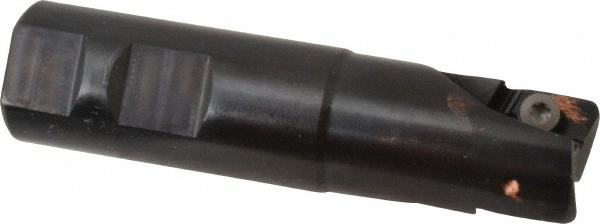

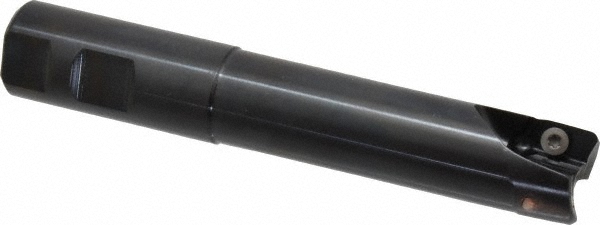

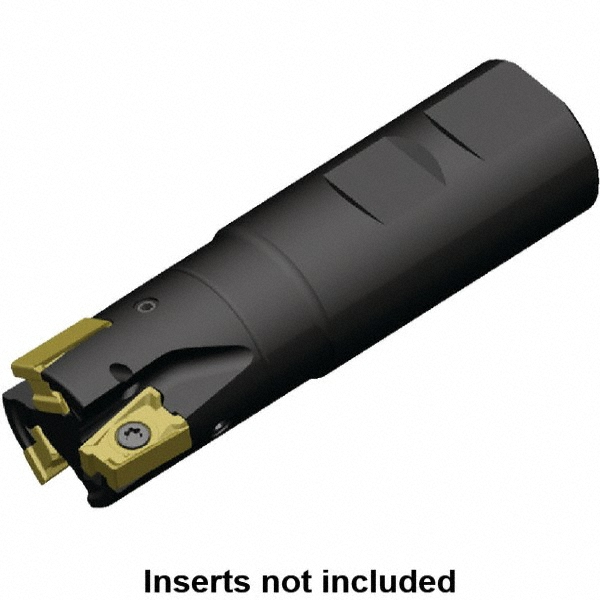

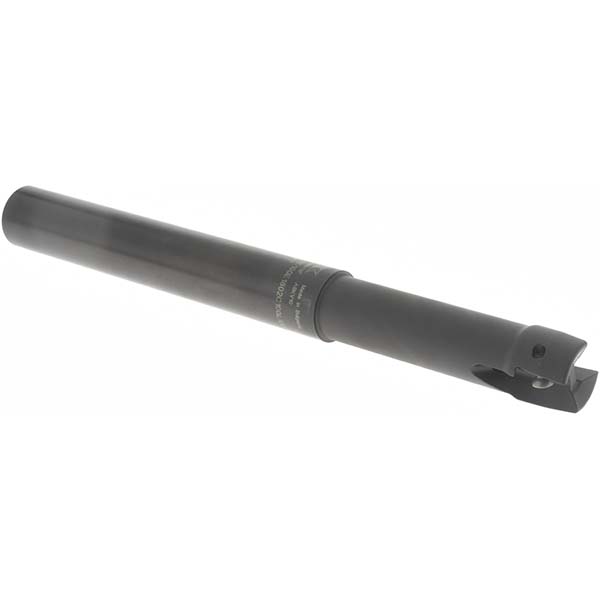

Uses (2) EC18..;EP18.. Inserts, Through Coolant, 102.36 mm OAL

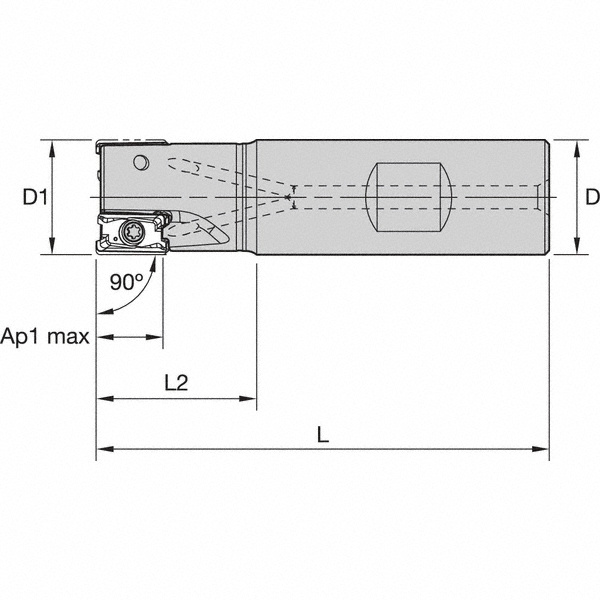

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 4.0300 |
| Overall Length (mm) | 102.36 |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Cutter Style | Mill 1 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Head Length (Decimal Inch) | 1.75 |
| Head Length (mm) | 44.45 |
| Maximum RPM | 37000 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |

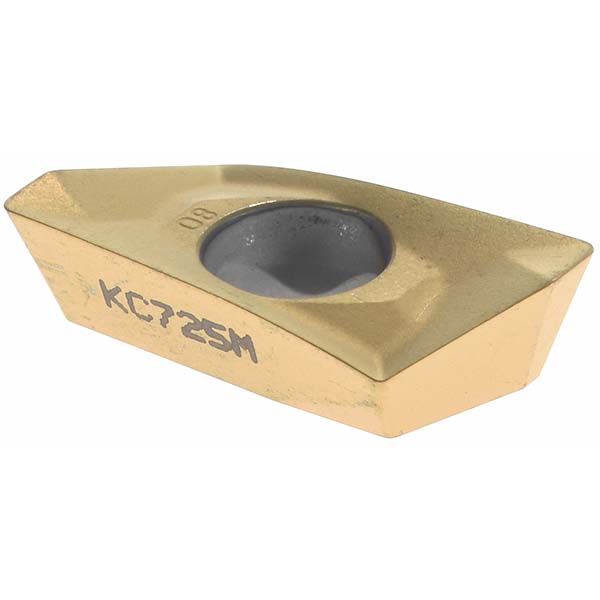

| Insert Compatibility | EC18..; EP18.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D100E1802W100L175 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 00692632 |
