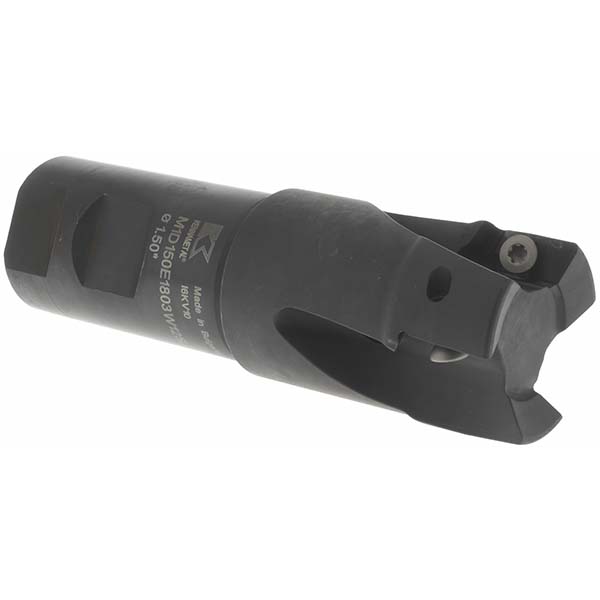

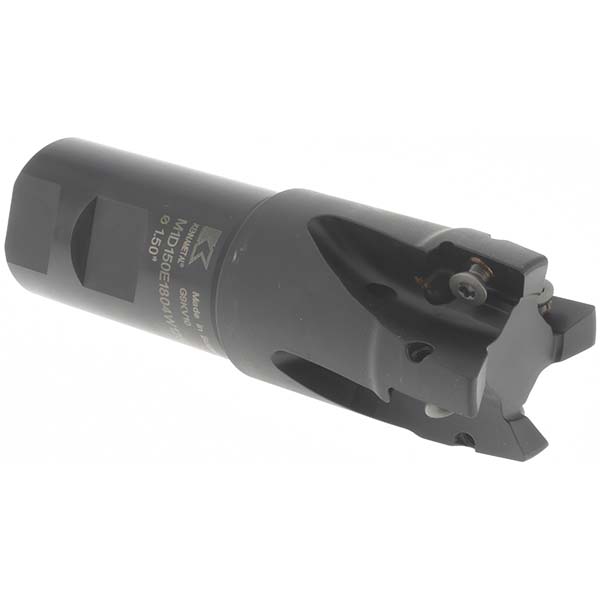

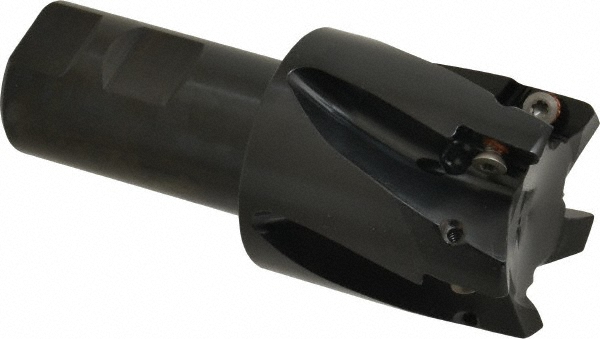

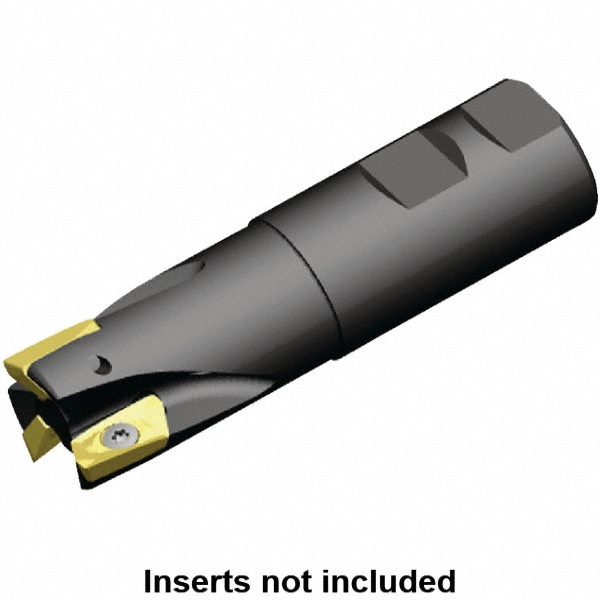

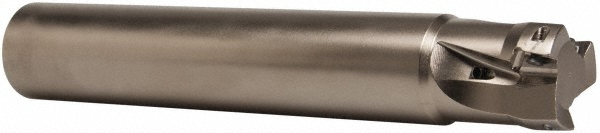

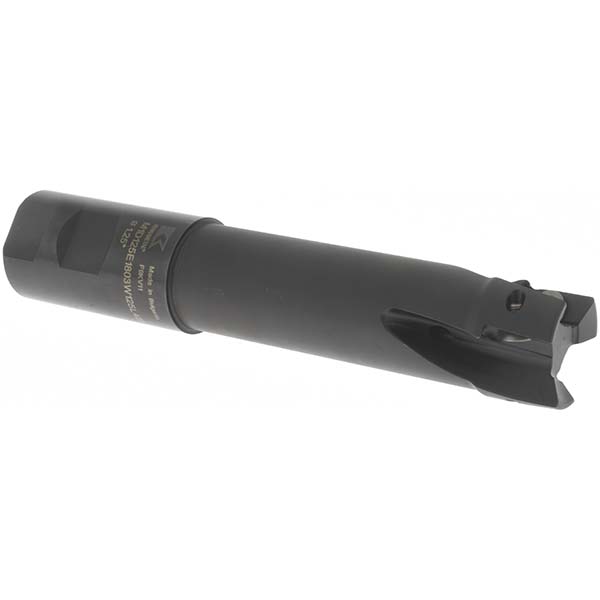

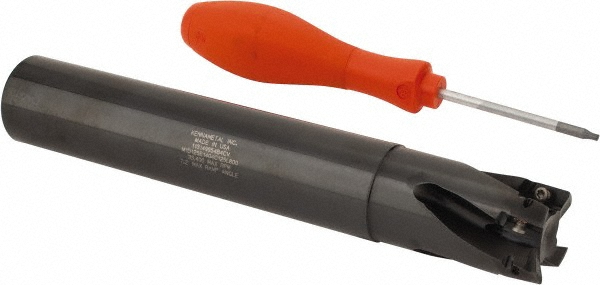

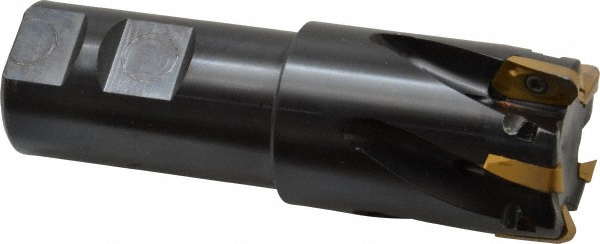

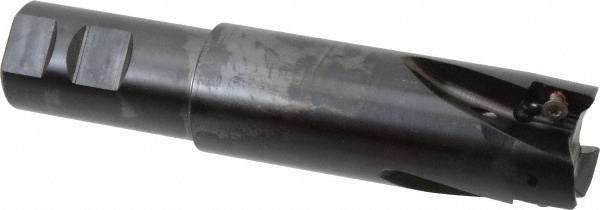

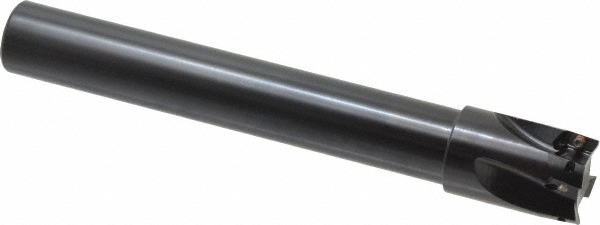

Uses (4) EC14..;EP14.. Inserts, Through Coolant, 114.56 mm OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.5100 |
| Overall Length (mm) | 114.56 |
| Maximum Depth of Cut (mm) | 14.48 |
| Maximum Depth of Cut (Decimal Inch) | 0.5700 |
| Cutter Style | Mill 1 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Head Length (Decimal Inch) | 2.23 |
| Head Length (mm) | 56.64 |
| Maximum RPM | 33400 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | EP14..; EC14.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D125E1404W125L225R |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Brazil |
| MSC Number | MSC# 01032275 |
