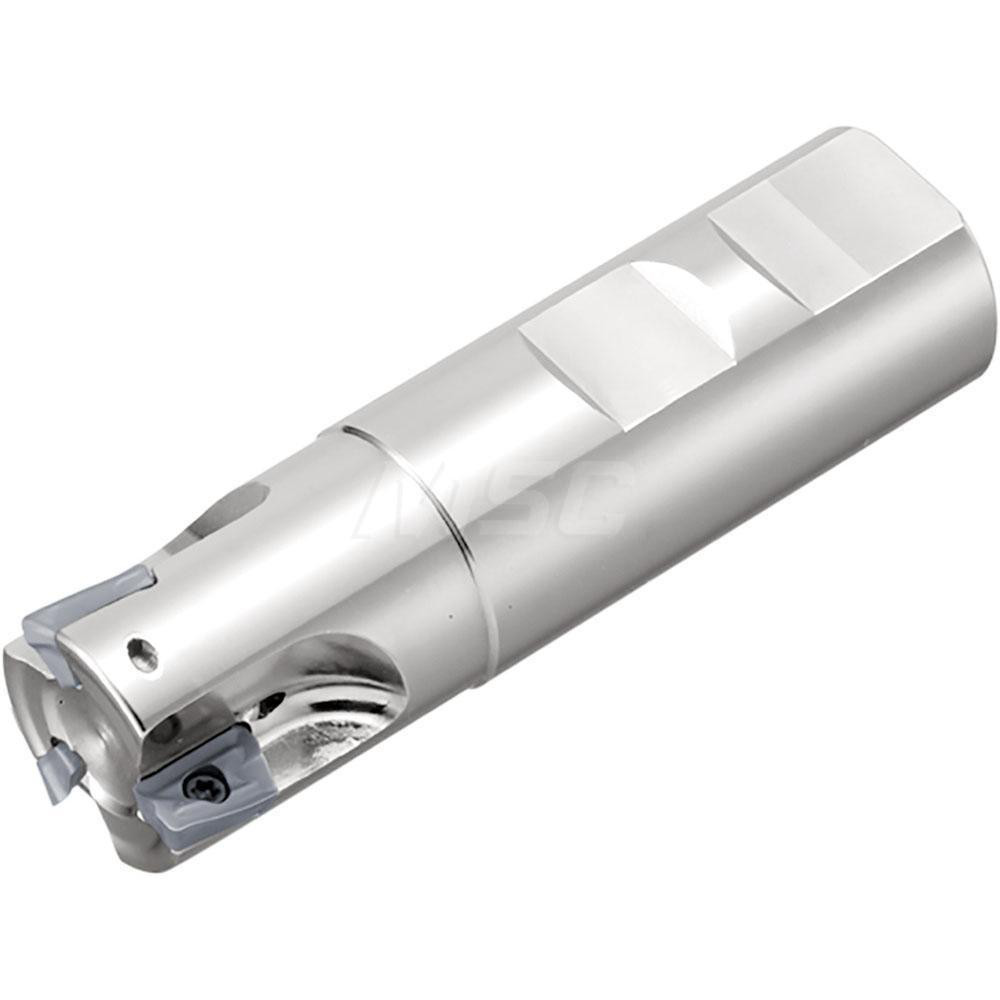

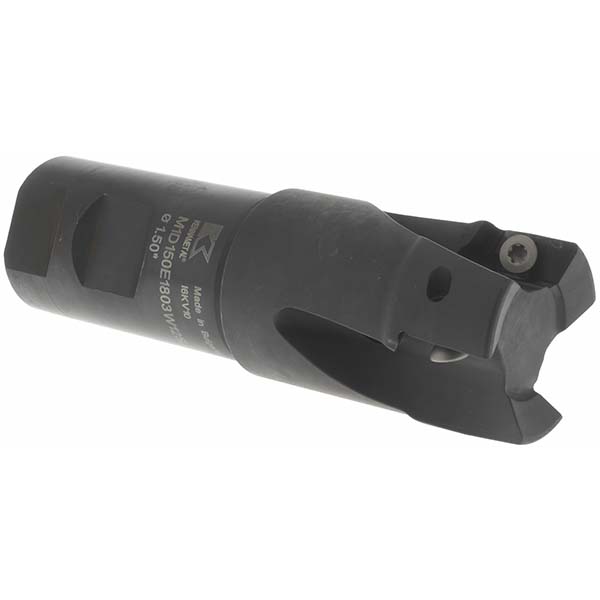

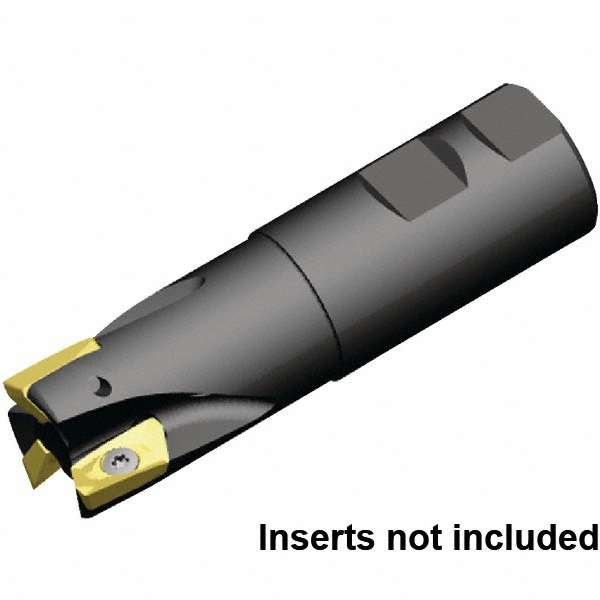

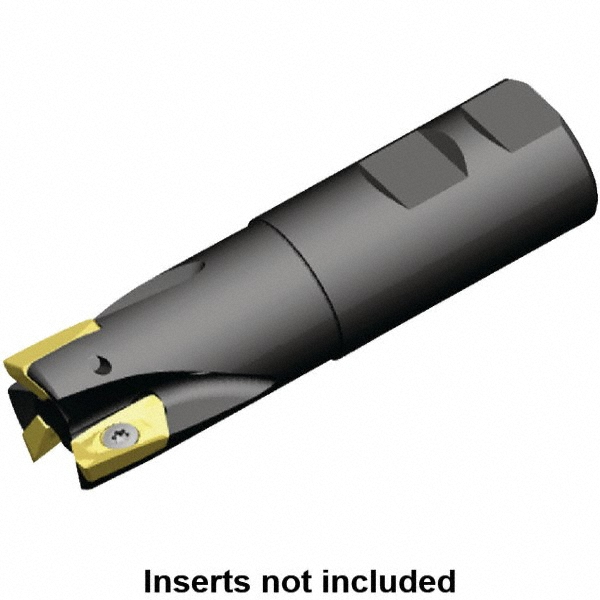

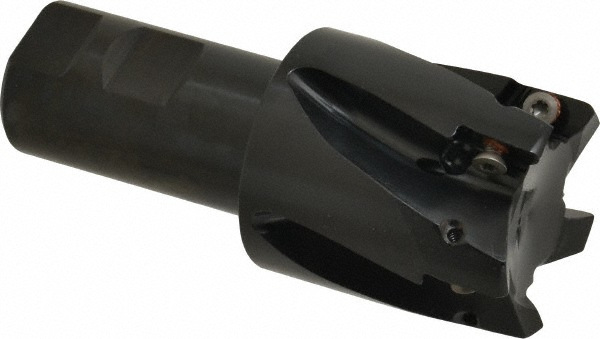

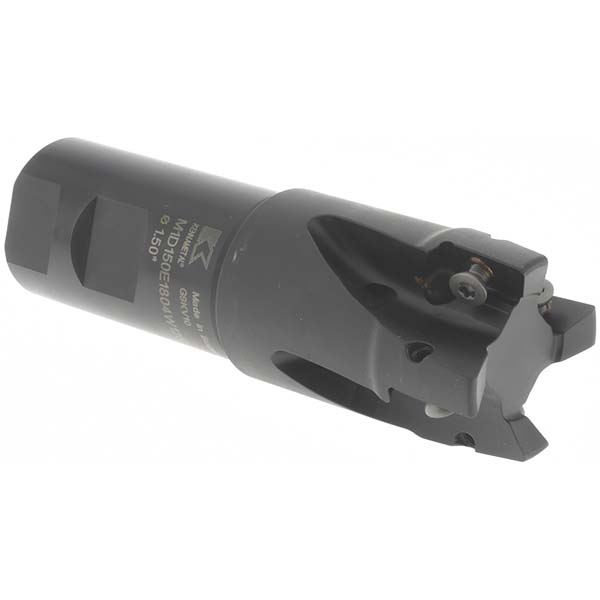

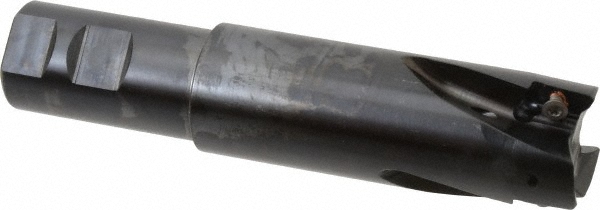

Uses (3) EC18..;EP18.. Inserts, Through Coolant, 164.29 mm OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 6.4680 |
| Overall Length (mm) | 164.29 |
| Maximum Depth of Cut (mm) | 16.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Cutter Style | Mill 1 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Head Length (Decimal Inch) | 4.188 |
| Head Length (mm) | 106.38 |
| Maximum RPM | 32300 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | EC18..; EP18.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D125E1803W125L425R |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 01032085 |
