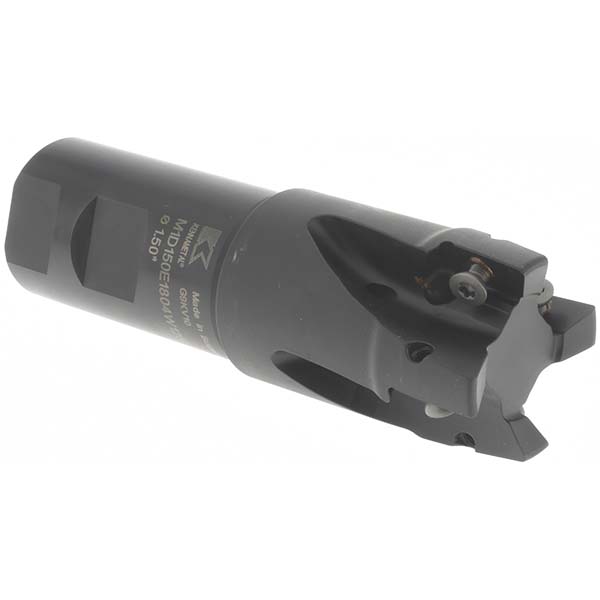

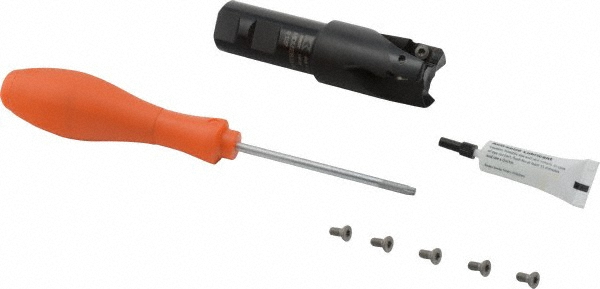

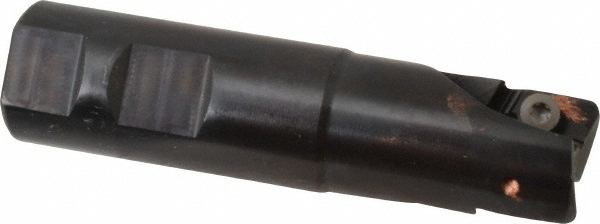

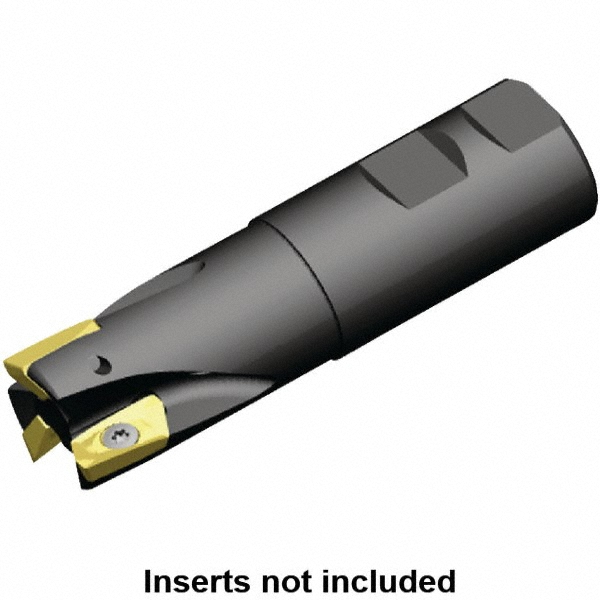

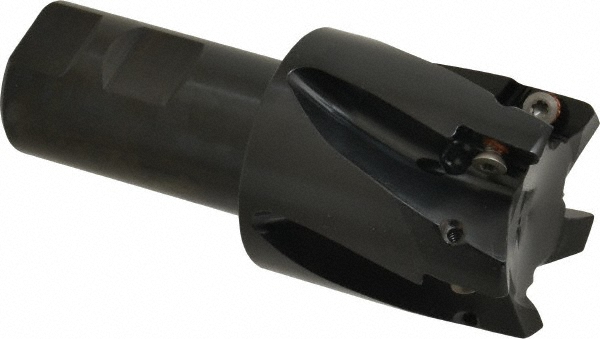

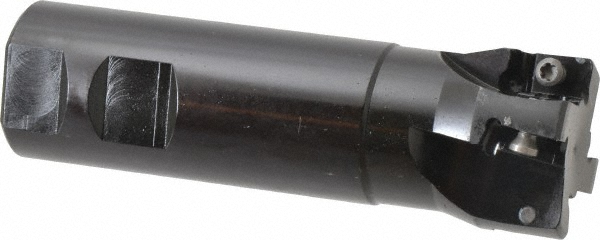

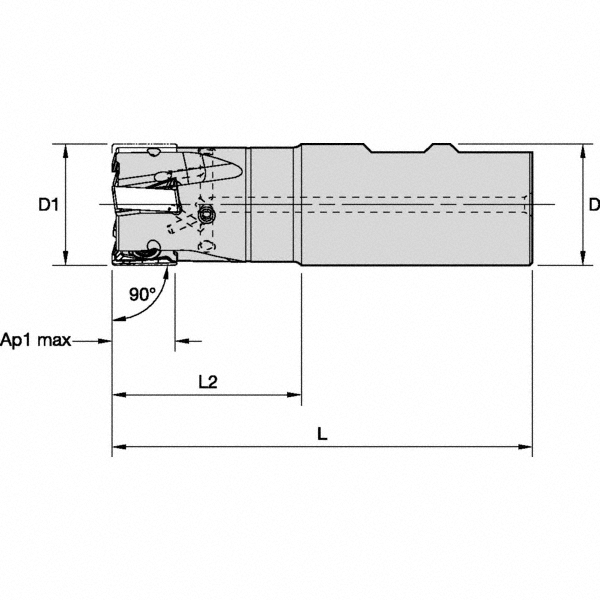

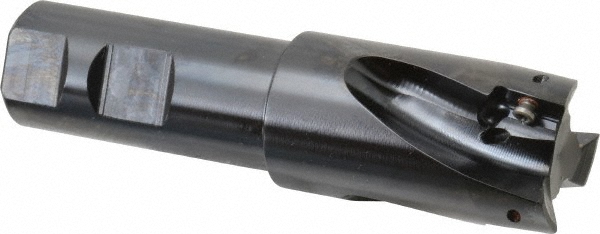

Uses (5) EC18..;EP18.. Inserts, 115.06 mm OAL
| Cutting Diameter | 2 |
|---|---|
| Overall Length (Decimal Inch) | 4.5300 |
| Overall Length (mm) | 115.06 |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Cutter Style | Mill 1 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Head Length (Decimal Inch) | 2.25 |
| Head Length (mm) | 57.15 |
| Maximum RPM | 24670 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |

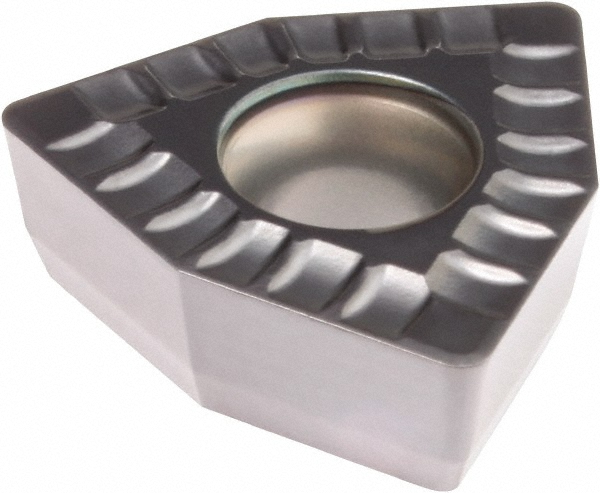

| Insert Compatibility | EC18..; EP18.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1D200E1805W125L225 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 00990085 |
