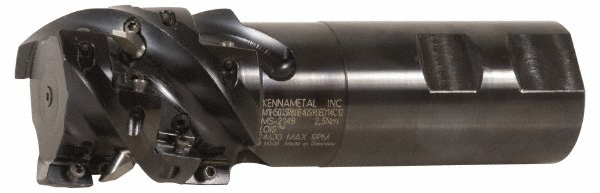

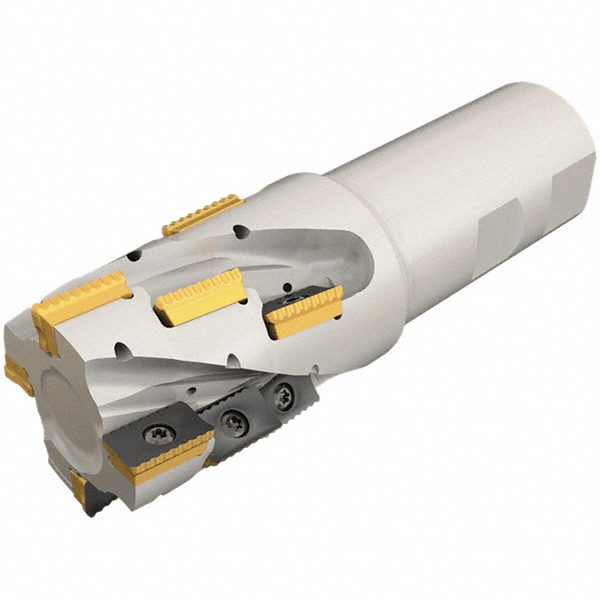

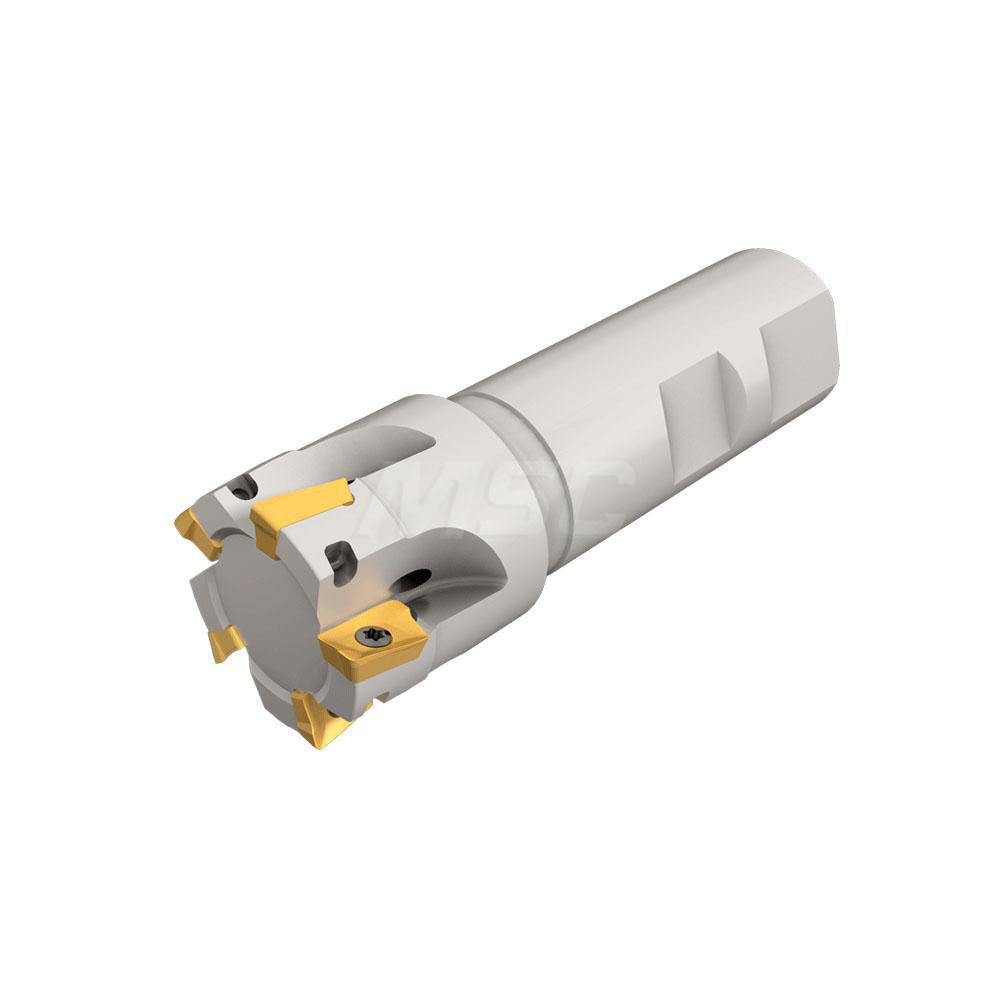

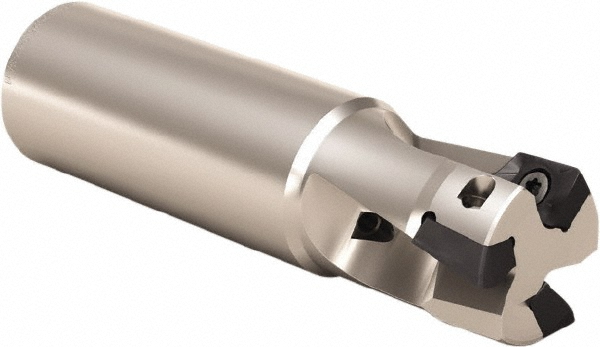

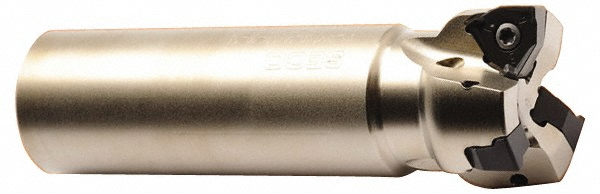

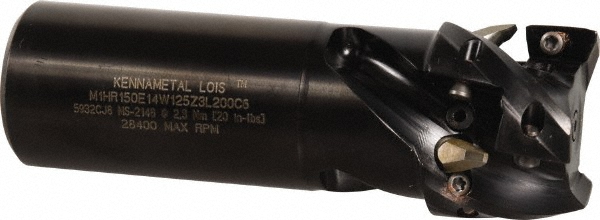

Uses (9) EC14..;EP14.. Inserts, Through Coolant, 126 mm OAL
| Cutting Diameter | 1.5748 in |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Overall Length (mm) | 126.00 |
| Maximum Depth of Cut (mm) | 40.80 |
| Maximum Depth of Cut (Decimal Inch) | 1.6075 |
| Cutter Style | Mill 1-14 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Head Length (mm) | 65.00 |
| Maximum RPM | 28400 |
| Tool Application | Helical |
| Coolant Hole Diameter (mm) | 2.00 |
| Insert Compatibility | EP14..; EC14.. |
| UNSPSC Code | 27112803 |
| ISO Number | M1H40J3R65B32S90ED14C9 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 9 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 83992636 |
