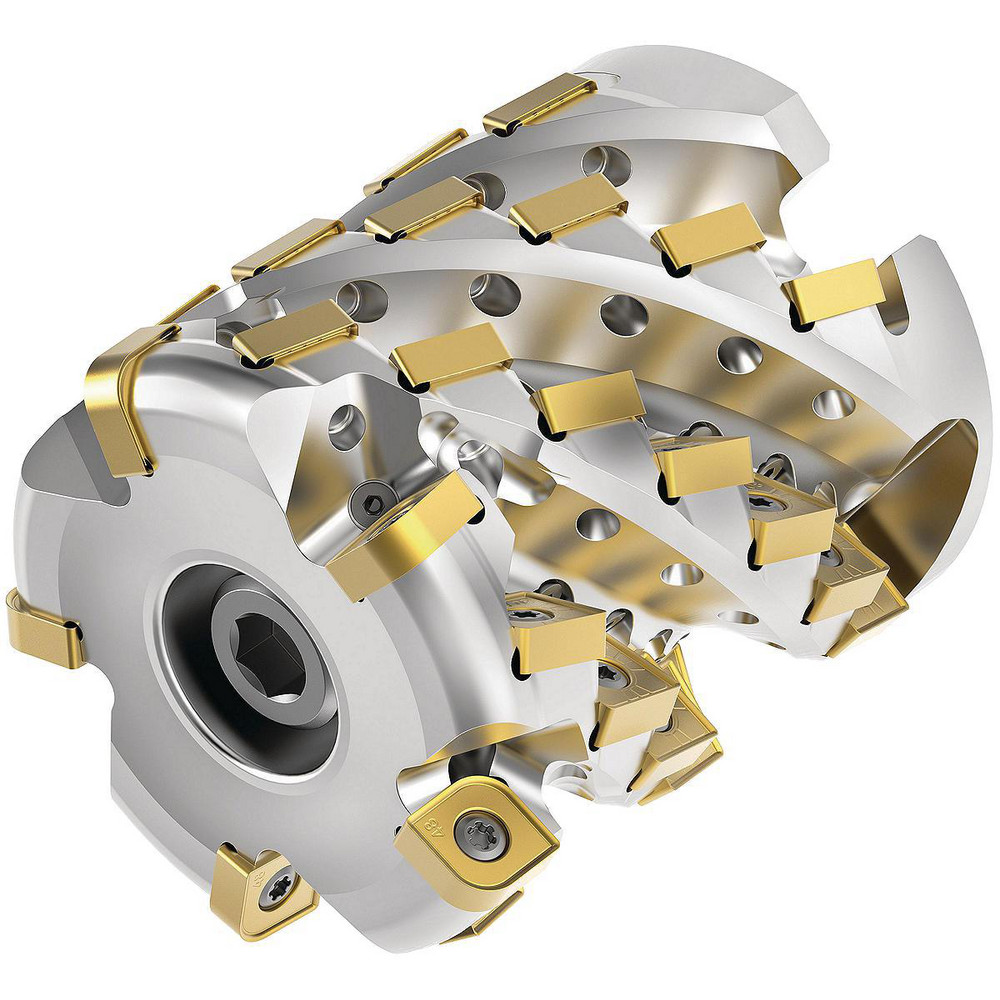

Uses 28, SNHJ100464SNGDH & SNHJ100408SNGDH Inserts, Through Coolant, Series HARVI Ultra 8X
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (Decimal Inch) | 2.1420 |
| Compatible Insert Size Code | SNHJ100408SNGDH; SNHJ100464SNGDH |
| Cutter Style | Helical Mill |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | HARVI Ultra 8X |
| Maximum Body Diameter (Decimal Inch) | 1.8837 |
| Hub Diameter (Decimal Inch) | 1.8837 |
| Complete Insert Compatibility | SNHJ100408SNGDH; SNHJ100464SNGDH |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HU8X200S10S100ZU4AP214Z28R48 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 28 |
| Number Of Flutes | 4 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 17696220 |
