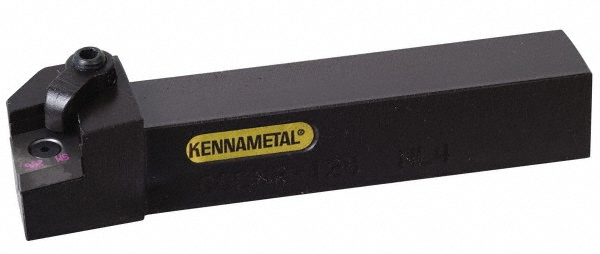

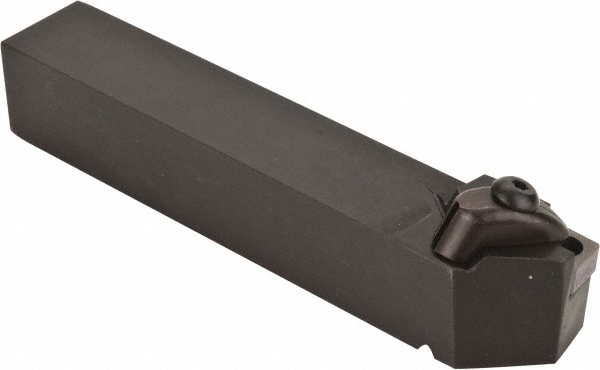

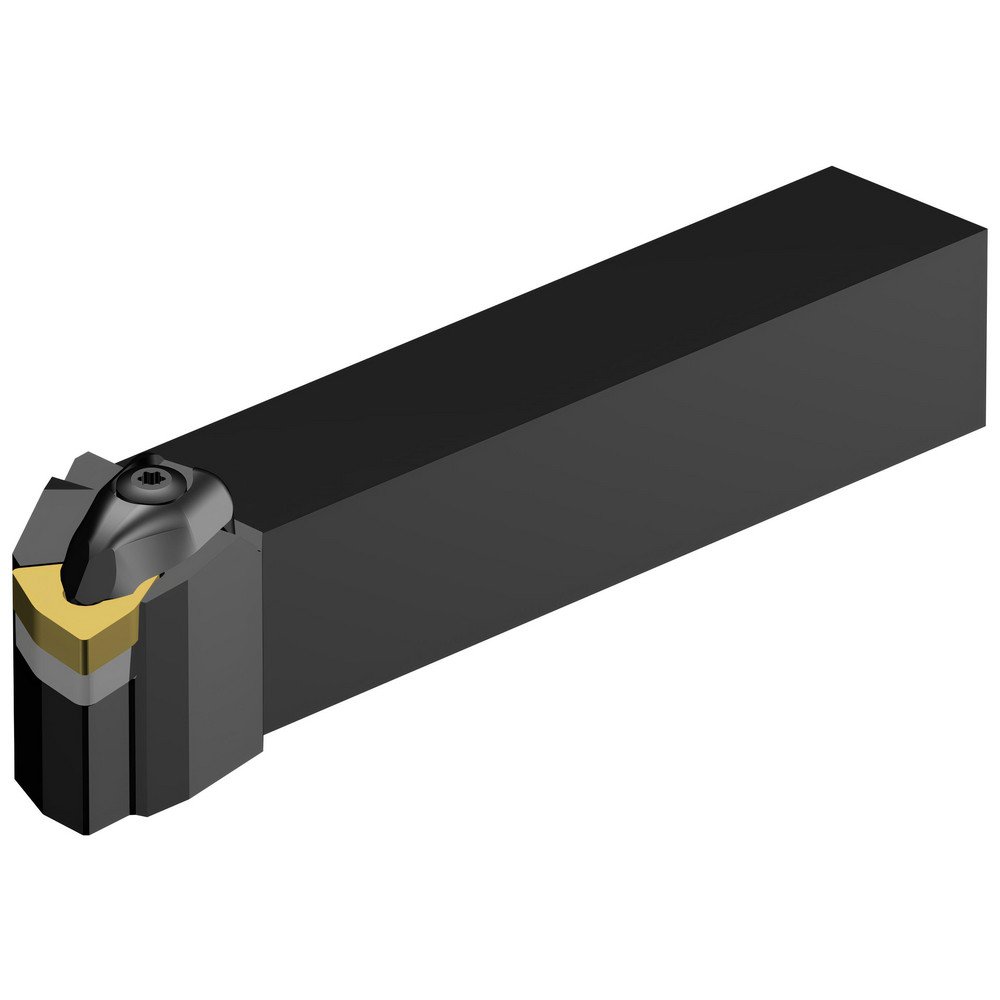

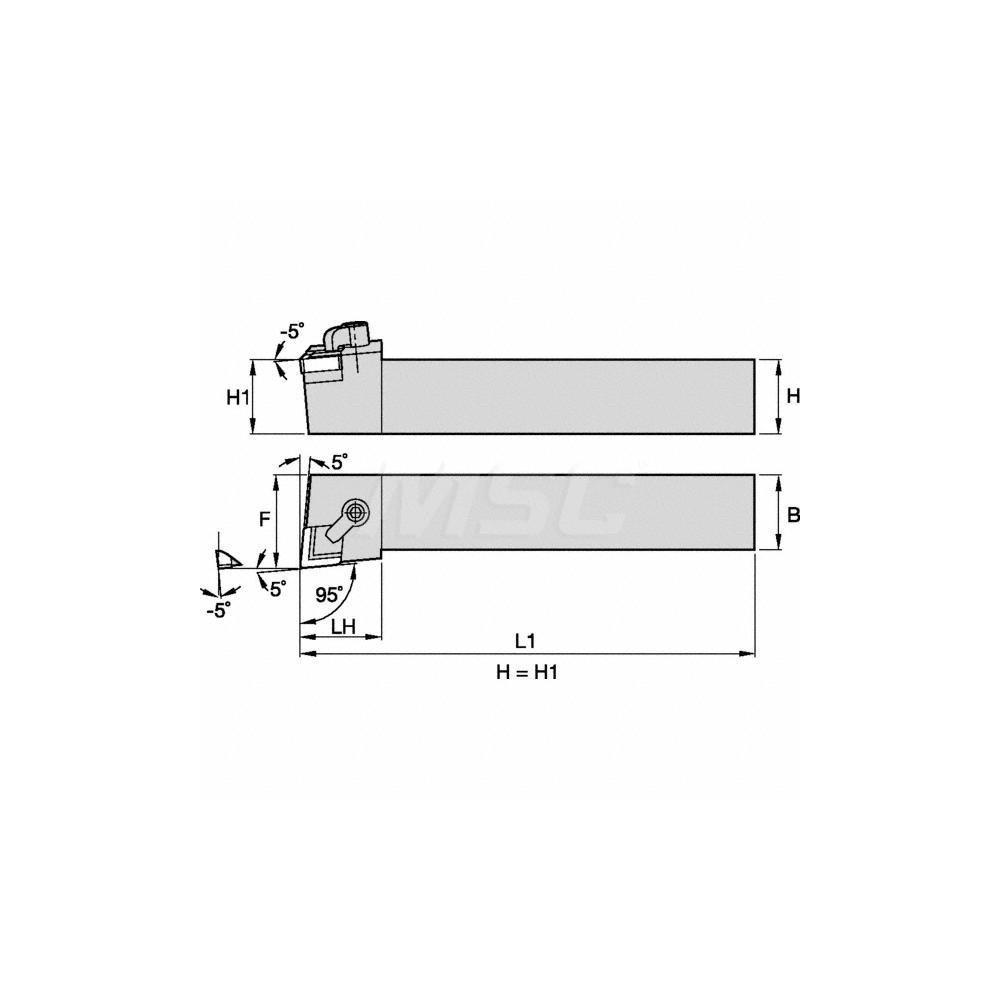

1 x 1" Shank, 6" OAL
| Toolholder Style | CCLN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CN..42. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Height (mm) | 25.40 |
| Coolant Through | No |
| Rake | Negative |
| Rake Angle | -5 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Kendex |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | CN.. 422 |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | L164; CCLNR |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 62213624 |
