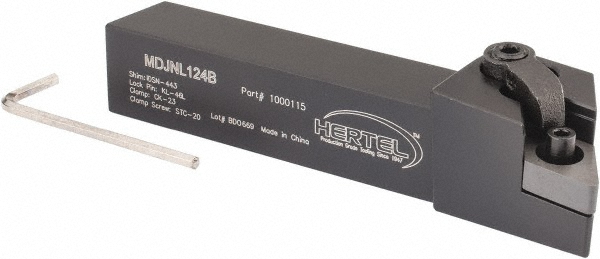

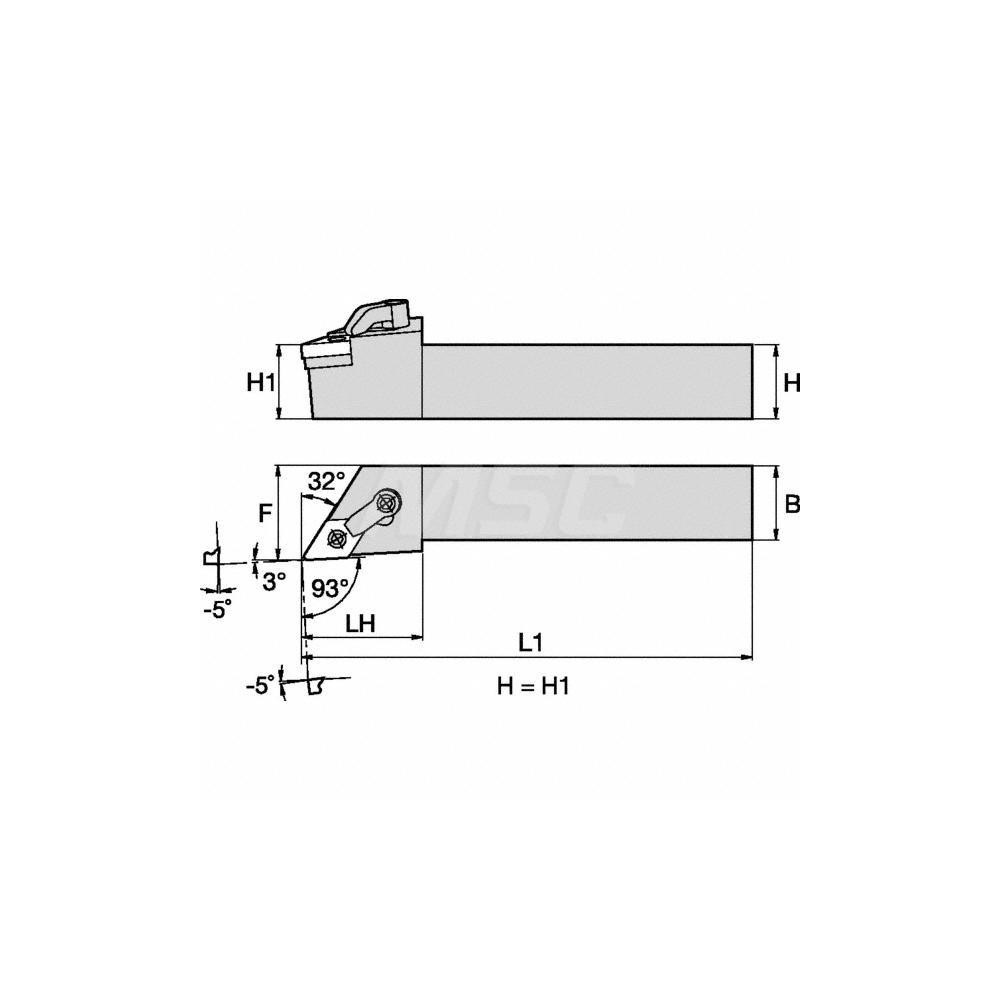

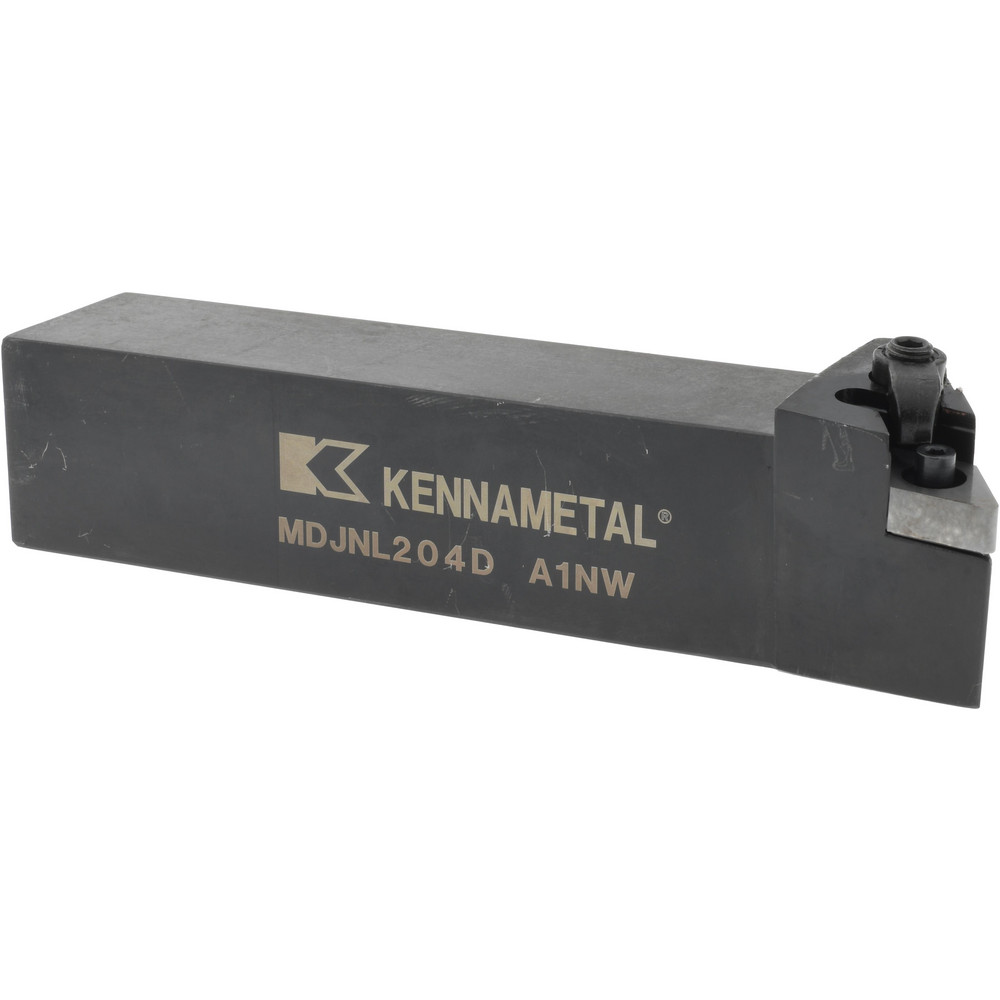

3/4 x 3/4" Shank, 4-1/2" OAL

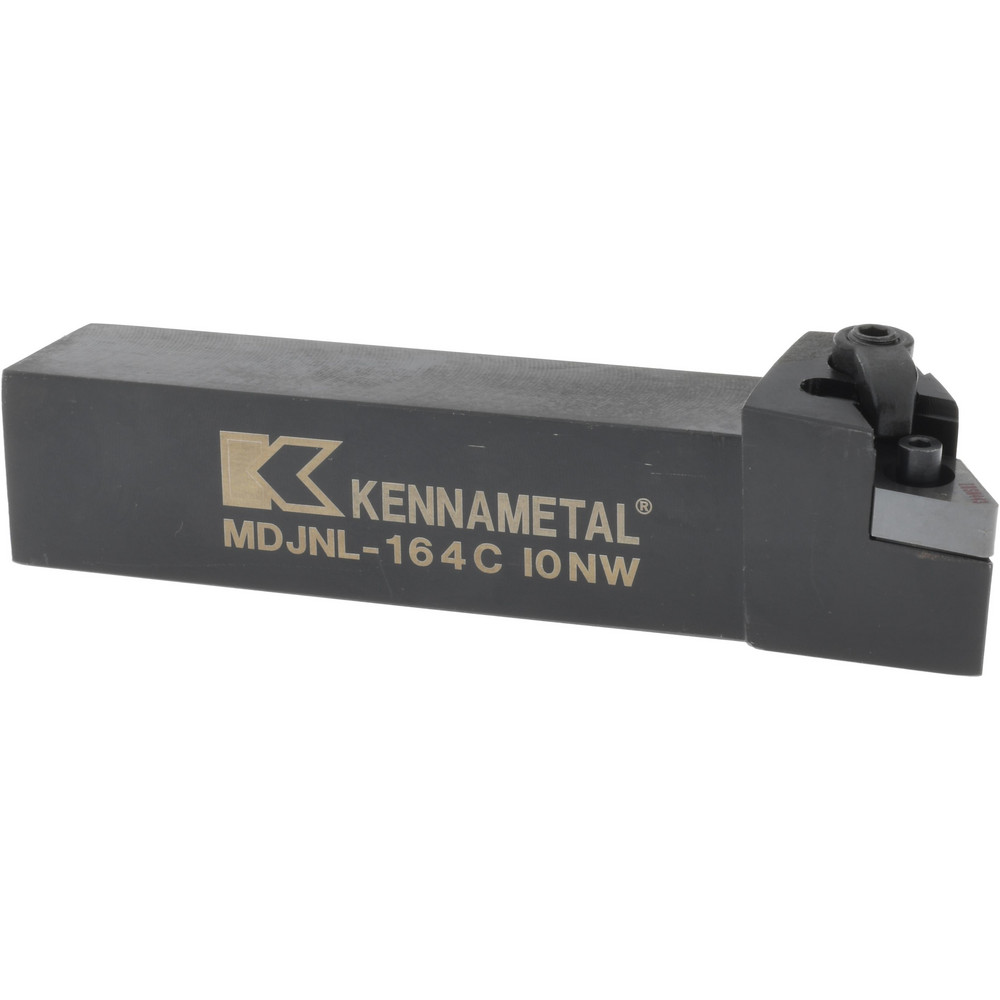

| Toolholder Style | MDJN |
|---|---|
| Hand of Holder | Left Hand |
| Insert Compatibility | DN..43. |

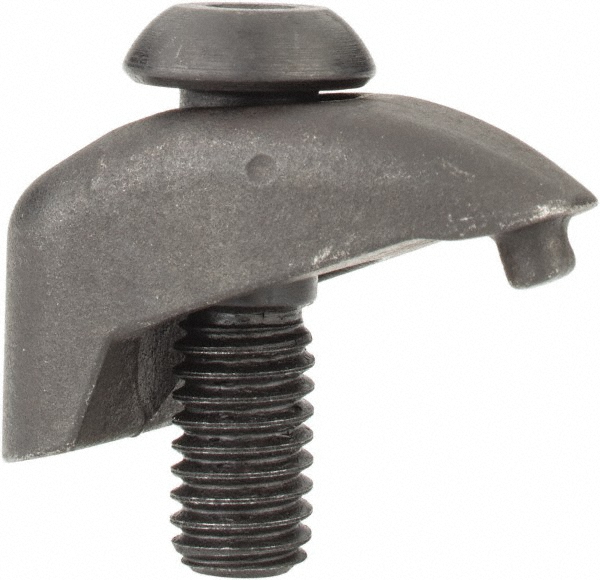

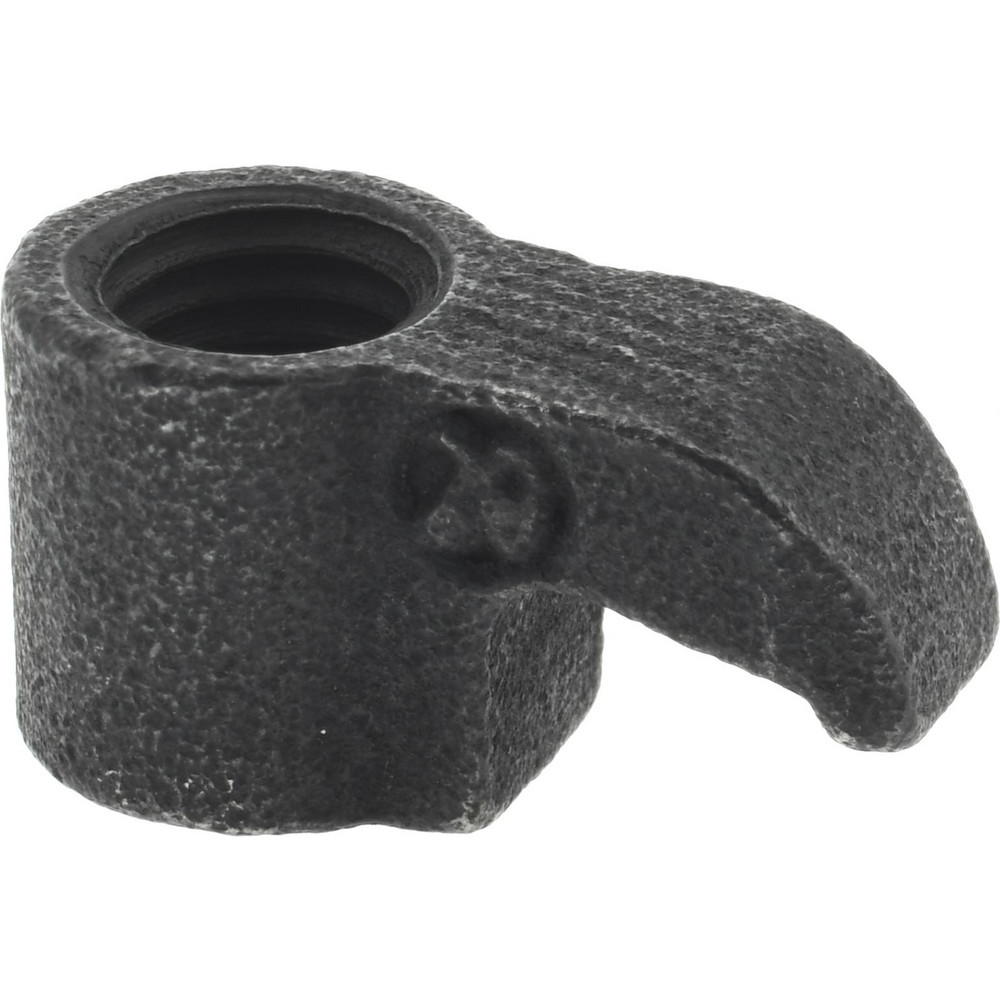

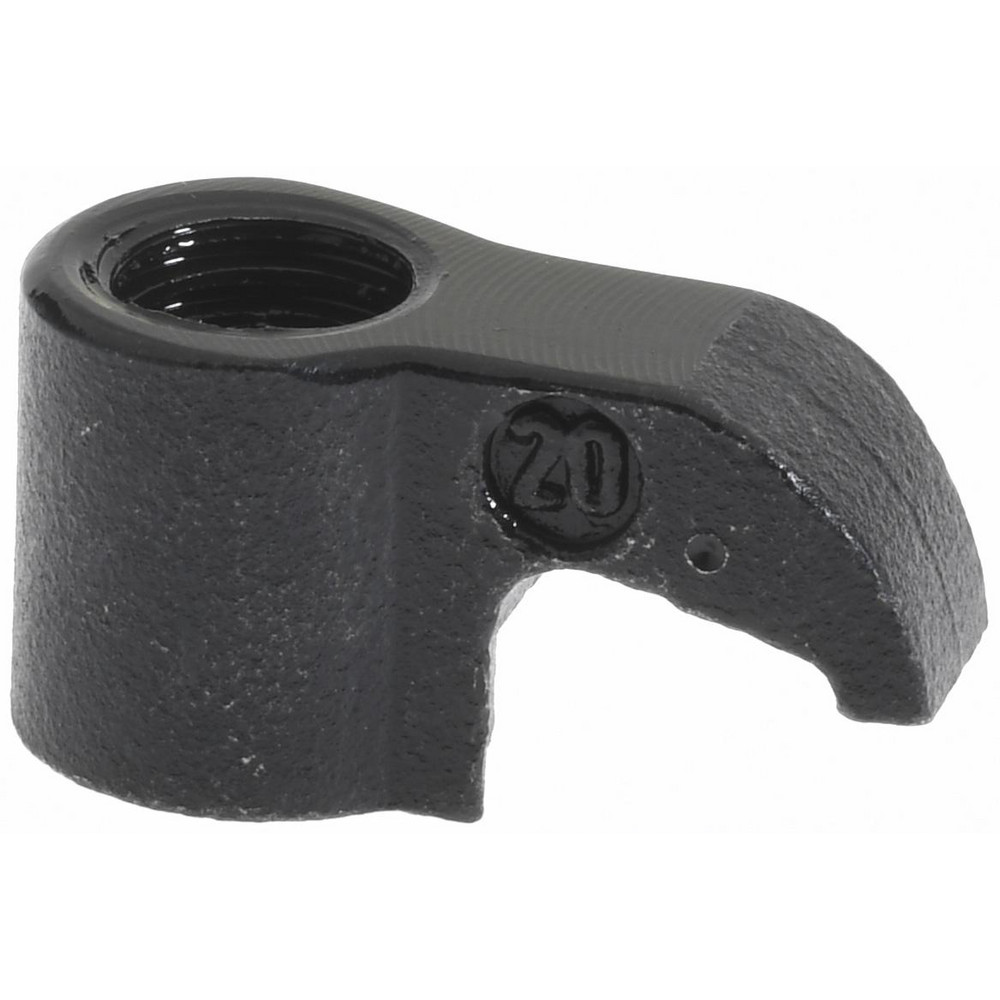

| Insert Holding Method | Screw; Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Height (mm) | 19.05 |
| Coolant Through | No |
| Rake | Negative |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Kenloc |
| Overall Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 1.3800 |
| Head Length (mm) | 34.93 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | DN.. 432 |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 64922602 |
