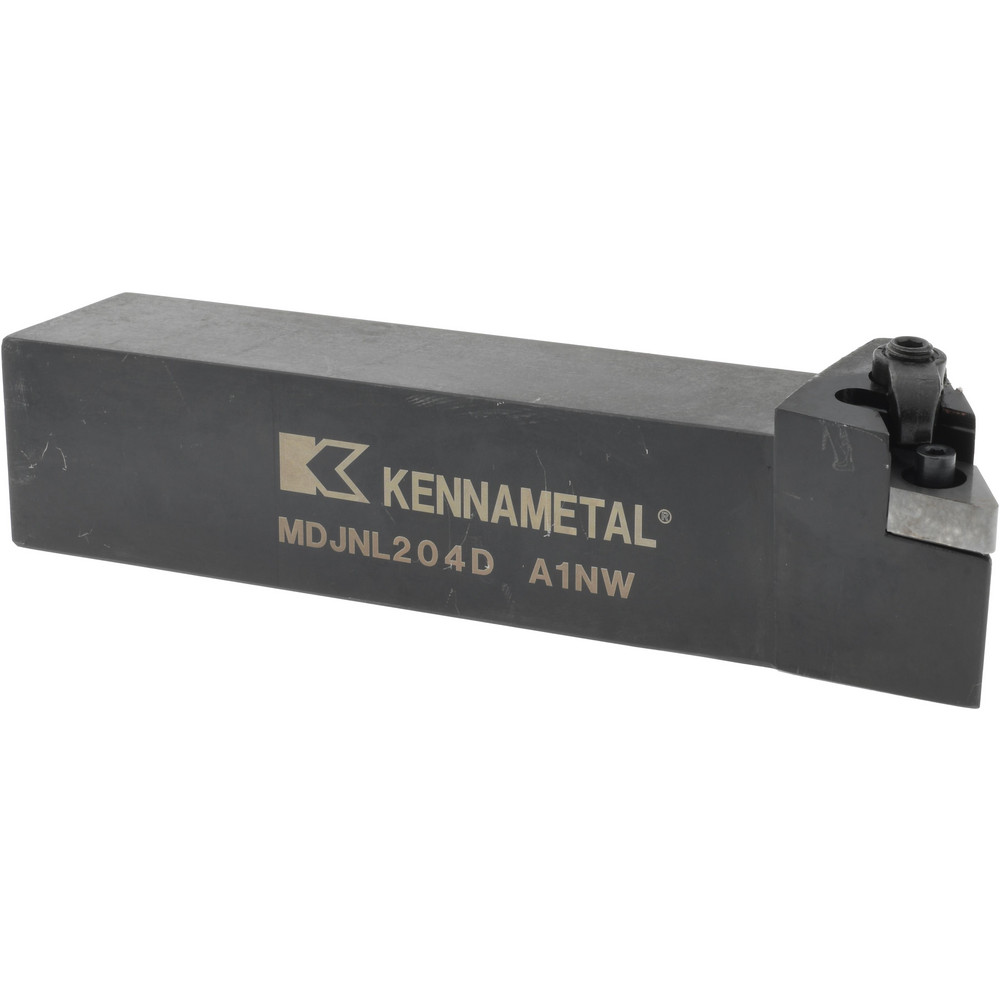

1-1/2 x 1-1/2" Shank, 6" OAL

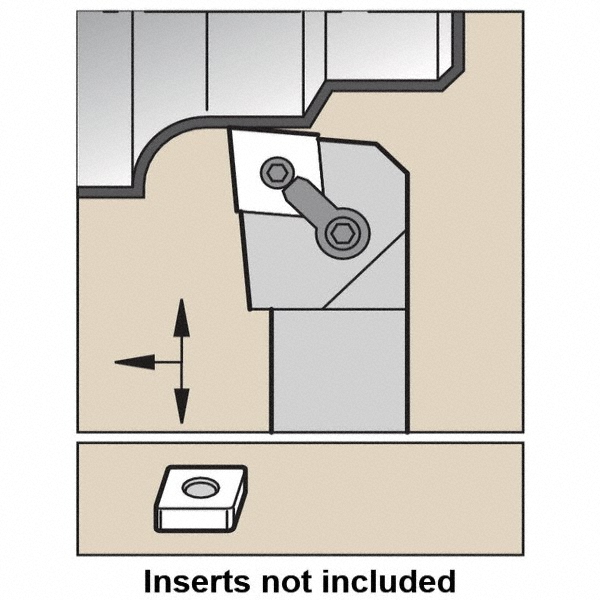

| Toolholder Style | MDJN |
|---|---|
| Hand of Holder | Left Hand |
| Insert Compatibility | DN..54. |
| Insert Holding Method | Screw; Clamp |
| Shank Width (Inch) | 1-1/2 |
| Shank Height (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Height (mm) | 38.10 |
| Coolant Through | No |
| Rake | Negative |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Decimal Inch) | 1.5000 |
| Series | Kenloc |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 1.4700 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | DN.. 543 |
| UNSPSC Code | 23153308 |
| Coating Classification | Kennametal |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 06572598 |
