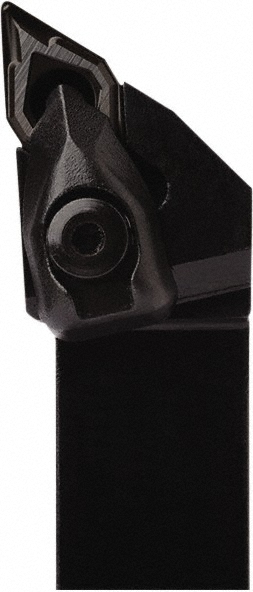

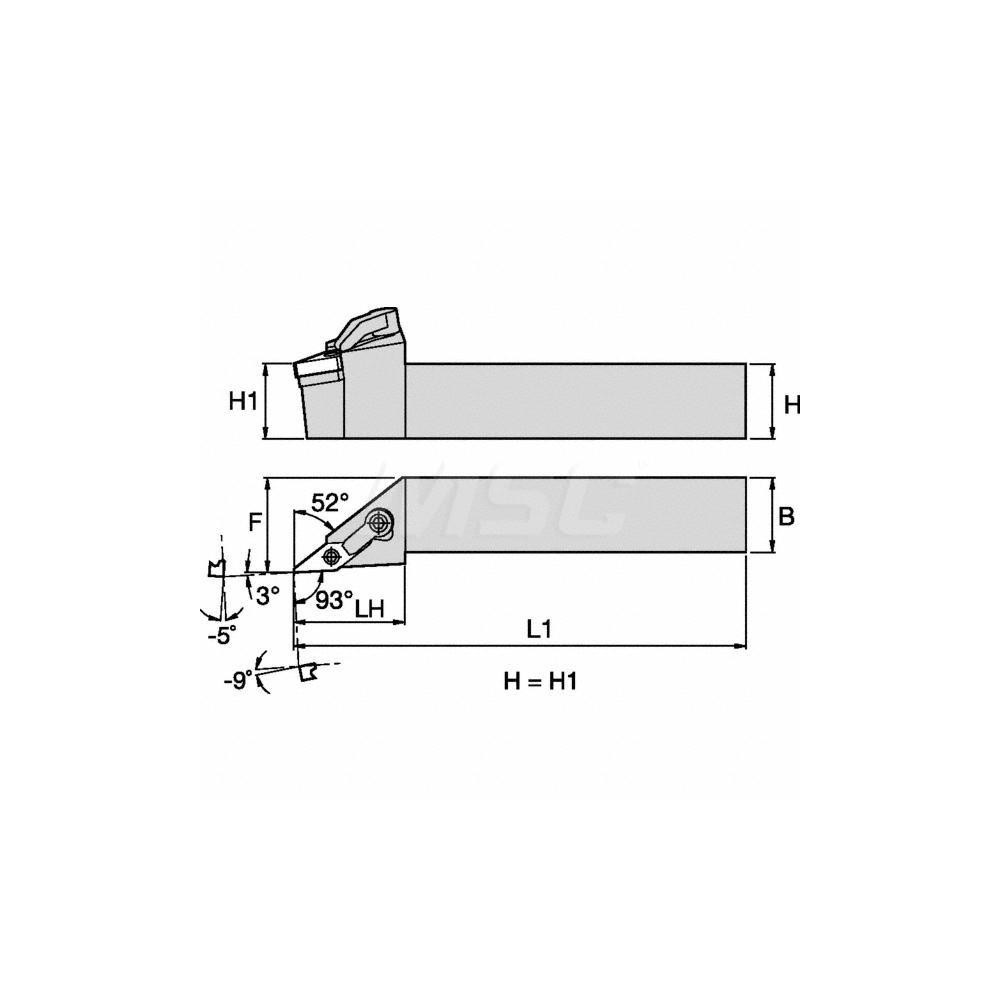

32.00 x 32.00 mm Shank, 171.25 mm OAL

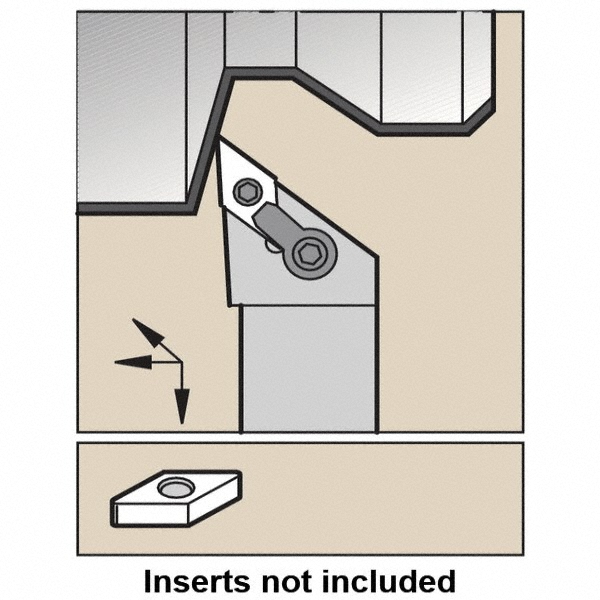

| Toolholder Style | MVJN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | VN..1604.. |
| Insert Holding Method | Pin; Clamp |
| Overall Length (Decimal Inch) | 6.7421 |
| Shank Width (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Rake | Negative |
| Rake Angle | -5 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (Decimal Inch) | 1.2598 |
| Series | Kenloc |
| Head Length (Decimal Inch) | 1.4567 |
| Head Length (mm) | 37.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5945 |
| Back of Bar to Cutting Edge (mm) | 40.50 |
| Insert Inscribed Circle (Inch) | 3/8 |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 58452111 |
