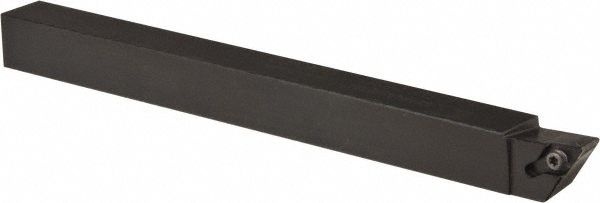

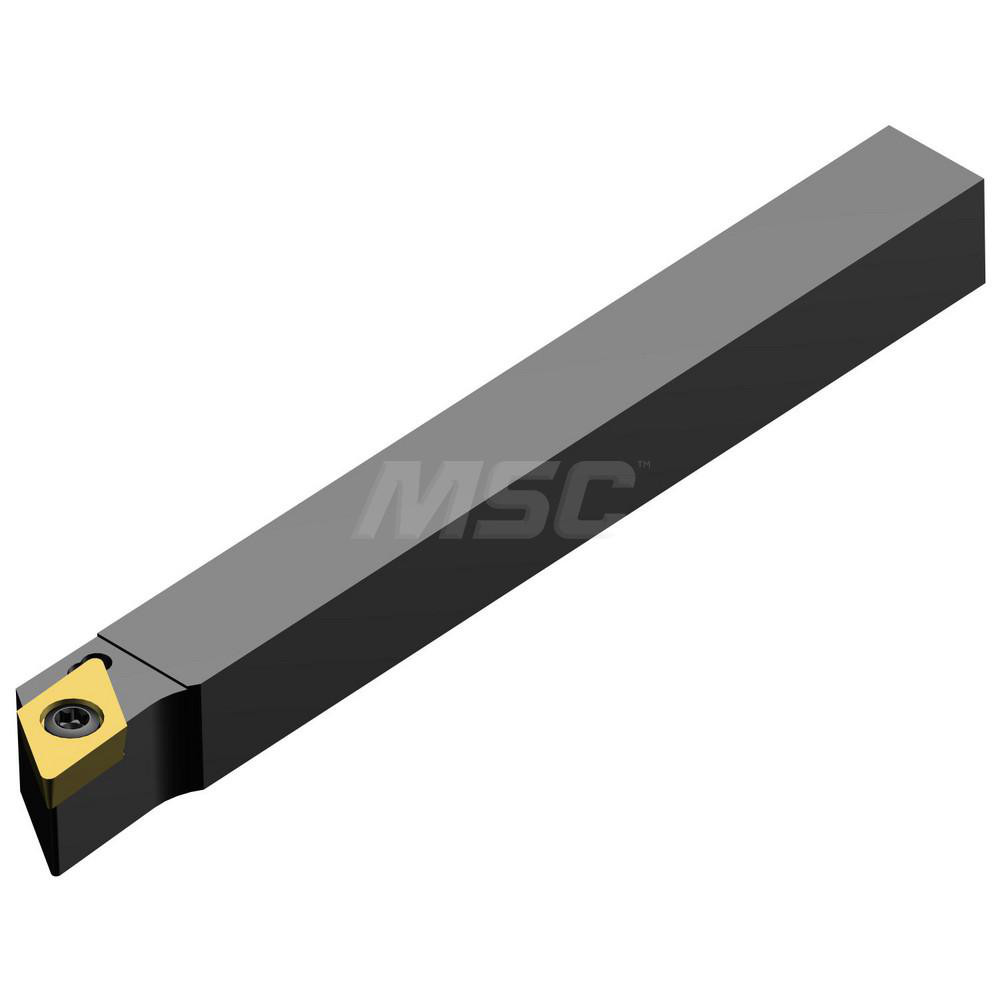

1/2 x 1/2" Shank, 6" OAL

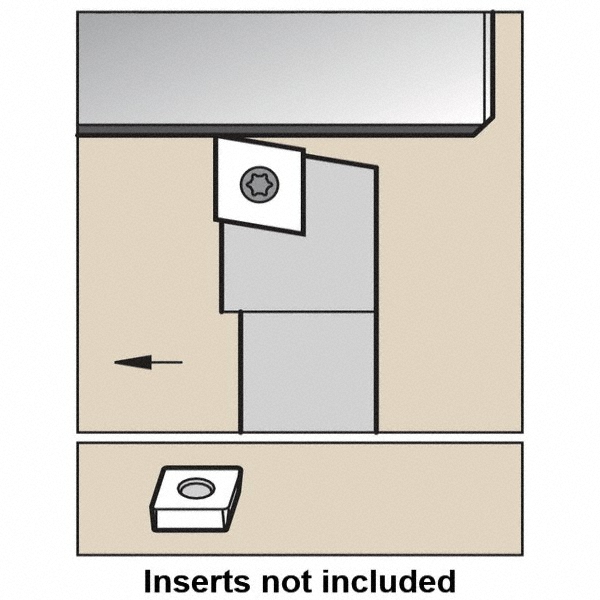

| Toolholder Style | SCAP |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CP..32.5. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Height (mm) | 12.70 |
| Coolant Through | No |
| Rake | Positive |
| Rake Angle | 4 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Screw-On |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 0.6200 |
| Back of Bar to Cutting Edge (Inch) | 1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |

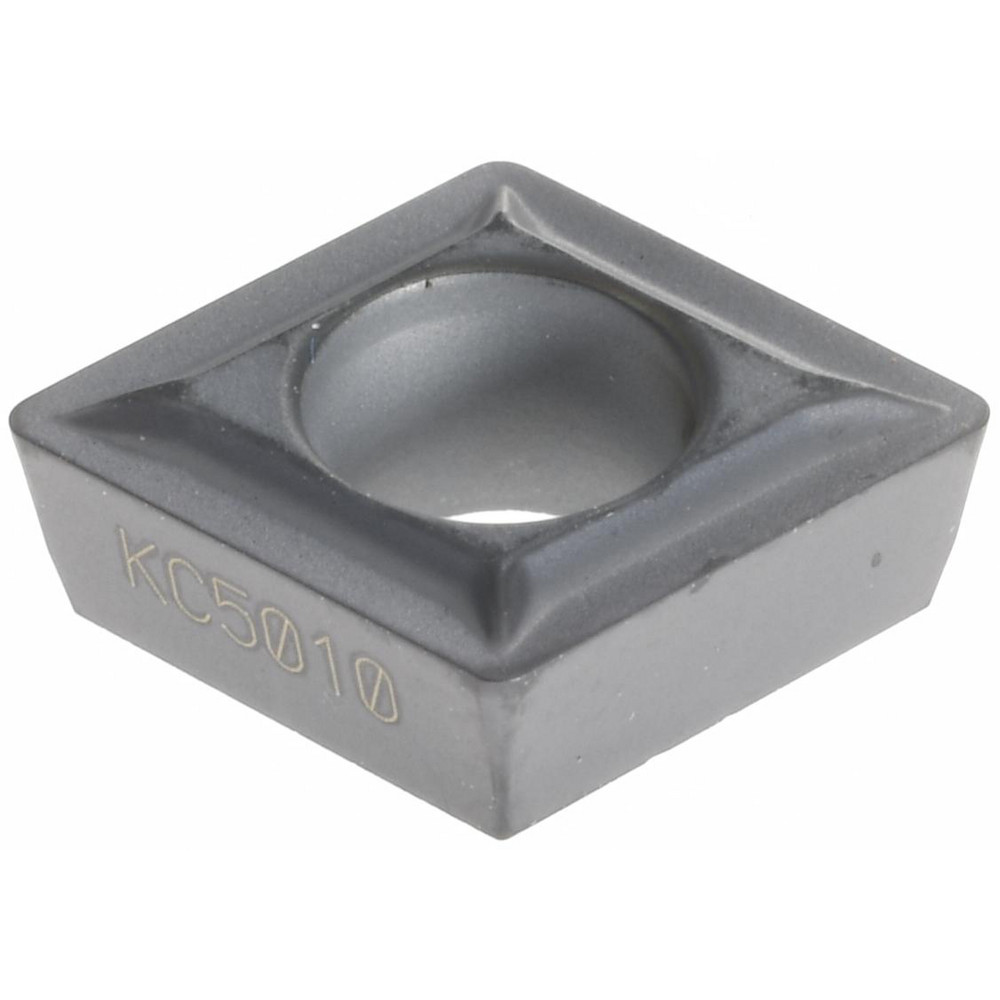

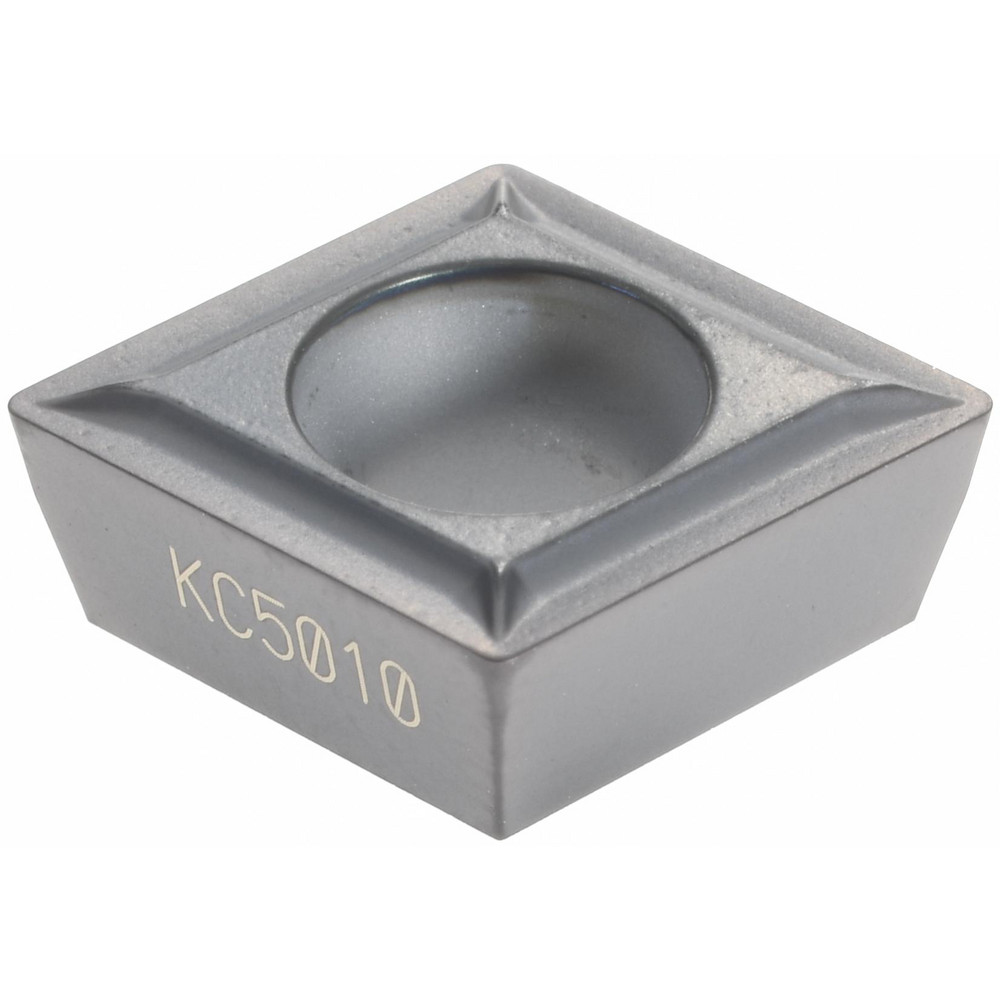

| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | CP.. 3252 |
| UNSPSC Code | 23153308 |
| Coating Classification | Kennametal |

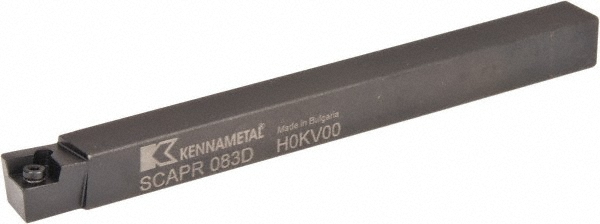

| Manufacturers Catalog Number | SCAPR083D |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 09829649 |
