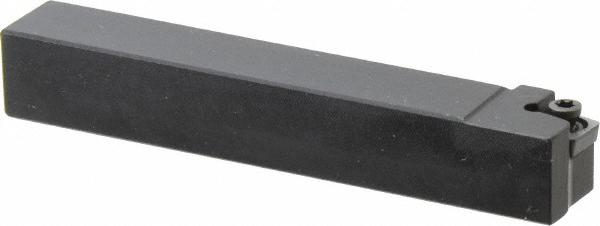

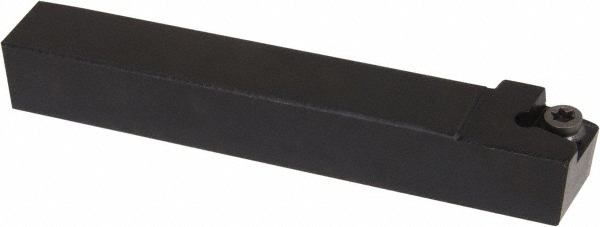

5/8 x 5/8" Shank, 4" OAL

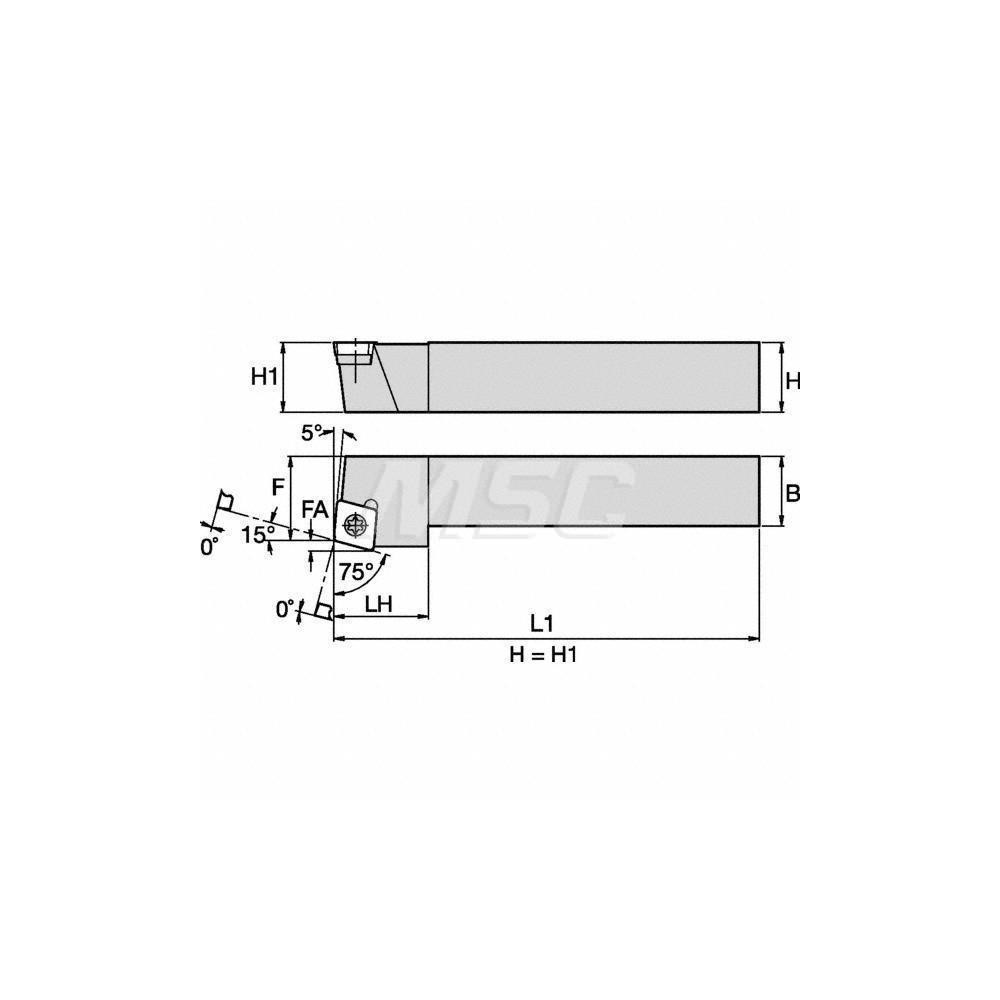

| Toolholder Style | SCRC |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CC..32.5. |

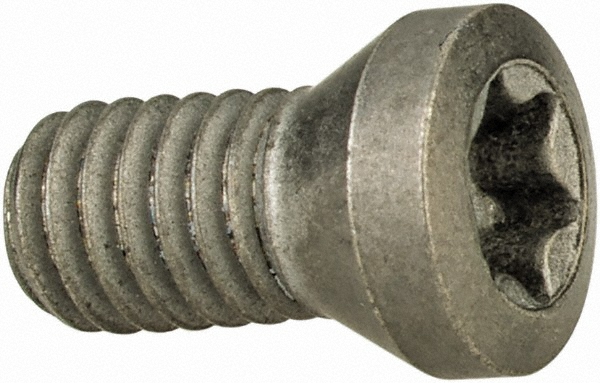

| Insert Holding Method | Screw |
| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6300 |
| Series | Screw-On |
| Overall Length (Inch) | 4 |
| Head Length (Decimal Inch) | 0.6200 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6730 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | CC.. 3252 |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | SCRCR103 |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 80745946 |
